0046 - DASHBOARD AIR DUCTS

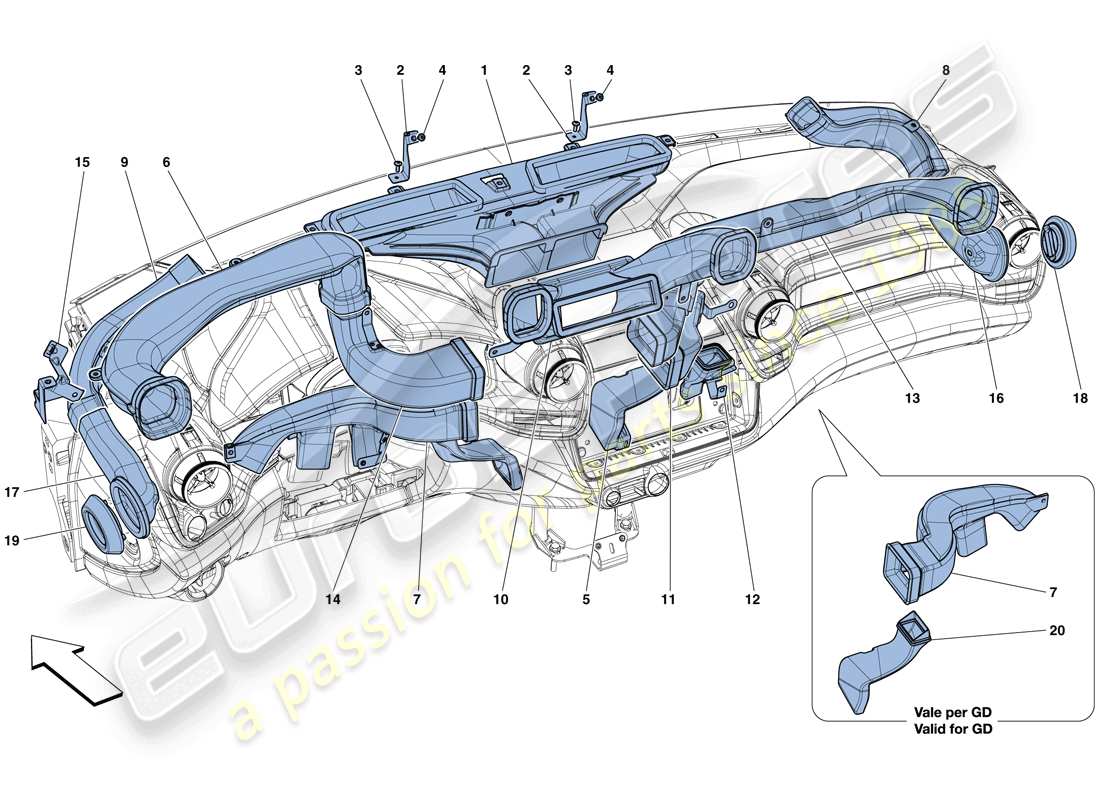

Ferrari GTC4 Lusso (Europe) DASHBOARD AIR DUCTS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Price
            # 001
            MPN: 88213200
            AIR DUCT
            from £27.31
            from £27.31
            # 002
            MPN: 83854200
            LATERAL BRACKET
            from £14.48
            from £14.48
            This part replaces part number 82666200
            # 003
            MPN: 85692200
            SCREW
            from £0.47
            from £0.47
            # 004
            MPN: 85692000
            SCREW
            -M5 X 10-
            from £0.53
            from £0.53
            # 005
            MPN: 87942500
            UPPER PART OF RH FOOTWELL AIR DUCT
            from £11.40
            from £11.40
            This part replaces part number 88319400 - and 1 more. Click to view details
            # 005
            MPN: 88319400
            UPPER PART OF LH FOOTWELL AIR DUCT
            -Applicable for GD- -No longer supplied- -Replaced by 87942500-
            Supersession
            Supersession
            # 006
            MPN: 88137300
            UPPER DRIVER SIDE AIR DUCT
            -Not for GD-
            from £89.00
            from £89.00
            # 006
            MPN: 88203800
            UPPER DRIVER SIDE AIR DUCT
            -Applicable for GD-
            from £48.52
            from £48.52
            # 007
            MPN: 88204000
            DRIVER SIDE FOOTWELL DUCT
            -Applicable for GD-
            from £88.70
            from £88.70
            # 007
            MPN: 88430100
            DRIVER SIDE FOOTWELL DUCT
            -Not for GD-
            from £88.70
            from £88.70
            # 008
            MPN: 87511900
            RH DEMISTER DUCT
            -Not for GD-
            from £84.20
            from £84.20
            # 008
            MPN: 88865800
            LH DEMISTER DUCT
            -Applicable for GD-
            from £46.30
            from £46.30
            # 009
            MPN: 87511700
            LH DEMISTER DUCT
            -Not for GD-
            from £84.20
            from £84.20
            # 009
            MPN: 88865900
            RH DEMISTER DUCT
            -Applicable for GD-
            from £46.30
            from £46.30
            # 010
            MPN: 86987400
            CENTRE DUCT
            -Not for GD-
            from £51.74
            from £51.74
            # 010
            MPN: 88201500
            CENTRE DUCT
            -Applicable for GD-
            from £47.16
            from £47.16
            # 011
            MPN: 86988100
            PASSENGER SIDE UPPER FOOTWELL AIR DUCT
            -Not for GD-
            from £39.20
            from £39.20
            # 011
            MPN: 88201700
            PASSENGER SIDE UPPER FOOTWELL AIR DUCT
            -Applicable for GD-
            from £44.35
            from £44.35
            # 012
            MPN: 86988300
            PASSENGER SIDE LOWER FOOTWELL AIR DUCT
            -Not for GD-
            from £35.51
            from £35.51
            # 012
            MPN: 88202000
            PASSENGER SIDE LOWER FOOTWELL AIR DUCT
            -Applicable for GD-
            from £21.54
            from £21.54
            # 013
            MPN: 86988600
            PASSENGER SIDE AIR DUCT
            -Not for GD-
            from £107.83
            from £107.83
            # 013
            MPN: 88203100
            PASSENGER SIDE AIR DUCT
            -Applicable for GD-
            from £62.53
            from £62.53
            # 014
            MPN: 86989000
            LOWER DASH AIR DUCT
            -Not for GD-
            from £35.51
            from £35.51
            # 014
            MPN: 88203300
            LOWER DASH AIR DUCT
            -Applicable for GD-
            from £26.42
            from £26.42
            # 015
            MPN: 87013800
            UPPER DRIVER SIDE AIR DUCT BRACKET
            -Not for GD-
            from £17.75
            from £17.75
            # 015
            MPN: 88203700
            UPPER DRIVER SIDE AIR DUCT BRACKET
            -Applicable for GD-
            from £23.65
            from £23.65
            # 016
            MPN: 86989800
            DASH-RH DOOR AIR DUCT
            from £20.33
            from £20.33
            This part replaces part number 88321000 - and 1 more. Click to view details
            # 016
            MPN: 88321000
            DASH-RH DOOR AIR DUCT
            -Applicable for GD- -No longer supplied- -Replaced by 86989800-
            Supersession
            Supersession
            # 017
            MPN: 86989700
            DASH-LH DOOR AIR DUCT
            from £20.33
            from £20.33
            This part replaces part number 88320800 - and 1 more. Click to view details
            # 017
            MPN: 88320800
            DASH-LH DOOR AIR DUCT
            -Applicable for GD- -No longer supplied- -Replaced by 86989700-
            Supersession
            Supersession
            # 018
            MPN: 87390600
            RH DOOR PANEL DEFROSTER CONNECTOR
            from £17.40
            from £17.40
            # 019
            MPN: 87390700
            LH DOOR PANEL DEFROSTER CONNECTOR
            from £17.40
            from £17.40
            # 020
            MPN: 88322000
            LH PART OF FOOTWELL AIR DUCT
            -Applicable for GD-
            from £23.17
            from £23.17
