0111 - FRONT LID AND OPENING MECHANISM

Ferrari GTC4 Lusso (Europe) FRONT LID AND OPENING MECHANISM Parts Diagram

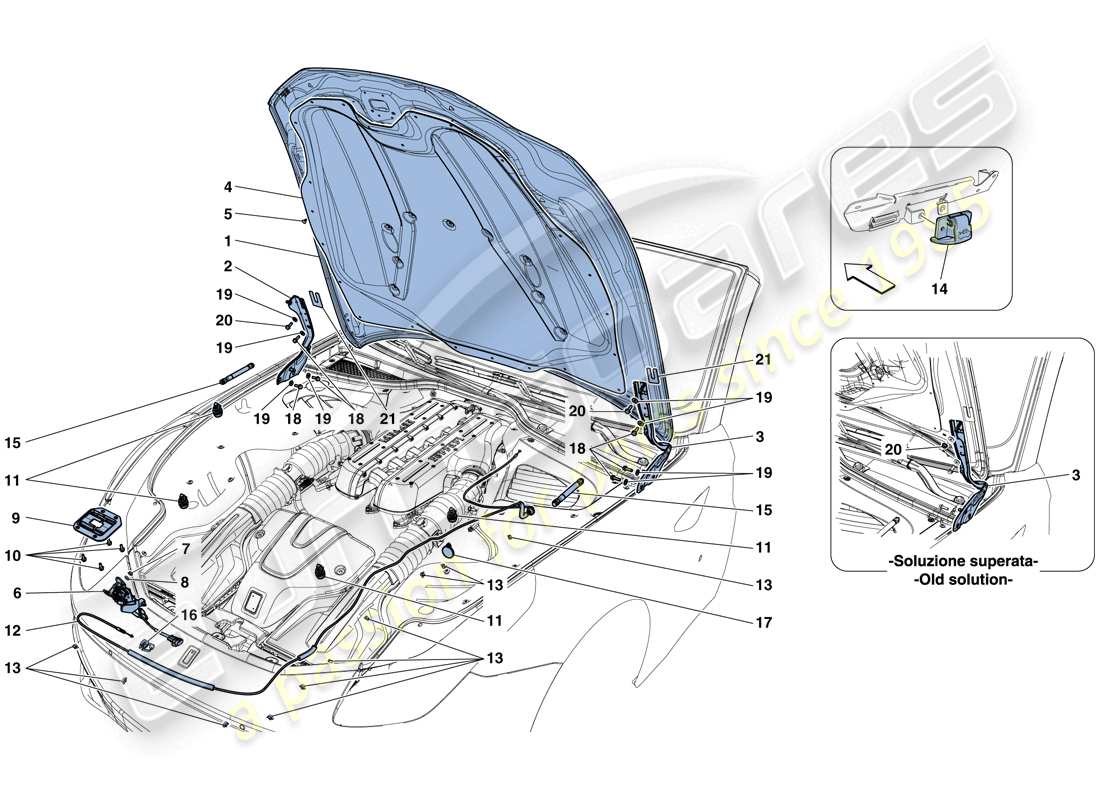

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 88242911
                            ENGINE COMPARTMENT LID
                            -Applicable up to Ass. No. 150392- -Applicable until depletion-
                            Supersession
                            Supersession
                            # 001
                            MPN: 985770951
                            ENGINE COMPARTMENT LID
                            -For vehicles up to Ass.ly No. 150392, also order RH hinge 748705 ref.2, LH hinge 748704 ref.3 and screw 16287124 ref.20- -Applicable from Ass. No. 150393- -Applicable after depletion of 88242911-
                            from £3,356.54
                            from £3,356.54
                            This part replaces part number 88242911
                            # 002
                            MPN: 748705
                            COMPL. RH HINGE
                            -Applicable from Ass. No. 150393-
                            from £53.36
                            from £53.36
                            # 002
                            MPN: 81675100
                            COMPL. RH HINGE
                            -Applicable up to Ass. No. 150392-
                            from £72.05
                            from £72.05
                            # 003
                            MPN: 748704
                            COMPL. LH HINGE
                            -Applicable from Ass. No. 150393-
                            from £53.36
                            from £53.36
                            # 003
                            MPN: 81675000
                            COMPL. LH HINGE
                            -Applicable up to Ass. No. 150392-
                            from £72.05
                            from £72.05
                            # 004
                            MPN: 88299900
                            UNDER-LID INSULATION
                            from £105.27
                            from £105.27
                            # 005
                            MPN: 14591687
                            FASTENER BUTTON
                            from £0.26
                            from £0.26
                            This part replaces part number 69767700 - and 1 more. Click to view details
                            # 005
                            MPN: 14591987
                            FASTENER BUTTON
                            from £0.47
                            from £0.47
                            # 006
                            MPN: 83752200
                            LID LOCK
                            from £91.42
                            from £91.42
                            # 007
                            MPN: 13046112
                            NUT
                            from £0.47
                            from £0.47
                            # 008
                            MPN: 12647878
                            WASHER
                            from £1.49
                            from £1.49
                            # 009
                            MPN: 80246800
                            STRIKER PLATE
                            from £17.47
                            from £17.47
                            # 010
                            MPN: 81923100
                            SCREW
                            -M6 X 18-
                            from £0.47
                            from £0.47
                            This part replaces part number 16297034
                            # 011
                            MPN: 67161800
                            VIBRATION DAMPER
                            from £21.35
                            from £21.35
                            This part replaces part number 69773300
                            # 012
                            MPN: 87537800
                            FRONT LID RELEASE BOWDEN CABLE
                            -Not for GD-
                            from £45.49
                            from £45.49
                            # 012
                            MPN: 88038200
                            FRONT LID RELEASE BOWDEN CABLE
                            -Applicable for GD-
                            from £24.29
                            from £24.29
                            # 013
                            MPN: 14569480
                            CLIP
                            -Not for GD-
                            from £0.50
                            from £0.50
                            This part replaces part number 81580800
                            # 013
                            MPN: 14569480
                            CLIP
                            -Applicable for GD-
                            from £0.48
                            from £0.48
                            This part replaces part number 81580800
                            # 014
                            MPN: 67003800
                            ENGINE COMPARTMENT LID HANDLE
                            from £23.68
                            from £23.68
                            # 015
                            MPN: 69767900
                            GAS STRUT
                            from £19.19
                            from £19.19
                            # 016
                            MPN: 69708300
                            CLIP
                            from £0.77
                            from £0.77
                            # 017
                            MPN: 217854
                            RING CLAMP
                            from £0.54
                            from £0.54
                            # 018
                            MPN: 16287124
                            SCREW
                            -M8 X 20-
                            from £0.59
                            from £0.59
                            # 019
                            MPN: 12646724
                            WASHER
                            from £0.47
                            from £0.47
                            This part replaces part number 12601571 - and 3 more. Click to view details
                            # 019
                            MPN: 13578324
                            WASHER
                            from £0.47
                            from £0.47
                            This part replaces part number 13578311
                            # 020
                            MPN: 14059311
                            NUT
                            -Applicable up to Ass. No. 150392-
                            from £0.30
                            from £0.30
                            # 020
                            MPN: 16287124
                            SCREW
                            -M8 X 20- -Applicable from Ass. No. 150393-
                            from £0.59
                            from £0.59
                            # 021
                            MPN: 67418100
                            SHIM
                            from £0.64
                            from £0.64
