0115 - DOORS - OPENING MECHANISMS AND HINGES

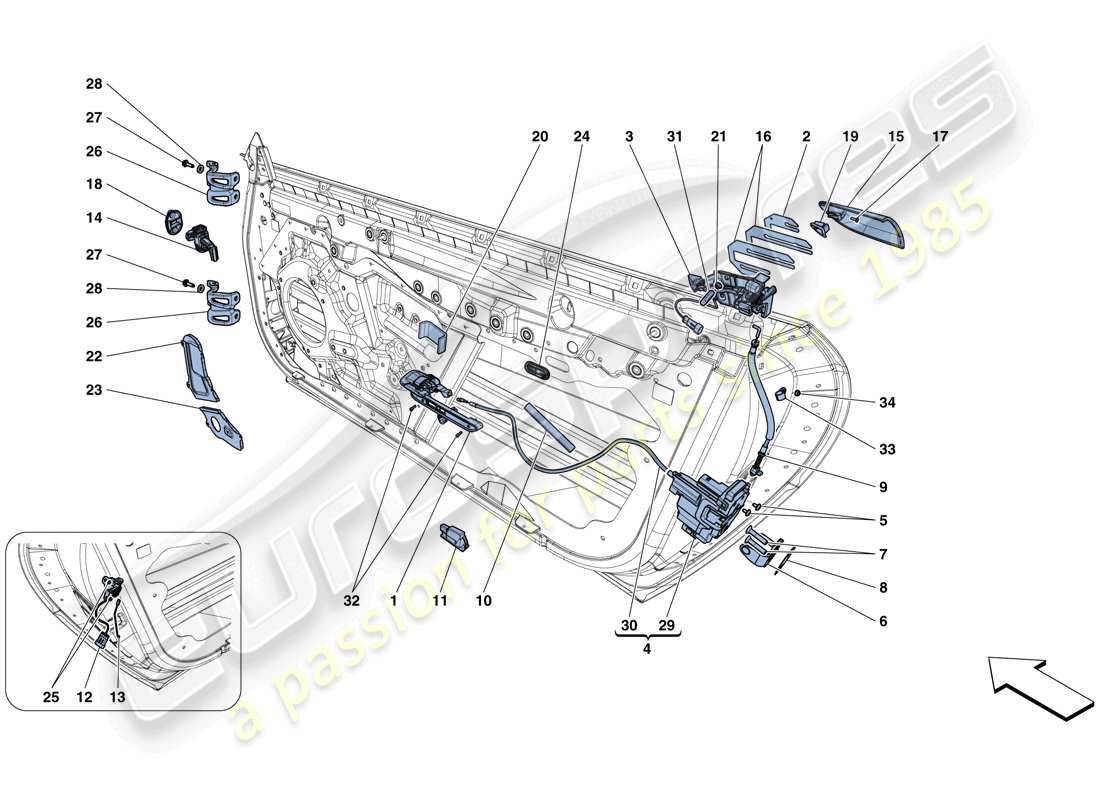

Ferrari GTC4 Lusso (Europe) DOORS - OPENING MECHANISMS AND HINGES Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 88553700
COMPL. LH DOOR HANDLE
-Applicable up to Ass. No. 165422- -Applicable until depletion-
Supersession
Supersession
# 001
MPN: 88554400
COMPL. RH DOOR HANDLE
-Applicable up to Ass. No. 165422- -Applicable until depletion-
Supersession
Supersession
# 001
MPN: 895916
COMPL. LH DOOR HANDLE
-For vehicles up to Ass.ly No.165422 also order Bowden cable 895643 ref.30 and cable guide 898656 ref.24- -Applicable from Ass. No. 165423- -Applicable after depletion of 88553700-
from £160.68
from £160.68
This part replaces part number 88553700 - and 1 more. Click to view details
# 001
MPN: 895919
COMPL. RH DOOR HANDLE
-For vehicles up to Ass.ly No.165422 also order Bowden cable 895643 ref.30 and cable guide 898656 ref.24- -Applicable from Ass. No. 165423- -Applicable after depletion of 88554400-
from £160.68
from £160.68
This part replaces part number 88554400 - and 1 more. Click to view details
# 002
MPN: 88007300
EXTERNAL DOOR HANDLE SPACER
from £1.00
from £1.00
# 003
MPN: 87507400
COMPL. RH OUTER DOOR HANDLE MECHANISM
from £131.35
from £131.35
# 003
MPN: 87507500
COMPL. LH OUTER DOOR HANDLE MECHANISM
from £131.35
from £131.35
# 004
MPN: 87065100
COMPLETE LH LOCK SYSTEM.
-Not for GD- -No longer supplied-
from £133.89
from £133.89
# 004
MPN: 87065200
COMPLETE RH LOCK SYSTEM.
-Not for GD- -No longer supplied-
from £133.89
from £133.89
# 004
MPN: 88778100
COMPLETE LH LOCK SYSTEM.
-Applicable for GD- -No longer supplied-
# 004
MPN: 88778200
COMPLETE RH LOCK SYSTEM.
-Applicable for GD- -No longer supplied-
# 005
MPN: 85478900
SCREW
-M6 X 12-
from £0.61
from £0.61
# 006
MPN: 85052500
DOOR LOCK STRIKER PLATE
from £5.38
from £5.38
# 007
MPN: 85052700
SCREW
-M8 X 45-
from £0.73
from £0.73
# 008
MPN: 85052600
DOOR STRIKER PLATE SHIM
from £3.18
from £3.18
# 009
MPN: 87293700
EXTERNAL DOOR HANDLE BOWDEN CABLE
-No longer supplied- -Replaced by 891987-
Supersession
Supersession
# 009
MPN: 891987
EXTERNAL DOOR HANDLE BOWDEN CABLE
-For vehicles up to Ass.ly No.163780 also order bracket 305724 ref.33 and nut 14059121 ref.34-
from £21.27
from £21.27
This part replaces part number 87293700 - and 1 more. Click to view details
# 010
MPN: 82936500
PROTECTIVE SHEATH FOR INTERNAL HANDLE BOWDEN CABLE
-Applicable up to Ass. No. 163780-
from £1.46
from £1.46
# 010
MPN: 82936500
PROTECTIVE SHEATH FOR INTERNAL HANDLE BOWDEN CABLE
-Applicable from Ass. No. 163781-
from £1.46
from £1.46
# 011
MPN: 318013
LIGHT UNIT 1, LED
from £10.71
from £10.71
# 012
MPN: 82127900
LATCH HOLDER
-Not for GD- -No longer supplied- -Replaced by 89180700-
from £43.19
from £43.19
# 012
MPN: 83999400
LATCH HOLDER
-Applicable for GD- -No longer supplied- -Replaced by 89180800-
from £43.19
from £43.19
# 012
MPN: 89180700
LATCH HOLDER
-Not for GD-
from £85.75
from £85.75
# 012
MPN: 89180800
LATCH HOLDER
-Applicable for GD-
from £47.16
from £47.16
# 013
MPN: 87589500
COMPL. LH DOOR LATCH LEVER
-Not for GD-
from £105.46
from £105.46
# 013
MPN: 88037500
COMPL. RH DOOR LATCH LEVER
-Applicable for GD-
from £58.00
from £58.00
# 014
MPN: 84873000
DOOR ARRESTER TIE-ROD
from £35.32
from £35.32
This part replaces part number 83275400 - and 1 more. Click to view details
# 015
MPN: 87507200
RH OUTER DOOR HANDLE
from £45.98
from £45.98
This part replaces part number 87507210
# 015
MPN: 87507300
LH OUTER DOOR HANDLE
from £45.98
from £45.98
This part replaces part number 87507310
# 016
MPN: 80821900
EXTERNAL DOOR HANDLE SPACER
from £3.38
from £3.38
# 017
MPN: 80365900
SCREW
-M4 X 12-
from £0.54
from £0.54
# 018
MPN: 83897000
DOOR ARRESTER TIE-ROD SEAL
from £4.53
from £4.53
# 019
MPN: 87065700
RH OUTER DOOR HANDLE SEAL
from £7.24
from £7.24
# 019
MPN: 87294300
LH OUTER DOOR HANDLE SEAL
from £7.24
from £7.24
# 020
MPN: 262051
FOAM FOR PIPE RETAINER BRACKET
from £1.46
from £1.46
# 021
MPN: 14059121
NUT
from £0.53
from £0.53
# 022
MPN: 837582
COMPL. LH DOOR FRONT PLATE
-Applicable for ADAS version- -Surround view version- -Not applicable for Korea-
from £28.48
from £28.48
# 022
MPN: 837582
COMPL. LH DOOR FRONT PLATE
-Applicable for ADAS version- -Surround view version- -Applicable for Korea-
from £28.48
from £28.48
# 022
MPN: 837584
COMPL. RH DOOR FRONT PLATE
-Applicable for ADAS version- -Surround view version- -Not applicable for Korea-
from £28.48
from £28.48
# 022
MPN: 837584
COMPL. RH DOOR FRONT PLATE
-Applicable for ADAS version- -Surround view version- -Applicable for Korea-
from £28.48
from £28.48
# 022
MPN: 87871200
COMPL. RH DOOR FRONT PLATE
-Not for surround view-
from £30.29
from £30.29
# 022
MPN: 87871500
COMPL. LH DOOR FRONT PLATE
-Not for surround view-
from £16.66
from £16.66
# 023
MPN: 87877200
COMPL. RH DOOR REMOVABLE PLATE
from £31.06
from £31.06
# 023
MPN: 87877600
COMPL. LH DOOR REMOVABLE PLATE
from £17.08
from £17.08
# 024
MPN: 82629100
CABLE GROMMET
-No longer supplied- -Replaced by 898656-
Supersession
Supersession
# 024
MPN: 898656
CABLE GROMMET
from £1.56
from £1.56
This part replaces part number 82629100
# 025
MPN: 14059121
NUT
from £0.54
from £0.54
# 026
MPN: 88446200
DOOR HINGE, MOBILE PART
from £29.71
from £29.71
# 027
MPN: 16043834
SCREW
-M8 X 30-
from £0.48
from £0.48
This part replaces part number 16043824
# 028
MPN: 12646778
WASHER
from £0.52
from £0.52
This part replaces part number 156093
# 029
MPN: 785970
LH DOOR LOCK
-Not for GD- -Applicable after depletion of 85730900-
from £82.68
from £82.68
This part replaces part number 85730900
# 029
MPN: 785971
RH DOOR LOCK
-Not for GD- -Applicable after depletion of 85730800-
from £82.68
from £82.68
This part replaces part number 85730800
# 029
MPN: 785974
LH DOOR LOCK
-Applicable for GD- -Applicable after depletion of 85731000-
from £45.47
from £45.47
This part replaces part number 85731000 - and 4 more. Click to view details
# 029
MPN: 785975
RH DOOR LOCK
-Applicable for GD- -Applicable after depletion of 85731100-
from £45.47
from £45.47
This part replaces part number 85731100 - and 2 more. Click to view details
# 029
MPN: 85730800
RH DOOR LOCK
-Not for GD- -Applicable until depletion-
Supersession
Supersession
# 029
MPN: 85730900
LH DOOR LOCK
-Not for GD- -Applicable until depletion-
Supersession
Supersession
# 029
MPN: 85731000
LH DOOR LOCK
-Applicable for GD- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 88116500
# 029
MPN: 85731100
RH DOOR LOCK
-Applicable for GD- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 88116600
# 030
MPN: 82596100
INNER DOOR HANDLE BOWDEN CABLE
-Applicable up to Ass. No. 165422-
from £25.55
from £25.55
# 030
MPN: 895643
INNER DOOR HANDLE BOWDEN CABLE
-Applicable from Ass. No. 165423-
from £31.04
from £31.04
# 031
MPN: 87638500
BUFFER
from £13.58
from £13.58
# 032
MPN: 14418924
SCREW
-M4 X 8-
from £0.53
from £0.53
This part replaces part number 82609400
# 033
MPN: 305724
BRACKET
-Applicable from Ass. No. 163781-
from £2.99
from £2.99
# 034
MPN: 14059121
NUT
-Applicable from Ass. No. 163781-
from £0.54
from £0.54
