0118 - REAR BUMPER

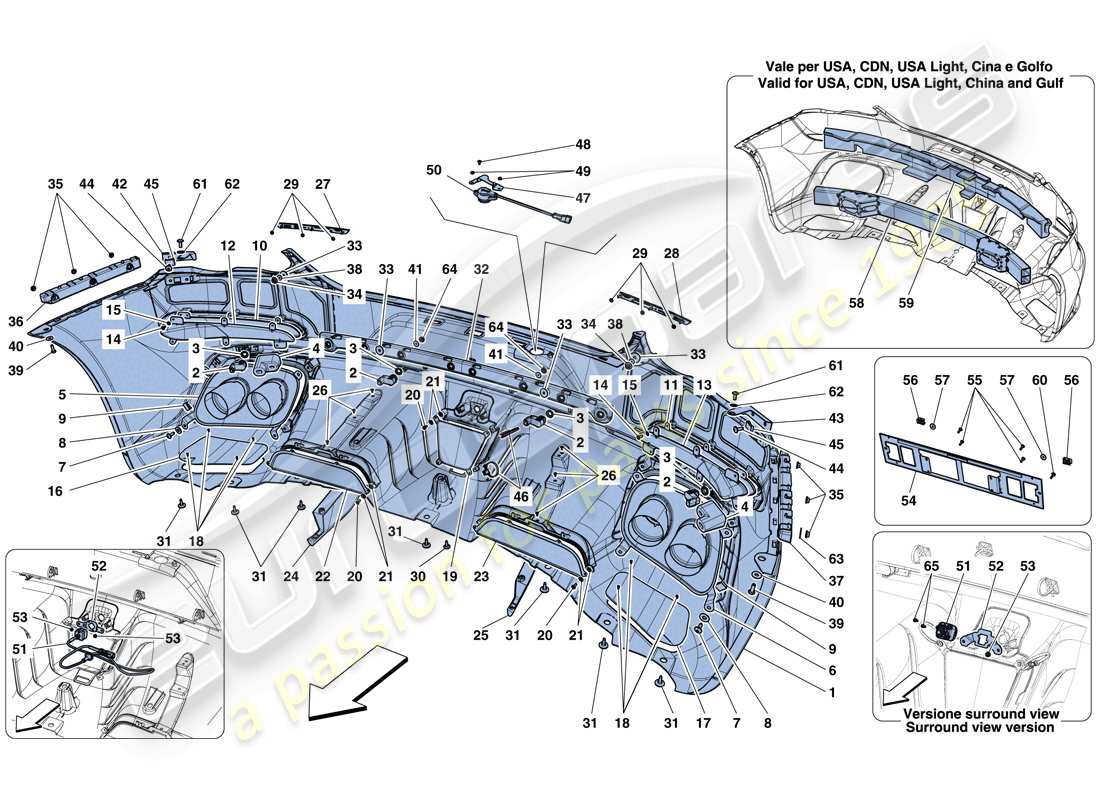

Ferrari GTC4 Lusso (Europe) REAR BUMPER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                              #
                                                                                              Part number
                                                                                              Description
                                                                                              Price
                                                                                              # 001
                                                                                              MPN: 89047210
                                                                                              REAR BUMPER
                                                                                              -Sensors ordered separately- -Applicable for Korea and Brazil- -Not for ADAS version- -Not for USA, CDN-
                                                                                              from £1,659.78
                                                                                              from £1,659.78
                                                                                              REAR BUMPER Genuine Ferrari Part - Used In stock
                                                                                              some damages on the sides (pictures on request)
                                                                                              # 001
                                                                                              MPN: 89294210
                                                                                              REAR BUMPER
                                                                                              -Sensors ordered separately- -Not for Korea and Brazil- -Not for ADAS version- -Applicable for USA, CDN, USA LIGHT-
                                                                                              from £3,017.72
                                                                                              from £3,017.72
                                                                                              # 001
                                                                                              MPN: 985912722
                                                                                              REAR BUMPER
                                                                                              -Applicable for ADAS version- -Surround view version- -Sensors ordered separately- -Applicable for Brazil- -Not applicable for Korea- -Not for USA, CDN-
                                                                                              from £2,066.19
                                                                                              from £2,066.19
                                                                                              # 001
                                                                                              MPN: 985912722
                                                                                              REAR BUMPER
                                                                                              -Applicable for ADAS version- -Surround view version- -Sensors ordered separately- -Applicable for Korea- -Applicable for USA LIGHT-
                                                                                              from £2,066.19
                                                                                              from £2,066.19
                                                                                              # 001
                                                                                              MPN: 985912723
                                                                                              REAR BUMPER
                                                                                              -Sensors ordered separately- -Not for Korea and Brazil- -Applicable for ADAS version- -Surround view version- -Applicable for USA, CDN, USA LIGHT-
                                                                                              from £3,756.71
                                                                                              from £3,756.71
                                                                                              # 001
                                                                                              MPN: 985912979
                                                                                              REAR BUMPER
                                                                                              -Sensors ordered separately- -Applicable for Brazil- -Applicable for ADAS version- -Not for surround view version- -Not for USA, CDN-
                                                                                              from £3,756.71
                                                                                              from £3,756.71
                                                                                              # 001
                                                                                              MPN: 985912980
                                                                                              REAR BUMPER
                                                                                              -Sensors ordered separately- -Not for Korea and Brazil- -Applicable for ADAS version- -Not for surround view version- -Applicable for USA, CDN, USA LIGHT-
                                                                                              from £3,756.71
                                                                                              from £3,756.71
                                                                                              # 002
                                                                                              MPN: 295361
                                                                                              PARKING SENSOR
                                                                                              from £21.19
                                                                                              from £21.19
                                                                                              # 003
                                                                                              MPN: 81544800
                                                                                              CLEAR SILICONE RING
                                                                                              from £4.40
                                                                                              from £4.40
                                                                                              # 004
                                                                                              MPN: 87879200
                                                                                              PARKING SENSOR HEAT SHIELD
                                                                                              from £44.16
                                                                                              from £44.16
                                                                                              # 005
                                                                                              MPN: 87787100
                                                                                              RH EXHAUST TAILPIPE TIP
                                                                                              from £136.89
                                                                                              from £136.89
                                                                                              # 005
                                                                                              MPN: 87787300
                                                                                              RH EXHAUST TAILPIPE TIP
                                                                                              -Version with sports tailpipes-
                                                                                              from £207.93
                                                                                              from £207.93
                                                                                              # 005
                                                                                              MPN: 87787500
                                                                                              RH EXHAUST TAILPIPE TIP
                                                                                              -Version with black sports tailpipes- -Applicable until depletion-
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 005
                                                                                              MPN: 89271200
                                                                                              RH EXHAUST TAILPIPE TIP
                                                                                              -Version with black sports tailpipes- -Applicable after depletion of 87787500-
                                                                                              from £516.36
                                                                                              from £516.36
                                                                                              This part replaces part number 87787500 - and 1 more. Click to view details
                                                                                              # 006
                                                                                              MPN: 87787000
                                                                                              LH EXHAUST TAILPIPE TIP
                                                                                              from £136.89
                                                                                              from £136.89
                                                                                              # 006
                                                                                              MPN: 87787200
                                                                                              LH EXHAUST TAILPIPE TIP
                                                                                              -Version with sports tailpipes-
                                                                                              from £207.93
                                                                                              from £207.93
                                                                                              # 006
                                                                                              MPN: 87787400
                                                                                              LH EXHAUST TAILPIPE TIP
                                                                                              -Version with black sports tailpipes- -Applicable until depletion-
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 006
                                                                                              MPN: 89271300
                                                                                              LH EXHAUST TAILPIPE TIP
                                                                                              -Version with black sports tailpipes- -Applicable after depletion of 87787400-
                                                                                              from £691.79
                                                                                              from £691.79
                                                                                              This part replaces part number 87787400
                                                                                              # 007
                                                                                              MPN: 82113500
                                                                                              SCREW
                                                                                              from £1.50
                                                                                              from £1.50
                                                                                              # 008
                                                                                              MPN: 81078500
                                                                                              WASHER
                                                                                              from £0.56
                                                                                              from £0.56
                                                                                              # 009
                                                                                              MPN: 80874300
                                                                                              CLIP
                                                                                              from £0.58
                                                                                              from £0.58
                                                                                              # 010
                                                                                              MPN: 87802400
                                                                                              RH LATERAL GRILLE
                                                                                              from £138.66
                                                                                              from £138.66
                                                                                              # 011
                                                                                              MPN: 87802300
                                                                                              LH LATERAL GRILLE
                                                                                              from £138.66
                                                                                              from £138.66
                                                                                              # 012
                                                                                              MPN: 87802600
                                                                                              RH LATERAL GRILLE DUCT
                                                                                              from £66.25
                                                                                              from £66.25
                                                                                              # 013
                                                                                              MPN: 87802500
                                                                                              LH LATERAL GRILLE DUCT
                                                                                              from £66.25
                                                                                              from £66.25
                                                                                              # 014
                                                                                              MPN: 14643293
                                                                                              RIVET
                                                                                              from £4.93
                                                                                              from £4.93
                                                                                              # 015
                                                                                              MPN: 14497778
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 016
                                                                                              MPN: 87220700
                                                                                              RH HEAT VENT GRILLE
                                                                                              from £87.57
                                                                                              from £87.57
                                                                                              # 017
                                                                                              MPN: 87220800
                                                                                              LH HEAT VENT GRILLE
                                                                                              from £87.57
                                                                                              from £87.57
                                                                                              # 018
                                                                                              MPN: 14641596
                                                                                              RIVET
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 019
                                                                                              MPN: 87803200
                                                                                              CENTRE GRILLE
                                                                                              from £153.25
                                                                                              from £153.25
                                                                                              # 020
                                                                                              MPN: 14643293
                                                                                              RIVET
                                                                                              from £4.93
                                                                                              from £4.93
                                                                                              # 021
                                                                                              MPN: 14497778
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 022
                                                                                              MPN: 87803400
                                                                                              LATERAL GRILLE ON RH DIFFUSER
                                                                                              from £145.95
                                                                                              from £145.95
                                                                                              # 023
                                                                                              MPN: 87803300
                                                                                              LATERAL GRILLE ON LH DIFFUSER
                                                                                              from £145.95
                                                                                              from £145.95
                                                                                              # 024
                                                                                              MPN: 87809400
                                                                                              RH FIN
                                                                                              from £133.60
                                                                                              from £133.60
                                                                                              # 025
                                                                                              MPN: 87809100
                                                                                              LH FIN
                                                                                              from £242.90
                                                                                              from £242.90
                                                                                              # 026
                                                                                              MPN: 65752800
                                                                                              SCREW
                                                                                              -M4 X 10-
                                                                                              from £1.14
                                                                                              from £1.14
                                                                                              This part replaces part number 294485 - and 1 more. Click to view details
                                                                                              # 027
                                                                                              MPN: 84806800
                                                                                              RH REFLECTOR
                                                                                              from £4.58
                                                                                              from £4.58
                                                                                              # 028
                                                                                              MPN: 84806900
                                                                                              LH REFLECTOR
                                                                                              from £4.58
                                                                                              from £4.58
                                                                                              # 029
                                                                                              MPN: 84784600
                                                                                              WASHER FOR PIN
                                                                                              from £12.35
                                                                                              from £12.35
                                                                                              # 030
                                                                                              MPN: 80874900
                                                                                              SCREW
                                                                                              -M6 X 22-
                                                                                              from £0.64
                                                                                              from £0.64
                                                                                              # 031
                                                                                              MPN: 83442900
                                                                                              SCREW
                                                                                              -M6 X 22-
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 80874700
                                                                                              # 032
                                                                                              MPN: 87638400
                                                                                              CENTRE MOUNT FOR REAR BUMPER
                                                                                              from £23.19
                                                                                              from £23.19
                                                                                              # 033
                                                                                              MPN: 65841100
                                                                                              SEAL WASHER
                                                                                              from £0.61
                                                                                              from £0.61
                                                                                              # 034
                                                                                              MPN: 14039614
                                                                                              NUT
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 035
                                                                                              MPN: 13046014
                                                                                              NUT
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 036
                                                                                              MPN: 86864700
                                                                                              RH REAR LATERAL BUMPER MOUNT
                                                                                              from £11.04
                                                                                              from £11.04
                                                                                              # 037
                                                                                              MPN: 86864600
                                                                                              LH REAR LATERAL BUMPER MOUNT
                                                                                              from £6.07
                                                                                              from £6.07
                                                                                              # 038
                                                                                              MPN: 84029200
                                                                                              SEAL
                                                                                              -No longer supplied-
                                                                                              from £6.05
                                                                                              from £6.05
                                                                                              # 039
                                                                                              MPN: 10902387
                                                                                              SCREW
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 10902327 which we have in stock
                                                                                              # 040
                                                                                              MPN: 12643778
                                                                                              WASHER
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 12643777 - and 1 more. Click to view details
                                                                                              # 041
                                                                                              MPN: 13577701
                                                                                              WASHER
                                                                                              -Not for CINA, GOLFO, USA LIGHT-
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 042
                                                                                              MPN: 87398400
                                                                                              RH REAR BUMPER BRACKET UNDER TAILLIGHT
                                                                                              from £32.39
                                                                                              from £32.39
                                                                                              # 043
                                                                                              MPN: 87398600
                                                                                              LH REAR BUMPER BRACKET UNDER TAILLIGHT
                                                                                              from £32.39
                                                                                              from £32.39
                                                                                              # 044
                                                                                              MPN: 82113500
                                                                                              SCREW
                                                                                              from £1.50
                                                                                              from £1.50
                                                                                              # 045
                                                                                              MPN: 80874300
                                                                                              CLIP
                                                                                              from £0.61
                                                                                              from £0.61
                                                                                              # 046
                                                                                              MPN: 69850100
                                                                                              CLIP
                                                                                              from £0.50
                                                                                              from £0.50
                                                                                              # 047
                                                                                              MPN: 87904400
                                                                                              BATTERY CONDITIONER BRACKET
                                                                                              from £36.79
                                                                                              from £36.79
                                                                                              # 048
                                                                                              MPN: 309629
                                                                                              SCREW
                                                                                              -M4 X 8-
                                                                                              from £1.36
                                                                                              from £1.36
                                                                                              This part replaces part number 290589
                                                                                              # 049
                                                                                              MPN: 14039414
                                                                                              NUT
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 14039411
                                                                                              # 050
                                                                                              MPN: 314630
                                                                                              BATTERY CONDITIONER SOCKET
                                                                                              from £123.02
                                                                                              from £123.02
                                                                                              This part replaces part number 85139800 - and 3 more. Click to view details
                                                                                              # 051
                                                                                              -
                                                                                              REAR PARKING CAMERA
                                                                                              # 051
                                                                                              -
                                                                                              SURROUND CAMERA
                                                                                              # 051
                                                                                              -
                                                                                              SURROUND CAMERA
                                                                                              # 051
                                                                                              MPN: 319478
                                                                                              REAR PARKING CAMERA
                                                                                              -Not for ADAS version- -Applicable up to Ass. No. 157913-
                                                                                              from £883.24
                                                                                              from £883.24
                                                                                              # 051
                                                                                              MPN: 326604
                                                                                              REAR PARKING CAMERA
                                                                                              -Applicable for front and rear digital cameras- -Not for ADAS version-
                                                                                              from £883.24
                                                                                              from £883.24
                                                                                              # 051
                                                                                              MPN: 836146
                                                                                              REAR PARKING CAMERA
                                                                                              -Not for surround view version- -Applicable from Ass. No. 157914 up to Ass. No. 166532-
                                                                                              from £883.24
                                                                                              from £883.24
                                                                                              # 052
                                                                                              -
                                                                                              PARKING CAMERA MOUNTING BRACKET
                                                                                              # 052
                                                                                              -
                                                                                              PARKING CAMERA MOUNTING BRACKET
                                                                                              # 052
                                                                                              MPN: 839855
                                                                                              PARKING CAMERA MOUNTING BRACKET
                                                                                              -Not for surround view version- -Not for ADAS version for Korea- -Applicable from Ass. No. 157914-
                                                                                              from £83.41
                                                                                              from £83.41
                                                                                              # 052
                                                                                              MPN: 87789200
                                                                                              PARKING CAMERA MOUNTING BRACKET
                                                                                              -Not for ADAS version- -Not for surround view version- -Applicable up to Ass. No. 157913-
                                                                                              from £68.66
                                                                                              from £68.66
                                                                                              # 053
                                                                                              MPN: 14039414
                                                                                              NUT
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 14039411
                                                                                              # 054
                                                                                              MPN: 82283100
                                                                                              REAR LICENSE PLATE MOUNTING
                                                                                              -Applicable for UAE- -Applicable for Korea- -Applicable for EU GS, UK-
                                                                                              from £36.44
                                                                                              from £36.44
                                                                                              # 054
                                                                                              MPN: 82283200
                                                                                              REAR LICENSE PLATE MOUNTING
                                                                                              -Not applicable for Korea- -Applicable for USA, CDN, USA LIGHT-
                                                                                              from £93.47
                                                                                              from £93.47
                                                                                              # 054
                                                                                              MPN: 82287200
                                                                                              REAR LICENSE PLATE MOUNTING
                                                                                              -Applicable for AUS, CINA-
                                                                                              from £140.18
                                                                                              from £140.18
                                                                                              # 054
                                                                                              MPN: 82289300
                                                                                              REAR LICENSE PLATE MOUNTING
                                                                                              -Applicable for J-
                                                                                              from £140.18
                                                                                              from £140.18
                                                                                              # 054
                                                                                              MPN: 82679900
                                                                                              REAR LICENSE PLATE MOUNTING
                                                                                              -Not for UAE- -Applicable for GOLFO-
                                                                                              from £110.87
                                                                                              from £110.87
                                                                                              This part replaces part number 84200200
                                                                                              # 055
                                                                                              MPN: 63343400
                                                                                              SCREW
                                                                                              -Not applicable for Korea-
                                                                                              from £1.36
                                                                                              from £1.36
                                                                                              # 056
                                                                                              MPN: 62766300
                                                                                              CLIP
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 057
                                                                                              MPN: 12604274
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 12604271 - and 1 more. Click to view details
                                                                                              # 058
                                                                                              MPN: 84071400
                                                                                              CRASH-BOX CROSS MEMBER
                                                                                              -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
                                                                                              from £707.60
                                                                                              from £707.60
                                                                                              # 059
                                                                                              MPN: 89050000
                                                                                              REAR BUMPER IMPACT ABSORBER
                                                                                              -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
                                                                                              from £125.12
                                                                                              from £125.12
                                                                                              # 060
                                                                                              MPN: 14415690
                                                                                              RIVET
                                                                                              -Applicable for USA, CDN, GOLFO-
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              # 060
                                                                                              MPN: 14415690
                                                                                              RIVET
                                                                                              -Applicable for Korea- -Applicable for EU GS, UK-
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              # 061
                                                                                              MPN: 85833700
                                                                                              SCREW
                                                                                              -M5 X 14-
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 062
                                                                                              MPN: 61148700
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 063
                                                                                              MPN: 65841100
                                                                                              SEAL WASHER
                                                                                              from £0.63
                                                                                              from £0.63
                                                                                              # 064
                                                                                              MPN: 13046014
                                                                                              NUT
                                                                                              -No longer supplied- -Replaced by 14039511-
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 064
                                                                                              MPN: 14039511
                                                                                              NUT
                                                                                              from £0.51
                                                                                              from £0.51
                                                                                              # 065
                                                                                              MPN: 14417921
                                                                                              SCREW
                                                                                              -Applicable for ADAS version- -Surround view version- -Not applicable for Korea-
                                                                                              Supersession
                                                                                              Supersession
                                                                                              This part replaces part number 15842504
                                                                                              # 065
                                                                                              MPN: 14417921
                                                                                              SCREW
                                                                                              -Applicable for ADAS version- -Surround view version- -Applicable for Korea- -Applicable for USA LIGHT-
                                                                                              Supersession
                                                                                              Supersession
                                                                                              This part replaces part number 15842504
