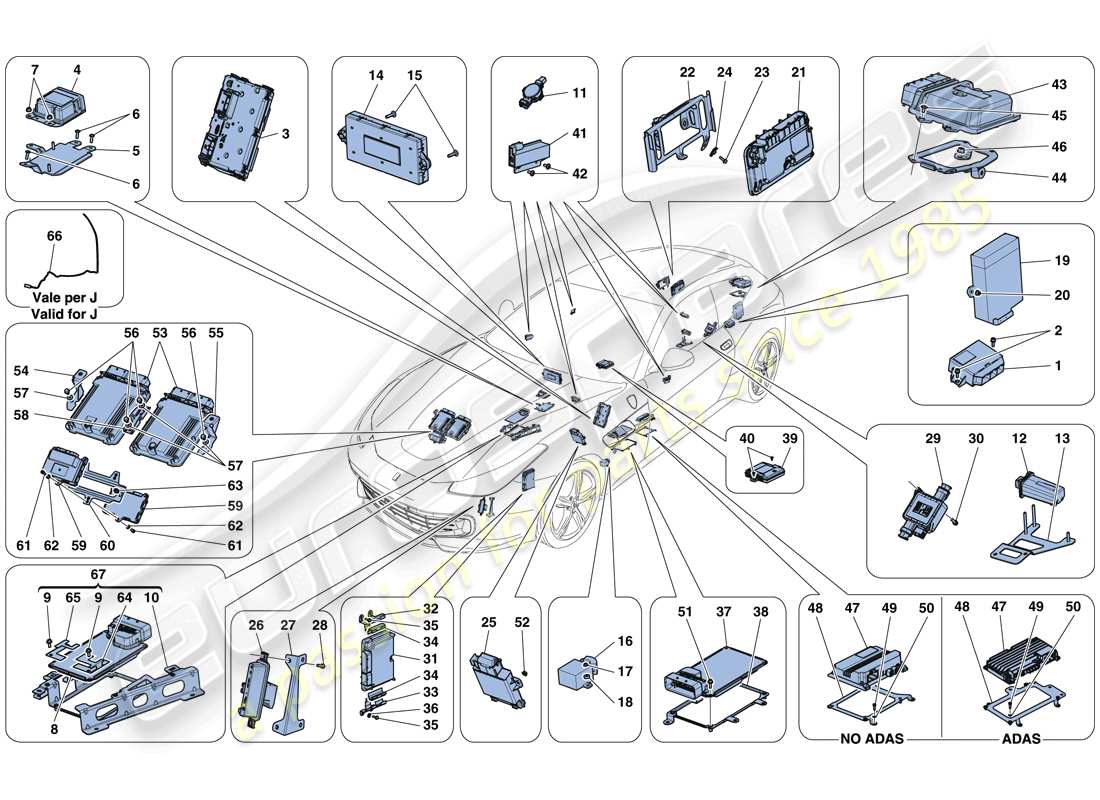

Ferrari GTC4 Lusso (Europe) VEHICLE ECUs Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 315391
                                                                    PARKING SENSOR NODE ECU
                                                                    from £132.26
                                                                    from £132.26
                                                                    # 002
                                                                    MPN: 231617
                                                                    SCREW
                                                                    -M6 X 18-
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 14433124
                                                                    # 003
                                                                    MPN: 315383
                                                                    DASHBOARD NODE
                                                                    -Not for ADAS version- -Applicable up to Ass. No. 150956- -Applicable until depletion-
                                                                    Supersession
                                                                    Supersession
                                                                    # 003
                                                                    MPN: 342062
                                                                    DASHBOARD NODE
                                                                    -Not for ADAS version- -Applicable from Ass. No. 150957- -Applicable after depletion of 315383-
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 315383
                                                                    # 003
                                                                    MPN: 863237
                                                                    DASHBOARD NODE
                                                                    -Applicable for ADAS version-
                                                                    from £876.03
                                                                    from £876.03
                                                                    This part replaces part number 342062
                                                                    # 004
                                                                    MPN: 315396
                                                                    AIRBAG ECU
                                                                    -Not for Russia- -Not for ADAS version- -Applicable until depletion-
                                                                    Supersession
                                                                    Supersession
                                                                    # 004
                                                                    MPN: 340216
                                                                    AIRBAG ECU
                                                                    -Not for Russia- -Not for ADAS version- -Applicable after depletion of 315396-
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 315396
                                                                    # 004
                                                                    MPN: 340216
                                                                    AIRBAG ECU
                                                                    -Applicable for Russia- -Not for ADAS version-
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 315396
                                                                    # 004
                                                                    MPN: 843150
                                                                    AIRBAG ECU
                                                                    -Applicable for ADAS version-
                                                                    from £324.85
                                                                    from £324.85
                                                                    This part replaces part number 340216
                                                                    # 005
                                                                    MPN: 325990
                                                                    AIRBAG ECU BRACKET
                                                                    from £29.45
                                                                    from £29.45
                                                                    # 006
                                                                    MPN: 65377400
                                                                    SCREW
                                                                    -M6 X 1 X 18-
                                                                    from £1.21
                                                                    from £1.21
                                                                    This part replaces part number 156814 - and 3 more. Click to view details
                                                                    # 007
                                                                    MPN: 14059211
                                                                    NUT
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 008
                                                                    MPN: 312262
                                                                    MAGNERIDE SUSPENSION ECU
                                                                    from £636.32
                                                                    from £636.32
                                                                    # 009
                                                                    MPN: 14303474
                                                                    SCREW
                                                                    -M4 X 25- -Applicable up to Ass. No. 143870-
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 010
                                                                    MPN: 326348
                                                                    MAGNERIDE ECU BRACKET
                                                                    -Applicable up to Ass. No. 143870- -Applicable until depletion-
                                                                    Supersession
                                                                    Supersession
                                                                    # 011
                                                                    MPN: 320089
                                                                    RAIN AND TWILIGHT SENSOR
                                                                    from £123.95
                                                                    from £123.95
                                                                    # 012
                                                                    MPN: 314815
                                                                    TPMS ECU/ANTENNA
                                                                    -Not for J-
                                                                    from £183.36
                                                                    from £183.36
                                                                    # 012
                                                                    MPN: 314817
                                                                    TPMS ECU/ANTENNA
                                                                    -Applicable for J-
                                                                    from £333.38
                                                                    from £333.38
                                                                    # 013
                                                                    MPN: 322469
                                                                    TMPS ECU BRACKET
                                                                    from £13.38
                                                                    from £13.38
                                                                    # 014
                                                                    MPN: 317230
                                                                    A/C CONTROLS BLACK BOX
                                                                    -No longer supplied- -Replaced by 343009-
                                                                    Supersession
                                                                    Supersession
                                                                    # 014
                                                                    MPN: 343009
                                                                    A/C CONTROLS BLACK BOX
                                                                    from £295.72
                                                                    from £295.72
                                                                    This part replaces part number 317230 - and 1 more. Click to view details
                                                                    # 015
                                                                    MPN: 85692300
                                                                    SCREW
                                                                    -M5 X 20-
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 83914200
                                                                    # 016
                                                                    MPN: 272121
                                                                    POWER STEERING CONTROL ECU
                                                                    from £121.44
                                                                    from £121.44
                                                                    # 017
                                                                    MPN: 14059111
                                                                    NUT
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 018
                                                                    MPN: 65708600
                                                                    SHIM
                                                                    from £3.99
                                                                    from £3.99
                                                                    # 019
                                                                    MPN: 315395
                                                                    POWER LIFTGATE ECU
                                                                    from £304.88
                                                                    from £304.88
                                                                    # 020
                                                                    MPN: 228265
                                                                    NUT
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 021
                                                                    MPN: 315392
                                                                    VEHICLE LIFT ECU
                                                                    -Version with shock absorber with lifter-
                                                                    from £291.51
                                                                    from £291.51
                                                                    # 022
                                                                    MPN: 270164
                                                                    COMPL. LIFT SYSTEM ECU MOUNTING BRACKET
                                                                    -Version with shock absorber with lifter-
                                                                    from £33.60
                                                                    from £33.60
                                                                    # 023
                                                                    MPN: 16285127
                                                                    SCREW
                                                                    -M5 X 16- -Version with shock absorber with lifter-
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 024
                                                                    MPN: 66927700
                                                                    BRACKET WITH COLLAR
                                                                    -Version with shock absorber with lifter-
                                                                    from £0.75
                                                                    from £0.75
                                                                    # 025
                                                                    MPN: 264097
                                                                    VOLTAGE STABILIZER
                                                                    from £187.21
                                                                    from £187.21
                                                                    # 026
                                                                    MPN: 315386
                                                                    ADAPTIVE HEADLIGHT NODE ECU
                                                                    -Adaptive headlamps-
                                                                    from £89.06
                                                                    from £89.06
                                                                    # 027
                                                                    MPN: 277468
                                                                    NFA NODE MOUNTING BRACKET
                                                                    -Adaptive headlamps-
                                                                    from £8.50
                                                                    from £8.50
                                                                    This part replaces part number 260292 - and 1 more. Click to view details
                                                                    # 028
                                                                    MPN: 14304220
                                                                    SCREW
                                                                    -M5 X 16- -Adaptive headlamps-
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 029
                                                                    MPN: 294559
                                                                    PWM COMMAND SIGNAL FOR FUEL PUMPS
                                                                    from £114.44
                                                                    from £114.44
                                                                    # 030
                                                                    MPN: 231619
                                                                    SCREW
                                                                    -M6 X 22-
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 031
                                                                    MPN: 315385
                                                                    4WD ECU
                                                                    -Applicable until depletion-
                                                                    Supersession
                                                                    Supersession
                                                                    # 031
                                                                    MPN: 766005
                                                                    4WD ECU
                                                                    -Applicable after depletion of 315385-
                                                                    from £647.10
                                                                    from £647.10
                                                                    This part replaces part number 315385
                                                                    # 032
                                                                    MPN: 275483
                                                                    UPPER PTU CONTROL UNIT FASTENER BRACKET
                                                                    from £8.47
                                                                    from £8.47
                                                                    # 033
                                                                    MPN: 275484
                                                                    LOWER PTU CONTROL UNIT FASTENER BRACKET
                                                                    from £8.47
                                                                    from £8.47
                                                                    # 034
                                                                    MPN: 191531
                                                                    PLUG
                                                                    from £1.49
                                                                    from £1.49
                                                                    # 035
                                                                    MPN: 16285127
                                                                    SCREW
                                                                    -M5 X 16-
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 036
                                                                    MPN: 12638124
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 12638101 - and 1 more. Click to view details
                                                                    # 037
                                                                    MPN: 312311
                                                                    SIDE CONTROL ECU
                                                                    from £390.46
                                                                    from £390.46
                                                                    # 038
                                                                    MPN: 326349
                                                                    CNTR SUSP. CONTROL ECU BRACKET
                                                                    from £17.20
                                                                    from £17.20
                                                                    # 039
                                                                    MPN: 328097
                                                                    PASSIVE START ECU
                                                                    -Not for J-
                                                                    from £199.40
                                                                    from £199.40
                                                                    This part replaces part number 310779
                                                                    # 039
                                                                    MPN: 328098
                                                                    PASSIVE START ECU
                                                                    -Applicable for J-
                                                                    from £199.40
                                                                    from £199.40
                                                                    This part replaces part number 317012
                                                                    # 040
                                                                    MPN: 85692200
                                                                    SCREW
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 041
                                                                    MPN: 310778
                                                                    PASSIVE START ANTENNA
                                                                    from £3.99
                                                                    from £3.99
                                                                    # 042
                                                                    MPN: 85692200
                                                                    SCREW
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 043
                                                                    MPN: 304001
                                                                    DCT GEARBOX ECU
                                                                    -Unprogrammed- -Applicable up to Ass. No. 154835-
                                                                    from £1,073.13
                                                                    from £1,073.13
                                                                    This part replaces part number 279430
                                                                    # 043
                                                                    MPN: 330778
                                                                    DCT GEARBOX ECU
                                                                    -Unprogrammed- -Applicable from Ass. No. 154836-
                                                                    from £485.74
                                                                    from £485.74
                                                                    # 044
                                                                    MPN: 313218
                                                                    DCT ECU MOUNTING BRACKET
                                                                    from £11.33
                                                                    from £11.33
                                                                    # 045
                                                                    MPN: 85692000
                                                                    SCREW
                                                                    -M5 X 10-
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 046
                                                                    MPN: 14040611
                                                                    NUT
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 047
                                                                    MPN: 336274
                                                                    PARKING CAMERA ECU
                                                                    -Version with front camera with dual view- -Not for ADAS version-
                                                                    from £1,162.94
                                                                    from £1,162.94
                                                                    # 047
                                                                    MPN: 818616
                                                                    SURROUND VIEW ECU
                                                                    -Surround view version- -Applicable for ADAS version- -Not applicable for Korea-
                                                                    from £1,797.32
                                                                    from £1,797.32
                                                                    # 047
                                                                    MPN: 818616
                                                                    SURROUND VIEW ECU
                                                                    -Surround view version- -Applicable for ADAS version- -Applicable for Korea- -Applicable for USA LIGHT-
                                                                    from £1,797.32
                                                                    from £1,797.32
                                                                    # 048
                                                                    MPN: 311387
                                                                    COMPL. NDC ECU MOUNTING BRACKET
                                                                    -Version with front camera with dual view- -Not for ADAS version-
                                                                    from £27.98
                                                                    from £27.98
                                                                    # 048
                                                                    MPN: 823834
                                                                    COMPL. SURROUND VIEW ECU MOUNTING BRACKET
                                                                    -Surround view version- -Applicable for ADAS version- -Not applicable for Korea-
                                                                    from £27.26
                                                                    from £27.26
                                                                    # 048
                                                                    MPN: 823834
                                                                    COMPL. SURROUND VIEW ECU MOUNTING BRACKET
                                                                    -Surround view version- -Applicable for ADAS version- -Applicable for Korea- -Applicable for USA LIGHT-
                                                                    from £27.26
                                                                    from £27.26
                                                                    # 049
                                                                    MPN: 14303024
                                                                    SCREW
                                                                    -M4 X 12- -Version with front camera with dual view- -Not for ADAS version-
                                                                    from £0.48
                                                                    from £0.48
                                                                    This part replaces part number 14303021 - and 1 more. Click to view details
                                                                    # 049
                                                                    MPN: 14303024
                                                                    SCREW
                                                                    -M4 X 12- -Surround view version- -Applicable for ADAS version- -Not applicable for Korea-
                                                                    from £0.48
                                                                    from £0.48
                                                                    This part replaces part number 14303021 - and 1 more. Click to view details
                                                                    # 049
                                                                    MPN: 14303024
                                                                    SCREW
                                                                    -M4 X 12- -Surround view version- -Applicable for ADAS version- -Applicable for Korea- -Applicable for USA LIGHT-
                                                                    from £0.48
                                                                    from £0.48
                                                                    This part replaces part number 14303021 - and 1 more. Click to view details
                                                                    # 050
                                                                    MPN: 12601074
                                                                    WASHER
                                                                    -Version with front camera with dual view- -Not for ADAS version-
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 12601070 which we have in stock
                                                                    # 050
                                                                    MPN: 12601074
                                                                    WASHER
                                                                    -Surround view version- -Applicable for ADAS version- -Not applicable for Korea-
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 12601070 which we have in stock
                                                                    # 050
                                                                    MPN: 12601074
                                                                    WASHER
                                                                    -Surround view version- -Applicable for ADAS version- -Applicable for Korea- -Applicable for USA LIGHT-
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 12601070 which we have in stock
                                                                    # 051
                                                                    MPN: 256323
                                                                    SCREW
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 052
                                                                    MPN: 12578111
                                                                    NUT
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 053
                                                                    MPN: 291539
                                                                    IGNITION ECU
                                                                    -Unprogrammed- -Applicable up to Ass. No. 140878-
                                                                    from £546.67
                                                                    from £546.67
                                                                    # 053
                                                                    MPN: 337737
                                                                    IGNITION ECU
                                                                    -Unprogrammed- -Applicable from Ass. No. 140879-
                                                                    from £917.11
                                                                    from £917.11
                                                                    # 054
                                                                    MPN: 328983
                                                                    RH BRACKET
                                                                    from £18.40
                                                                    from £18.40
                                                                    # 055
                                                                    MPN: 328984
                                                                    LH BRACKET
                                                                    from £18.40
                                                                    from £18.40
                                                                    # 056
                                                                    MPN: 16296924
                                                                    SCREW
                                                                    -M6 X 14-
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 289834
                                                                    # 057
                                                                    MPN: 12647624
                                                                    WASHER
                                                                    from £0.51
                                                                    from £0.51
                                                                    This part replaces part number 12647611
                                                                    # 058
                                                                    MPN: 257695
                                                                    CENTRE BRACKET
                                                                    from £12.15
                                                                    from £12.15
                                                                    # 059
                                                                    MPN: 313125
                                                                    ION ECU
                                                                    -Unprogrammed-
                                                                    from £787.73
                                                                    from £787.73
                                                                    # 060
                                                                    MPN: 317658
                                                                    ION ECU FASTENER BRACKET
                                                                    from £55.79
                                                                    from £55.79
                                                                    # 061
                                                                    MPN: 14304224
                                                                    SCREW
                                                                    -M5 X 16-
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 062
                                                                    MPN: 12637824
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 12637801 - and 1 more. Click to view details
                                                                    # 063
                                                                    MPN: 233600
                                                                    SCREW
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 064
                                                                    MPN: 338212
                                                                    BRACKET
                                                                    -Applicable up to Ass. No. 143870- -Applicable until depletion-
                                                                    Supersession
                                                                    Supersession
                                                                    # 065
                                                                    MPN: 338213
                                                                    BRACKET
                                                                    -Applicable up to Ass. No. 143870- -Applicable until depletion-
                                                                    Supersession
                                                                    Supersession
                                                                    # 066
                                                                    MPN: 339749
                                                                    PASSIVE START ANTENNA
                                                                    -Applicable for J-
                                                                    from £131.13
                                                                    from £131.13
                                                                    # 067
                                                                    MPN: 342888
                                                                    MAGNERIDE ECU BRACKET
                                                                    -Applicable after depletion of: bracket 326348 pos.10, bracket 338212 pos. 64, bracket 338213 pos.65, screw 14303474 pos.9- -Applicable from Ass. No. 143871-
                                                                    from £46.35
                                                                    from £46.35
                                                                    This part replaces part number 326348 - and 5 more. Click to view details
