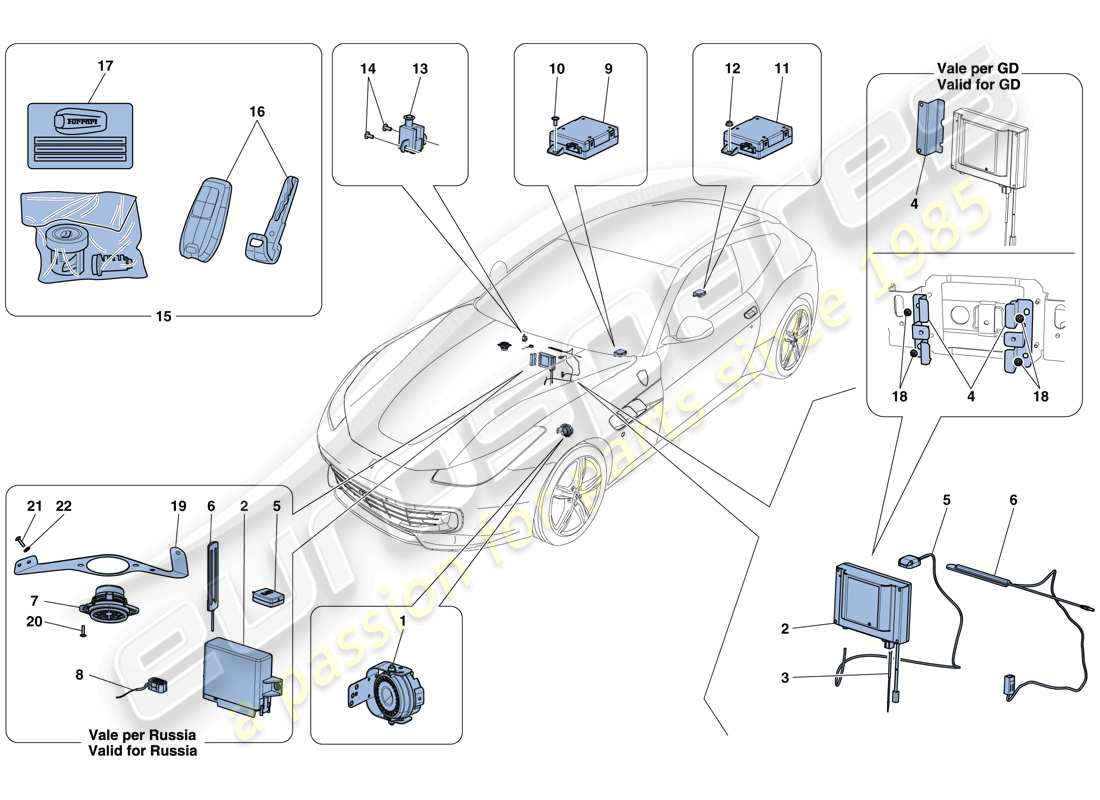

0136 - ANTITHEFT SYSTEM

Ferrari GTC4 Lusso (Europe) ANTITHEFT SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price
                # 001
                MPN: 336779
                COMPL. ANTI-THEFT SYSTEM SIREN
                from £42.23
                from £42.23
                # 002
                MPN: 307603
                ADR10 SATELLITE ALARM SYSTEM ECU
                -Request ASM authorisation- -Not for J-
                from £1,369.79
                from £1,369.79
                This part replaces part number 235627 - and 5 more. Click to view details
                # 002
                MPN: 330644
                GLONASS ECU
                -Unprogrammed- -Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets- -Applicable for ERA GLONASS system- -Version without satellite alarm system- -No longer supplied- -Replaced by 794834-
                # 002
                MPN: 794834
                GLONASS ECU
                -Scheduled- -Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets- -Applicable for ERA GLONASS system- -Version without satellite alarm system-
                # 003
                MPN: 307605
                ADR10 ANTI-THEFT SYSTEM ANTENNA
                -Not for J-
                from £160.74
                from £160.74
                # 004
                MPN: 282642
                NAVTRACK FASTENER BRACKET
                -Applicable for GD-
                from £5.89
                from £5.89
                This part replaces part number 249839
                # 004
                MPN: 342940
                ECU RETAINER BRACKET
                -Not for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets- -Not for GD-
                from £14.79
                from £14.79
                # 004
                MPN: 342940
                ECU RETAINER BRACKET
                -Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets- -Applicable for ERA GLONASS system-
                from £14.79
                from £14.79
                # 005
                MPN: 274464
                GPS ANTENNA
                -Not for J-
                from £32.62
                from £32.62
                # 005
                MPN: 332823
                GLONASS GPS ANTENNA
                -Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets- -Version without satellite alarm system- -Applicable for ERA GLONASS system-
                from £17.19
                from £17.19
                # 006
                MPN: 274465
                GSM ANTENNA
                -Not for J-
                from £13.68
                from £13.68
                # 006
                MPN: 332824
                GLONASS GSM ANTENNA
                -Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets- -Version without satellite alarm system- -Applicable for ERA GLONASS system-
                from £17.19
                from £17.19
                # 007
                MPN: 332825
                GLONASS SPEAKER
                -Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets- -Version without satellite alarm system- -Applicable for ERA GLONASS system-
                from £25.87
                from £25.87
                # 008
                MPN: 333337
                GSM MICROPHONE
                -Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets- -Version without satellite alarm system- -Applicable for ERA GLONASS system-
                from £102.01
                from £102.01
                # 009
                MPN: 293416
                ANTI-LIFT SENSOR
                from £129.39
                from £129.39
                # 010
                MPN: 85692200
                SCREW
                from £0.47
                from £0.47
                # 011
                MPN: 294011
                ANTI-THEFT SYSTEM SENSOR
                from £141.97
                from £141.97
                # 012
                MPN: 14059111
                NUT
                from £0.47
                from £0.47
                # 013
                MPN: 239744
                DASHBOARD INFOLED
                -No longer supplied- -Replaced by 847648-
                from £36.59
                from £36.59
                This part replaces part number 188253 which we have in stock - and 1 more. Click to view details
                # 013
                MPN: 847648
                DASHBOARD INFOLED
                from £36.59
                from £36.59
                # 014
                MPN: 85692200
                SCREW
                from £0.47
                from £0.47
                # 015
                MPN: 328976
                KEY AND BLOCK KIT
                -Contains 2 keys, 2 barrels, 1 secret card and 1 keyless key- -Not for J-
                from £777.44
                from £777.44
                # 015
                MPN: 329045
                KEY AND BLOCK KIT
                -Contains 2 keys, 2 barrels, 1 secret card and 1 keyless key- -Applicable for J-
                from £777.44
                from £777.44
                # 016
                MPN: 328403
                KEYLESS KEY KIT
                -Not for J-
                from £532.29
                from £532.29
                # 016
                MPN: 328404
                KEYLESS KEY KIT
                -Applicable for J-
                from £532.29
                from £532.29
                # 017
                MPN: 6326163
                SECRET CARD LABEL FOR KEYS
                from £1.48
                from £1.48
                # 018
                MPN: 14059121
                NUT
                -Not for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets-
                from £0.53
                from £0.53
                # 018
                MPN: 14059121
                NUT
                -Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets- -Applicable for ERA GLONASS system-
                from £0.53
                from £0.53
                # 019
                MPN: 89171400
                SPEAKER MOUNTING BRACKET
                -Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets- -Version without satellite alarm system- -Applicable for ERA GLONASS system-
                from £27.35
                from £27.35
                # 020
                MPN: 65752800
                SCREW
                -M4 X 10- -Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets- -Version without satellite alarm system- -Applicable for ERA GLONASS system-
                from £1.14
                from £1.14
                This part replaces part number 294485 - and 1 more. Click to view details
                # 021
                MPN: 85833700
                SCREW
                -M5 X 14- -Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets- -Version without satellite alarm system- -Applicable for ERA GLONASS system-
                from £0.47
                from £0.47
                # 022
                MPN: 12638178
                WASHER
                -Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets- -Version without satellite alarm system- -Applicable for ERA GLONASS system-
                from £0.47
                from £0.47
                This part replaces part number 10519578 - and 3 more. Click to view details
