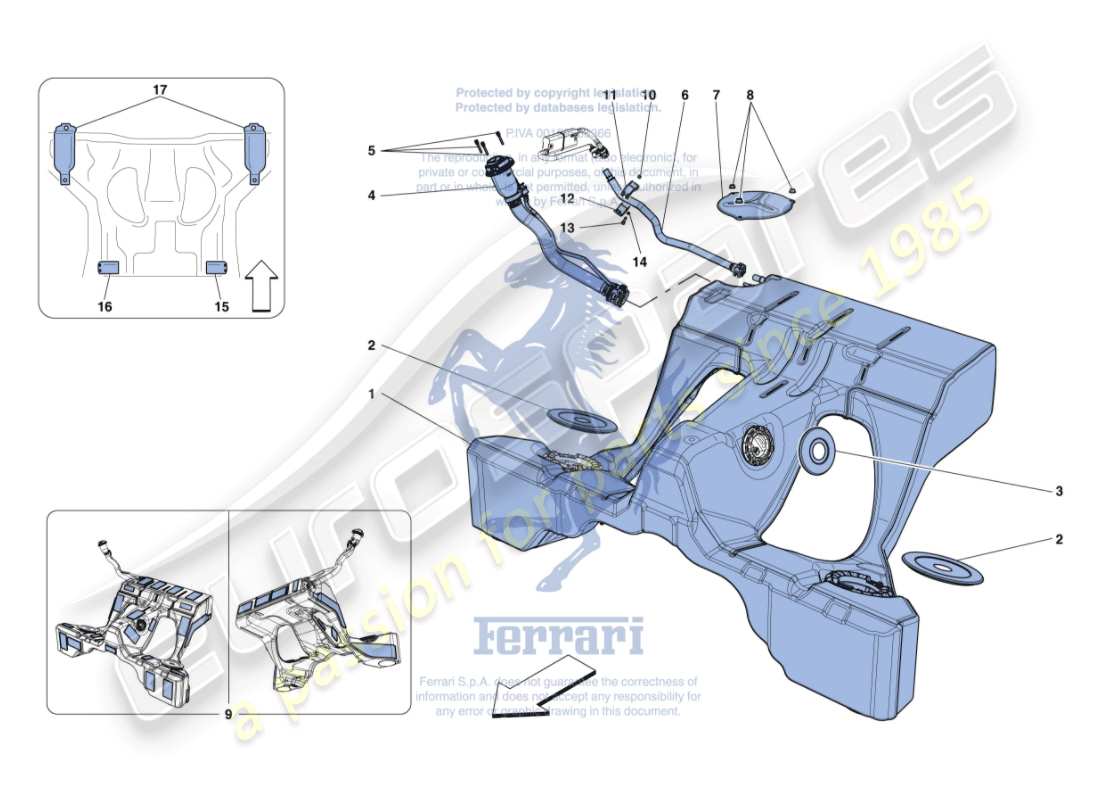

0010 - FUEL TANK AND FILLER NECK

Ferrari GTC4 Lusso (RHD) FUEL TANK AND FILLER NECK Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 330215
                            FUEL TANK
                            -No longer supplied- -Replaced by 340981-
                            Supersession
                            Supersession
                            # 001
                            MPN: 340981
                            FUEL TANK WITH PAINT FINISH AND VIBRATION DAMPERS
                            from £1,983.61
                            from £1,983.61
                            This part replaces part number 330215 - and 1 more. Click to view details
                            # 002
                            MPN: 250481
                            INSPECTION CAP
                            -No longer supplied- -Replaced by 781834-
                            from £14.74
                            from £14.74
                            # 002
                            MPN: 781834
                            INSPECTION CAP
                            from £13.08
                            from £13.08
                            # 003
                            MPN: 250480
                            INSPECTION CAP
                            from £8.67
                            from £8.67
                            # 004
                            MPN: 329278
                            FUEL FILLER PIPE ASSEMBLY
                            -No longer supplied- -Replaced by 880514-
                            Supersession
                            Supersession
                            # 004
                            MPN: 880514
                            FUEL FILLER PIPE ASSEMBLY
                            from £431.65
                            from £431.65
                            This part replaces part number 329278
                            # 005
                            MPN: 304908
                            SCREW
                            from £2.34
                            from £2.34
                            # 006
                            MPN: 279522
                            VAPOUR SEPARATOR PIPE
                            from £27.46
                            from £27.46
                            This part replaces part number 264024 which we have in stock - and 1 more. Click to view details
                            # 007
                            MPN: 272714
                            COMPL. REAR INSPECTION COVER
                            from £7.82
                            from £7.82
                            # 008
                            MPN: 13046011
                            NUT
                            from £0.47
                            from £0.47
                            # 009
                            MPN: 328480
                            FUEL TANK VIBRATION DAMPER PAD KIT
                            -Included with fuel tank 340981 ref.1- -No longer supplied-
                            # 010
                            MPN: 169180
                            NUT
                            from £0.47
                            from £0.47
                            This part replaces part number 12574121
                            # 011
                            MPN: 276850
                            UPPER MOUNT
                            from £2.81
                            from £2.81
                            # 012
                            MPN: 276851
                            LOWER MOUNT
                            from £2.81
                            from £2.81
                            # 013
                            MPN: 14304321
                            SCREW
                            from £0.47
                            from £0.47
                            # 014
                            MPN: 13579101
                            WASHER
                            from £0.53
                            from £0.53
                            # 015
                            MPN: 331667
                            COMPL. RH REAR TANK BRACKET
                            from £15.79
                            from £15.79
                            # 016
                            MPN: 331666
                            COMPL. LH REAR TANK BRACKET
                            from £15.79
                            from £15.79
                            # 017
                            MPN: 333426
                            COMPL. LOWER RETAINER
                            from £14.58
                            from £14.58
                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
