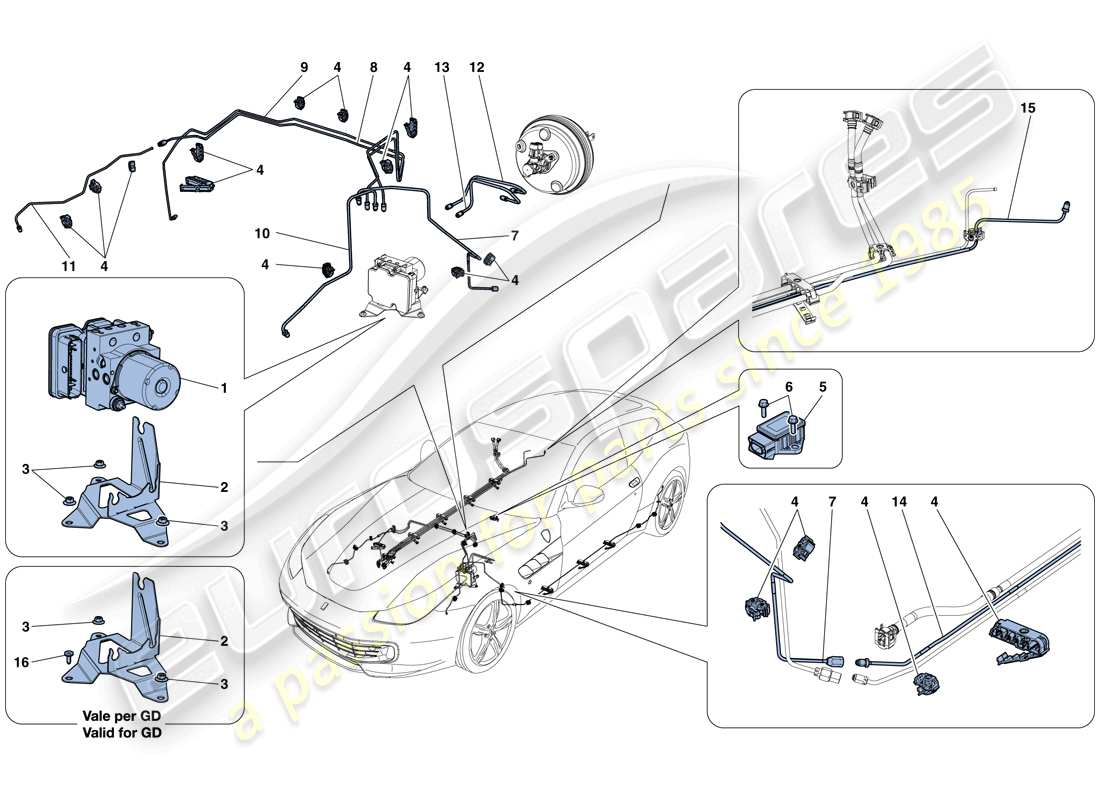

Ferrari GTC4 Lusso (RHD) BRAKE SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      -
      hydraulic unit
      # 001
      -
      hydraulic unit
      # 001
      MPN: 317229
      hydraulic unit
      -Not for ADAS version- -Applicable up to Ass. No. 158988-
      from £2,173.00
      from £2,173.00
      # 002
      MPN: 311486
      HYDRAULIC UNIT FASTENER BRACKET
      -Applicable for GD-
      from £33.40
      from £33.40
      # 002
      MPN: 316239
      HYDRAULIC UNIT FASTENER BRACKET
      -Not for GD-
      from £38.64
      from £38.64
      # 003
      MPN: 14039614
      NUT
      -Not for GD-
      from £0.53
      from £0.53
      # 003
      MPN: 14039614
      NUT
      -Applicable for GD-
      from £0.53
      from £0.53
      # 004
      MPN: 234284
      CLIP
      -1 compartment-
      from £0.47
      from £0.47
      # 004
      MPN: 234285
      CLIP
      -2 compartments-
      from £0.51
      from £0.51
      # 004
      MPN: 234286
      CLIP
      -4 compartments-
      from £0.82
      from £0.82
      # 004
      MPN: 241118
      CLIP
      -5 compartments-
      from £0.73
      from £0.73
      # 004
      MPN: 303873
      CLIP
      -1 compartment-
      from £0.94
      from £0.94
      # 005
      MPN: 206070
      YAW SENSOR
      -Applicable for GD- -No longer supplied- -Replaced by 307688-
      from £78.75
      from £78.75
      # 005
      MPN: 307688
      YAW SENSOR
      -Not for GD-
      from £77.51
      from £77.51
      # 005
      MPN: 307688
      YAW SENSOR
      -Applicable for GD-
      from £77.51
      from £77.51
      # 006
      MPN: 16286124
      SCREW
      -M6 X 20-
      from £0.53
      from £0.53
      # 007
      MPN: 309611
      BRAKE PIPE TO LH REAR JUNCTION
      -Not for GD-
      from £29.45
      from £29.45
      # 007
      MPN: 340247
      BRAKE PIPE TO LH REAR JUNCTION
      -Applicable for GD-
      from £66.25
      from £66.25
      # 008
      MPN: 311451
      BRAKE PIPE TO RH FRONT JUNCTION
      -Applicable for GD-
      from £25.10
      from £25.10
      # 008
      MPN: 316191
      BRAKE PIPE TO RH FRONT JUNCTION
      -Not for GD-
      from £58.89
      from £58.89
      # 009
      MPN: 311447
      BRAKE PIPE TO RH REAR JUNCTION
      -Applicable for GD-
      from £30.33
      from £30.33
      # 009
      MPN: 316193
      BRAKE PIPE TO RH REAR JUNCTION
      -Not for GD- -Applicable until depletion-
      Supersession
      Supersession
      # 009
      MPN: 339299
      BRAKE PIPE TO RH REAR JUNCTION
      -Not for GD- -Applicable after depletion of 316193-
      from £64.91
      from £64.91
      This part replaces part number 316193
      # 010
      MPN: 314596
      BRAKE PIPE TO LH FRONT JUNCTION
      -Not for GD-
      from £23.55
      from £23.55
      # 010
      MPN: 340246
      BRAKE PIPE TO LH FRONT JUNCTION
      -Applicable for GD-
      from £62.05
      from £62.05
      # 011
      MPN: 268766
      BRAKE PIPE FROM JUNCTION TO RH FRONT MODULE
      -Not for GD-
      from £26.20
      from £26.20
      # 011
      MPN: 274104
      BRAKE PIPE FROM JUNCTION TO LH FRONT MODULE
      -Applicable for GD-
      from £29.74
      from £29.74
      # 012
      MPN: 309620
      REAR PUMP BRAKE PIPE
      -Not for GD-
      from £29.08
      from £29.08
      # 012
      MPN: 311445
      REAR PUMP BRAKE PIPE
      -Applicable for GD-
      from £15.71
      from £15.71
      # 013
      MPN: 309622
      FRONT PUMP BRAKE PIPE
      -Not for GD-
      from £29.08
      from £29.08
      # 013
      MPN: 311437
      FRONT PUMP BRAKE PIPE
      -Applicable for GD-
      from £15.67
      from £15.67
      # 014
      MPN: 268771
      BRAKE PIPE FROM JUNCTION TO LH REAR MODULE
      from £58.57
      from £58.57
      # 015
      MPN: 268773
      BRAKE PIPE FROM JUNCTION TO RH REAR MODULE
      from £51.53
      from £51.53
      # 016
      MPN: 80874100
      SCREW
      -Applicable for GD-
      from £0.56
      from £0.56
      This part replaces part number 83443000
