0042 - ALTERNATOR - STARTER MOTOR

Ferrari GTC4 Lusso (RHD) ALTERNATOR - STARTER MOTOR Parts Diagram

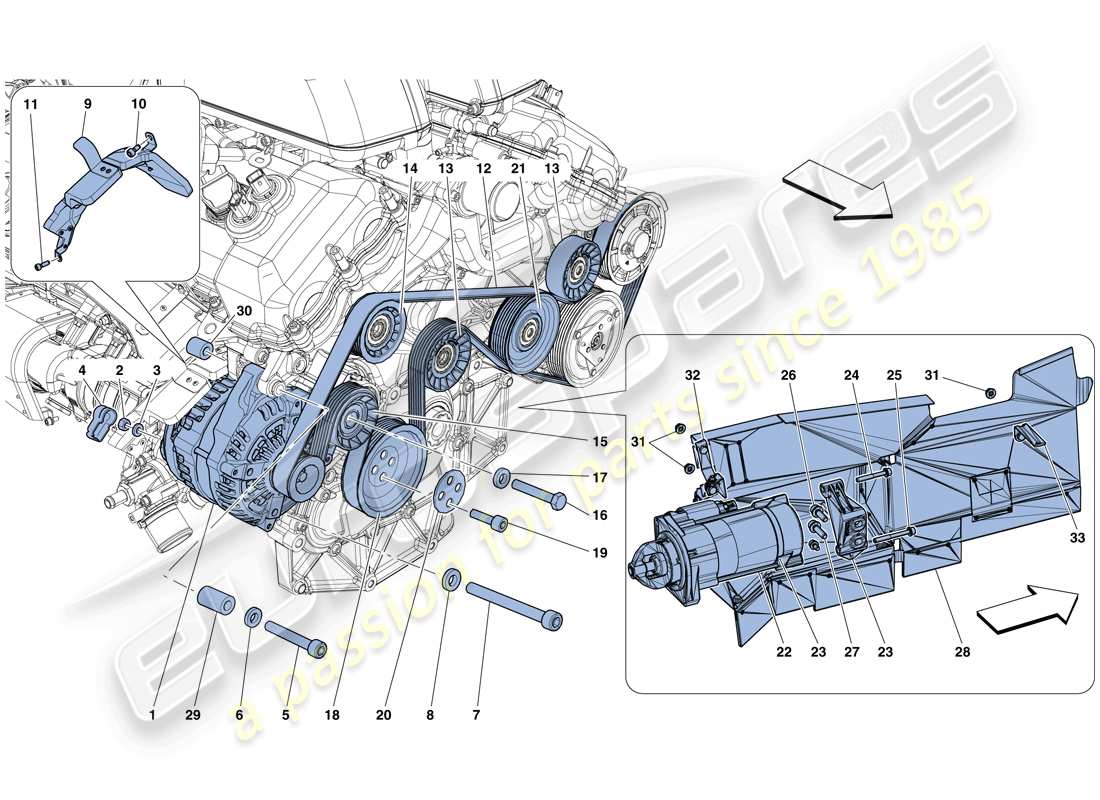

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 001
                                                    MPN: 327289
                                                    ALTERNATOR
                                                    from £757.14
                                                    from £757.14
                                                    # 002
                                                    MPN: 16102314
                                                    NUT
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 16102311 - and 1 more. Click to view details
                                                    # 003
                                                    MPN: 12601374
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 10615474 - and 6 more. Click to view details
                                                    # 004
                                                    MPN: 154803
                                                    PROTECTIVE CAP
                                                    from £2.58
                                                    from £2.58
                                                    # 005
                                                    MPN: 14308224
                                                    SCREW
                                                    -M10 X 1.25 X 65-
                                                    from £0.59
                                                    from £0.59
                                                    # 006
                                                    MPN: 10569474
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    # 007
                                                    MPN: 14308724
                                                    SCREW
                                                    -M10 X 1.25 X 100-
                                                    from £1.91
                                                    from £1.91
                                                    # 008
                                                    MPN: 10569474
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    # 009
                                                    MPN: 295111
                                                    HEAT SHIELD
                                                    from £76.91
                                                    from £76.91
                                                    This part replaces part number 268071 which we have in stock
                                                    # 010
                                                    MPN: 233600
                                                    SCREW
                                                    from £0.47
                                                    from £0.47
                                                    # 011
                                                    MPN: 231617
                                                    SCREW
                                                    -M6 X 18-
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 14433124
                                                    # 012
                                                    MPN: 243857
                                                    BELT
                                                    from £35.40
                                                    from £35.40
                                                    # 013
                                                    MPN: 272554
                                                    SMOOTH PULLEY
                                                    from £119.70
                                                    from £119.70
                                                    # 014
                                                    MPN: 295763
                                                    6-GROOVE PULLEY WITH SCREW
                                                    from £30.63
                                                    from £30.63
                                                    # 015
                                                    MPN: 271881
                                                    belt tensioner
                                                    from £64.52
                                                    from £64.52
                                                    # 016
                                                    MPN: 16044431
                                                    SCREW
                                                    -M8 X 60-
                                                    from £0.47
                                                    from £0.47
                                                    # 017
                                                    MPN: 11193874
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 11193879 which we have in stock
                                                    # 018
                                                    MPN: 260136
                                                    ANCILLARY DRIVE BELT
                                                    from £72.63
                                                    from £72.63
                                                    # 019
                                                    MPN: 14306424
                                                    SCREW
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 14306324 - and 2 more. Click to view details
                                                    # 020
                                                    MPN: 258597
                                                    PLATE
                                                    from £4.54
                                                    from £4.54
                                                    # 022
                                                    MPN: 272494
                                                    STARTER MOTOR
                                                    from £193.20
                                                    from £193.20
                                                    # 023
                                                    MPN: 272479
                                                    REAR STARTER MOTOR BRACKET
                                                    from £32.39
                                                    from £32.39
                                                    # 024
                                                    MPN: 231624
                                                    SCREW
                                                    -M6 X 45-
                                                    from £0.47
                                                    from £0.47
                                                    # 025
                                                    MPN: 255494
                                                    SCREW
                                                    -M6 X 55-
                                                    from £1.85
                                                    from £1.85
                                                    # 026
                                                    MPN: 231628
                                                    SCREW
                                                    -M8 X 25-
                                                    from £0.47
                                                    from £0.47
                                                    # 028
                                                    MPN: 333494
                                                    HEAT SHIELD
                                                    from £168.81
                                                    from £168.81
                                                    # 029
                                                    MPN: 258137
                                                    BUSHING
                                                    from £2.88
                                                    from £2.88
                                                    # 030
                                                    MPN: 258138
                                                    THREADED BUSHING
                                                    from £5.86
                                                    from £5.86
                                                    # 031
                                                    MPN: 14040611
                                                    NUT
                                                    from £0.53
                                                    from £0.53
                                                    # 032
                                                    MPN: 333696
                                                    BRACKET
                                                    from £21.79
                                                    from £21.79
                                                    # 033
                                                    MPN: 290098
                                                    BRACKET
                                                    from £7.35
                                                    from £7.35
