0129 - HEADLIGHTS AND TAILLIGHTS

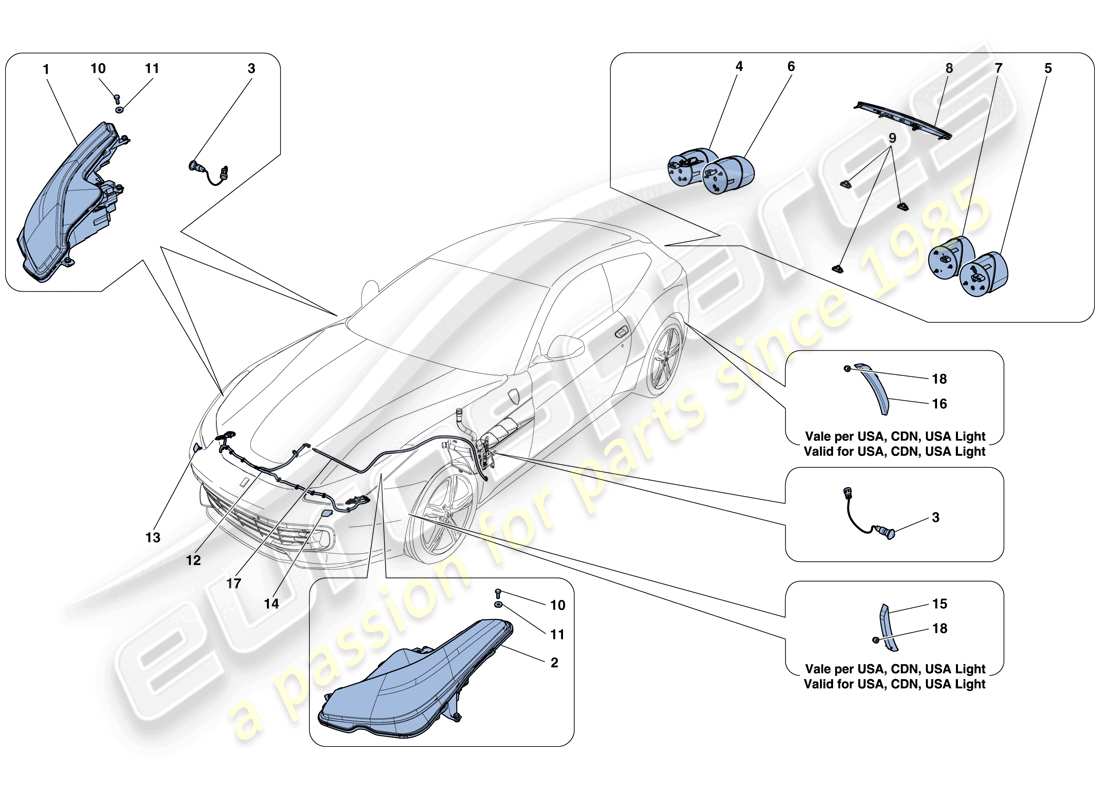

Ferrari GTC4 Lusso (RHD) HEADLIGHTS AND TAILLIGHTS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 317206
RH BIXENON HEADLIGHT
-Not for CINA, USA, CDN, J, GD, USA LIGHT-
from £3,063.41
from £3,063.41
# 001
MPN: 317216
RH BIXENON HEADLIGHT
-Adaptive headlamps- -Not for CINA, USA, CDN, J, GD, USA LIGHT-
from £2,301.89
from £2,301.89
# 001
MPN: 329980
RH BIXENON HEADLIGHT
-Applicable for J, GD-
from £2,707.88
from £2,707.88
# 001
MPN: 329982
RH BIXENON HEADLIGHT
-Adaptive headlamps- -Applicable for J, GD-
from £1,081.16
from £1,081.16
# 001
MPN: 329984
RH BIXENON HEADLIGHT
-Applicable for USA, CDN, USA LIGHT-
from £2,774.88
from £2,774.88
# 001
MPN: 329986
RH BIXENON HEADLIGHT
-Adaptive headlamps- -Applicable for USA, CDN, USA LIGHT-
from £1,965.74
from £1,965.74
# 001
MPN: 329988
RH BIXENON HEADLIGHT
-Applicable for CINA-
from £1,553.51
from £1,553.51
# 001
MPN: 329990
RH BIXENON HEADLIGHT
-Adaptive headlamps- -Applicable for CINA-
from £1,965.74
from £1,965.74
# 002
MPN: 317204
LH BIXENON HEADLIGHT
-Not for CINA, USA, CDN, J, GD, USA LIGHT-
from £3,063.41
from £3,063.41
# 002
MPN: 317213
LH BIXENON HEADLIGHT
-Adaptive headlamps- -Not for CINA, USA, CDN, J, GD, USA LIGHT-
from £2,301.89
from £2,301.89
# 002
MPN: 329979
LH BIXENON HEADLIGHT
-Applicable for J, GD-
from £1,489.33
from £1,489.33
# 002
MPN: 329981
LH BIXENON HEADLIGHT
-Adaptive headlamps- -Applicable for J, GD-
from £1,965.74
from £1,965.74
# 002
MPN: 329983
LH BIXENON HEADLIGHT
-Applicable for USA, CDN, USA LIGHT-
from £2,774.88
from £2,774.88
# 002
MPN: 329985
LH BIXENON HEADLIGHT
-Adaptive headlamps- -Applicable for USA, CDN, USA LIGHT-
from £1,965.74
from £1,965.74
# 002
MPN: 329987
LH BIXENON HEADLIGHT
-Applicable for CINA-
from £1,553.51
from £1,553.51
# 002
MPN: 329989
LH BIXENON HEADLIGHT
-Adaptive headlamps- -Applicable for CINA-
from £1,965.74
from £1,965.74
# 003
MPN: 317211
COMPL. LATERAL TURN INDICATOR
from £29.17
from £29.17
# 004
MPN: 317207
OUTER RH TAILLIGHT
-Applicable for Korea and Brazil- -Not for USA, CDN-
from £389.57
from £389.57
# 004
MPN: 325107
OUTER RH TAILLIGHT
-Not for Korea and Brazil- -Applicable for USA, CDN, USA LIGHT-
from £385.85
from £385.85
# 005
MPN: 317208
OUTER LH TAILLIGHT
-Applicable for Korea and Brazil- -Not for USA, CDN-
from £389.57
from £389.57
# 005
MPN: 325108
OUTER LH TAILLIGHT
-Not for Korea and Brazil- -Applicable for USA, CDN, USA LIGHT-
from £385.85
from £385.85
# 006
MPN: 322257
INNER RH TAILLIGHT
from £393.68
from £393.68
# 007
MPN: 322258
INNER LH TAILLIGHT
from £393.68
from £393.68
# 008
MPN: 326816
COMPL. THIRD STOP LIGHT
from £90.21
from £90.21
# 009
MPN: 318015
LICENSE PLATE LIGHT/PUDDLE LIGHT
from £6.14
from £6.14
# 010
MPN: 10903224
SCREW
from £0.48
from £0.48
This part replaces part number 10903221
# 011
MPN: 12647604
WASHER
from £0.51
from £0.51
# 012
MPN: 87406600
COMPL. HEADLIGHT WASHER PIPE ASSEMBLY
from £448.82
from £448.82
# 013
MPN: 87406810
RH Headlight Washer Cover
from £87.57
from £87.57
# 014
MPN: 87407210
LH HEADLIGHT WASHER COVER
from £87.57
from £87.57
# 015
MPN: 87329500
LH FRONT SIDE MARKER
-Applicable for USA, CDN, USA LIGHT-
from £39.64
from £39.64
# 015
MPN: 87329600
RH FRONT SIDE MARKER
-Applicable for USA, CDN, USA LIGHT-
from £39.64
from £39.64
# 016
MPN: 87329700
LH REAR SIDE MARKER
-Applicable for USA, CDN, USA LIGHT-
from £39.64
from £39.64
# 016
MPN: 87329800
RH REAR SIDE MARKER
-Applicable for USA, CDN, USA LIGHT-
from £39.64
from £39.64
# 017
MPN: 87905200
HEADLAMP WASHER PIPE FROM RESERVOIR TO DISCONNECTOR UNION
from £54.97
from £54.97
# 018
MPN: 89241300
NUT
-Applicable for USA, CDN, USA LIGHT-
from £8.04
from £8.04
