ferrari gtc4 lusso (rhd) shields - external trim parts diagram

0130 - SHIELDS - EXTERNAL TRIM

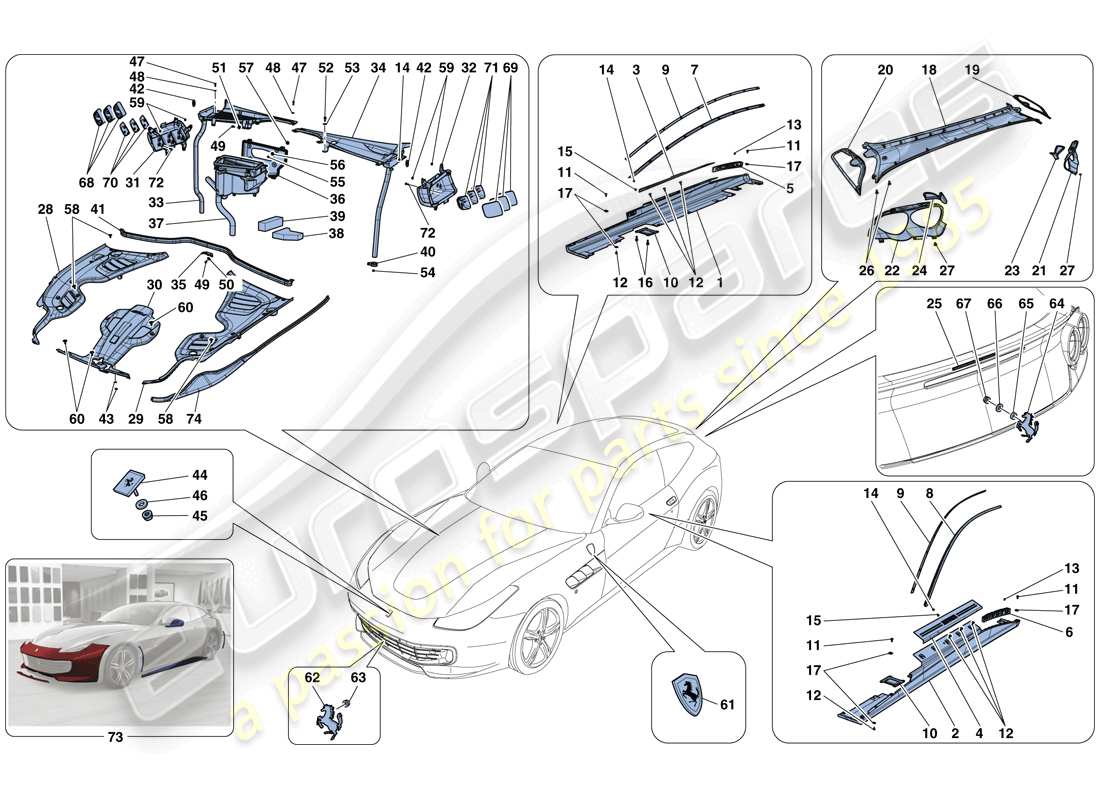

Ferrari GTC4 Lusso (RHD) SHIELDS - EXTERNAL TRIM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                          #
                                                                                          Part number
                                                                                          Description
                                                                                          Price
                                                                                          # 001
                                                                                          MPN: 87669910
                                                                                          COMPL. RH ROOF BEAM LATERAL TRIM
                                                                                          from £1,077.35
                                                                                          from £1,077.35
                                                                                          # 001
                                                                                          MPN: 88298300
                                                                                          COMPL. RH ROOF BEAM LATERAL TRIM
                                                                                          -Carbon version-
                                                                                          from £4,122.56
                                                                                          from £4,122.56
                                                                                          # 002
                                                                                          MPN: 87669810
                                                                                          COMPL. LH ROOF BEAM LATERAL TRIM
                                                                                          from £1,077.35
                                                                                          from £1,077.35
                                                                                          # 002
                                                                                          MPN: 88298200
                                                                                          COMPL. LH ROOF BEAM LATERAL TRIM
                                                                                          -Carbon version-
                                                                                          from £4,122.56
                                                                                          from £4,122.56
                                                                                          # 003
                                                                                          MPN: 86873500
                                                                                          RH KICKPLATE
                                                                                          -Carbon-
                                                                                          from £652.29
                                                                                          from £652.29
                                                                                          # 003
                                                                                          MPN: 86874300
                                                                                          RH KICKPLATE
                                                                                          from £171.87
                                                                                          from £171.87
                                                                                          # 004
                                                                                          MPN: 86873400
                                                                                          LH KICKPLATE
                                                                                          -Carbon-
                                                                                          from £652.29
                                                                                          from £652.29
                                                                                          # 004
                                                                                          MPN: 86874200
                                                                                          LH KICKPLATE
                                                                                          from £171.87
                                                                                          from £171.87
                                                                                          # 005
                                                                                          MPN: 87583100
                                                                                          REAR RH SILL TRIM BRACKET
                                                                                          from £11.00
                                                                                          from £11.00
                                                                                          # 006
                                                                                          MPN: 87583200
                                                                                          REAR LH SILL TRIM BRACKET
                                                                                          from £6.05
                                                                                          from £6.05
                                                                                          # 007
                                                                                          MPN: 87812100
                                                                                          RH ROOF GUTTER MOULDING
                                                                                          from £212.08
                                                                                          from £212.08
                                                                                          # 008
                                                                                          MPN: 87812000
                                                                                          LH ROOF GUTTER MOULDING
                                                                                          from £212.08
                                                                                          from £212.08
                                                                                          # 009
                                                                                          MPN: 84020400
                                                                                          GUTTER MOULDING TRIM SEAL
                                                                                          from £62.67
                                                                                          from £62.67
                                                                                          # 010
                                                                                          MPN: 269375
                                                                                          RH VEHICLE LIFT BRACKET
                                                                                          from £12.68
                                                                                          from £12.68
                                                                                          # 011
                                                                                          MPN: 11625824
                                                                                          SCREW
                                                                                          -M6 X 18-
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 012
                                                                                          MPN: 80874900
                                                                                          SCREW
                                                                                          -M6 X 22-
                                                                                          from £0.61
                                                                                          from £0.61
                                                                                          # 013
                                                                                          MPN: 13046014
                                                                                          NUT
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 014
                                                                                          MPN: 14215480
                                                                                          BLOCK
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 14211580
                                                                                          # 015
                                                                                          MPN: 15538777
                                                                                          SCREW
                                                                                          -M8 X 13-
                                                                                          from £0.52
                                                                                          from £0.52
                                                                                          # 016
                                                                                          MPN: 16287224
                                                                                          SCREW
                                                                                          -M8 X 25-
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 16287221
                                                                                          # 017
                                                                                          MPN: 87546600
                                                                                          CLIP
                                                                                          from £0.49
                                                                                          from £0.49
                                                                                          # 018
                                                                                          MPN: 87851400
                                                                                          COMPL. SPOILER COVER
                                                                                          from £41.82
                                                                                          from £41.82
                                                                                          # 019
                                                                                          MPN: 88493100
                                                                                          RH TAILGATE SPOILER SEAL
                                                                                          from £51.96
                                                                                          from £51.96
                                                                                          # 020
                                                                                          MPN: 88493000
                                                                                          LH TAILGATE SPOILER SEAL
                                                                                          from £51.96
                                                                                          from £51.96
                                                                                          # 021
                                                                                          MPN: 87921100
                                                                                          COMPL. RH TAILLIGHT GRILLE
                                                                                          from £188.19
                                                                                          from £188.19
                                                                                          # 022
                                                                                          MPN: 87920900
                                                                                          COMPL. LH TAILLIGHT GRILLE
                                                                                          from £188.19
                                                                                          from £188.19
                                                                                          # 023
                                                                                          MPN: 87932000
                                                                                          RH TAILLIGHT SURROUND
                                                                                          from £28.60
                                                                                          from £28.60
                                                                                          # 024
                                                                                          MPN: 87931900
                                                                                          LH TAILLIGHT SURROUND
                                                                                          from £28.60
                                                                                          from £28.60
                                                                                          # 025
                                                                                          MPN: 84706300
                                                                                          ITALIAN FLAG BADGE
                                                                                          -Italian flag on rear lid- -Not for CINA-
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 026
                                                                                          MPN: 65752800
                                                                                          SCREW
                                                                                          -M4 X 10-
                                                                                          from £1.14
                                                                                          from £1.14
                                                                                          This part replaces part number 294485 - and 1 more. Click to view details
                                                                                          # 027
                                                                                          MPN: 85833700
                                                                                          SCREW
                                                                                          -M5 X 14-
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 028
                                                                                          MPN: 88029900
                                                                                          COMPL. RH LATERAL RH ENGINE COMPARTMENT COVER
                                                                                          from £117.26
                                                                                          from £117.26
                                                                                          # 029
                                                                                          MPN: 88029200
                                                                                          COMPL. LH LATERAL ENGINE COMPARTMENT COVER
                                                                                          from £117.26
                                                                                          from £117.26
                                                                                          # 030
                                                                                          MPN: 88030600
                                                                                          COMPL. CENTRAL ENGINE COMPARTMENT COVER
                                                                                          from £197.89
                                                                                          from £197.89
                                                                                          # 031
                                                                                          MPN: 87942300
                                                                                          COMPL. RH FENDER VENT MOUNT
                                                                                          from £228.37
                                                                                          from £228.37
                                                                                          # 032
                                                                                          MPN: 87942200
                                                                                          COMPL. LH FENDER VENT MOUNT
                                                                                          from £125.60
                                                                                          from £125.60
                                                                                          # 033
                                                                                          MPN: 768316
                                                                                          COMPL. RH UNDERWINDSCREEN TRAY
                                                                                          -For vehicles up to Ass.ly No. 150158, also order LH underwindscreen tray 769100 ref.34- -Not for GD- -Applicable from Ass. No. 150159- -Applicable after depletion of 83765400-
                                                                                          from £77.91
                                                                                          from £77.91
                                                                                          This part replaces part number 83765400
                                                                                          # 033
                                                                                          MPN: 769798
                                                                                          COMPL. RH UNDERWINDSCREEN TRAY
                                                                                          -For vehicles up to Ass.ly No. 150158, also order LH underwindscreen tray 769800 ref.34- -Applicable for GD- -Applicable from Ass. No. 150506- -Applicable after depletion of 83943300-
                                                                                          from £86.63
                                                                                          from £86.63
                                                                                          This part replaces part number 83943300
                                                                                          # 033
                                                                                          MPN: 83765400
                                                                                          COMPL. RH UNDERWINDSCREEN TRAY
                                                                                          -Not for GD- -Applicable up to Ass. No. 150158- -Applicable until depletion-
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 033
                                                                                          MPN: 83943300
                                                                                          COMPL. RH UNDERWINDSCREEN TRAY
                                                                                          -Applicable for GD- -Applicable up to Ass. No. 150505- -Applicable until depletion-
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 034
                                                                                          MPN: 769100
                                                                                          COMPL. LH UNDERWINDSCREEN TRAY
                                                                                          -For vehicles up to Ass.ly No. 150158, also order RH underwindscreen tray 768316 ref.33- -Not for GD- -Applicable from Ass. No. 150159- -Applicable after depletion of 83765500-
                                                                                          from £79.46
                                                                                          from £79.46
                                                                                          # 034
                                                                                          MPN: 769800
                                                                                          COMPL. LH UNDERWINDSCREEN TRAY
                                                                                          -For vehicles up to Ass.ly No. 150158, also order RH underwindscreen tray 769798 ref.33- -Applicable for GD- -Applicable from Ass. No. 150506- -Applicable after depletion of 83943400-
                                                                                          from £86.63
                                                                                          from £86.63
                                                                                          This part replaces part number 83943400
                                                                                          # 034
                                                                                          MPN: 83765500
                                                                                          COMPL. LH UNDERWINDSCREEN TRAY
                                                                                          -Not for GD- -Applicable up to Ass. No. 150158- -Applicable until depletion-
                                                                                          from £84.00
                                                                                          from £84.00
                                                                                          # 034
                                                                                          MPN: 83943400
                                                                                          COMPL. LH UNDERWINDSCREEN TRAY
                                                                                          -Applicable for GD- -Applicable up to Ass. No. 150505- -Applicable until depletion-
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 035
                                                                                          MPN: 84082700
                                                                                          CENTRAL BRACKET FOR COMPL. UNDERWINDSCREEN TRAY
                                                                                          -No longer supplied- -Replaced by 89191200-
                                                                                          from £21.78
                                                                                          from £21.78
                                                                                          # 035
                                                                                          MPN: 89191200
                                                                                          CENTRAL BRACKET FOR COMPL. UNDERWINDSCREEN TRAY
                                                                                          from £36.64
                                                                                          from £36.64
                                                                                          # 036
                                                                                          MPN: 87647500
                                                                                          AIR INTAKE TRAY, COMPL. FIXED PART
                                                                                          -Not for GD-
                                                                                          from £74.24
                                                                                          from £74.24
                                                                                          # 036
                                                                                          MPN: 88037800
                                                                                          AIR INTAKE TRAY, COMPL. FIXED PART
                                                                                          -Applicable for GD-
                                                                                          from £48.37
                                                                                          from £48.37
                                                                                          # 037
                                                                                          MPN: 87647900
                                                                                          AIR INTAKE TRAY, COMPL. MOBILE PART
                                                                                          -Not for GD-
                                                                                          from £181.93
                                                                                          from £181.93
                                                                                          # 037
                                                                                          MPN: 88038000
                                                                                          AIR INTAKE TRAY, COMPL. MOBILE PART
                                                                                          -Applicable for GD-
                                                                                          from £129.00
                                                                                          from £129.00
                                                                                          # 038
                                                                                          MPN: 84175500
                                                                                          FUME FILTER FOAM FOR UNDERWINDSCREEN TRAY
                                                                                          from £20.00
                                                                                          from £20.00
                                                                                          # 039
                                                                                          MPN: 84175400
                                                                                          NITTO
                                                                                          -Not for GD-
                                                                                          from £8.98
                                                                                          from £8.98
                                                                                          # 039
                                                                                          MPN: 84175400
                                                                                          NITTO
                                                                                          -Applicable for GD-
                                                                                          from £8.98
                                                                                          from £8.98
                                                                                          # 040
                                                                                          MPN: 10448890
                                                                                          BRACKET WITH SHEATH
                                                                                          from £1.07
                                                                                          from £1.07
                                                                                          # 041
                                                                                          MPN: 83315600
                                                                                          UNDERWINDSCREEN TRAY SEAL
                                                                                          from £27.41
                                                                                          from £27.41
                                                                                          # 042
                                                                                          MPN: 65708600
                                                                                          SHIM
                                                                                          from £3.99
                                                                                          from £3.99
                                                                                          # 043
                                                                                          MPN: 14183376
                                                                                          TYPE A PLATE FOR PIN
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 044
                                                                                          MPN: 65394800
                                                                                          front badge
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 045
                                                                                          MPN: 113647
                                                                                          NUT
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          # 046
                                                                                          MPN: 12638124
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
                                                                                          # 047
                                                                                          MPN: 85692400
                                                                                          SCREW
                                                                                          -M5 X 20-
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 048
                                                                                          MPN: 12638178
                                                                                          WASHER
                                                                                          -No longer supplied- -Replaced by 87658900-
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 10519578 - and 3 more. Click to view details
                                                                                          # 048
                                                                                          MPN: 87658900
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 049
                                                                                          MPN: 16285127
                                                                                          SCREW
                                                                                          -M5 X 16-
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 050
                                                                                          MPN: 13550224
                                                                                          WASHER
                                                                                          from £0.68
                                                                                          from £0.68
                                                                                          # 051
                                                                                          MPN: 61148700
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 052
                                                                                          MPN: 16286127
                                                                                          SCREW
                                                                                          -M6 X 20-
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 053
                                                                                          MPN: 12647727
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 12647729
                                                                                          # 054
                                                                                          MPN: 14059111
                                                                                          NUT
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 055
                                                                                          MPN: 13046011
                                                                                          NUT
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 056
                                                                                          MPN: 12624178
                                                                                          WASHER
                                                                                          from £0.51
                                                                                          from £0.51
                                                                                          This part replaces part number 12624177
                                                                                          # 057
                                                                                          MPN: 65841100
                                                                                          SEAL WASHER
                                                                                          from £0.61
                                                                                          from £0.61
                                                                                          # 058
                                                                                          MPN: 256490
                                                                                          SCREW
                                                                                          -M5 X 16-
                                                                                          from £1.06
                                                                                          from £1.06
                                                                                          This part replaces part number 86607000
                                                                                          # 059
                                                                                          MPN: 14039511
                                                                                          NUT
                                                                                          from £0.51
                                                                                          from £0.51
                                                                                          # 060
                                                                                          MPN: 256490
                                                                                          SCREW
                                                                                          -M5 X 16-
                                                                                          from £1.14
                                                                                          from £1.14
                                                                                          This part replaces part number 86607000
                                                                                          # 061
                                                                                          MPN: 87344500
                                                                                          SQUADRA CORSE SHIELD BADGE
                                                                                          -Scuderia Ferrari shields on fenders-
                                                                                          from £524.46
                                                                                          from £524.46
                                                                                          # 062
                                                                                          MPN: 84933700
                                                                                          CAVALLINO RAMPANTE BADGE
                                                                                          from £40.31
                                                                                          from £40.31
                                                                                          # 063
                                                                                          MPN: 16101711
                                                                                          NUT
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 16101715
                                                                                          # 064
                                                                                          MPN: 80214400
                                                                                          CHROME HORSE
                                                                                          from £40.56
                                                                                          from £40.56
                                                                                          # 064
                                                                                          MPN: 82059100
                                                                                          CHROME HORSE
                                                                                          from £25.28
                                                                                          from £25.28
                                                                                          # 065
                                                                                          MPN: 60995100
                                                                                          RUBBER RING
                                                                                          from £1.52
                                                                                          from £1.52
                                                                                          # 066
                                                                                          MPN: 10519224
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 10519201
                                                                                          # 067
                                                                                          MPN: 62790300
                                                                                          NUT
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 12574011 - and 1 more. Click to view details
                                                                                          # 068
                                                                                          MPN: 825730
                                                                                          RH AIR VENT LOUVRE
                                                                                          -Carbon version- -Applicable after depletion of 88298100-
                                                                                          from £644.95
                                                                                          from £644.95
                                                                                          This part replaces part number 88298100 - and 1 more. Click to view details
                                                                                          # 068
                                                                                          MPN: 87455600
                                                                                          RH AIR VENT LOUVRE
                                                                                          from £51.30
                                                                                          from £51.30
                                                                                          This part replaces part number 87455610
                                                                                          # 068
                                                                                          MPN: 88298100
                                                                                          RH AIR VENT LOUVRE
                                                                                          -Carbon version- -Applicable until depletion-
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 069
                                                                                          MPN: 825732
                                                                                          LH AIR VENT LOUVRE
                                                                                          -Carbon version- -Applicable after depletion of 88298000-
                                                                                          from £644.95
                                                                                          from £644.95
                                                                                          This part replaces part number 88298000 - and 1 more. Click to view details
                                                                                          # 069
                                                                                          MPN: 87455900
                                                                                          LH AIR VENT LOUVRE
                                                                                          from £51.30
                                                                                          from £51.30
                                                                                          This part replaces part number 87455910
                                                                                          # 069
                                                                                          MPN: 88298000
                                                                                          LH AIR VENT LOUVRE
                                                                                          -Carbon version- -Applicable until depletion-
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 070
                                                                                          MPN: 87455700
                                                                                          RH LOUVRE BASE
                                                                                          -Not for carbon vent louvres-
                                                                                          from £8.43
                                                                                          from £8.43
                                                                                          # 071
                                                                                          MPN: 87456000
                                                                                          LH LOUVRE BASE
                                                                                          -Not for carbon vent louvres-
                                                                                          from £8.43
                                                                                          from £8.43
                                                                                          # 072
                                                                                          MPN: 85692300
                                                                                          SCREW
                                                                                          -M5 X 20- -No longer supplied- -Replaced by 85797200-
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 83914200
                                                                                          # 072
                                                                                          MPN: 85797200
                                                                                          SCREW
                                                                                          -M5 X 18-
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 073
                                                                                          MPN: 70004222
                                                                                          COMPL. FILM KIT
                                                                                          -Consisting of protective covers for: bumpers, spoilers, headlight washer caps, sills, external mirrors- -Not for USA, CDN, USA LIGHT-
                                                                                          from £2,292.05
                                                                                          from £2,292.05
                                                                                          # 073
                                                                                          MPN: 70004223
                                                                                          COMPL. FILM KIT
                                                                                          -Consisting of protective covers for: bumpers, spoilers, headlight washer caps, sills, external mirrors- -Applicable for USA, CDN, USA LIGHT-
                                                                                          from £1,543.50
                                                                                          from £1,543.50
                                                                                          # 073
                                                                                          MPN: 70004224
                                                                                          LH SIDE FILM KIT
                                                                                          -Consisting of protective covers for: sills-
                                                                                          from £1,680.69
                                                                                          from £1,680.69
                                                                                          # 073
                                                                                          MPN: 70004226
                                                                                          RH SIDE FILM KIT
                                                                                          -Consisting of protective covers for: sills-
                                                                                          from £1,680.69
                                                                                          from £1,680.69
                                                                                          # 073
                                                                                          MPN: 70004227
                                                                                          FRONT ADHESIVE FILM KIT
                                                                                          -Consisting of protective covers for: bumpers, spoilers, headlight washer caps- -Not for USA, CDN, USA LIGHT-
                                                                                          from £1,746.93
                                                                                          from £1,746.93
                                                                                          # 073
                                                                                          MPN: 70004228
                                                                                          FRONT ADHESIVE FILM KIT
                                                                                          -Consisting of protective covers for: bumpers, spoilers, headlight washer caps- -Applicable for USA, CDN, USA LIGHT-
                                                                                          from £1,200.50
                                                                                          from £1,200.50
                                                                                          # 073
                                                                                          MPN: 70004229
                                                                                          HIGH WEAR FILM KIT
                                                                                          -Consisting of protective covers for: front and rear wheel arches-
                                                                                          from £212.18
                                                                                          from £212.18
                                                                                          # 074
                                                                                          MPN: 88031200
                                                                                          RH ENGINE COMPARTMENT COVER SEAL
                                                                                          from £81.72
                                                                                          from £81.72
                                                                                          # 074
                                                                                          MPN: 88031300
                                                                                          LH ENGINE COMPARTMENT COVER SEAL
                                                                                          from £148.58
                                                                                          from £148.58
                                                                                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
