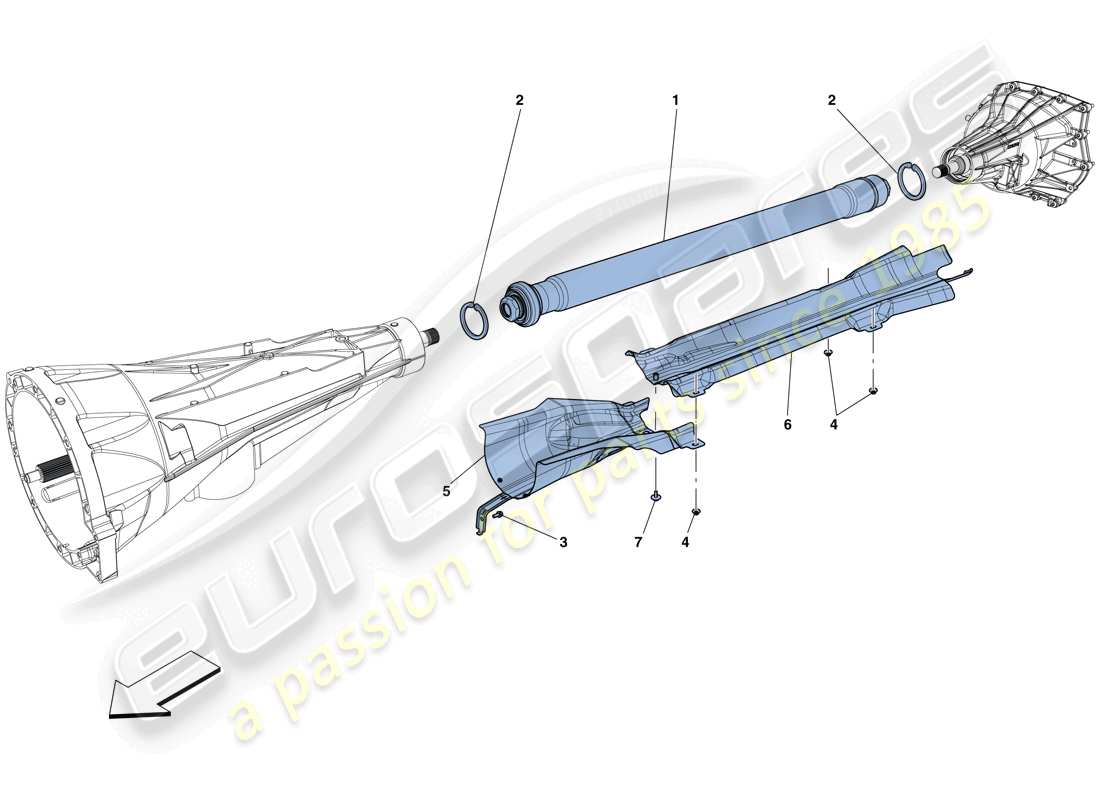

0022 - Transmission Pipe

Ferrari GTC4 Lusso (USA) TRANSMISSION PIPE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: 316145
        transmission shaft
        -Applicable until depletion-
        Supersession
        Supersession
        This part replaces part number 263817 which we have in stock
        # 001
        MPN: 340748
        transmission shaft
        -Applicable after depletion of 316145-
        Supersession
        Supersession
        This part replaces part number 316145
        # 002
        MPN: 13398476
        SNAP RING
        from £0.53
        from £0.53
        # 003
        MPN: 248334
        SCREW
        -M6 X 16-
        from £0.53
        from £0.53
        # 004
        MPN: 14039614
        NUT
        from £0.53
        from £0.53
        # 005
        MPN: 314501
        SHORT HEAT SHIELD
        from £44.07
        from £44.07
        # 006
        MPN: 293628
        LONG HEAT SHIELD
        -No longer supplied- -Replaced by 780835-
        from £24.88
        from £24.88
        # 006
        MPN: 780835
        LONG HEAT SHIELD
        from £43.05
        from £43.05
        # 007
        MPN: 81290900
        SCREW
        -M6 X 20 X 22-
        from £0.54
        from £0.54
        This part replaces part number 67578600
