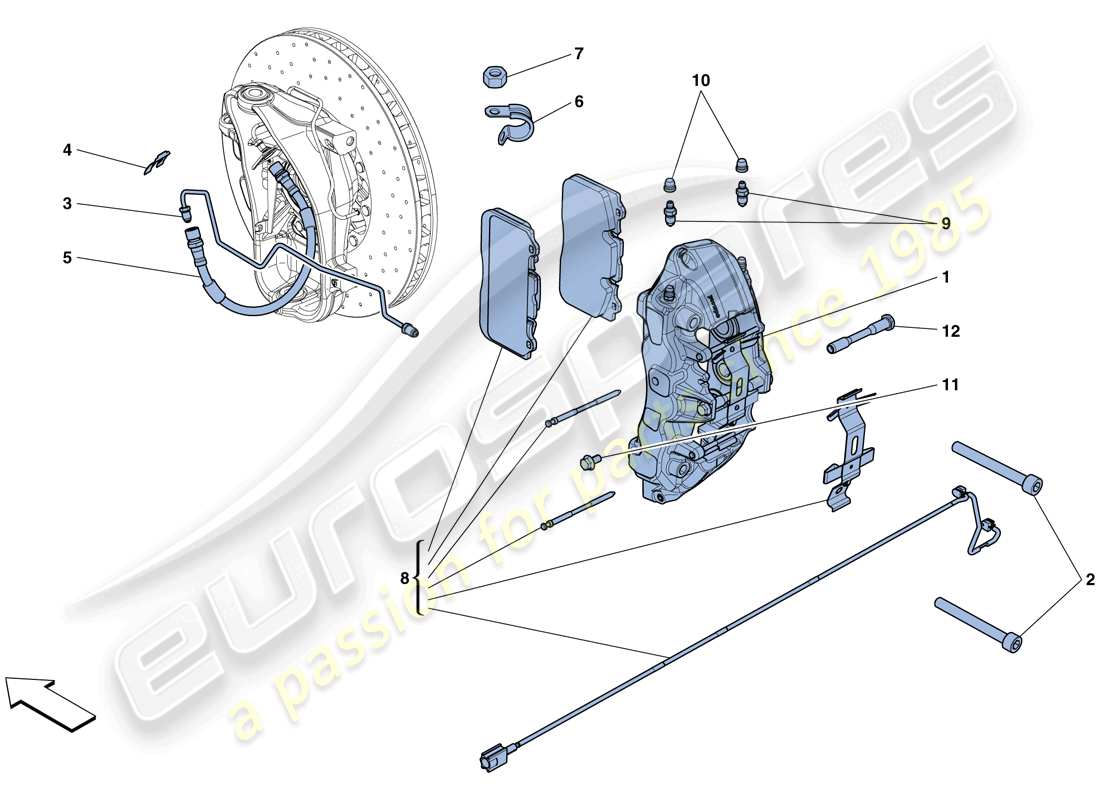

0029 - FRONT BRAKE CALLIPERS

Ferrari GTC4 Lusso (USA) FRONT BRAKE CALLIPERS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 315557
                      FRONT LH CALLIPER WITH PADS
                      -Anodised Black-
                      from £1,830.89
                      from £1,830.89
                      # 001
                      MPN: 315559
                      FRONT RH CALLIPER WITH PADS
                      -Anodised Black-
                      from £1,830.89
                      from £1,830.89
                      # 001
                      MPN: 315561
                      FRONT LH CALLIPER WITH PADS
                      -Black-
                      from £1,864.42
                      from £1,864.42
                      # 001
                      MPN: 315562
                      FRONT RH CALLIPER WITH PADS
                      -Black-
                      from £1,864.42
                      from £1,864.42
                      # 001
                      MPN: 315563
                      FRONT LH CALLIPER WITH PADS
                      -Red-
                      from £1,911.19
                      from £1,911.19
                      # 001
                      MPN: 315564
                      FRONT RH CALLIPER WITH PADS
                      -Red-
                      from £1,911.19
                      from £1,911.19
                      # 001
                      MPN: 315565
                      FRONT LH CALLIPER WITH PADS
                      -Scuderia Red-
                      from £1,974.06
                      from £1,974.06
                      # 001
                      MPN: 315566
                      FRONT RH CALLIPER WITH PADS
                      -Scuderia Red-
                      from £1,974.06
                      from £1,974.06
                      # 001
                      MPN: 315567
                      FRONT LH CALLIPER WITH PADS
                      -Yellow-
                      from £1,085.73
                      from £1,085.73
                      # 001
                      MPN: 315568
                      FRONT RH CALLIPER WITH PADS
                      -Yellow-
                      from £1,974.06
                      from £1,974.06
                      # 001
                      MPN: 315569
                      FRONT LH CALLIPER WITH PADS
                      -Silver-
                      from £1,974.06
                      from £1,974.06
                      # 001
                      MPN: 315570
                      FRONT RH CALLIPER WITH PADS
                      -Silver-
                      from £1,974.06
                      from £1,974.06
                      # 001
                      MPN: 315571
                      FRONT LH CALLIPER WITH PADS
                      -Dark grey-
                      from £2,169.29
                      from £2,169.29
                      # 001
                      MPN: 315572
                      FRONT RH CALLIPER WITH PADS
                      -Dark grey-
                      from £2,169.29
                      from £2,169.29
                      # 001
                      MPN: 315573
                      FRONT LH CALLIPER WITH PADS
                      -Gold-
                      from £1,974.06
                      from £1,974.06
                      # 001
                      MPN: 315574
                      FRONT RH CALLIPER WITH PADS
                      -Gold-
                      from £1,974.06
                      from £1,974.06
                      # 001
                      MPN: 315575
                      FRONT LH CALLIPER WITH PADS
                      -Blue-
                      from £2,172.62
                      from £2,172.62
                      # 001
                      MPN: 315576
                      FRONT RH CALLIPER WITH PADS
                      -Blue-
                      from £2,172.62
                      from £2,172.62
                      # 002
                      MPN: 195167
                      SCREW
                      -M12 X 1.5 X 95-
                      from £9.38
                      from £9.38
                      This part replaces part number 217654 - and 1 more. Click to view details
                      # 003
                      MPN: 254601
                      BRAKE PIPE FROM CALIPER TO LH HOSE
                      from £23.26
                      from £23.26
                      # 003
                      MPN: 254603
                      BRAKE PIPE FROM CALIPER TO RH HOSE
                      from £23.78
                      from £23.78
                      # 004
                      MPN: 116374
                      CLIP
                      from £1.16
                      from £1.16
                      # 005
                      MPN: 254241
                      RUBBER PIPE
                      Supersession
                      Supersession
                      # 006
                      MPN: 10440890
                      BRACKET WITH SHEATH
                      from £0.47
                      from £0.47
                      # 007
                      MPN: 14058411
                      NUT
                      from £0.47
                      from £0.47
                      # 008
                      MPN: 70002035
                      FRONT PAD SET WITH SPRING
                      from £810.00
                      from £810.00
                      This part replaces part number 70002442
                      # 009
                      MPN: 215665
                      BLEED SCREW
                      from £26.20
                      from £26.20
                      # 010
                      MPN: 215666
                      CAP
                      from £17.15
                      from £17.15
                      # 011
                      MPN: 198014
                      FLANGED SCREW
                      from £5.40
                      from £5.40
                      # 012
                      MPN: 263210
                      TIE-ROD
                      from £27.04
                      from £27.04
