0104 - STRUCTURES AND ELEMENTS, REAR OF VEHICLE

Ferrari GTC4 Lusso (USA) STRUCTURES AND ELEMENTS, REAR OF VEHICLE Parts Diagram

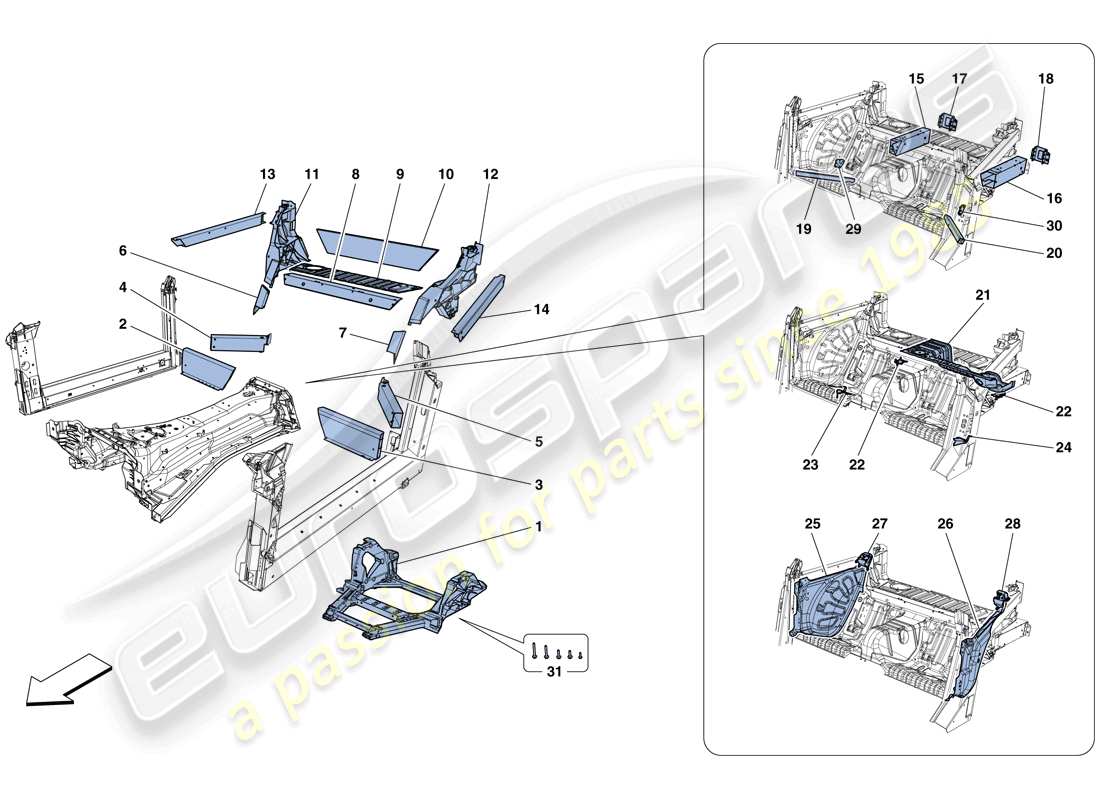

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 321996
                                                      REAR SUBFRAME
                                                      from £8,360.35
                                                      from £8,360.35
                                                      # 002
                                                      MPN: 276482
                                                      RH LOWER REAR FLOOR CROSS-PIECE
                                                      from £236.33
                                                      from £236.33
                                                      # 003
                                                      MPN: 276481
                                                      LH LOWER REAR FLOOR CROSS-PIECE
                                                      from £263.35
                                                      from £263.35
                                                      # 004
                                                      MPN: 322027
                                                      LOWER RH REAR DIAGONAL BRACE
                                                      from £411.92
                                                      from £411.92
                                                      # 005
                                                      MPN: 322026
                                                      LOWER LH REAR DIAGONAL BRACE
                                                      from £411.92
                                                      from £411.92
                                                      # 006
                                                      MPN: 322022
                                                      RH REAR SEAT BASE UPRIGHT
                                                      from £87.79
                                                      from £87.79
                                                      # 007
                                                      MPN: 322023
                                                      LH REAR SEAT BASE UPRIGHT
                                                      from £87.79
                                                      from £87.79
                                                      # 008
                                                      MPN: 326962
                                                      REAR CROSS-PIECE OF FRONT STEP
                                                      from £270.11
                                                      from £270.11
                                                      # 009
                                                      MPN: 265225
                                                      TANK COVER
                                                      from £175.57
                                                      from £175.57
                                                      # 010
                                                      MPN: 320735
                                                      REAR CROSSPIECE OF REAR STEP
                                                      from £357.88
                                                      from £357.88
                                                      # 011
                                                      MPN: 280366
                                                      RH UPPER REAR SUSPENSION MOUNT CASTING
                                                      from £5,199.49
                                                      from £5,199.49
                                                      This part replaces part number 277251
                                                      # 012
                                                      MPN: 280367
                                                      LH UPPER REAR SUSPENSION MOUNT CASTING
                                                      from £5,199.49
                                                      from £5,199.49
                                                      This part replaces part number 277250
                                                      # 013
                                                      MPN: 322442
                                                      RH UPPER REAR DIAGONAL BRACE
                                                      from £1,104.06
                                                      from £1,104.06
                                                      # 014
                                                      MPN: 322432
                                                      LH UPPER REAR DIAGONAL BRACE
                                                      from £1,104.06
                                                      from £1,104.06
                                                      # 015
                                                      MPN: 312658
                                                      REAR RH STRUT
                                                      -Request ASM authorisation-
                                                      from £441.61
                                                      from £441.61
                                                      # 016
                                                      MPN: 312657
                                                      REAR LH STRUT
                                                      -Request ASM authorisation-
                                                      from £441.61
                                                      from £441.61
                                                      # 017
                                                      MPN: 281819
                                                      REAR RH STRUT FLANGE
                                                      Supersession
                                                      Supersession
                                                      # 018
                                                      MPN: 281818
                                                      REAR LH STRUT FLANGE
                                                      Supersession
                                                      Supersession
                                                      # 019
                                                      MPN: 322018
                                                      LOWER RH REAR JOINT REINFORCEMENT
                                                      from £108.04
                                                      from £108.04
                                                      # 020
                                                      MPN: 322087
                                                      LOWER LH REAR JOINT REINFORCEMENT
                                                      from £108.04
                                                      from £108.04
                                                      # 021
                                                      MPN: 268922
                                                      REAR SERVICES TRAY
                                                      from £742.79
                                                      from £742.79
                                                      # 022
                                                      MPN: 265936
                                                      REAR TORSION BAR MOUNTING BRACKET
                                                      from £14.21
                                                      from £14.21
                                                      # 023
                                                      MPN: 315047
                                                      RH REAR BRAKE HOSE FASTENER BRACKET
                                                      from £36.79
                                                      from £36.79
                                                      # 024
                                                      MPN: 315042
                                                      LH REAR BRAKE HOSE FASTENER BRACKET
                                                      from £36.79
                                                      from £36.79
                                                      # 025
                                                      MPN: 323842
                                                      RH REAR WHEELHOUSE
                                                      from £587.48
                                                      from £587.48
                                                      # 026
                                                      MPN: 323838
                                                      LH REAR WHEELHOUSE
                                                      from £587.48
                                                      from £587.48
                                                      # 027
                                                      MPN: 271517
                                                      RH SEAT LATCH FASTENER BRACKET
                                                      -Request ASM authorisation-
                                                      from £279.70
                                                      from £279.70
                                                      # 028
                                                      MPN: 271511
                                                      LH SEAT LATCH FASTENER BRACKET
                                                      -Request ASM authorisation-
                                                      from £279.70
                                                      from £279.70
                                                      # 029
                                                      MPN: 269847
                                                      RH LATERAL SEAT BELT MOUNTING BRACKET
                                                      from £36.79
                                                      from £36.79
                                                      # 030
                                                      MPN: 269846
                                                      LH LATERAL SEAT BELT MOUNTING BRACKET
                                                      from £11.69
                                                      from £11.69
                                                      # 031
                                                      MPN: 239867
                                                      SCREW
                                                      -M12 X 1.75 X 45-
                                                      from £1.17
                                                      from £1.17
                                                      # 031
                                                      MPN: 268291
                                                      SCREW
                                                      -M10 X 1.25 X 50-
                                                      from £2.41
                                                      from £2.41
                                                      # 031
                                                      MPN: 268294
                                                      SCREW
                                                      -M10 X 1.25 X 85-
                                                      from £2.69
                                                      from £2.69
                                                      # 031
                                                      MPN: 268371
                                                      SCREW
                                                      -M12 X 1.75 X 100-
                                                      from £10.53
                                                      from £10.53
                                                      # 031
                                                      MPN: 277287
                                                      SCREW
                                                      -M10 X 1.25 X 40-
                                                      from £8.24
                                                      from £8.24
