0114 - DOORS - SUBSTRUCTURE AND TRIM

Ferrari GTC4 Lusso (USA) DOORS - SUBSTRUCTURE AND TRIM Parts Diagram

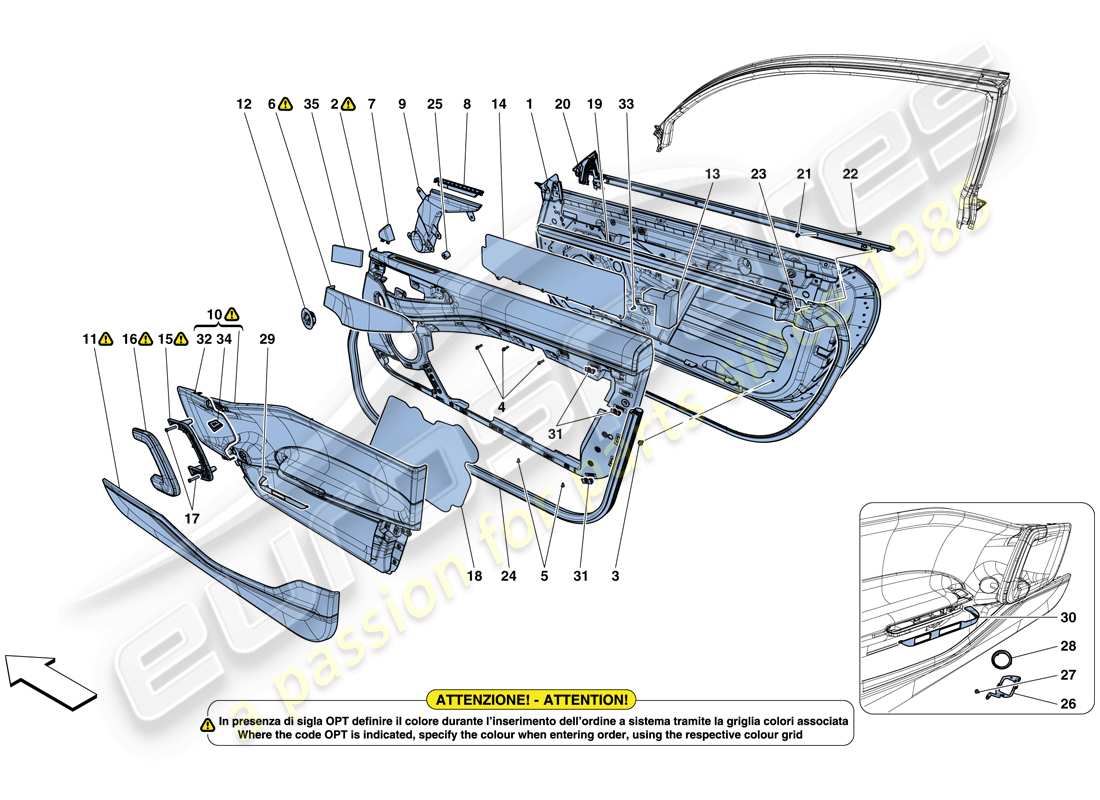

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price

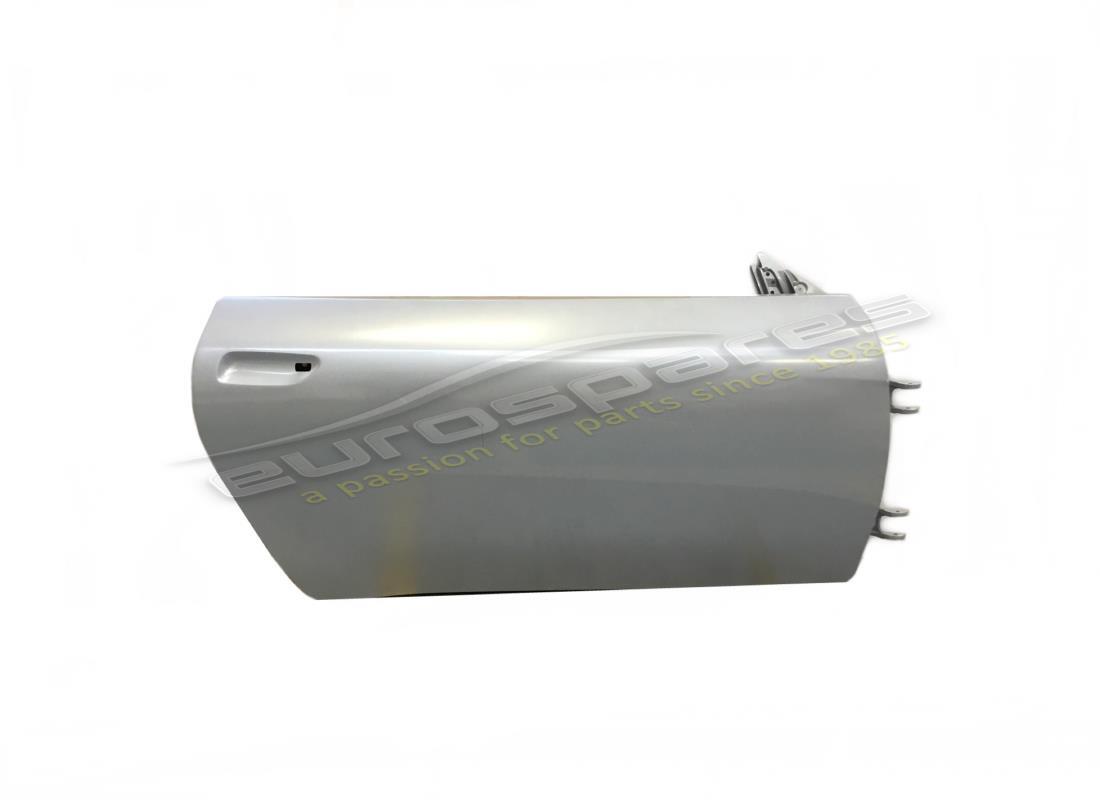

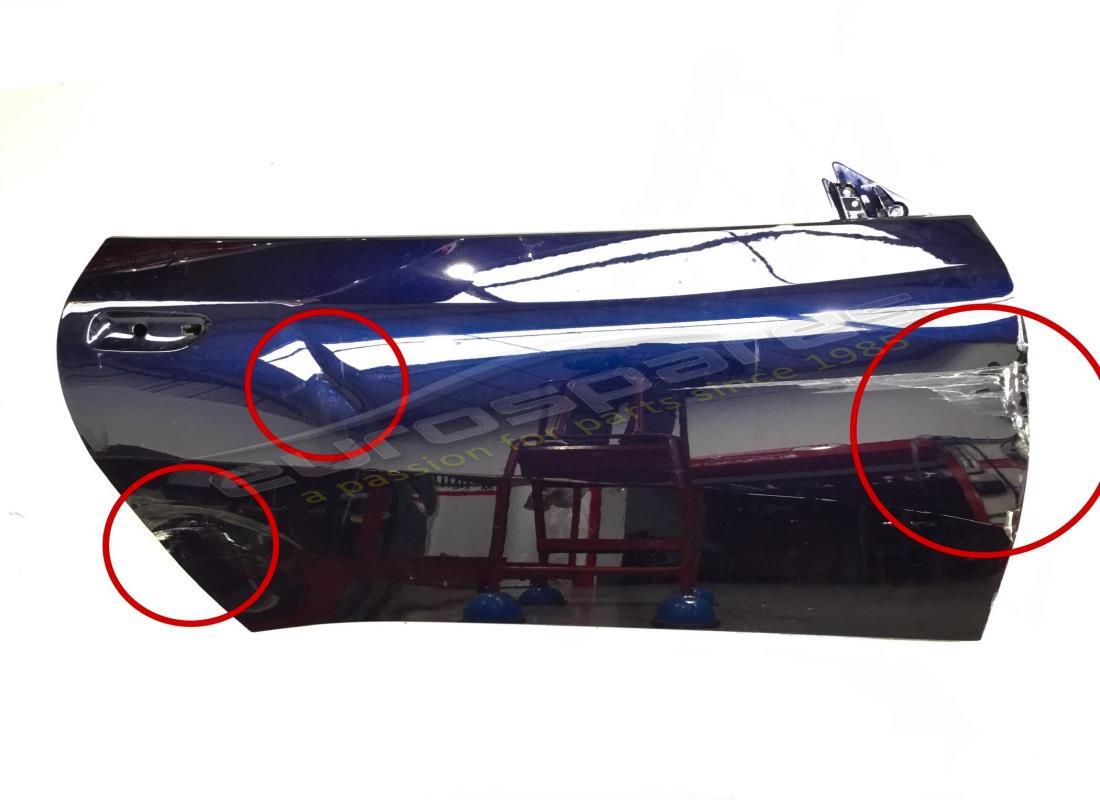

                              # 001
                              MPN: 86510511
                              LH LATERAL DOOR
                              -Not for GD-
                              from £1,395.00
                              from £1,395.00
                              # 001
                              MPN: 86655211
                              RH LATERAL DOOR
                              -Not for GD-
                              from £3,156.99
                              from £3,156.99
                              # 001
                              MPN: 88007411
                              LH LATERAL DOOR
                              -Applicable for GD-
                              from £1,540.95
                              from £1,540.95
                              # 001
                              MPN: 88008011
                              RH LATERAL DOOR
                              -Applicable for GD-
                              from £1,402.35
                              from £1,402.35
                              # 002
                              MPN: 88511000
                              RH INNER DOOR TRIM
                              -INTP- -Leather- -STC1- -STC2-
                              from £2,963.50
                              from £2,963.50
                              # 002
                              MPN: 88511100
                              LH INNER DOOR TRIM
                              -INTP- -Leather- -STC1- -STC2-
                              Supersession
                              Supersession
                              # 003
                              MPN: 82672700
                              CLIP
                              from £0.49
                              from £0.49
                              # 004
                              MPN: 231620
                              SCREW
                              -M6 X 25-
                              from £0.47
                              from £0.47
                              # 005
                              MPN: 14441234
                              SCREW
                              -M6 X 12-
                              from £0.51
                              from £0.51
                              This part replaces part number 307346

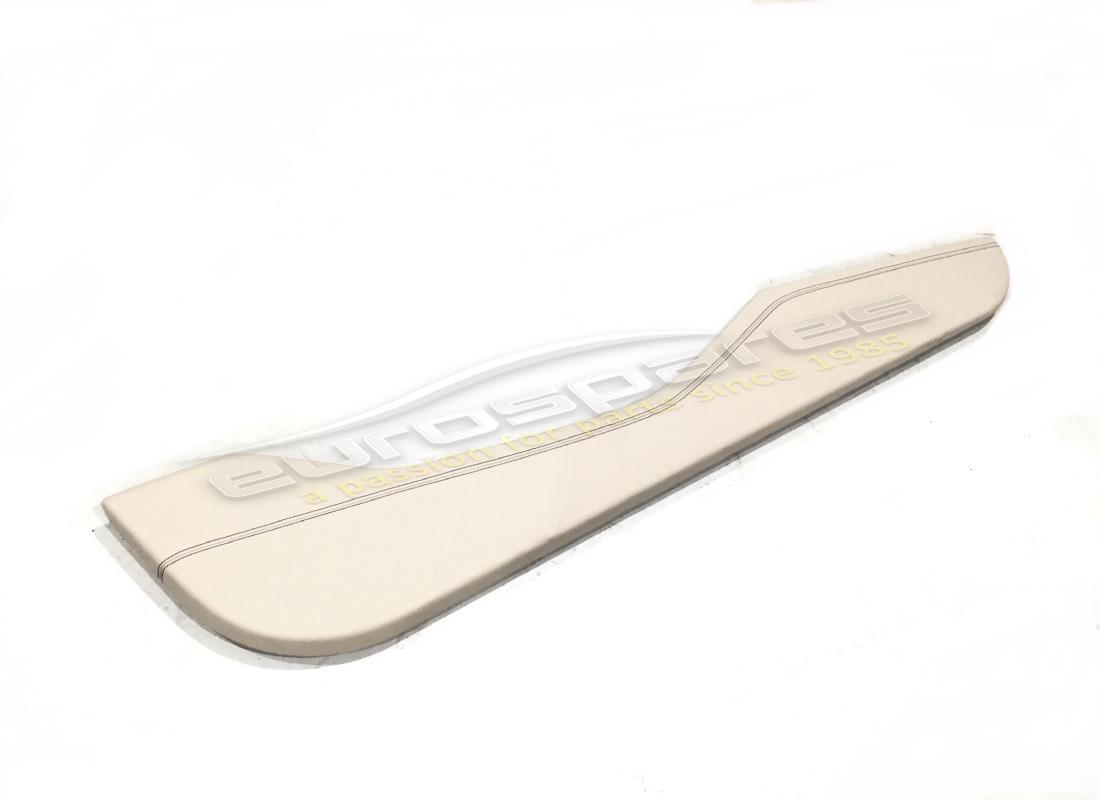

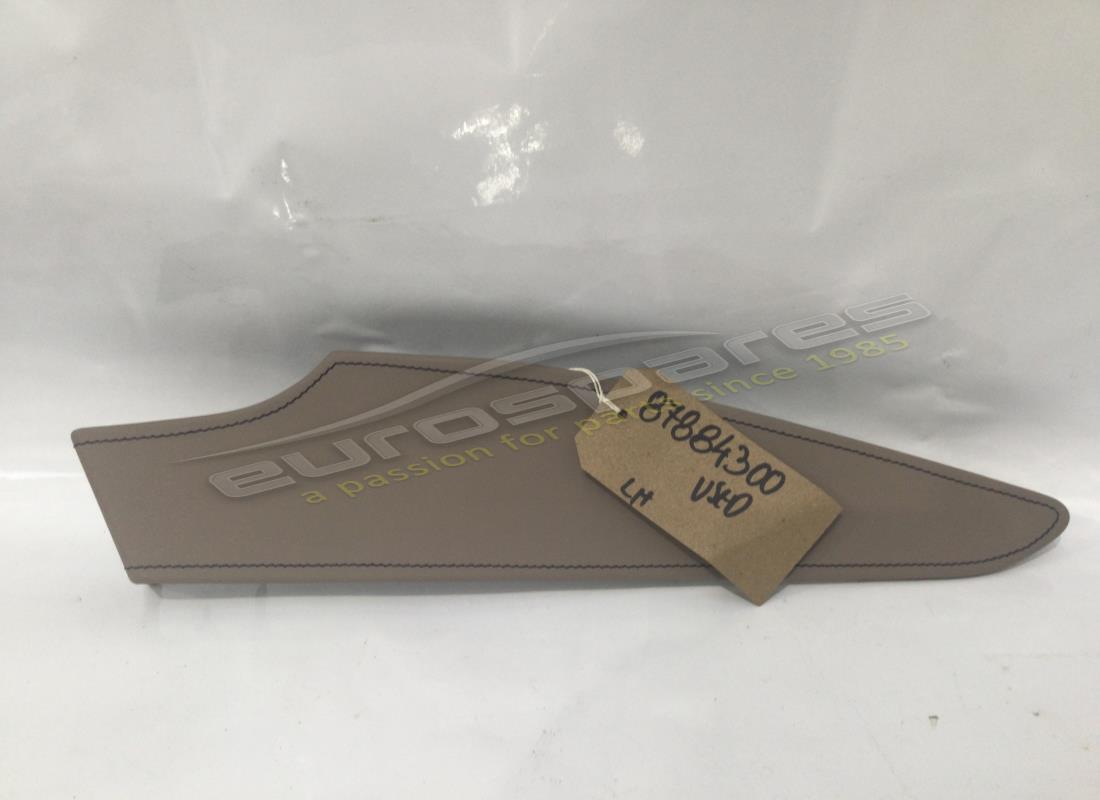

                              # 006
                              MPN: 87884300
                              COMPL. LH UPPER COVER
                              -INTP- -Leather- -STC1- -STC2-
                              from £181.72
                              from £181.72
                              # 006
                              MPN: 87884400
                              COMPL. RH UPPER COVER
                              -INTP- -Leather- -STC1- -STC2-
                              Supersession
                              Supersession
                              # 007
                              MPN: 87698300
                              LH DOOR INNER CORNER TRIANGLE TRIM
                              -Matte black-
                              from £19.81
                              from £19.81
                              # 007
                              MPN: 88159200
                              RH DOOR INNER CORNER TRIANGLE TRIM
                              -Matte black-
                              from £36.01
                              from £36.01
                              # 008
                              MPN: 87698100
                              LH DOOR PANEL DEMISTER
                              from £40.27
                              from £40.27
                              # 008
                              MPN: 88065100
                              RH DOOR PANEL DEMISTER
                              from £40.27
                              from £40.27
                              # 009
                              MPN: 87501500
                              LH DOOR AIR DUCT
                              from £22.09
                              from £22.09
                              # 009
                              MPN: 87549600
                              RH DOOR AIR DUCT
                              from £22.09
                              from £22.09

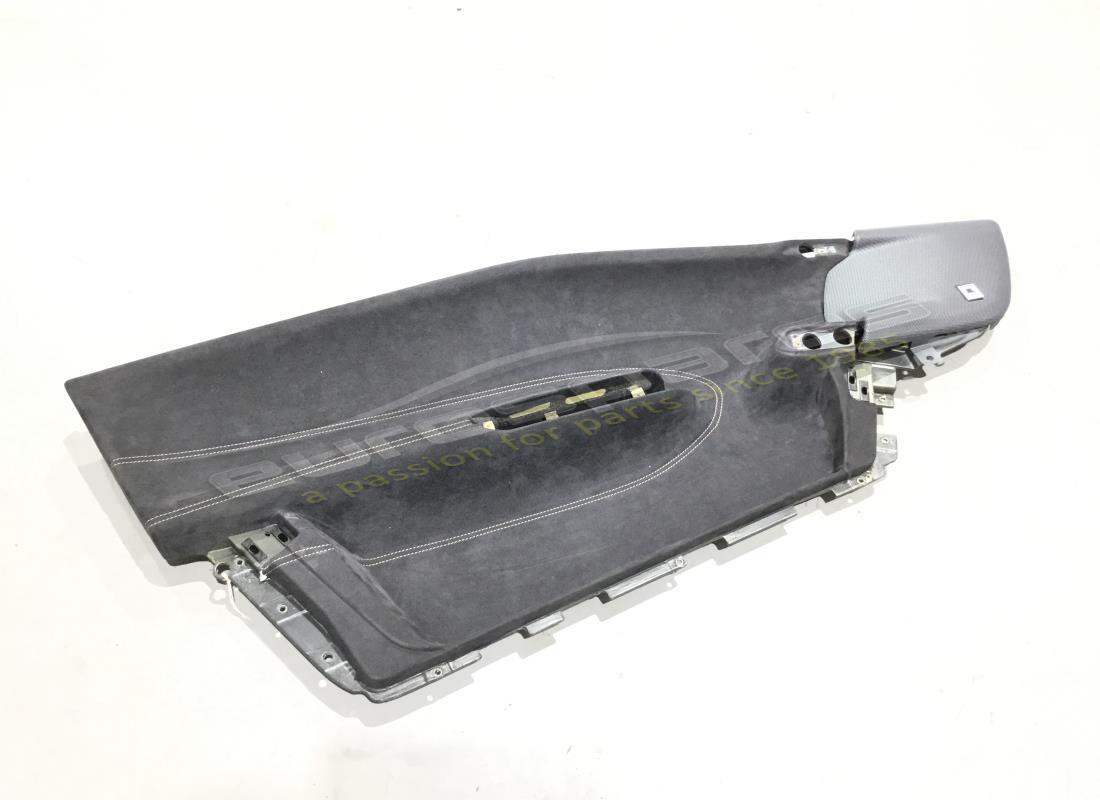

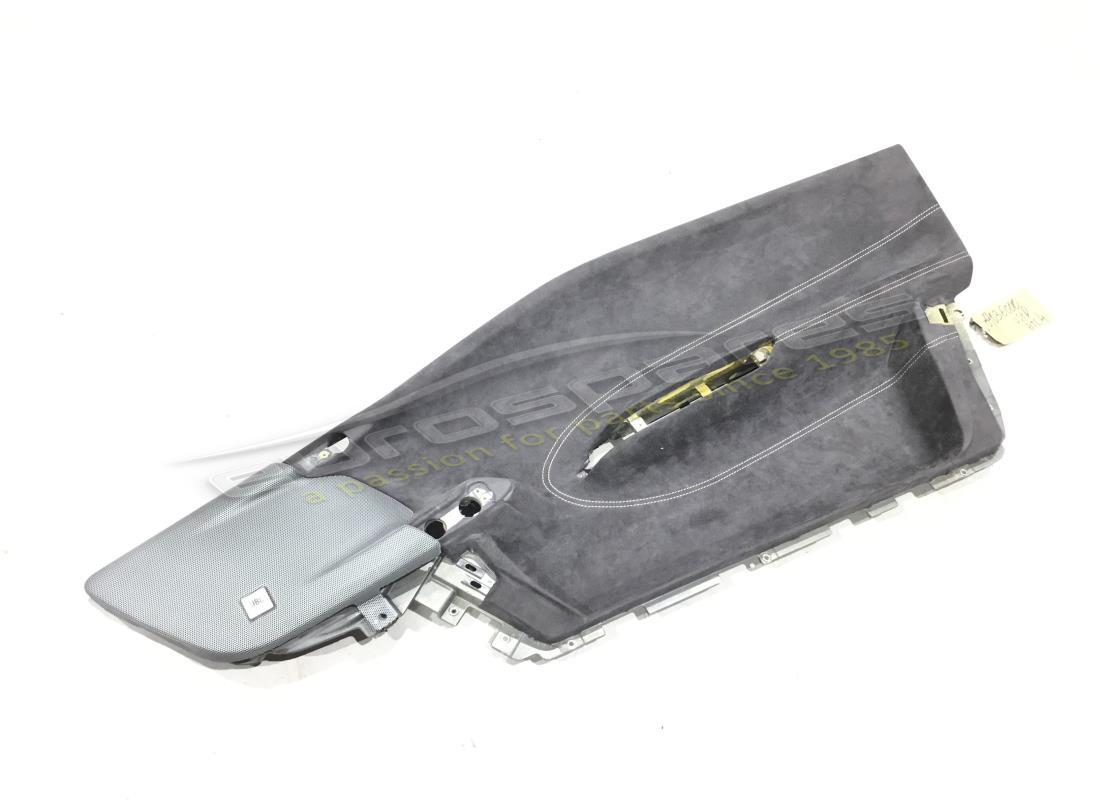

                              # 010
                              MPN: 785981
                              COMPL. INTERNAL LH DOOR TRIM INSERT
                              -Semi-aniline leather- -STC1- -STC2- -Not for GD-
                              # 010
                              MPN: 785982
                              COMPL. INTERNAL LH DOOR TRIM INSERT
                              -Semi-aniline leather- -Premium Hi-Fi version- -STC1- -STC2- -Not for GD-
                              # 010
                              MPN: 785985
                              COMPL. INTERNAL RH DOOR TRIM INSERT
                              -Semi-aniline leather- -STC1- -STC2- -Not for GD-
                              # 010
                              MPN: 785987
                              COMPL. INTERNAL RH DOOR TRIM INSERT
                              -Semi-aniline leather- -Premium Hi-Fi version- -STC1- -STC2- -Not for GD-
                              # 010
                              MPN: 785989
                              COMPL. INTERNAL LH DOOR TRIM INSERT
                              -Semi-aniline leather- -STC1- -STC2- -Applicable for GD-
                              # 010
                              MPN: 785990
                              COMPL. INTERNAL LH DOOR TRIM INSERT
                              -Semi-aniline leather- -Premium Hi-Fi version- -STC1- -STC2- -Applicable for GD-
                              # 010
                              MPN: 785993
                              COMPL. INTERNAL RH DOOR TRIM INSERT
                              -Semi-aniline leather- -STC1- -STC2- -Applicable for GD-
                              # 010
                              MPN: 785996
                              COMPL. INTERNAL RH DOOR TRIM INSERT
                              -Semi-aniline leather- -Premium Hi-Fi version- -STC1- -STC2- -Applicable for GD-
                              # 010
                              MPN: 88015600
                              COMPL. INTERNAL RH DOOR TRIM INSERT
                              -INTA- -Alcantara- -STC1- -STC2- -Not for GD-
                              # 010
                              MPN: 88015700
                              COMPL. INTERNAL RH DOOR TRIM INSERT
                              -INTA- -Alcantara- -STC1- -STC2- -No longer supplied- -Replaced by 88015600-
                              # 010
                              MPN: 88018000
                              COMPL. INTERNAL LH DOOR TRIM INSERT
                              -INTA- -Alcantara- -STC1- -STC2- -Not for GD-
                              # 010
                              MPN: 88018100
                              COMPL. INTERNAL LH DOOR TRIM INSERT
                              -INTA- -Alcantara- -STC1- -STC2- -No longer supplied- -Replaced by 88018000-
                              # 010
                              MPN: 88100700
                              COMPL. INTERNAL LH DOOR TRIM INSERT
                              -INTP- -Leather- -STC1- -STC2- -Applicable for GD-
                              # 010
                              MPN: 88100800
                              COMPL. INTERNAL RH DOOR TRIM INSERT
                              -INTP- -Leather- -STC1- -STC2- -Applicable for GD-
                              from £2,305.27
                              from £2,305.27
                              # 010
                              MPN: 88101700
                              COMPL. INTERNAL LH DOOR TRIM INSERT
                              -INTA- -Alcantara- -STC1- -STC2- -Applicable for GD-
                              # 010
                              MPN: 88101800
                              COMPL. INTERNAL RH DOOR TRIM INSERT
                              -INTA- -Alcantara- -STC1- -STC2- -Applicable for GD-
                              # 010
                              MPN: 88425700
                              COMPL. INTERNAL RH DOOR TRIM INSERT
                              -INTP- -Leather- -STC1- -STC2- -No longer supplied- -Replaced by 88777400-
                              # 010
                              MPN: 88426400
                              COMPL. INTERNAL LH DOOR TRIM INSERT
                              -INTP- -Leather- -STC1- -STC2- -No longer supplied- -Replaced by 88776900-
                              # 010
                              MPN: 88776900
                              COMPL. INTERNAL LH DOOR TRIM INSERT
                              -INTP- -Leather- -STC1- -STC2- -Not for GD-
                              Supersession
                              Supersession
                              # 010
                              MPN: 88777400
                              COMPL. INTERNAL RH DOOR TRIM INSERT
                              -INTP- -Leather- -STC1- -STC2- -Not for GD-
                              from £2,549.92
                              from £2,549.92
                              # 010
                              MPN: 88934000
                              COMPL. INTERNAL RH DOOR TRIM INSERT
                              -INTP- -Leather- -Premium Hi-Fi version- -STC1- -STC2- -Not for GD-
                              from £2,314.65
                              from £2,314.65
                              # 010
                              MPN: 88934100
                              COMPL. INTERNAL RH DOOR TRIM INSERT
                              -INTA- -Alcantara- -Premium Hi-Fi version- -STC1- -STC2- -Not for GD-
                              from £3,099.12
                              from £3,099.12
                              # 010
                              MPN: 88934600
                              COMPL. INTERNAL LH DOOR TRIM INSERT
                              -INTP- -Leather- -Premium Hi-Fi version- -STC1- -STC2- -Not for GD-
                              from £2,312.06
                              from £2,312.06
                              # 010
                              MPN: 88934700
                              COMPL. INTERNAL LH DOOR TRIM INSERT
                              -INTA- -Alcantara- -Premium Hi-Fi version- -STC1- -STC2- -Not for GD-
                              from £2,889.93
                              from £2,889.93
                              # 010
                              MPN: 89036000
                              COMPL. INTERNAL RH DOOR TRIM INSERT
                              -INTA- -Alcantara- -Premium Hi-Fi version- -STC1- -STC2- -Applicable for GD-
                              from £1,039.50
                              from £1,039.50
                              # 010
                              MPN: 89036200
                              COMPL. INTERNAL RH DOOR TRIM INSERT
                              -INTP- -Leather- -Premium Hi-Fi version- -STC1- -STC2- -Applicable for GD-
                              from £1,097.37
                              from £1,097.37
                              # 010
                              MPN: 89036400
                              COMPL. INTERNAL LH DOOR TRIM INSERT
                              -INTA- -Alcantara- -Premium Hi-Fi version- -STC1- -STC2- -Applicable for GD-
                              from £1,034.25
                              from £1,034.25
                              # 010
                              MPN: 89036600
                              COMPL. INTERNAL LH DOOR TRIM INSERT
                              -INTP- -Leather- -Premium Hi-Fi version- -STC1- -STC2- -Applicable for GD-
                              # 011
                              MPN: 88425400
                              EXTERIOR OF COMPL. RH DOOR POCKET
                              -INTP- -Leather- -STC1- -STC2-
                              Supersession
                              Supersession
                              # 011
                              MPN: 88425800
                              EXTERIOR OF COMPL. LH DOOR POCKET
                              -INTP- -Leather- -STC1- -STC2-
                              from £448.90
                              from £448.90
                              # 012
                              MPN: 87056800
                              DOOR SIDE AIR VENT SURROUND
                              from £8.10
                              from £8.10
                              # 013
                              MPN: 87727300
                              DOOR NODE PULER
                              from £19.14
                              from £19.14
                              # 014
                              MPN: 87078800
                              LH FOIL FLAP
                              -Not for USA, CDN, USA LIGHT- -Applicable until depletion-
                              Supersession
                              Supersession
                              # 014
                              MPN: 87549800
                              RH FOIL FLAP
                              -Not for USA, CDN, USA LIGHT- -Applicable until depletion-
                              Supersession
                              Supersession
                              # 014
                              MPN: 89283400
                              FOIL FLAP
                              -Not for USA, CDN, USA LIGHT- -Applicable after depletion of 87549800-
                              from £46.37
                              from £46.37
                              This part replaces part number 87078800 - and 1 more. Click to view details
                              # 014
                              MPN: 89283400
                              FOIL FLAP
                              -Not for USA, CDN, USA LIGHT- -Applicable after depletion of 87078800-
                              from £46.37
                              from £46.37
                              This part replaces part number 87078800 - and 1 more. Click to view details
                              # 014
                              MPN: 89283400
                              FOIL FLAP
                              -Applicable for USA, CDN, USA LIGHT-
                              from £46.37
                              from £46.37
                              This part replaces part number 87078800 - and 1 more. Click to view details
                              # 015
                              MPN: 87382200
                              COMPL. LH INTERNAL HANDLE SHELL
                              -INTP- -Leather-
                              from £114.32
                              from £114.32
                              # 015
                              MPN: 87571500
                              COMPL. RH INTERNAL HANDLE SHELL
                              -INTP- -Leather-
                              Supersession
                              Supersession
                              # 016
                              MPN: 87382600
                              COMPL. LH EXTERNAL HANDLE SHELL
                              -INTP- -Leather- -STC1- -STC2-
                              from £315.74
                              from £315.74
                              # 016
                              MPN: 87571900
                              COMPL. RH EXTERNAL HANDLE SHELL
                              -INTP- -Leather- -STC1- -STC2-
                              Supersession
                              Supersession
                              # 016
                              MPN: 88073300
                              COMPL. RH EXTERNAL HANDLE SHELL
                              -Carbon version-
                              from £1,648.71
                              from £1,648.71
                              # 016
                              MPN: 88074600
                              COMPL. LH EXTERNAL HANDLE SHELL
                              -Carbon version-
                              from £1,648.71
                              from £1,648.71
                              # 017
                              MPN: 13027828
                              SCREW
                              -M6 X 45-
                              from £2.18
                              from £2.18
                              # 018
                              MPN: 87293600
                              RH DOOR REAR WATERPROOF MEMBRANE
                              from £107.73
                              from £107.73
                              # 018
                              MPN: 87293900
                              LH DOOR REAR WATERPROOF MEMBRANE
                              from £107.73
                              from £107.73
                              # 019
                              MPN: 86871600
                              INTERNAL LH WINDOW SCRAPER SEAL
                              from £174.24
                              from £174.24
                              # 019
                              MPN: 86871700
                              INTERNAL RH WINDOW SCRAPER SEAL
                              from £174.24
                              from £174.24
                              # 020
                              MPN: 82208000
                              EXTERNAL RH WINDOW SCRAPER SEAL
                              from £143.01
                              from £143.01
                              # 020
                              MPN: 82208100
                              EXTERNAL LH WINDOW SCRAPER SEAL
                              from £78.66
                              from £78.66
                              # 021
                              MPN: 15538609
                              SCREW
                              from £0.47
                              from £0.47
                              # 022
                              MPN: 14115885
                              BLOCK
                              from £0.52
                              from £0.52
                              This part replaces part number 14202686 - and 1 more. Click to view details
                              # 023
                              MPN: 65752800
                              SCREW
                              -M4 X 10- -No longer supplied- -Replaced by 826584-
                              from £1.14
                              from £1.14
                              This part replaces part number 294485 - and 1 more. Click to view details
                              # 023
                              MPN: 826584
                              SCREW
                              from £0.47
                              from £0.47
                              # 024
                              MPN: 83461800
                              LOWER DOOR PERIMETER SEAL
                              from £108.60
                              from £108.60
                              # 025
                              MPN: 83888400
                              DOOR ALIGNMENT FOAM PAD
                              from £1.90
                              from £1.90
                              # 026
                              MPN: 87063500
                              LH MIRROR CONTROLS BRACKET
                              -Not for GD-
                              from £294.42
                              from £294.42
                              # 026
                              MPN: 88102900
                              LH MIRROR CONTROLS BRACKET
                              -Applicable for GD- -No longer supplied- -Replaced by 88103000-
                              Supersession
                              Supersession
                              # 026
                              MPN: 88103000
                              LH MIRROR CONTROLS BRACKET
                              -Applicable for GD-
                              from £325.69
                              from £325.69
                              This part replaces part number 88102900
                              # 027
                              MPN: 85692000
                              SCREW
                              -M5 X 10-
                              from £0.53
                              from £0.53
                              # 028
                              MPN: 87911900
                              WINDOW CONTROL JOYSTICK PANEL
                              from £8.50
                              from £8.50
                              # 029
                              MPN: 88828600
                              COMPL. RH SEAT BUTTON PANEL
                              -Not for GD-
                              from £18.40
                              from £18.40
                              # 029
                              MPN: 88913300
                              COMPL. LH SEAT BUTTON PANEL
                              -Applicable for GD-
                              from £12.15
                              from £12.15
                              # 030
                              MPN: 88828500
                              COMPL. LH SEAT BUTTON PANEL
                              -Not for GD-
                              from £18.40
                              from £18.40
                              # 030
                              MPN: 88913200
                              COMPL. RH SEAT BUTTON PANEL
                              -Applicable for GD-
                              from £22.09
                              from £22.09
                              # 031
                              MPN: 68700200
                              CLIP
                              from £2.10
                              from £2.10
                              # 032
                              MPN: 87048900
                              COMPL. RH DOOR WOOFER GRILLE
                              -matte Grigio nart-
                              from £310.53
                              from £310.53
                              # 032
                              MPN: 87060900
                              COMPL. LH DOOR WOOFER GRILLE
                              -matte Grigio nart-
                              from £310.53
                              from £310.53
                              # 032
                              MPN: 88674700
                              COMPL. RH DOOR WOOFER GRILLE
                              -Premium Hi-Fi version- -matte Grigio nart-
                              from £310.53
                              from £310.53
                              # 032
                              MPN: 88674900
                              COMPL. LH DOOR WOOFER GRILLE
                              -Premium Hi-Fi version- -matte Grigio nart-
                              from £310.53
                              from £310.53
                              # 033
                              MPN: 15783201
                              SCREW
                              -M4 X 12-
                              Supersession
                              Supersession
                              # 034
                              MPN: 83198200
                              JBL LOGO
                              -Premium Hi-Fi version-
                              from £14.73
                              from £14.73
                              # 035
                              MPN: 179309
                              ADHESIVE FOAM
                              -100 x 50 mm-
                              from £2.20
                              from £2.20
                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
