ferrari gtc4 lusso (usa) windscreen wiper, windscreen washer and horns parts diagram

0131 - Windscreen Wiper, Windscreen Washer and Horns

Ferrari GTC4 Lusso (USA) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS Parts Diagram

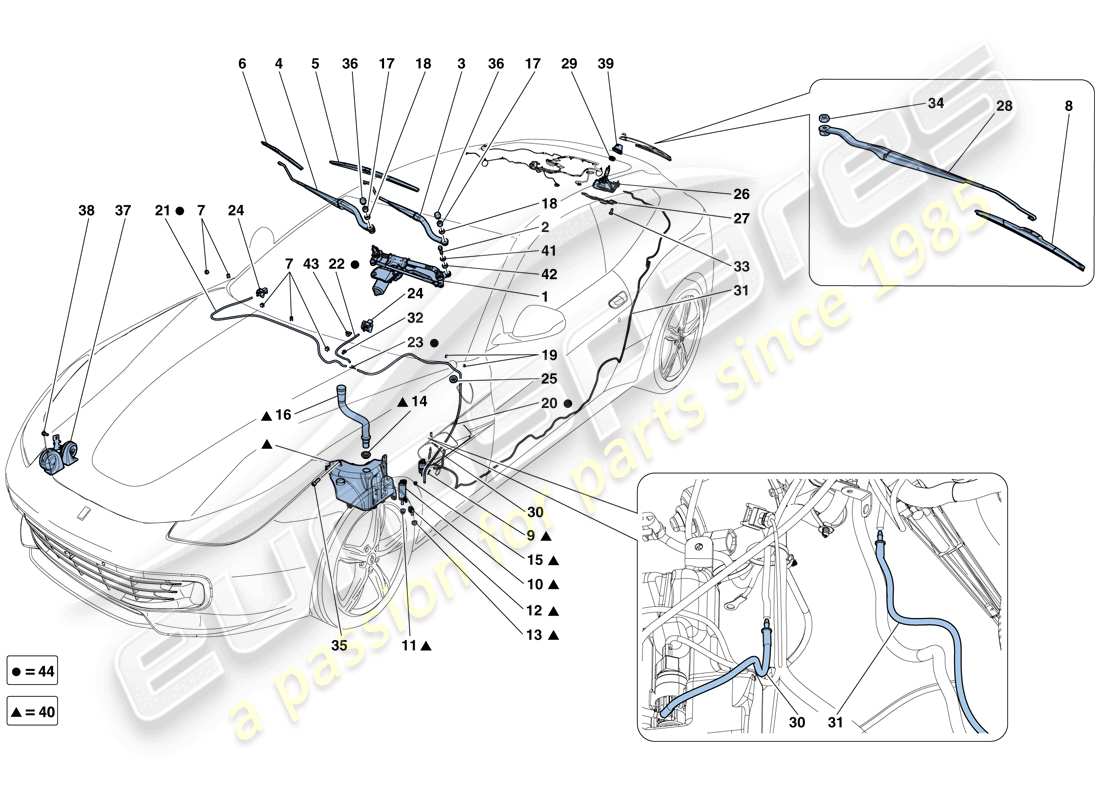

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 001
                                    MPN: 84108900
                                    WINDSCREEN WIPER WITH MOTOR AND LINKAGES
                                    -Not for GD-
                                    from £280.13
                                    from £280.13
                                    # 001
                                    MPN: 84198200
                                    WINDSCREEN WIPER WITH MOTOR AND LINKAGES
                                    -Applicable for GD-
                                    from £771.23
                                    from £771.23
                                    # 002
                                    MPN: 10903034
                                    SCREW
                                    -M6 X 35-
                                    from £0.47
                                    from £0.47
                                    # 003
                                    MPN: 83994400
                                    DRIVER SIDE WINDSCREEN WIPER ARM
                                    -Applicable for GD-
                                    from £184.00
                                    from £184.00
                                    # 003
                                    MPN: 84142200
                                    DRIVER SIDE WINDSCREEN WIPER ARM
                                    -Not for GD-
                                    from £125.12
                                    from £125.12
                                    # 004
                                    MPN: 82196200
                                    PASSENGER SIDE WINDSCREEN WIPER ARM
                                    -Not for GD-
                                    from £115.26
                                    from £115.26
                                    # 004
                                    MPN: 83994500
                                    PASSENGER SIDE WINDSCREEN WIPER ARM
                                    -Applicable for GD-
                                    from £93.11
                                    from £93.11
                                    # 005
                                    MPN: 82196700
                                    DRIVER SIDE WINDSCREEN WIPER BLADE
                                    -Not for GD-
                                    from £55.86
                                    from £55.86
                                    # 005
                                    MPN: 83994700
                                    DRIVER SIDE WINDSCREEN WIPER BLADE
                                    -Applicable for GD-
                                    from £36.87
                                    from £36.87
                                    # 006
                                    MPN: 82196500
                                    PASSENGER SIDE WINDSCREEN WIPER BLADE
                                    -Not for GD-
                                    from £42.35
                                    from £42.35
                                    # 006
                                    MPN: 83994600
                                    PASSENGER SIDE WINDSCREEN WIPER BLADE
                                    -Applicable for GD-
                                    from £20.74
                                    from £20.74
                                    # 007
                                    MPN: 14501087
                                    CLIP
                                    from £0.47
                                    from £0.47
                                    # 008
                                    MPN: 80843800
                                    WINDSCREEN WIPER BLADE
                                    -Version with rear windscreen wiper-
                                    from £19.39
                                    from £19.39
                                    # 009
                                    MPN: 81632900
                                    WINDSCREEN WASHER PUMP
                                    from £41.71
                                    from £41.71
                                    # 009
                                    MPN: 84028600
                                    DUAL OUTLET SCREEN WASHER PUMP
                                    -Version with rear windscreen wiper-
                                    from £45.27
                                    from £45.27
                                    # 010
                                    MPN: 81633000
                                    HEADLIGHT WASHER PUMP
                                    from £52.77
                                    from £52.77
                                    This part replaces part number 81284700 - and 2 more. Click to view details
                                    # 011
                                    MPN: 65511700
                                    GASKET
                                    from £3.25
                                    from £3.25
                                    # 012
                                    MPN: 81633100
                                    FLUID LEVEL SENSOR
                                    from £40.02
                                    from £40.02
                                    # 013
                                    MPN: 81633200
                                    GASKET
                                    -For sensor-
                                    from £12.61
                                    from £12.61
                                    # 014
                                    MPN: 82198600
                                    FILLER PIPE SEAL
                                    from £14.65
                                    from £14.65
                                    # 015
                                    MPN: 65775100
                                    GASKET
                                    from £2.88
                                    from £2.88
                                    # 016
                                    MPN: 82198700
                                    FILLER PIPE
                                    from £34.15
                                    from £34.15
                                    # 017
                                    MPN: 10791021
                                    NUT
                                    from £0.53
                                    from £0.53
                                    # 018
                                    MPN: 10730514
                                    WASHER
                                    -No longer supplied- -Replaced by 12601474-
                                    from £0.53
                                    from £0.53
                                    This part replaces part number 10730521
                                    # 018
                                    MPN: 12601474
                                    WASHER
                                    from £0.54
                                    from £0.54
                                    This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
                                    # 019
                                    MPN: 14569480
                                    CLIP
                                    from £0.53
                                    from £0.53
                                    This part replaces part number 81580800
                                    # 019
                                    MPN: 217854
                                    RING CLAMP
                                    from £0.54
                                    from £0.54
                                    # 020
                                    MPN: 82199600
                                    PIPE FROM ELECTRIC PUMP
                                    -After depletion order compl. pos. 44- -Applicable until depletion-
                                    Supersession
                                    Supersession
                                    # 021
                                    MPN: 82199700
                                    PIPE FROM VALVE TO RH NOZZLE
                                    -After depletion order compl. pos. 44- -Applicable until depletion-
                                    Supersession
                                    Supersession
                                    # 022
                                    MPN: 82199800
                                    PIPE FROM VALVE TO LH NOZZLE
                                    -After depletion order compl. pos. 44- -Applicable until depletion-
                                    Supersession
                                    Supersession
                                    # 023
                                    MPN: 82984600
                                    CHECK VALVE
                                    -After depletion order compl. pos. 44- -Applicable until depletion-
                                    from £3.34
                                    from £3.34
                                    # 024
                                    MPN: 83480800
                                    SPRAY NOZZLE
                                    -Heated nozzles-
                                    from £35.45
                                    from £35.45
                                    # 024
                                    MPN: 84019400
                                    SPRAY NOZZLE
                                    from £1.56
                                    from £1.56
                                    # 025
                                    MPN: 10396780
                                    GROMMET
                                    from £1.08
                                    from £1.08
                                    # 026
                                    MPN: 82751800
                                    REAR SCREEN WIPER
                                    -Version with rear windscreen wiper-
                                    from £107.84
                                    from £107.84
                                    # 027
                                    MPN: 87341400
                                    BRACKET
                                    -Version with rear windscreen wiper-
                                    from £40.48
                                    from £40.48
                                    # 028
                                    MPN: 84191500
                                    REAR SCREEN WIPER ARM
                                    -Version with rear windscreen wiper-
                                    from £68.82
                                    from £68.82
                                    This part replaces part number 82752000 - and 1 more. Click to view details
                                    # 029
                                    MPN: 82322600
                                    GASKET
                                    -Version with rear windscreen wiper-
                                    from £4.02
                                    from £4.02
                                    # 030
                                    MPN: 84176500
                                    PIPE FROM RESERVOIR TO DISCONNECTOR UNION
                                    -Version with rear windscreen wiper-
                                    from £73.53
                                    from £73.53
                                    # 031
                                    MPN: 84176600
                                    COMPL. PASSENGER COMPARTMENT REAR SCREEN WASHER PIPE
                                    -Version with rear windscreen wiper-
                                    from £73.53
                                    from £73.53
                                    # 032
                                    MPN: 81097300
                                    CLIP
                                    from £1.62
                                    from £1.62
                                    # 033
                                    MPN: 11625724
                                    SCREW
                                    -M6 X 16-
                                    from £0.47
                                    from £0.47
                                    # 034
                                    MPN: 13046112
                                    NUT
                                    -Version with rear windscreen wiper-
                                    from £0.47
                                    from £0.47
                                    # 035
                                    MPN: 81290900
                                    SCREW
                                    -M6 X 20 X 22- -Fastening tank to chassis-
                                    from £0.47
                                    from £0.47
                                    This part replaces part number 67578600
                                    # 036
                                    MPN: 15811787
                                    PROTECTIVE CAP
                                    from £0.53
                                    from £0.53
                                    # 037
                                    MPN: 325590
                                    HORN COMPLETE WITH BRACKET
                                    -Not for USA, CDN, USA LIGHT-
                                    from £37.78
                                    from £37.78
                                    # 037
                                    MPN: 339757
                                    HORN COMPLETE WITH BRACKET
                                    -Applicable for USA, CDN, USA LIGHT-
                                    from £77.79
                                    from £77.79
                                    # 038
                                    MPN: 16287224
                                    SCREW
                                    -M8 X 25-
                                    from £0.47
                                    from £0.47
                                    This part replaces part number 16287221
                                    # 039
                                    MPN: 84307100
                                    SPRAY NOZZLE COVER
                                    from £1.85
                                    from £1.85
                                    This part replaces part number 82813100
                                    # 040
                                    MPN: 82197100
                                    COMPL. WINDSCREEN /HEADLIGHT WASHER RESERVOIR
                                    from £121.44
                                    from £121.44
                                    # 040
                                    MPN: 84028500
                                    COMPL. WINDSCREEN /HEADLIGHT WASHER RESERVOIR
                                    -Version with rear windscreen wiper-
                                    from £242.90
                                    from £242.90
                                    # 041
                                    MPN: 12601274
                                    WASHER
                                    from £0.47
                                    from £0.47
                                    This part replaces part number 12601221 - and 5 more. Click to view details
                                    # 042
                                    MPN: 12640624
                                    WASHER
                                    from £0.47
                                    from £0.47
                                    This part replaces part number 12640601 - and 1 more. Click to view details
                                    # 043
                                    MPN: 262559
                                    CLIP
                                    from £0.57
                                    from £0.57
                                    # 044
                                    MPN: 82199400
                                    COMPL. SCREEN WASHER PIPE ASSEMBLY
                                    from £24.89
                                    from £24.89
                                    This part replaces part number 82199600 - and 2 more. Click to view details
