0137 - INFOTAINMENT SYSTEM

Ferrari GTC4 Lusso (USA) INFOTAINMENT SYSTEM Parts Diagram

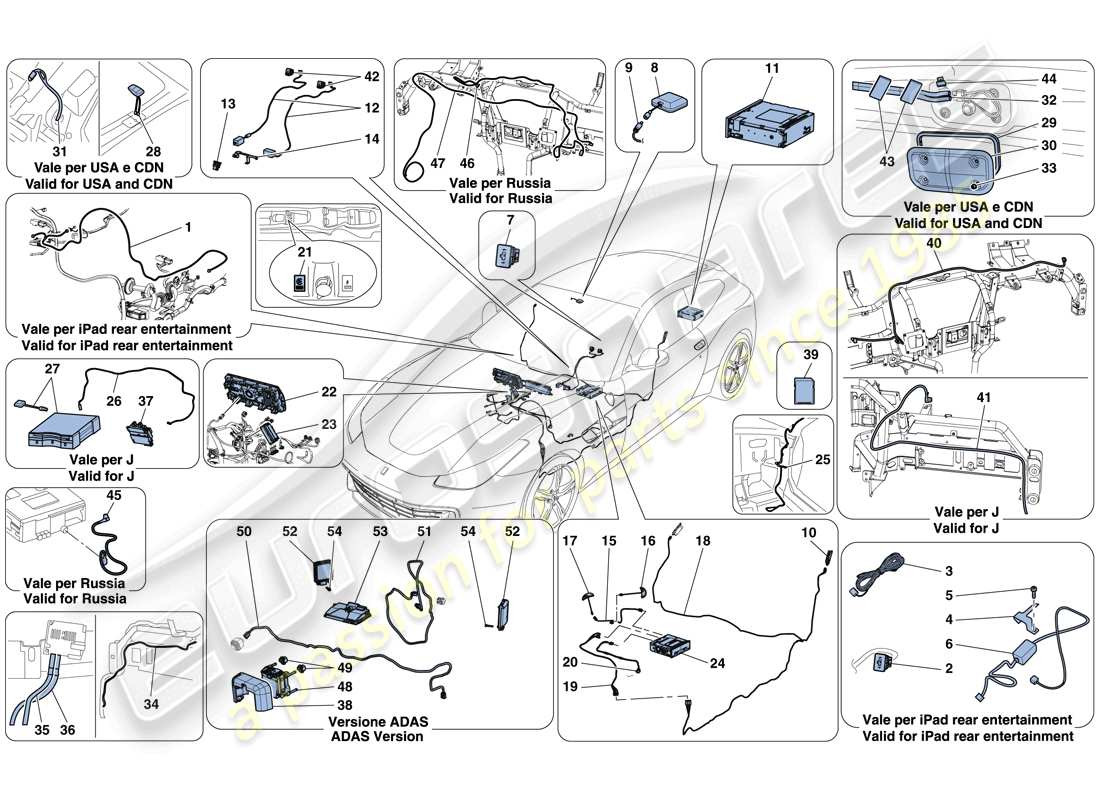

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Price
                  # 001
                  MPN: 302335
                  ECU-USB CONNECTION WIRING HARNESS
                  -iPad rear entertainment- -No longer supplied-
                  from £81.31
                  from £81.31
                  # 002
                  MPN: 288974
                  USB SOCKET
                  -iPad rear entertainment-
                  from £32.78
                  from £32.78
                  # 003
                  MPN: 302327
                  USB CONNECTOR CABLE
                  -iPad rear entertainment-
                  from £110.88
                  from £110.88
                  # 004
                  MPN: 302281
                  ECU USB MOUNTING BRACKET
                  -iPad rear entertainment- -Not for USA, CDN- -No longer supplied-
                  from £7.25
                  from £7.25
                  # 005
                  MPN: 14303024
                  SCREW
                  -M4 X 12- -iPad rear entertainment-
                  from £0.53
                  from £0.53
                  This part replaces part number 14303021 - and 1 more. Click to view details
                  # 006
                  MPN: 302333
                  ECU USB
                  -iPad rear entertainment- -No longer supplied-
                  from £184.80
                  from £184.80
                  # 007
                  MPN: 303226
                  USB SOCKET
                  from £18.90
                  from £18.90
                  # 008
                  MPN: 242694
                  NAVIGATION SYSTEM GPS ANTENNA
                  -Not for USA, CDN- -Applicable until depletion-
                  from £21.58
                  from £21.58
                  # 008
                  MPN: 331961
                  NAVIGATION SYSTEM GPS ANTENNA
                  -Not for USA, CDN- -Applicable after depletion of 242694- -Applicable until depletion-
                  Supersession
                  Supersession
                  This part replaces part number 242694 which we have in stock
                  # 008
                  MPN: 789209
                  NAVIGATION SYSTEM GPS ANTENNA
                  -Not for USA, CDN- -Applicable after depletion of 331961-
                  from £26.96
                  from £26.96
                  This part replaces part number 331961 - and 5 more. Click to view details
                  # 009
                  MPN: 335614
                  GPS ANTENNA EXTENSION CABLE
                  -Not for USA, CDN-
                  from £15.25
                  from £15.25
                  # 010
                  MPN: 298613
                  FM2/DAB AMPLIFIER
                  from £81.31
                  from £81.31
                  # 011
                  MPN: 318551
                  DVD READER
                  -Version with DVD player-
                  from £2,764.58
                  from £2,764.58
                  # 012
                  MPN: 327162
                  ECU USB
                  -Applicable up to Ass. No. 143870-
                  from £199.59
                  from £199.59
                  # 012
                  MPN: 766740
                  REAR USB SOCKET WIRING HARNESS
                  -Applicable from Ass. No. 143871-
                  from £4.27
                  from £4.27
                  # 013
                  MPN: 303226
                  USB SOCKET
                  from £18.90
                  from £18.90
                  # 014
                  MPN: 327163
                  ECU MOUNTING BRACKET
                  from £15.68
                  from £15.68
                  # 015
                  MPN: 324617
                  WIFI/BT ANTENNA CABLE
                  -After depletion, order 332841- -Applicable for USA, CDN- -Applicable until depletion-
                  from £56.26
                  from £56.26
                  # 015
                  MPN: 332841
                  WIFI/BT ANTENNA CABLE
                  -Not for GD- -Applicable up to Ass. No. 143965-
                  from £55.95
                  from £55.95
                  # 015
                  MPN: 334399
                  WIFI/BT ANTENNA CABLE
                  -Applicable for GD- -Applicable up to Ass. No. 143965-
                  from £55.95
                  from £55.95
                  # 015
                  MPN: 756965
                  WIFI/BT ANTENNA CABLE
                  -Not for GD- -Applicable from Ass. No. 143966-
                  from £15.94
                  from £15.94
                  # 015
                  MPN: 756965
                  WIFI/BT ANTENNA CABLE
                  -Applicable for GD- -Applicable from Ass. No. 143966-
                  from £15.94
                  from £15.94
                  # 016
                  MPN: 286161
                  WIFI ANTENNA
                  -Applicable up to Ass. No. 143965-
                  from £73.48
                  from £73.48
                  # 017
                  MPN: 286160
                  BLUETOOTH ANTENNA
                  from £165.13
                  from £165.13
                  # 018
                  MPN: 332843
                  PASSENGER COMPARTMENT AM/FM1/FM2/DAB ANTENNA CABLE
                  -Not for USA, CDN, J, GD-
                  from £95.87
                  from £95.87
                  # 018
                  MPN: 334398
                  PASSENGER COMPARTMENT AM/FM1/FM2/DAB ANTENNA CABLE
                  -Applicable for AUS, UK-
                  from £52.77
                  from £52.77
                  # 018
                  MPN: 338178
                  PASSENGER COMPARTMENT AM/FM ANTENNA CABLE
                  -Applicable for USA, CDN-
                  from £129.35
                  from £129.35
                  # 018
                  MPN: 340787
                  PASSENGER COMPARTMENT AM/FM1/FM2 ANTENNA CABLE
                  -GS version- -Applicable for J-
                  from £95.35
                  from £95.35
                  # 018
                  MPN: 343091
                  PASSENGER COMPARTMENT AM/FM1/FM2 ANTENNA CABLE
                  -GD version- -Applicable for J-
                  from £95.35
                  from £95.35
                  # 019
                  MPN: 332842
                  DASHBOARD AM/FM1/FM2/DAB ANTENNA CABLE
                  -Not for USA, CDN, J, GD-
                  from £84.13
                  from £84.13
                  # 019
                  MPN: 334397
                  DASHBOARD AM/FM1/FM2/DAB ANTENNA CABLE
                  -Applicable for AUS, UK-
                  from £49.40
                  from £49.40
                  # 019
                  MPN: 338177
                  DASHBOARD AM/FM ANTENNA CABLE
                  -Applicable for USA, CDN-
                  from £99.78
                  from £99.78
                  # 019
                  MPN: 340786
                  DASHBOARD AM/FM1/FM2 ANTENNA CABLE
                  -GS version- -Applicable for J-
                  from £78.06
                  from £78.06
                  # 019
                  MPN: 343087
                  DASHBOARD AM/FM1/FM2 ANTENNA CABLE
                  -GD version- -Applicable for J-
                  from £78.43
                  from £78.43
                  # 020
                  MPN: 332459
                  DASHBOARD CABLE FIBRE-OPTIC HARNESS
                  -Version with DVD changer- -Premium Hi-Fi version- -Not for GD-
                  from £21.87
                  from £21.87
                  # 020
                  MPN: 332459
                  DASHBOARD CABLE FIBRE-OPTIC HARNESS
                  -Version with DVD changer- -Premium Hi-Fi version- -Applicable for GD-
                  from £21.87
                  from £21.87
                  # 020
                  MPN: 334400
                  DASHBOARD CABLE FIBRE-OPTIC HARNESS
                  -Version with DVD changer- -Premium Hi-Fi version- -Applicable for GD- -No longer supplied- -Replaced by 332459-
                  # 021
                  MPN: 317086
                  NDM USB PORT
                  -Version with Apple Car Play-
                  from £20.94
                  from £20.94
                  # 022
                  MPN: 331727
                  CENTRE DASHBOARD DISPLAY
                  -Not for USA, CDN- -No longer supplied- -Replaced by 334588-
                  Supersession
                  Supersession
                  # 022
                  MPN: 334588
                  CENTRE DASHBOARD DISPLAY
                  from £1,310.15
                  from £1,310.15
                  This part replaces part number 331727 - and 2 more. Click to view details
                  # 023
                  MPN: 320420
                  USB SPLITTER
                  -Not for J- -No longer supplied- -Replaced by 337571-
                  Supersession
                  Supersession
                  # 023
                  MPN: 337571
                  USB SPLITTER
                  -Not for J-
                  from £211.40
                  from £211.40
                  This part replaces part number 320420 - and 2 more. Click to view details
                  # 024
                  MPN: 319084
                  NIT
                  -Applicable for USA, CDN-
                  from £2,609.35
                  from £2,609.35
                  # 024
                  MPN: 319086
                  NIT
                  -Applicable for J-
                  from £3,326.37
                  from £3,326.37
                  # 024
                  MPN: 336645
                  NIT
                  -Not for USA, CDN, J-
                  from £901.43
                  from £901.43
                  # 025
                  MPN: 332460
                  PASSENGER COMPARTMENT FIBRE OPTIC CABLE
                  -Version with DVD changer- -Premium Hi-Fi version- -Not for GD-
                  from £254.73
                  from £254.73
                  # 025
                  MPN: 332461
                  PASSENGER COMPARTMENT FIBRE OPTIC CABLE
                  -Version with DVD changer- -Not for GD-
                  from £237.50
                  from £237.50
                  # 025
                  MPN: 332462
                  PASSENGER COMPARTMENT FIBRE OPTIC CABLE
                  -Premium Hi-Fi version- -Not for GD-
                  from £109.91
                  from £109.91
                  # 025
                  MPN: 334401
                  PASSENGER COMPARTMENT FIBRE OPTIC CABLE
                  -Version with DVD changer- -Premium Hi-Fi version- -Applicable for GD-
                  from £251.99
                  from £251.99
                  # 025
                  MPN: 334402
                  PASSENGER COMPARTMENT FIBRE OPTIC CABLE
                  -Version with DVD changer- -Applicable for GD-
                  from £165.99
                  from £165.99
                  # 025
                  MPN: 334403
                  PASSENGER COMPARTMENT FIBRE OPTIC CABLE
                  -Premium Hi-Fi version- -Applicable for GD-
                  from £162.75
                  from £162.75
                  # 026
                  MPN: 334358
                  DSRC/HUB CABLE
                  -Applicable for J-
                  from £340.02
                  from £340.02
                  # 027
                  MPN: 336234
                  DSRC/VICS KIT
                  -Applicable for J-
                  from £1,936.82
                  from £1,936.82
                  # 028
                  MPN: 326887
                  SDARS/GNSS COMBO ANTENNA
                  -Applicable for USA, CDN- -No longer supplied- -Replaced by 893597..-
                  # 028
                  MPN: 893597..
                  SDARS/GNSS COMBO ANTENNA
                  -Applicable for USA, CDN-
                  Supersession
                  Supersession
                  # 029
                  MPN: 335418
                  SDARS ANTENNA GASKET
                  -Applicable for USA, CDN-
                  from £54.79
                  from £54.79
                  # 030
                  MPN: 87852500
                  SDARS SEAL COVER
                  -Applicable for USA, CDN-
                  from £8.14
                  from £8.14
                  # 031
                  MPN: 324254
                  TAILGATE SDARS ANTENNA CABLE
                  -Applicable for USA, CDN-
                  from £162.61
                  from £162.61
                  # 032
                  MPN: 324255
                  SPOILER SDARS ANTENNA CABLE
                  -Applicable for USA, CDN-
                  from £155.24
                  from £155.24
                  # 033
                  MPN: 160472
                  NUT
                  -Applicable for USA, CDN-
                  from £1.23
                  from £1.23
                  # 034
                  MPN: 335615
                  DASHBOARD GPS ANTENNA CABLE
                  -Not for USA, CDN-
                  from £13.82
                  from £13.82
                  # 035
                  MPN: 335435
                  CABLE FROM SPLITTER TO CARPLAY SOCKET
                  from £85.94
                  from £85.94
                  # 036
                  MPN: 335434
                  USB-NIT SPLITTER-SOCKET CABLE
                  from £85.94
                  from £85.94
                  # 037
                  MPN: 337572
                  4-WAY USB HUB
                  -Applicable for J-
                  from £532.22
                  from £532.22
                  # 038
                  MPN: 898678
                  COMPL. RADAR COVER
                  -Applicable for ADAS version-
                  from £10.65
                  from £10.65
                  # 039
                  MPN: 336947
                  sd card
                  from £437.27
                  from £437.27
                  # 040
                  MPN: 330895
                  LVDS NDP-NQS VIDEO CABLE
                  -Version with passenger display- -GD version- -Applicable for J-
                  from £118.06
                  from £118.06
                  # 041
                  MPN: 330894
                  LVDS NIT-NDC VIDEO CABLE
                  -Version with front camera with dual view or surround view- -GD version- -Applicable for J-
                  from £124.05
                  from £124.05
                  # 042
                  MPN: 303226
                  USB SOCKET
                  -Applicable up to Ass. No. 143870-
                  from £18.90
                  from £18.90
                  # 042
                  MPN: 747685
                  USB SOCKET
                  -Applicable from Ass. No. 143871-
                  from £81.31
                  from £81.31
                  # 043
                  MPN: 84706800
                  FOAM
                  -Applicable for USA, CDN-
                  from £0.47
                  from £0.47
                  # 044
                  MPN: 266000
                  CLIPS
                  -Applicable for USA, CDN-
                  from £0.50
                  from £0.50
                  # 045
                  MPN: 327340
                  LVDS NIT-NDP VIDEO CABLE
                  -Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets- -Applicable for ERA GLONASS system- -Version with passenger display-
                  from £101.27
                  from £101.27
                  # 046
                  -
                  LVDS NDP-NQS VIDEO CABLE
                  # 047
                  MPN: 322538
                  LVDS NIT-NDC VIDEO CABLE
                  -Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets- -Applicable for ERA GLONASS system- -Version with front camera with dual view or surround view- -GS version- -Not applicable for Korea- -Applicable for J-
                  from £115.10
                  from £115.10
                  # 047
                  MPN: 322538
                  LVDS NIT-NDC VIDEO CABLE
                  -Applicable for ADAS version- -Surround view version- -Applicable for Korea- -Applicable for USA LIGHT-
                  from £115.10
                  from £115.10
                  # 048
                  MPN: 782500
                  MEDIUM RANGE RADAR
                  -Applicable for ADAS version-
                  Supersession
                  Supersession
                  # 049
                  MPN: 848849
                  CLIP
                  -Applicable for ADAS version-
                  from £1.45
                  from £1.45
                  # 050
                  -
                  FRONT CAMERA CABLE
                  # 050
                  -
                  FRONT CAMERA CABLE
                  # 051
                  -
                  REAR CAMERA CABLE
                  # 051
                  -
                  REAR CAMERA CABLE
                  # 052
                  -
                  REAR RADAR
                  # 053
                  -
                  MPC CAMERA
                  # 053
                  -
                  MPC CAMERA
                  # 054
                  MPN: 69396000
                  SCREW
                  -M4 X 16- -Applicable for ADAS version-
                  from £0.47
                  from £0.47
                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
