ferrari laferrari (europe) exterior trim parts diagram

0102 - EXTERIOR TRIM

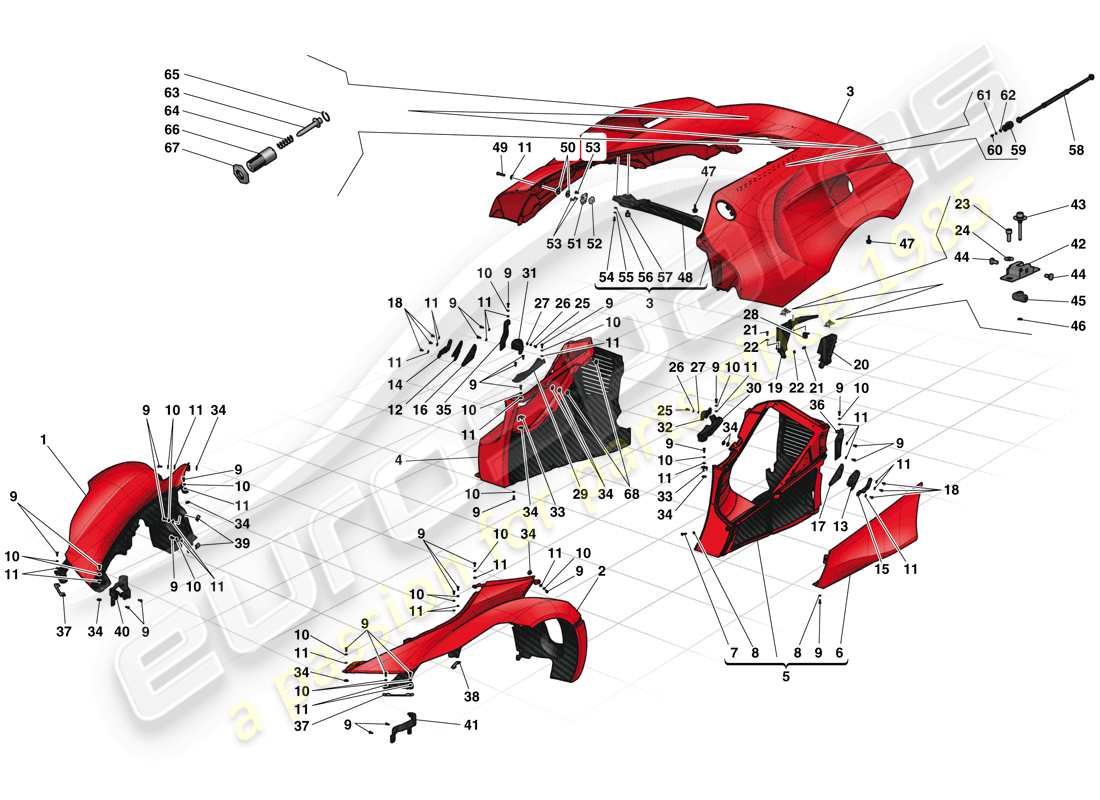

Ferrari LaFerrari (Europe) EXTERIOR TRIM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                    #
                                                                                                    Part number
                                                                                                    Description
                                                                                                    Price

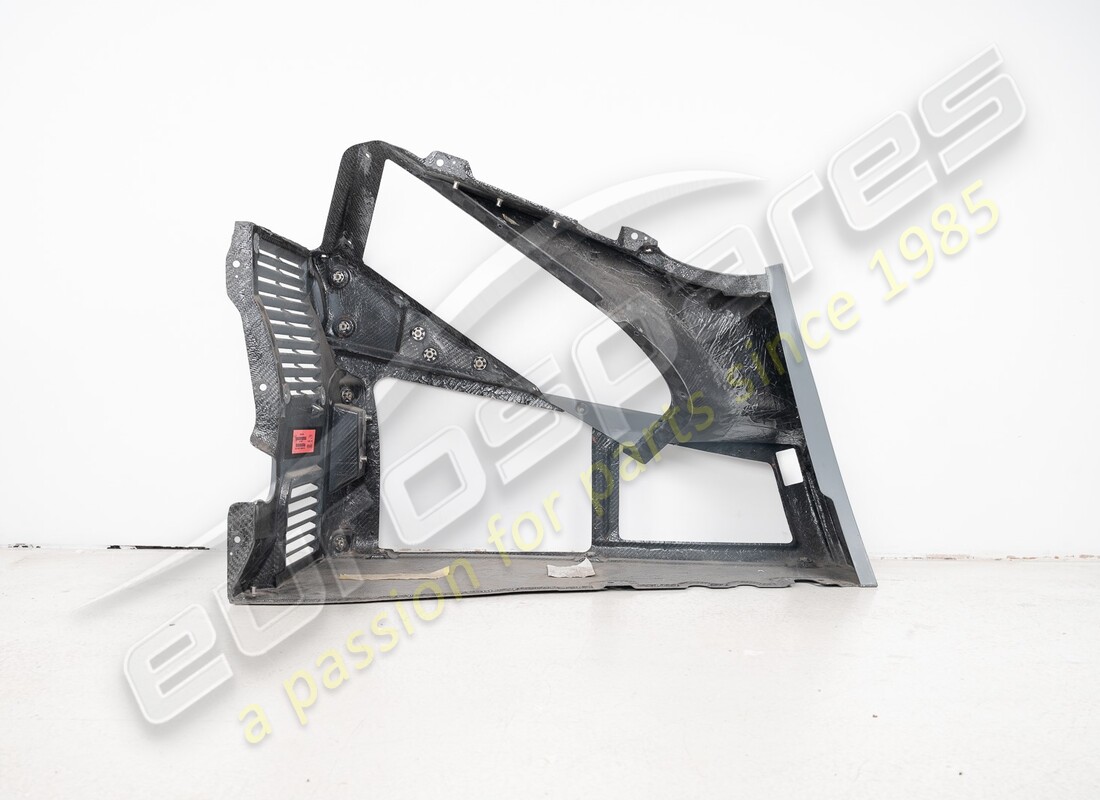

                                                                                                    # 001
                                                                                                    MPN: 85861310
                                                                                                    COMPL. FRONT RH FENDER
                                                                                                    -Not for J- -No longer supplied- -Replaced by 87446310-
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 001
                                                                                                    MPN: 85930610
                                                                                                    COMPL. FRONT RH FENDER
                                                                                                    -Upper part of vehicle in cosmetic finish quality carbon- -Not for J- -No longer supplied- -Replaced by 87446310-
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 001
                                                                                                    MPN: 86497110
                                                                                                    COMPL. RH FRONT FENDER
                                                                                                    -Applicable for J- -No longer supplied- -Replaced by 87446510-
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 001
                                                                                                    MPN: 86522310
                                                                                                    COMPL. RH FRONT FENDER
                                                                                                    -Upper part of vehicle in cosmetic finish quality carbon- -Applicable for J- -No longer supplied- -Replaced by 87446510-
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 001
                                                                                                    MPN: 87446310
                                                                                                    COMPL. RH FRONT FENDER
                                                                                                    -Not for J-
                                                                                                    from £8,250.19
                                                                                                    from £8,250.19
                                                                                                    This part replaces part number 85861310 - and 1 more. Click to view details
                                                                                                    # 001
                                                                                                    MPN: 87446510
                                                                                                    COMPL. RH FRONT FENDER
                                                                                                    -Applicable for J-
                                                                                                    from £14,414.74
                                                                                                    from £14,414.74
                                                                                                    This part replaces part number 86497110 - and 1 more. Click to view details
                                                                                                    # 002
                                                                                                    MPN: 85861410
                                                                                                    COMPL. LH FRONT FENDER
                                                                                                    -Not for J- -No longer supplied- -Replaced by 87446410-
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 002
                                                                                                    MPN: 85930810
                                                                                                    COMPL. LH FRONT FENDER
                                                                                                    -Upper part of vehicle in cosmetic finish quality carbon- -Not for J- -No longer supplied- -Replaced by 87446410-
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 002
                                                                                                    MPN: 86497310
                                                                                                    COMPL. LH FRONT FENDER
                                                                                                    -Applicable for J- -No longer supplied- -Replaced by 87446810-
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 002
                                                                                                    MPN: 86522610
                                                                                                    COMPL. LH FRONT FENDER
                                                                                                    -Upper part of vehicle in cosmetic finish quality carbon- -Applicable for J- -No longer supplied- -Replaced by 87446810-
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 002
                                                                                                    MPN: 87446410
                                                                                                    COMPL. LH FRONT FENDER
                                                                                                    -Not for J-
                                                                                                    from £8,250.19
                                                                                                    from £8,250.19
                                                                                                    This part replaces part number 85861410 - and 1 more. Click to view details
                                                                                                    # 002
                                                                                                    MPN: 87446810
                                                                                                    COMPL. LH FRONT FENDER
                                                                                                    -Applicable for J-
                                                                                                    from £14,414.74
                                                                                                    from £14,414.74
                                                                                                    This part replaces part number 86497310 - and 1 more. Click to view details
                                                                                                    # 003
                                                                                                    MPN: 86047410
                                                                                                    COMPLETE REAR TRIM
                                                                                                    from £55,899.71
                                                                                                    from £55,899.71
                                                                                                    # 004
                                                                                                    MPN: 85776810
                                                                                                    COMPL. RH REAR FLANK
                                                                                                    -Lower part of vehicle in cosmetic finish quality carbon- -No longer supplied- -Replaced by 87446110-
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 004
                                                                                                    MPN: 86065510
                                                                                                    COMPL. RH REAR FLANK
                                                                                                    -No longer supplied- -Replaced by 87446110-
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    This part replaces part number 85555710
                                                                                                    # 004
                                                                                                    MPN: 87446110
                                                                                                    COMPL. RH REAR FLANK
                                                                                                    from £9,058.91
                                                                                                    from £9,058.91
                                                                                                    This part replaces part number 85776810 - and 1 more. Click to view details
                                                                                                    # 005
                                                                                                    MPN: 86397910
                                                                                                    COMPL. LH REAR FLANK
                                                                                                    -No longer supplied- -Replaced by 87446210-
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    This part replaces part number 85555510
                                                                                                    # 005
                                                                                                    MPN: 86420210
                                                                                                    COMPL. LH REAR FLANK
                                                                                                    -Lower part of vehicle in cosmetic finish quality carbon- -No longer supplied- -Replaced by 87446210-
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    This part replaces part number 85777010
                                                                                                    # 005
                                                                                                    MPN: 87446210
                                                                                                    COMPL. LH REAR FLANK
                                                                                                    from £14,938.19
                                                                                                    from £14,938.19
                                                                                                    This part replaces part number 86397910 - and 1 more. Click to view details
                                                                                                    # 006
                                                                                                    MPN: 85575910
                                                                                                    COMPL. LH EXTERNAL REAR FLANK
                                                                                                    -No longer supplied- -Replaced by 87446910-
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 006
                                                                                                    MPN: 85777100
                                                                                                    COMPL. LH EXTERNAL REAR FLANK
                                                                                                    -Lower part of vehicle in cosmetic finish quality carbon- -No longer supplied- -Replaced by 87446910-
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 006
                                                                                                    MPN: 87446910
                                                                                                    COMPL. LH EXTERNAL REAR FLANK
                                                                                                    from £5,356.11
                                                                                                    from £5,356.11
                                                                                                    This part replaces part number 85575910 - and 1 more. Click to view details
                                                                                                    # 007
                                                                                                    MPN: 85679100

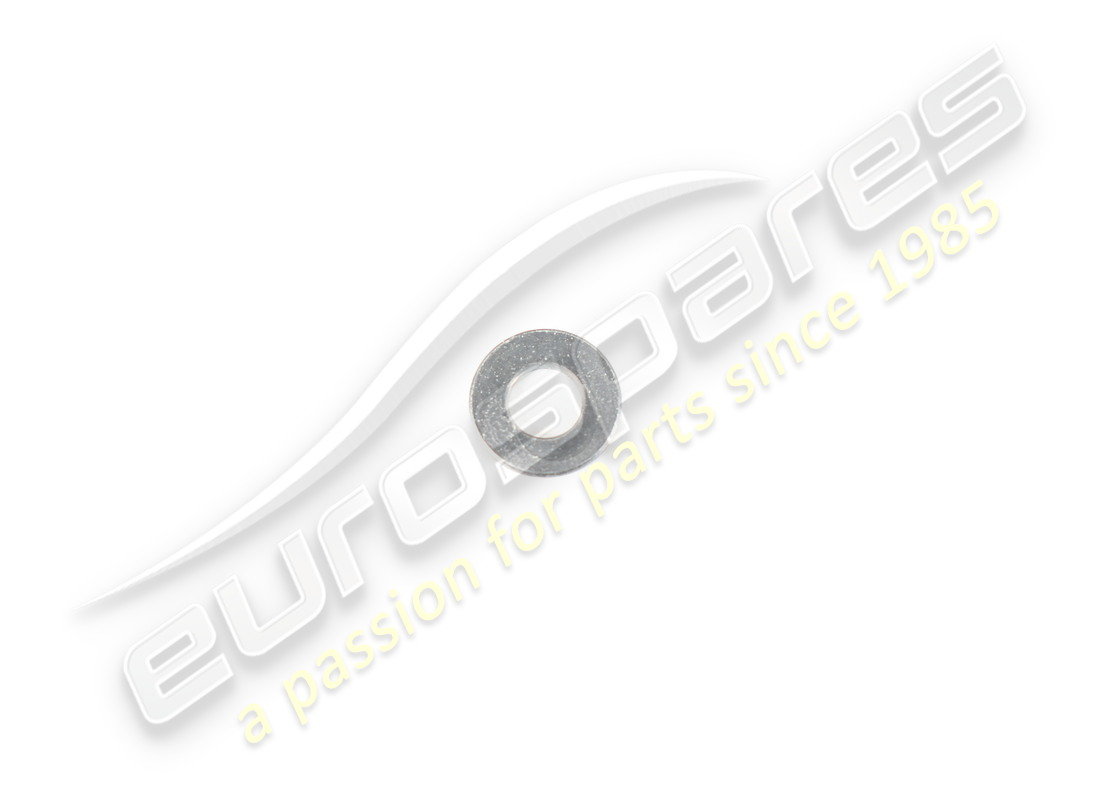

                                                                                                    SCREW
                                                                                                    from £4.34
                                                                                                    from £4.34
                                                                                                    # 008
                                                                                                    MPN: 85882600
                                                                                                    WASHER
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 009
                                                                                                    MPN: 85629300
                                                                                                    SCREW
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 010
                                                                                                    MPN: 85882500
                                                                                                    WASHER
                                                                                                    -No longer supplied-
                                                                                                    from £0.71
                                                                                                    from £0.71
                                                                                                    # 011
                                                                                                    MPN: 85882600
                                                                                                    WASHER
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 012
                                                                                                    MPN: 85712800
                                                                                                    RH LOCATOR FOR REAR TRIM
                                                                                                    from £29.49
                                                                                                    from £29.49
                                                                                                    # 013
                                                                                                    MPN: 85712500
                                                                                                    LH LOCATOR FOR REAR TRIM
                                                                                                    from £29.49
                                                                                                    from £29.49
                                                                                                    # 014
                                                                                                    MPN: 85712900
                                                                                                    RH EXTERNAL RECEPTACLE
                                                                                                    from £257.96
                                                                                                    from £257.96
                                                                                                    # 015
                                                                                                    MPN: 85712600
                                                                                                    LH EXTERNAL RECEPTACLE
                                                                                                    from £257.96
                                                                                                    from £257.96
                                                                                                    # 016
                                                                                                    MPN: 85712700
                                                                                                    RH INTERNAL RECEPTACLE
                                                                                                    from £20.58
                                                                                                    from £20.58
                                                                                                    # 017
                                                                                                    MPN: 85712400
                                                                                                    LH INTERNAL RECEPTACLE
                                                                                                    from £20.58
                                                                                                    from £20.58
                                                                                                    # 018
                                                                                                    MPN: 85740000
                                                                                                    SCREW
                                                                                                    from £0.65
                                                                                                    from £0.65
                                                                                                    # 019
                                                                                                    MPN: 85991400
                                                                                                    RH REAR TRIM SUPPORT ASSEMBLY
                                                                                                    -Applicable up to Ass. No. 123544-
                                                                                                    from £258.25
                                                                                                    from £258.25
                                                                                                    # 019
                                                                                                    MPN: 86606800
                                                                                                    RH REAR TRIM SUPPORT ASSEMBLY
                                                                                                    -Applicable from Ass. No. 123545-
                                                                                                    from £336.50
                                                                                                    from £336.50
                                                                                                    # 020
                                                                                                    MPN: 85991700
                                                                                                    LH REAR TRIM SUPPORT ASSEMBLY
                                                                                                    from £129.12
                                                                                                    from £129.12
                                                                                                    # 021
                                                                                                    MPN: 14305725
                                                                                                    SCREW
                                                                                                    -No longer supplied- -Replaced by 14305726-
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 021
                                                                                                    MPN: 14305726
                                                                                                    SCREW
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 022
                                                                                                    MPN: 13550224
                                                                                                    WASHER
                                                                                                    from £0.68
                                                                                                    from £0.68
                                                                                                    # 023
                                                                                                    MPN: 14304624
                                                                                                    SCREW
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 024
                                                                                                    MPN: 85935400
                                                                                                    WASHER
                                                                                                    from £3.17
                                                                                                    from £3.17
                                                                                                    # 025
                                                                                                    MPN: 85077900
                                                                                                    SCREW
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 026
                                                                                                    MPN: 11199277
                                                                                                    WASHER
                                                                                                    -No longer supplied-
                                                                                                    from £1.85
                                                                                                    from £1.85
                                                                                                    # 027
                                                                                                    MPN: 86181700
                                                                                                    WASHER
                                                                                                    from £2.67
                                                                                                    from £2.67
                                                                                                    # 028
                                                                                                    MPN: 85843800
                                                                                                    DCT GEARBOX RELEASE LOCK
                                                                                                    -Applicable up to Ass. No. 123544-
                                                                                                    from £1,752.47
                                                                                                    from £1,752.47
                                                                                                    # 029
                                                                                                    MPN: 85630000
                                                                                                    RH LATERAL GUIDE, REAR TRIM
                                                                                                    from £29.45
                                                                                                    from £29.45
                                                                                                    # 030
                                                                                                    MPN: 85630100
                                                                                                    LH LATERAL GUIDE, REAR TRIM
                                                                                                    from £29.45
                                                                                                    from £29.45
                                                                                                    # 031
                                                                                                    MPN: 86019200
                                                                                                    RH GUIDE PAD
                                                                                                    from £26.24
                                                                                                    from £26.24
                                                                                                    # 032
                                                                                                    MPN: 86019100
                                                                                                    LH GUIDE PAD
                                                                                                    from £26.24
                                                                                                    from £26.24
                                                                                                    # 033
                                                                                                    MPN: 85842700
                                                                                                    SHIM
                                                                                                    from £10.15
                                                                                                    from £10.15
                                                                                                    # 034
                                                                                                    MPN: 298365
                                                                                                    SPLIT WASHER
                                                                                                    from £4.13
                                                                                                    from £4.13
                                                                                                    # 035
                                                                                                    MPN: 85635500
                                                                                                    RH INTERMEDIATE LOCATOR
                                                                                                    from £27.98
                                                                                                    from £27.98
                                                                                                    # 036
                                                                                                    MPN: 85635600
                                                                                                    LH INTERMEDIATE LOCATOR
                                                                                                    from £27.98
                                                                                                    from £27.98
                                                                                                    # 037
                                                                                                    MPN: 85740300
                                                                                                    FRONT FENDER SHIM
                                                                                                    from £7.25
                                                                                                    from £7.25
                                                                                                    # 038
                                                                                                    MPN: 85740200
                                                                                                    FRONT LH FENDER SHIM
                                                                                                    from £7.25
                                                                                                    from £7.25
                                                                                                    # 039
                                                                                                    MPN: 85530900
                                                                                                    FRONT FENDER ADJUSTER SHIM
                                                                                                    from £10.89
                                                                                                    from £10.89
                                                                                                    # 040
                                                                                                    MPN: 85635300
                                                                                                    CENTRAL RH FENDER FASTENER BRACKET
                                                                                                    -No longer supplied-
                                                                                                    from £179.15
                                                                                                    from £179.15
                                                                                                    # 041
                                                                                                    MPN: 85635100
                                                                                                    CENTRAL LH FENDER FASTENER BRACKET
                                                                                                    -No longer supplied-
                                                                                                    from £179.15
                                                                                                    from £179.15
                                                                                                    # 042
                                                                                                    MPN: 85989700
                                                                                                    CURVED BRACKET
                                                                                                    from £265.32
                                                                                                    from £265.32
                                                                                                    # 043
                                                                                                    MPN: 85989900
                                                                                                    SPECIAL SCREW FOR FASTENING REAR TRIM
                                                                                                    from £82.58
                                                                                                    from £82.58
                                                                                                    # 044
                                                                                                    MPN: 85990100
                                                                                                    SPECIAL PIVOT SCREW
                                                                                                    from £257.96
                                                                                                    from £257.96
                                                                                                    # 045
                                                                                                    MPN: 85989800
                                                                                                    ROTATING NUT
                                                                                                    from £184.26
                                                                                                    from £184.26
                                                                                                    # 046
                                                                                                    MPN: 11087576
                                                                                                    SNAP RING
                                                                                                    from £2.59
                                                                                                    from £2.59
                                                                                                    This part replaces part number 11087571
                                                                                                    # 047
                                                                                                    MPN: 85867000
                                                                                                    REAR TRIM PANEL DAMPER PAD
                                                                                                    from £40.52
                                                                                                    from £40.52
                                                                                                    # 048
                                                                                                    MPN: 85997500
                                                                                                    COMPL. REMOVABLE CROSS MEMBER
                                                                                                    -Applicable up to Ass. No. 126198-
                                                                                                    from £5,810.73
                                                                                                    from £5,810.73
                                                                                                    # 048
                                                                                                    MPN: 86313000
                                                                                                    COMPL. REMOVABLE CROSS MEMBER
                                                                                                    -Applicable from Ass. No. 126199-
                                                                                                    from £7,295.44
                                                                                                    from £7,295.44
                                                                                                    # 049
                                                                                                    MPN: 85661700
                                                                                                    THREADED PIN
                                                                                                    from £30.92
                                                                                                    from £30.92
                                                                                                    # 050
                                                                                                    MPN: 85660300
                                                                                                    PLATE
                                                                                                    -Th. 1 mm-
                                                                                                    from £11.17
                                                                                                    from £11.17
                                                                                                    # 051
                                                                                                    MPN: 85660000
                                                                                                    LH COVER PLATE
                                                                                                    from £19.87
                                                                                                    from £19.87
                                                                                                    # 051
                                                                                                    MPN: 85660500
                                                                                                    RH COVER PLATE
                                                                                                    from £18.23
                                                                                                    from £18.23
                                                                                                    # 052
                                                                                                    MPN: 85660100
                                                                                                    SEAL BLOCK
                                                                                                    from £13.61
                                                                                                    from £13.61
                                                                                                    # 053
                                                                                                    MPN: 85164600
                                                                                                    SCREW
                                                                                                    from £0.50
                                                                                                    from £0.50
                                                                                                    # 054
                                                                                                    MPN: 14305725
                                                                                                    SCREW
                                                                                                    -No longer supplied- -Replaced by 86215700-
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 054
                                                                                                    MPN: 86215700
                                                                                                    SCREW
                                                                                                    This part replaces part number 14305725
                                                                                                    # 055
                                                                                                    MPN: 11197775
                                                                                                    WASHER
                                                                                                    -No longer supplied-
                                                                                                    # 056
                                                                                                    MPN: 86174900
                                                                                                    WASHER
                                                                                                    from £1.20
                                                                                                    from £1.20
                                                                                                    # 057
                                                                                                    MPN: 85482400
                                                                                                    HEXAGONAL BLOCK
                                                                                                    -No longer supplied- -Replaced by 86224900-
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 057
                                                                                                    MPN: 86224900
                                                                                                    HEXAGONAL BLOCK
                                                                                                    from £18.03
                                                                                                    from £18.03
                                                                                                    This part replaces part number 85482400
                                                                                                    # 058
                                                                                                    MPN: 85829200
                                                                                                    REAR TRIM MOUNTING STRUT
                                                                                                    from £775.12
                                                                                                    from £775.12
                                                                                                    # 059
                                                                                                    MPN: 85828200
                                                                                                    COMPL. STRUT MOUNTING SEAT
                                                                                                    from £294.42
                                                                                                    from £294.42
                                                                                                    # 060
                                                                                                    MPN: 85494300
                                                                                                    SCREW
                                                                                                    -M5 X 12-
                                                                                                    from £0.65
                                                                                                    from £0.65
                                                                                                    # 061
                                                                                                    MPN: 12638178
                                                                                                    WASHER
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 10519578 - and 3 more. Click to view details
                                                                                                    # 061
                                                                                                    MPN: 85935300
                                                                                                    WASHER
                                                                                                    -No longer supplied- -Replaced by 12638178-
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 062
                                                                                                    MPN: 85935400
                                                                                                    WASHER
                                                                                                    from £3.17
                                                                                                    from £3.17
                                                                                                    # 063
                                                                                                    MPN: 85990400
                                                                                                    SPECIAL SCREW FOR FASTENING LID/FENDER
                                                                                                    from £184.00
                                                                                                    from £184.00
                                                                                                    # 064
                                                                                                    MPN: 85990500
                                                                                                    SCREW RETURN SPRING
                                                                                                    from £51.53
                                                                                                    from £51.53
                                                                                                    # 065
                                                                                                    MPN: 85990600
                                                                                                    SNAP RING
                                                                                                    from £51.53
                                                                                                    from £51.53
                                                                                                    # 066
                                                                                                    MPN: 85990300
                                                                                                    THREADED TUBE
                                                                                                    from £323.86
                                                                                                    from £323.86
                                                                                                    # 067
                                                                                                    MPN: 85990700
                                                                                                    CHECK NUT
                                                                                                    from £88.32
                                                                                                    from £88.32
                                                                                                    # 068
                                                                                                    MPN: 308416
                                                                                                    SPLIT WASHER
