0110 - ENGINE COMPARTMENT LID AND RELEASE MECHANISM

Ferrari LaFerrari (Europe) ENGINE COMPARTMENT LID AND RELEASE MECHANISM Parts Diagram

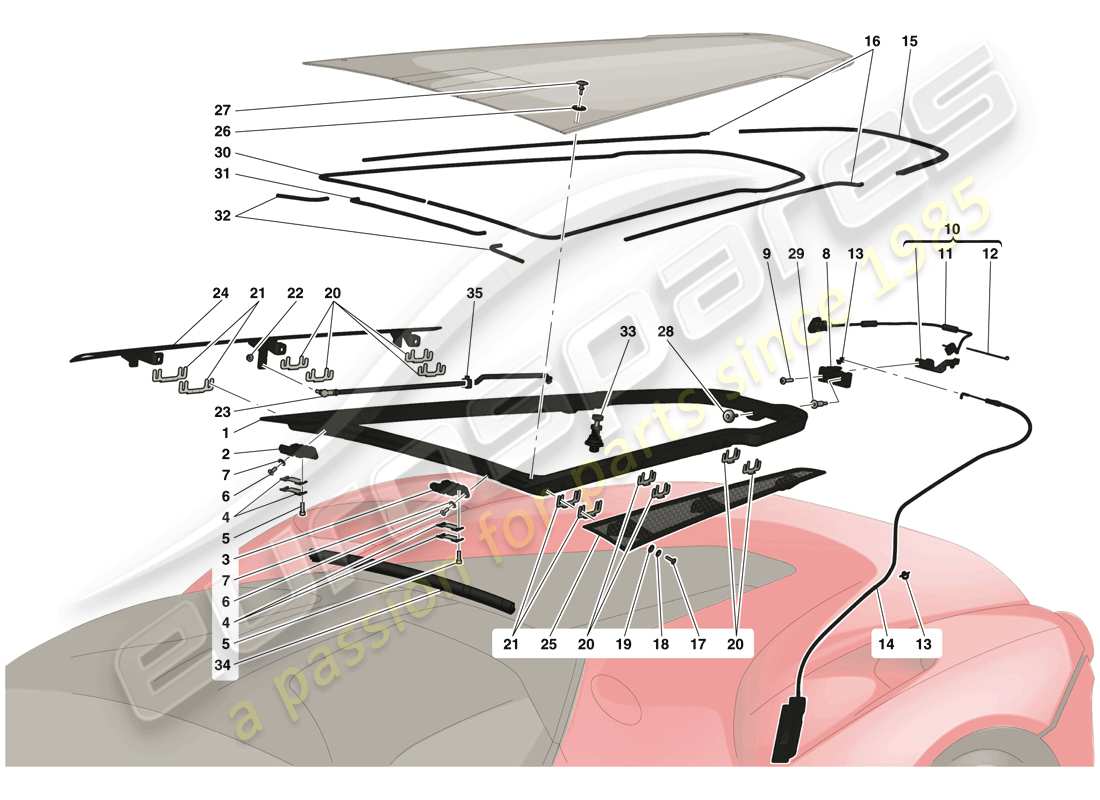

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price
                                                # 001
                                                MPN: 85742300
                                                REAR LID SUBSTRUCTURE
                                                from £7,139.52
                                                from £7,139.52
                                                # 002
                                                MPN: 85740700
                                                RH HINGE
                                                from £184.00
                                                from £184.00
                                                # 003
                                                MPN: 85740600
                                                LH HINGE
                                                from £184.00
                                                from £184.00
                                                # 004
                                                MPN: 85478600
                                                SHIM
                                                from £10.89
                                                from £10.89
                                                # 005
                                                MPN: 86061200
                                                SCREW
                                                from £0.47
                                                from £0.47
                                                # 006
                                                MPN: 85164600
                                                SCREW
                                                from £0.50
                                                from £0.50
                                                # 007
                                                MPN: 12644425
                                                WASHER
                                                from £0.53
                                                from £0.53
                                                # 008
                                                MPN: 85260200
                                                COMPL. ENGINE COMPARTMENT LID LOCK
                                                -Applicable until depletion-
                                                Supersession
                                                Supersession
                                                # 008
                                                MPN: 86134800
                                                COMPL. ENGINE COMPARTMENT LID LOCK
                                                -Applicable after depletion of 85260200-
                                                from £0.88
                                                from £0.88
                                                This part replaces part number 85260200
                                                # 009
                                                MPN: 65925000
                                                SCREW
                                                from £0.86
                                                from £0.86
                                                This part replaces part number 86141400 - and 1 more. Click to view details
                                                # 009
                                                MPN: 85800500
                                                SCREW
                                                -No longer supplied- -Replaced by 65925000-
                                                # 010
                                                MPN: 86067300
                                                COMPLETE LOCK CONTROL BRACKET
                                                from £111.87
                                                from £111.87
                                                This part replaces part number 86067400
                                                # 011
                                                MPN: 85876900
                                                ENGINE COMPARTMENT LID SWITCH
                                                from £95.80
                                                from £95.80
                                                # 012
                                                MPN: 110381
                                                RING CLAMP
                                                from £0.47
                                                from £0.47
                                                This part replaces part number MC4325/4
                                                # 013
                                                MPN: 14569480
                                                CLIP
                                                from £0.51
                                                from £0.51
                                                This part replaces part number 81580800
                                                # 014
                                                MPN: 85502100
                                                BOWDEN CABLE FOR OPENING LEXAN WINDOW
                                                from £126.68
                                                from £126.68
                                                # 015
                                                MPN: 85995700
                                                LOWER EXTERNAL SEAL
                                                -No longer supplied-
                                                # 016
                                                MPN: 85995400
                                                LATERAL EXTERNAL SEAL
                                                -No longer supplied- -Replaced by 86264800-
                                                Supersession
                                                Supersession
                                                # 016
                                                MPN: 86264800
                                                LATERAL EXTERNAL SEAL
                                                from £1.42
                                                from £1.42
                                                This part replaces part number 85995400
                                                # 017
                                                MPN: 14304287
                                                SCREW
                                                -M5 X 16-
                                                from £0.50
                                                from £0.50
                                                # 017
                                                MPN: 85797200
                                                SCREW
                                                -M5 X 18- -No longer supplied- -Replaced by 14304287-
                                                from £0.47
                                                from £0.47
                                                # 018
                                                MPN: 11194379
                                                WASHER
                                                -No longer supplied-
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 11194377
                                                # 018
                                                MPN: 11197779
                                                WASHER
                                                -No longer supplied- -Replaced by 11194379-
                                                Supersession
                                                Supersession
                                                # 019
                                                MPN: 12638178
                                                WASHER
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 10519578 - and 3 more. Click to view details
                                                # 019
                                                MPN: 13577701
                                                WASHER
                                                -No longer supplied- -Replaced by 12638178-
                                                from £0.47
                                                from £0.47
                                                # 020
                                                MPN: 85993500
                                                SHIM
                                                -Spacing 50 mm-
                                                from £17.40
                                                from £17.40
                                                # 021
                                                MPN: 85993600
                                                SHIM
                                                -Spacing 70 mm-
                                                from £17.40
                                                from £17.40
                                                # 022
                                                MPN: 12578111
                                                NUT
                                                from £0.47
                                                from £0.47
                                                # 023
                                                MPN: 85742500
                                                LID SUPPORT ROD
                                                from £217.50
                                                from £217.50
                                                # 024
                                                MPN: 85992200
                                                REMOVABLE RH GRILLE
                                                from £355.24
                                                from £355.24
                                                # 025
                                                MPN: 85992800
                                                REMOVABLE LH GRILLE
                                                from £355.24
                                                from £355.24
                                                # 026
                                                MPN: 84879800
                                                GASKET
                                                from £2.69
                                                from £2.69
                                                # 027
                                                MPN: 67509600
                                                SCREW
                                                from £18.61
                                                from £18.61
                                                This part replaces part number 67737100
                                                # 028
                                                MPN: 85755100
                                                STRIKER FASTENER SCREW
                                                from £10.07
                                                from £10.07
                                                # 029
                                                MPN: 85755000
                                                STRIKER PLATE
                                                from £22.82
                                                from £22.82
                                                # 030
                                                MPN: 85742100
                                                GASKET
                                                -No longer supplied- -Replaced by 86263300-
                                                Supersession
                                                Supersession
                                                # 030
                                                MPN: 86263300
                                                GASKET
                                                from £141.11
                                                from £141.11
                                                This part replaces part number 85742100
                                                # 031
                                                MPN: 85789400
                                                UPPER INTERNAL SEAL
                                                -No longer supplied- -Replaced by 86264700-
                                                Supersession
                                                Supersession
                                                # 031
                                                MPN: 86264700
                                                UPPER INTERNAL SEAL
                                                from £1.90
                                                from £1.90
                                                This part replaces part number 85789400
                                                # 032
                                                MPN: 85789500
                                                UPPER EXTERNAL SEAL
                                                from £1.94
                                                from £1.94
                                                # 033
                                                MPN: 856582
                                                SPACER BLOCK
                                                from £24.60
                                                from £24.60
                                                This part replaces part number 85877000 - and 1 more. Click to view details
                                                # 033
                                                MPN: 85877000
                                                SPACER BLOCK
                                                -No longer supplied- -Replaced by 856582-
                                                Supersession
                                                Supersession
                                                # 034
                                                MPN: 86114400
                                                CHANNEL GASKET
                                                from £110.42
                                                from £110.42

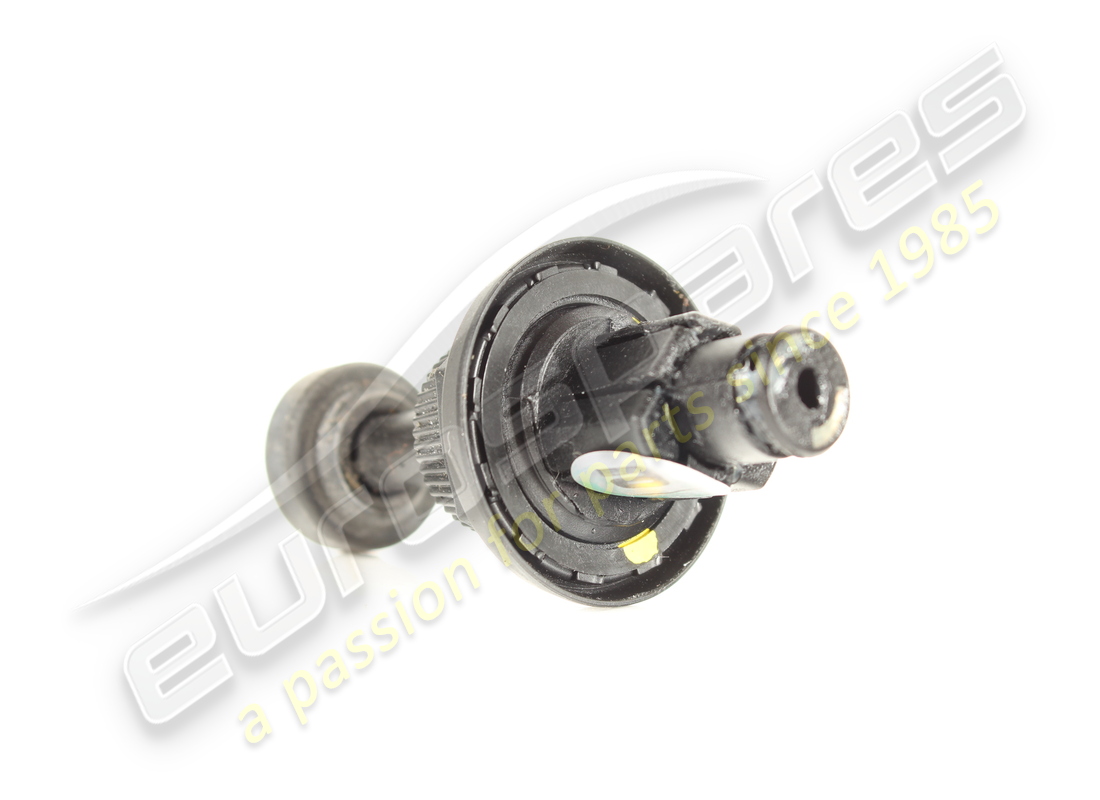

                                                # 035
                                                MPN: 14501087
                                                CLIP
                                                from £0.47
                                                from £0.47
                                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
