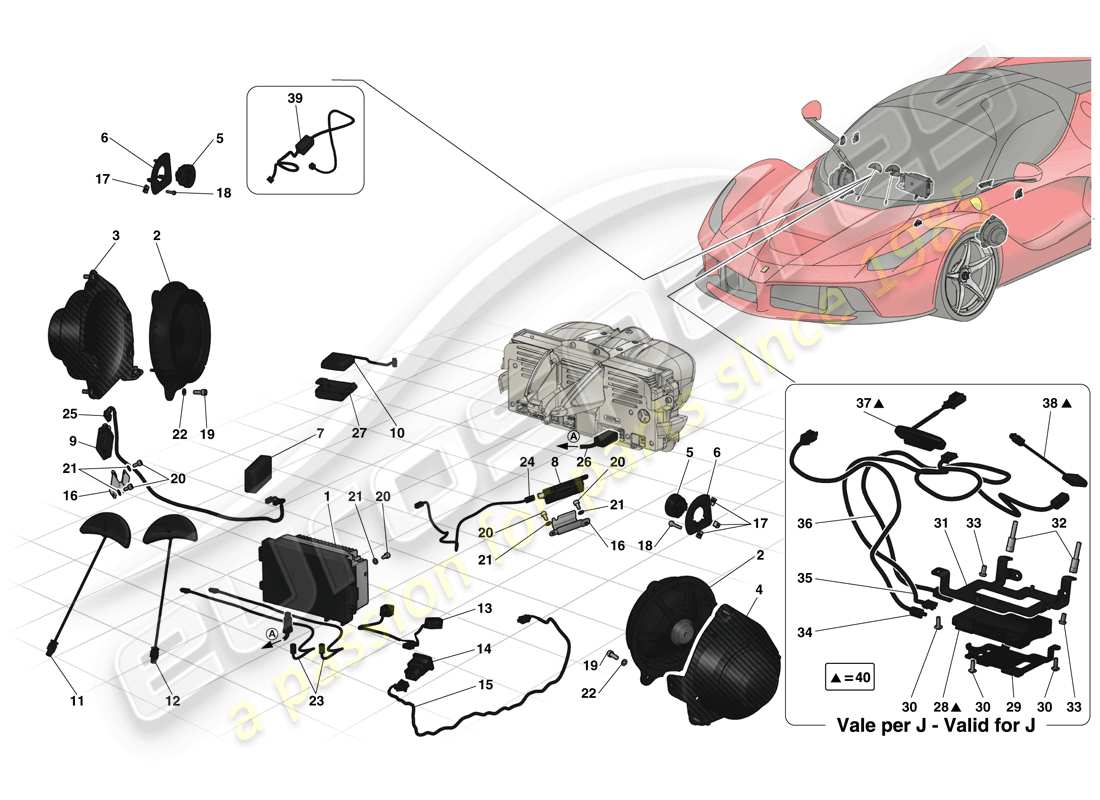

0132 - AUDIO - INFOTAINMENT SYSTEM

Ferrari LaFerrari (Europe) AUDIO - INFOTAINMENT SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Price
                                            # 001
                                            MPN: 281878
                                            BECKER NIT
                                            -Vehicles with map type satellite navigation- -Applicable for I-BE-LUX-N-DE-AT-CH-PT-SF-SE-FR-DK-NL-ES-EL-GB- -Applicable until depletion-
                                            Supersession
                                            Supersession
                                            # 001
                                            MPN: 286938
                                            BECKER NIT
                                            -Vehicles without map type satellite navigation- -Applicable until depletion-
                                            Supersession
                                            Supersession
                                            # 001
                                            MPN: 286987
                                            BECKER NIT
                                            -Vehicles with map type satellite navigation- -Applicable for Mexico- -Applicable for USA, CDN- -No longer supplied- -Replaced by 316898-
                                            Supersession
                                            Supersession
                                            # 001
                                            MPN: 286987
                                            BECKER NIT
                                            -Vehicles with map type satellite navigation- -Applicable for Mexico- -Applicable for USA, CDN-
                                            Supersession
                                            Supersession
                                            # 001
                                            MPN: 286988
                                            BECKER ROW NIT
                                            -Applicable for LIB-OMA-BRA-ARG-VEN-CIL-ARS-UAE-QAT-ID-EG-KUW-BAH-IND-SIN-THA-SA-AU-MAL-MAR- -Applicable after depletion of 316899-
                                            from £2,833.74
                                            from £2,833.74
                                            # 001
                                            MPN: 303161
                                            BECKER NIT
                                            -Vehicles with map type satellite navigation- -Applicable for CINA- -No longer supplied- -Replaced by 316900-
                                            from £8,080.62
                                            from £8,080.62
                                            This part replaces part number 286990
                                            # 001
                                            MPN: 303162
                                            BECKER NIT
                                            -Vehicles with map type satellite navigation- -Applicable for J-
                                            from £5,492.79
                                            from £5,492.79
                                            This part replaces part number 286989
                                            # 001
                                            MPN: 316896
                                            BECKER NIT
                                            -Vehicles with map type satellite navigation- -Applicable for I-BE-LUX-N-DE-AT-CH-PT-SF-SE-FR-DK-NL-ES-EL-GB- -Applicable after depletion of 281878-
                                            from £4,158.87
                                            from £4,158.87
                                            This part replaces part number 281878
                                            # 001
                                            MPN: 316897
                                            BECKER NIT
                                            -Vehicles without map type satellite navigation- -Applicable after depletion of 286938-
                                            from £2,090.76
                                            from £2,090.76
                                            This part replaces part number 286938 - and 1 more. Click to view details
                                            # 001
                                            MPN: 316898
                                            BECKER NIT
                                            -Vehicles with map type satellite navigation- -Applicable for Mexico- -Applicable for USA, CDN- -No longer supplied- -Replaced by 286987-
                                            from £4,366.56
                                            from £4,366.56
                                            This part replaces part number 286987
                                            # 001
                                            MPN: 316899
                                            BECKER ROW NIT
                                            -Applicable for LIB-OMA-BRA-ARG-VEN-CIL-ARS-UAE-QAT-ID-EG-KUW-BAH-IND-SIN-THA-SA-AU-MAL-MAR- -Applicable until depletion-
                                            from £5,154.28
                                            from £5,154.28
                                            # 001
                                            MPN: 316900
                                            BECKER NIT
                                            -Vehicles with map type satellite navigation- -Applicable for CINA-
                                            from £4,904.86
                                            from £4,904.86
                                            # 002
                                            MPN: 265232
                                            WOOFER
                                            from £28.60
                                            from £28.60
                                            # 003
                                            MPN: 85129400
                                            RH DOOR WOOFER MOUNT
                                            from £515.23
                                            from £515.23
                                            # 004
                                            MPN: 85129500
                                            LH DOOR WOOFER MOUNT
                                            from £515.23
                                            from £515.23
                                            # 005
                                            MPN: 251541
                                            FRONT TWEETER
                                            from £9.47
                                            from £9.47
                                            # 006
                                            MPN: 82539000
                                            ADAPTOR FOR TWEETER
                                            from £1.79
                                            from £1.79

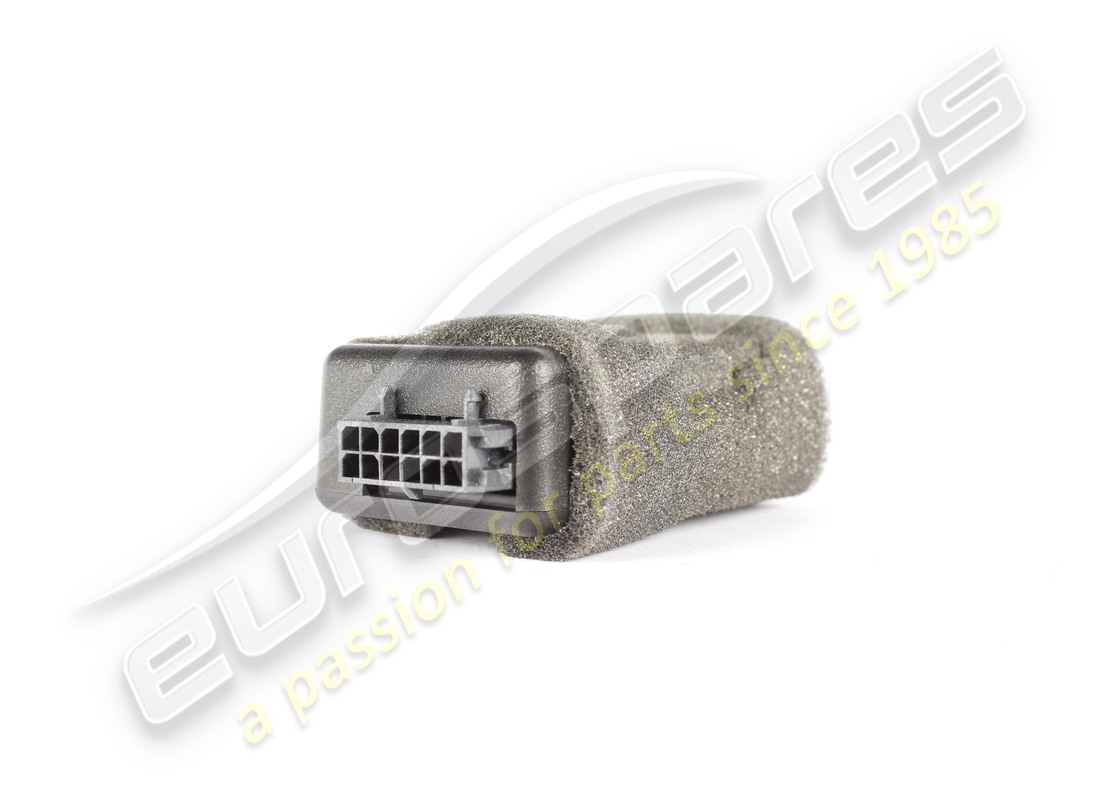

                                            # 007
                                            MPN: 276750
                                            CAN BOX
                                            -No longer supplied- -Replaced by 304849-
                                            from £341.43
                                            from £341.43
                                            # 007
                                            MPN: 304849
                                            CAN BOX
                                            -Applicable for vehicles with NIT-
                                            from £625.63
                                            from £625.63
                                            # 007
                                            MPN: 304850
                                            CAN BOX
                                            -Not for telemetry kit, integrated audio system, satellite navigation, vehicle lift system- -Applicable for vehicles without NIT-
                                            from £625.63
                                            from £625.63
                                            # 008
                                            MPN: 277243
                                            AM/FM AMPLIFIER
                                            from £45.14
                                            from £45.14
                                            # 009
                                            MPN: 298613
                                            FM2/DAB AMPLIFIER
                                            -Not for USA, CDN-
                                            from £80.96
                                            from £80.96
                                            # 010
                                            MPN: 242694
                                            NAVIGATION SYSTEM GPS ANTENNA
                                            -Applicable until depletion-
                                            from £21.58
                                            from £21.58
                                            # 010
                                            MPN: 331961
                                            NAVIGATION SYSTEM GPS ANTENNA
                                            -Applicable after depletion of 242694- -Applicable until depletion-
                                            Supersession
                                            Supersession
                                            This part replaces part number 242694 which we have in stock
                                            # 010
                                            MPN: 789209
                                            NAVIGATION SYSTEM GPS ANTENNA
                                            -Applicable after depletion of 331961-
                                            from £26.40
                                            from £26.40
                                            This part replaces part number 331961 - and 5 more. Click to view details
                                            # 011
                                            MPN: 286160
                                            BLUETOOTH ANTENNA
                                            from £161.72
                                            from £161.72
                                            # 012
                                            MPN: 286161
                                            WI-FI ANTENNA
                                            from £73.17
                                            from £73.17
                                            # 013
                                            MPN: 241289
                                            GSM MICROPHONE
                                            from £117.76
                                            from £117.76
                                            # 014
                                            MPN: 288974
                                            USB SOCKET
                                            from £32.64
                                            from £32.64
                                            # 015
                                            MPN: 281971
                                            USB / NIT / RHR CABLE
                                            from £29.14
                                            from £29.14
                                            This part replaces part number 275284 - and 1 more. Click to view details
                                            # 016
                                            MPN: 302359
                                            CLIP FOR ANTENNA AMPLIFIER
                                            from £92.01
                                            from £92.01
                                            # 017
                                            MPN: 14370471
                                            BRACKET
                                            from £7.79
                                            from £7.79
                                            # 018
                                            MPN: 69460500
                                            SCREW
                                            from £0.47
                                            from £0.47
                                            # 019
                                            MPN: 14305224
                                            SCREW
                                            from £0.47
                                            from £0.47
                                            # 020
                                            MPN: 14304024
                                            SCREW
                                            -M5 X 10-
                                            from £0.51
                                            from £0.51
                                            # 021
                                            MPN: 13579101
                                            WASHER
                                            from £0.48
                                            from £0.48
                                            # 022
                                            MPN: 12639724
                                            WASHER
                                            from £0.47
                                            from £0.47
                                            This part replaces part number 12639725 - and 1 more. Click to view details
                                            # 023
                                            MPN: 293362
                                            WIFI/BT ANTENNA EXTENSION FOR NIT
                                            from £47.56
                                            from £47.56
                                            # 024
                                            MPN: 298614
                                            AM/FM1 antenna cable
                                            from £84.80
                                            from £84.80
                                            # 025
                                            MPN: 298616
                                            FM2/DAB antenna cable
                                            -Not for USA, CDN-
                                            from £77.95
                                            from £77.95
                                            # 026
                                            MPN: 293357
                                            LVDS NIT CABLE
                                            from £315.92
                                            from £315.92
                                            # 027
                                            MPN: 86090700
                                            GPS ANTENNA BRACKET
                                            from £47.12
                                            from £47.12
                                            # 028
                                            MPN: 306122
                                            VICS MODULE
                                            -Applicable for J- -No longer supplied-
                                            from £1,869.35
                                            from £1,869.35
                                            # 029
                                            MPN: 308918
                                            LOWER VICS BRACKET
                                            -Applicable for J-
                                            from £169.29
                                            from £169.29
                                            # 030
                                            MPN: 81972800
                                            SCREW
                                            -Applicable for J-
                                            Supersession
                                            Supersession
                                            # 031
                                            MPN: 308916
                                            UPPER VICS BRACKET
                                            -Applicable for J-
                                            from £235.52
                                            from £235.52
                                            # 032
                                            MPN: 200414
                                            STUD BOLT
                                            -Applicable for J-
                                            from £3.87
                                            from £3.87
                                            # 033
                                            MPN: 84873500
                                            SCREW
                                            -M6 X 12- -Applicable for J-
                                            from £0.71
                                            from £0.71
                                            # 033
                                            MPN: 85498700
                                            SCREW
                                            -M6 X 12- -Applicable for J- -No longer supplied- -Replaced by 84873500-
                                            # 034
                                            MPN: 307182
                                            VICS CARD READER
                                            - NIT CABLE -Applicable for J-
                                            from £77.28
                                            from £77.28
                                            This part replaces part number 307280
                                            # 034
                                            MPN: 307280
                                            USB CABLE
                                            -Applicable for J- -No longer supplied- -Replaced by 307182-
                                            Supersession
                                            Supersession
                                            # 035
                                            MPN: 307279
                                            VICS ANTENNA CABLE
                                            -Applicable for J-
                                            from £29.45
                                            from £29.45
                                            # 036
                                            MPN: 307278
                                            RF ANTENNA CABLE
                                            -Applicable for J-
                                            from £88.25
                                            from £88.25
                                            # 037
                                            MPN: 306859
                                            VICS TRANSCEIVER BEACON
                                            -Applicable for J- -No longer supplied-
                                            # 038
                                            MPN: 306858
                                            VICS 5.8 GHZ ANTENNA
                                            -Applicable for J- -No longer supplied-
                                            # 039
                                            MPN: 301120
                                            ECU USB
                                            -Not for telemetry kit, audio system with integrated satellite navigation, vehicle lift system- -Not supplied-
                                            from £96.14
                                            from £96.14
                                            # 040
                                            MPN: 306860
                                            VICS SYSTEM KIT, JPN
                                            -Applicable for J-
                                            from £4,568.45
                                            from £4,568.45
                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
