Ferrari LaFerrari (USA) CRANKSHAFT - CONNECTING RODS AND PISTONS Parts Diagram

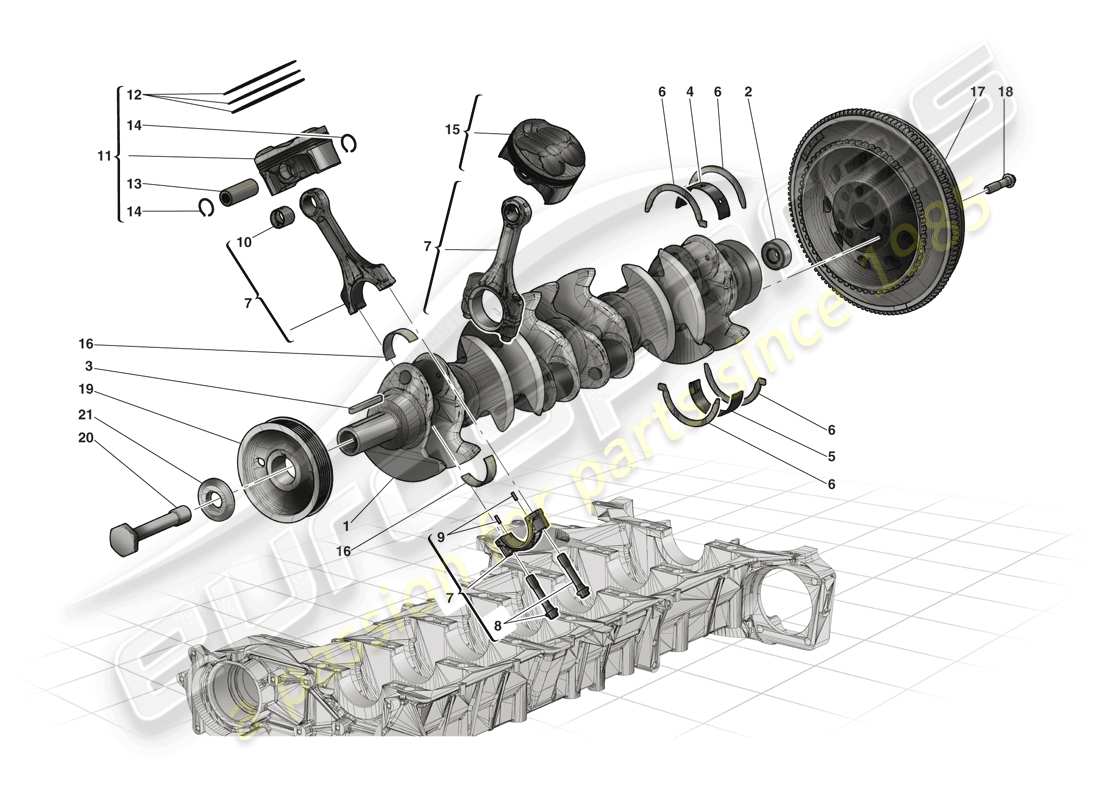

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 289787
                            crankshaft
                            from £2,571.92
                            from £2,571.92
                            # 002
                            MPN: 103877
                            BEARING
                            from £15.20
                            from £15.20
                            This part replaces part number 24940440
                            # 003
                            MPN: 190981
                            Key
                            from £0.56
                            from £0.56
                            # 004
                            MPN: 271028
                            UPPER HALF-BEARING
                            -Blue- -Lead free- -Applicable for EU GS-
                            from £17.83
                            from £17.83
                            # 004
                            MPN: 271029
                            UPPER HALF-BEARING
                            -Yellow- -Lead free- -Applicable for EU GS-
                            from £20.24
                            from £20.24
                            # 004
                            MPN: 271030
                            UPPER HALF-BEARING
                            -Green- -Lead free- -Applicable for EU GS-
                            from £19.47
                            from £19.47
                            # 004
                            MPN: 286832
                            UPPER HALF-BEARING
                            -Blue- -Not for EU GS-
                            from £10.40
                            from £10.40
                            # 004
                            MPN: 286833
                            UPPER HALF-BEARING
                            -Yellow- -Not for EU GS-
                            from £9.55
                            from £9.55
                            # 004
                            MPN: 286834
                            UPPER HALF-BEARING
                            -Green- -Not for EU GS-
                            from £11.61
                            from £11.61
                            # 005
                            MPN: 271023
                            LOWER HALF-BEARING
                            -Blue- -Lead free- -Applicable for EU GS-
                            from £17.75
                            from £17.75
                            # 005
                            MPN: 271024
                            LOWER HALF-BEARING
                            -Yellow- -Lead free- -Applicable for EU GS-
                            from £20.15
                            from £20.15
                            # 005
                            MPN: 271025
                            LOWER HALF-BEARING
                            -Green- -Lead free- -Applicable for EU GS-
                            from £19.36
                            from £19.36
                            # 005
                            MPN: 286836
                            LOWER HALF-BEARING
                            -Blue- -Not for EU GS-
                            from £9.98
                            from £9.98
                            # 005
                            MPN: 286837
                            LOWER HALF-BEARING
                            -Yellow- -Not for EU GS-
                            from £10.40
                            from £10.40
                            # 005
                            MPN: 286838
                            LOWER HALF-BEARING
                            -Green- -Not for EU GS-
                            from £11.61
                            from £11.61
                            # 006
                            MPN: 222874
                            CRANKSHAFT BEARING SHIM
                            -Not for EU GS-
                            from £17.01
                            from £17.01
                            # 006
                            MPN: 261727
                            CRANKSHAFT BEARING SHIM
                            -Applicable for EU GS-
                            from £5.66
                            from £5.66
                            # 007
                            MPN: 267273
                            COMPL. CONNECTING ROD AND CAP
                            from £383.31
                            from £383.31
                            # 008
                            MPN: 254806
                            SCREW
                            from £16.99
                            from £16.99
                            # 009
                            MPN: 224608
                            ALIGNMENT PIN
                            from £1.91
                            from £1.91
                            # 010
                            MPN: 234871
                            BUSHING
                            from £9.62
                            from £9.62
                            # 011
                            MPN: 279217
                            COMPL. PISTON, RH CYLINDER BANK
                            -Applicable up to engine No. 341645- -Applicable until depletion-
                            Supersession
                            Supersession
                            # 011
                            MPN: 307658
                            COMPL. PISTON, RH CYLINDER BANK
                            -Applicable up to engine No. 341645- -Applicable after depletion of 279217-
                            from £322.44
                            from £322.44
                            This part replaces part number 279217
                            # 011
                            MPN: 336105
                            COMPL. PISTON, RH CYLINDER BANK
                            -Applicable from engine No. 341646-
                            from £293.67
                            from £293.67
                            # 012
                            MPN: 287944
                            COMPL. PISTON RING SET
                            from £92.78
                            from £92.78
                            This part replaces part number 338894
                            # 013
                            MPN: 255232
                            GUDGEON PIN
                            -Applicable until depletion-
                            from £43.02
                            from £43.02
                            # 014
                            MPN: 255234
                            STOP RING
                            -Applicable until depletion-
                            from £19.28
                            from £19.28
                            # 015
                            MPN: 279218
                            COMPL. PISTON, LH CYLINDER BANK
                            -Applicable up to engine No. 341645- -Applicable until depletion-
                            Supersession
                            Supersession
                            # 015
                            MPN: 307659
                            COMPL. PISTON, LH CYLINDER BANK
                            -Applicable up to engine No. 341645- -Applicable after depletion of 279218-
                            from £322.44
                            from £322.44
                            This part replaces part number 279218
                            # 015
                            MPN: 336106
                            COMPL. PISTON, LH CYLINDER BANK
                            -Applicable from engine No. 341646-
                            from £293.67
                            from £293.67
                            # 016
                            MPN: 244416
                            CONNECTING ROD HALF-BEARING
                            -Red- -Not for EU GS-
                            from £13.45
                            from £13.45
                            # 016
                            MPN: 244417
                            CONNECTING ROD HALF-BEARING
                            -Blue- -Not for EU GS-
                            from £13.45
                            from £13.45
                            # 016
                            MPN: 244418
                            CONNECTING ROD HALF-BEARING
                            -Black- -Not for EU GS-
                            Supersession
                            Supersession
                            # 016
                            MPN: 261718
                            CONNECTING ROD HALF-BEARING
                            -Red- -Lead free- -Applicable for EU GS-
                            from £9.98
                            from £9.98
                            # 016
                            MPN: 261719
                            CONNECTING ROD HALF-BEARING
                            -Blue- -Lead free- -Applicable for EU GS-
                            from £9.98
                            from £9.98
                            # 016
                            MPN: 261720
                            CONNECTING ROD HALF-BEARING
                            -Black- -Lead free- -Applicable for EU GS- -No longer supplied-
                            from £9.98
                            from £9.98
                            This part replaces part number 244418
                            # 016
                            MPN: 262987
                            CONNECTING ROD HALF-BEARING
                            -Pink- -Lead free- -Applicable for EU GS-
                            from £9.64
                            from £9.64
                            # 017
                            MPN: 278154
                            FLYWHEEL
                            from £1,737.08
                            from £1,737.08
                            # 018
                            MPN: 229907
                            FASTENER SCREW
                            from £4.84
                            from £4.84
                            # 019
                            MPN: 302570
                            torsion damper
                            from £795.80
                            from £795.80
                            # 020
                            MPN: 196216
                            TORSION DAMPER FASTENER SCREW
                            from £21.08
                            from £21.08
                            # 021
                            MPN: 297847
                            WASHER
                            from £11.53
                            from £11.53
