ferrari laferrari (usa) timing system - tappets and shafts parts diagram

0005 - timing system - tappets and shafts

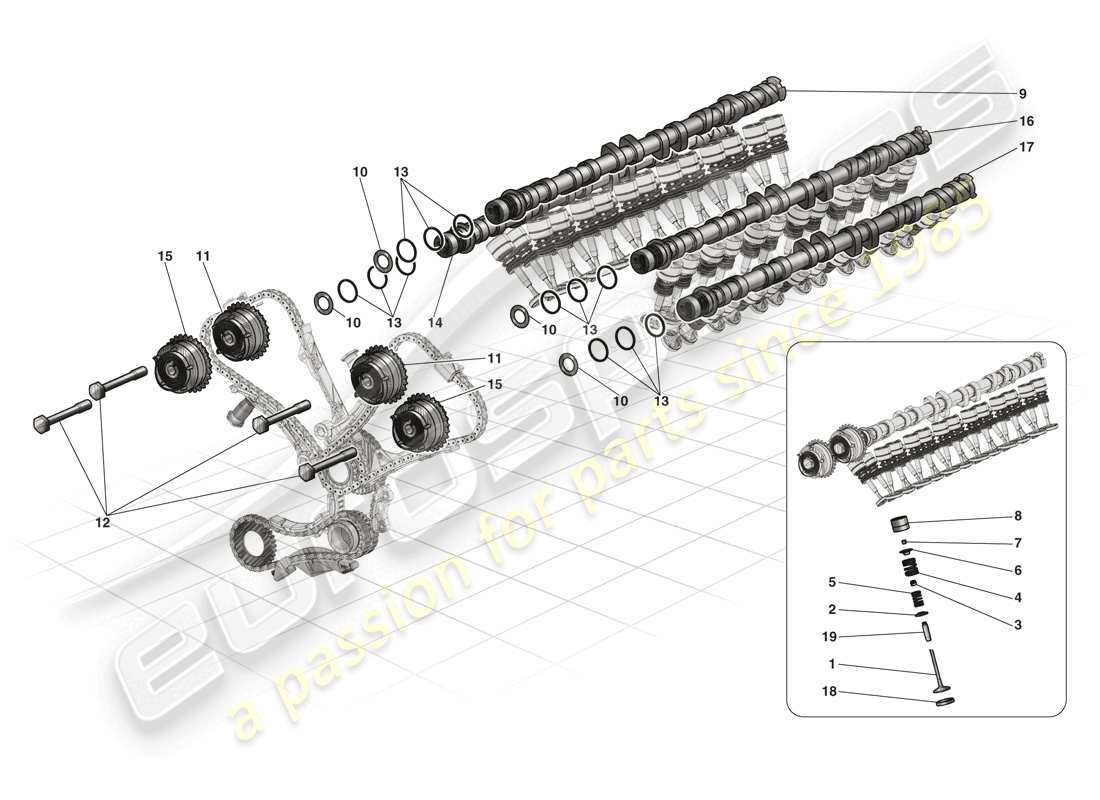

Ferrari LaFerrari (USA) TIMING SYSTEM - TAPPETS AND SHAFTS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 001
                                      MPN: 198581
                                      INTAKE VALVE
                                      from £4.57
                                      from £4.57
                                      This part replaces part number 175395 - and 4 more. Click to view details
                                      # 001
                                      MPN: 198582
                                      EXHAUST VALVE
                                      from £10.96
                                      from £10.96
                                      # 002
                                      MPN: 242574
                                      LOWER VALVE SPRING CAP, EXHAUST SIDE
                                      from £4.66
                                      from £4.66
                                      This part replaces part number 194718
                                      # 002
                                      MPN: 247484
                                      LOWER VALVE SPRING CAP, INTAKE SIDE
                                      from £3.27
                                      from £3.27
                                      # 003
                                      MPN: 221473
                                      OIL SEAL
                                      from £0.95
                                      from £0.95
                                      # 004
                                      MPN: 238640
                                      EXTERNAL VALVE RETURN SPRING
                                      Supersession
                                      Supersession
                                      # 005
                                      MPN: 238641
                                      INTERNAL VALVE RETURN SPRING
                                      Supersession
                                      Supersession
                                      # 006
                                      MPN: 237390
                                      UPPER VALVE SPRING CAP
                                      from £2.94
                                      from £2.94
                                      This part replaces part number 194713 - and 3 more. Click to view details
                                      # 007
                                      MPN: 179763
                                      VALVE SPRING HALF-CONE
                                      from £0.26
                                      from £0.26
                                      # 008
                                      MPN: 255431
                                      HYDRAULIC TAPPET
                                      from £14.32
                                      from £14.32
                                      # 009
                                      MPN: 286638
                                      RH INTAKE CAMSHAFT
                                      from £522.01
                                      from £522.01
                                      # 010
                                      MPN: 240559
                                      DIAMOND COATED WASHER
                                      from £4.84
                                      from £4.84
                                      # 011
                                      MPN: 241906
                                      VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT
                                      from £147.75
                                      from £147.75
                                      # 012
                                      MPN: 254892
                                      VARIABLE TIMING ADJUSTER SCREW
                                      from £3.90
                                      from £3.90
                                      This part replaces part number 248022 - and 4 more. Click to view details
                                      # 013
                                      MPN: 197975
                                      SEAL RING
                                      from £3.86
                                      from £3.86
                                      # 014
                                      MPN: 286639
                                      RH EXHAUST CAMSHAFT
                                      from £522.01
                                      from £522.01
                                      # 015
                                      MPN: 248020
                                      VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT
                                      from £148.37
                                      from £148.37
                                      # 016
                                      MPN: 286640
                                      LH INTAKE CAMSHAFT
                                      from £522.01
                                      from £522.01
                                      # 017
                                      MPN: 286641
                                      LH EXHAUST CAMSHAFT
                                      -Applicable only for S.T. Schedule-
                                      from £522.01
                                      from £522.01
                                      # 018
                                      MPN: 6222847
                                      INTAKE VALVE SEAT
                                      from £5.08
                                      from £5.08
                                      This part replaces part number 222847 - and 1 more. Click to view details
                                      # 018
                                      MPN: 6222848
                                      EXHAUST VALVE SEAT
                                      from £5.45
                                      from £5.45
                                      This part replaces part number 222848 - and 1 more. Click to view details
                                      # 019
                                      MPN: 6213498
                                      VALVE GUIDE
                                      from £1.76
                                      from £1.76
                                      This part replaces part number 213498
