0013 - Exhaust System

Ferrari LaFerrari (USA) EXHAUST SYSTEM Parts Diagram

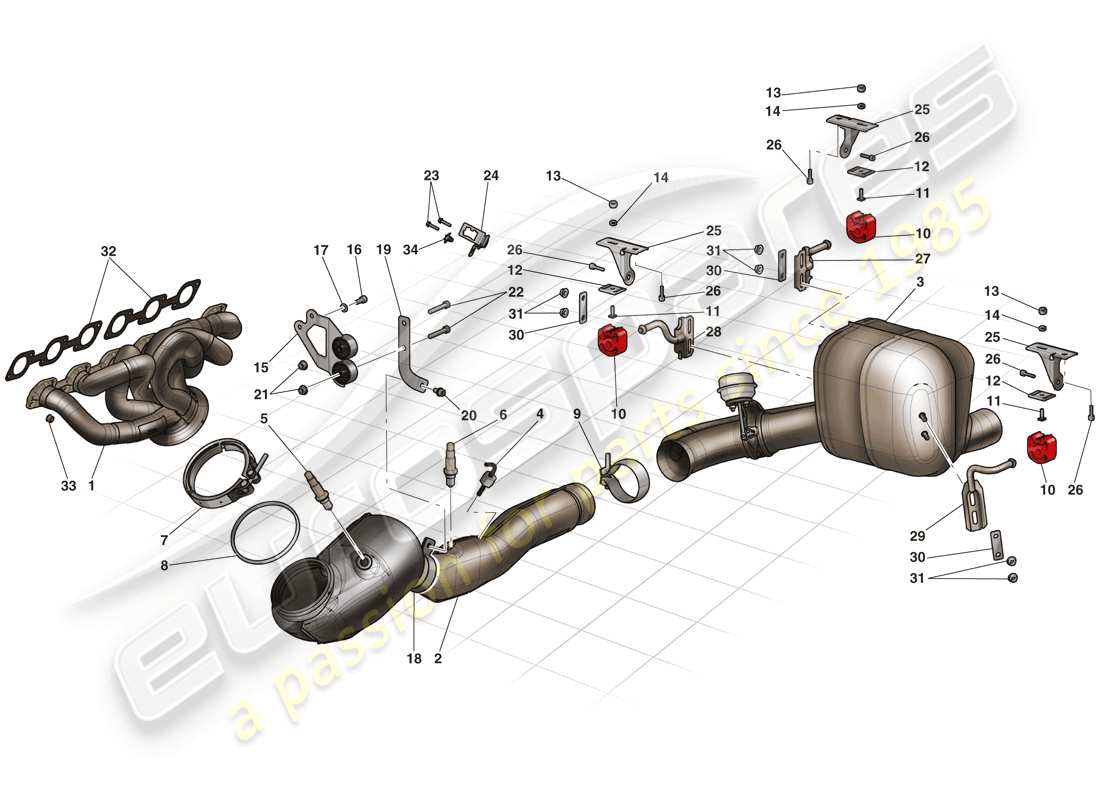

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Price
                                                          # 001
                                                          MPN: 293540
                                                          RH EXHAUST MANIFOLD
                                                          from £7,161.48
                                                          from £7,161.48
                                                          # 001
                                                          MPN: 293541
                                                          LH EXHAUST MANIFOLD
                                                          from £7,161.48
                                                          from £7,161.48
                                                          # 002
                                                          MPN: 303154
                                                          RH CATALYTIC CONVERTER
                                                          from £9,184.92
                                                          from £9,184.92
                                                          # 002
                                                          MPN: 303156
                                                          LH CATALYTIC CONVERTER.
                                                          from £9,184.92
                                                          from £9,184.92
                                                          # 003
                                                          MPN: 306022
                                                          REAR RH SILENCER
                                                          -Not for J- -Applicable until depletion-
                                                          Supersession
                                                          Supersession
                                                          # 003
                                                          MPN: 306024
                                                          REAR LH SILENCER
                                                          -Not for J- -Applicable until depletion-
                                                          Supersession
                                                          Supersession
                                                          # 003
                                                          MPN: 306437
                                                          REAR RH SILENCER
                                                          -Not for J- -Applicable after depletion of 306022- -No longer supplied- -Replaced by 317317-
                                                          Supersession
                                                          Supersession
                                                          This part replaces part number 306022
                                                          # 003
                                                          MPN: 306438
                                                          REAR LH SILENCER
                                                          -Not for J- -Applicable after depletion of 306024- -No longer supplied- -Replaced by 317318-
                                                          Supersession
                                                          Supersession
                                                          This part replaces part number 306024
                                                          # 003
                                                          MPN: 306946
                                                          REAR RH SILENCER
                                                          -Applicable for J- -Applicable after depletion of 312956- -No longer supplied- -Replaced by 320270-
                                                          Supersession
                                                          Supersession
                                                          # 003
                                                          MPN: 306947
                                                          REAR LH SILENCER
                                                          -Applicable for J- -Applicable after depletion of 312957- -No longer supplied- -Replaced by 320271-
                                                          Supersession
                                                          Supersession
                                                          # 003
                                                          MPN: 312956
                                                          REAR RH SILENCER
                                                          -Applicable for J- -Applicable until depletion-
                                                          Supersession
                                                          Supersession
                                                          # 003
                                                          MPN: 312957
                                                          REAR LH SILENCER
                                                          -Applicable for J- -Applicable until depletion-
                                                          Supersession
                                                          Supersession
                                                          # 003
                                                          MPN: 317317
                                                          REAR RH SILENCER
                                                          -Not for Taiwan- -Not for J-
                                                          from £4,468.27
                                                          from £4,468.27
                                                          This part replaces part number 306437
                                                          # 003
                                                          MPN: 317318
                                                          REAR LH SILENCER
                                                          -Not for Taiwan- -Not for J-
                                                          from £4,468.27
                                                          from £4,468.27
                                                          This part replaces part number 306438
                                                          # 003
                                                          MPN: 320270
                                                          REAR RH SILENCER
                                                          -Applicable for Taiwan- -Applicable for J-
                                                          from £4,468.27
                                                          from £4,468.27
                                                          This part replaces part number 306946 - and 1 more. Click to view details
                                                          # 003
                                                          MPN: 320271
                                                          REAR LH SILENCER
                                                          -Applicable for Taiwan- -Applicable for J-
                                                          from £4,468.27
                                                          from £4,468.27
                                                          This part replaces part number 306947 - and 1 more. Click to view details
                                                          # 004
                                                          MPN: 200934
                                                          EXHAUST GAS TEMPERATURE SENSOR
                                                          -No longer supplied-
                                                          from £123.28
                                                          from £123.28
                                                          # 005
                                                          MPN: 292582
                                                          FRONT OXYGEN SENSOR
                                                          from £61.94
                                                          from £61.94
                                                          # 006
                                                          MPN: 180915
                                                          REAR OXYGEN SENSOR
                                                          from £26.25
                                                          from £26.25
                                                          This part replaces part number 177674 - and 3 more. Click to view details
                                                          # 007
                                                          MPN: 290743
                                                          V-CLAMP FOR FASTENING CATALYTIC CONVERTER TO MANIFOLD
                                                          from £32.11
                                                          from £32.11
                                                          # 008
                                                          MPN: 275465
                                                          GASKET
                                                          from £36.20
                                                          from £36.20
                                                          # 009
                                                          MPN: 270454
                                                          RING CLAMP
                                                          from £6.97
                                                          from £6.97
                                                          # 010
                                                          MPN: 239798
                                                          FLEXIBLE SILENCER MOUNTING BUSH
                                                          from £40.36
                                                          from £40.36
                                                          # 011
                                                          MPN: 250222
                                                          SQUARE HEADED SCREW
                                                          from £1.59
                                                          from £1.59
                                                          # 012
                                                          MPN: 240598
                                                          PLATE
                                                          from £7.71
                                                          from £7.71
                                                          This part replaces part number 799014
                                                          # 013
                                                          MPN: 14059214
                                                          NUT
                                                          from £0.52
                                                          from £0.52
                                                          # 014
                                                          MPN: 12620474
                                                          WASHER
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 12620479 - and 1 more. Click to view details
                                                          # 015
                                                          MPN: 288389
                                                          RH BRACKET
                                                          from £153.27
                                                          from £153.27
                                                          # 015
                                                          MPN: 288391
                                                          LH BRACKET
                                                          from £153.27
                                                          from £153.27
                                                          # 016
                                                          MPN: 14302824
                                                          SCREW
                                                          from £0.53
                                                          from £0.53
                                                          # 017
                                                          MPN: 11193874
                                                          WASHER
                                                          from £0.54
                                                          from £0.54
                                                          This part replaces part number 11193879 which we have in stock
                                                          # 018
                                                          MPN: 279015
                                                          RING CLAMP
                                                          from £8.04
                                                          from £8.04
                                                          # 019
                                                          MPN: 294867
                                                          BRACKET
                                                          from £18.24
                                                          from £18.24
                                                          # 019
                                                          MPN: 294868
                                                          BRACKET
                                                          from £18.24
                                                          from £18.24
                                                          # 020
                                                          MPN: 231627
                                                          SCREW
                                                          -M8 X 16-
                                                          from £0.53
                                                          from £0.53
                                                          # 021
                                                          MPN: 14059311
                                                          NUT
                                                          from £0.53
                                                          from £0.53
                                                          # 022
                                                          MPN: 16044224
                                                          SCREW
                                                          -M8 X 50-
                                                          from £0.51
                                                          from £0.51
                                                          This part replaces part number 16044221 which we have in stock
                                                          # 023
                                                          MPN: 302723
                                                          SCREW
                                                          -M5 X 15-
                                                          from £2.57
                                                          from £2.57
                                                          This part replaces part number 302724
                                                          # 023
                                                          MPN: 302724
                                                          SCREW
                                                          -M5 X 20- -No longer supplied- -Replaced by 302723-
                                                          Supersession
                                                          Supersession
                                                          # 024
                                                          MPN: 302185
                                                          BRACKET
                                                          from £20.42
                                                          from £20.42
                                                          # 025
                                                          MPN: 283476
                                                          BRACKET
                                                          from £43.79
                                                          from £43.79
                                                          # 026
                                                          MPN: 231617
                                                          SCREW
                                                          -M6 X 18-
                                                          from £0.50
                                                          from £0.50
                                                          This part replaces part number 14433124 which we have in stock
                                                          # 027
                                                          MPN: 284542
                                                          CENTRAL REAR BRACKET ON RH SILENCER
                                                          from £34.66
                                                          from £34.66
                                                          # 027
                                                          MPN: 284543
                                                          CENTRAL REAR BRACKET ON LH SILENCER
                                                          from £34.66
                                                          from £34.66
                                                          # 028
                                                          MPN: 291664
                                                          CENTRAL FRONT BRACKET ON RH SILENCER
                                                          from £34.66
                                                          from £34.66
                                                          # 028
                                                          MPN: 291665
                                                          CENTRAL FRONT BRACKET ON LH SILENCER
                                                          from £34.66
                                                          from £34.66
                                                          # 029
                                                          MPN: 284544
                                                          LATERAL BRACKET ON RH SILENCER
                                                          from £34.31
                                                          from £34.31
                                                          # 029
                                                          MPN: 284545
                                                          LATERAL BRACKET ON LH SILENCER
                                                          from £34.31
                                                          from £34.31
                                                          # 030
                                                          MPN: 240597
                                                          PLATE
                                                          from £5.78
                                                          from £5.78
                                                          # 031
                                                          MPN: 14059311
                                                          NUT
                                                          from £0.50
                                                          from £0.50
                                                          # 032
                                                          MPN: 212702
                                                          GASKET
                                                          from £6.93
                                                          from £6.93
                                                          # 033
                                                          MPN: 210971
                                                          NUT
                                                          from £1.14
                                                          from £1.14
                                                          # 034
                                                          MPN: 288378
                                                          CLIP
                                                          from £0.53
                                                          from £0.53
