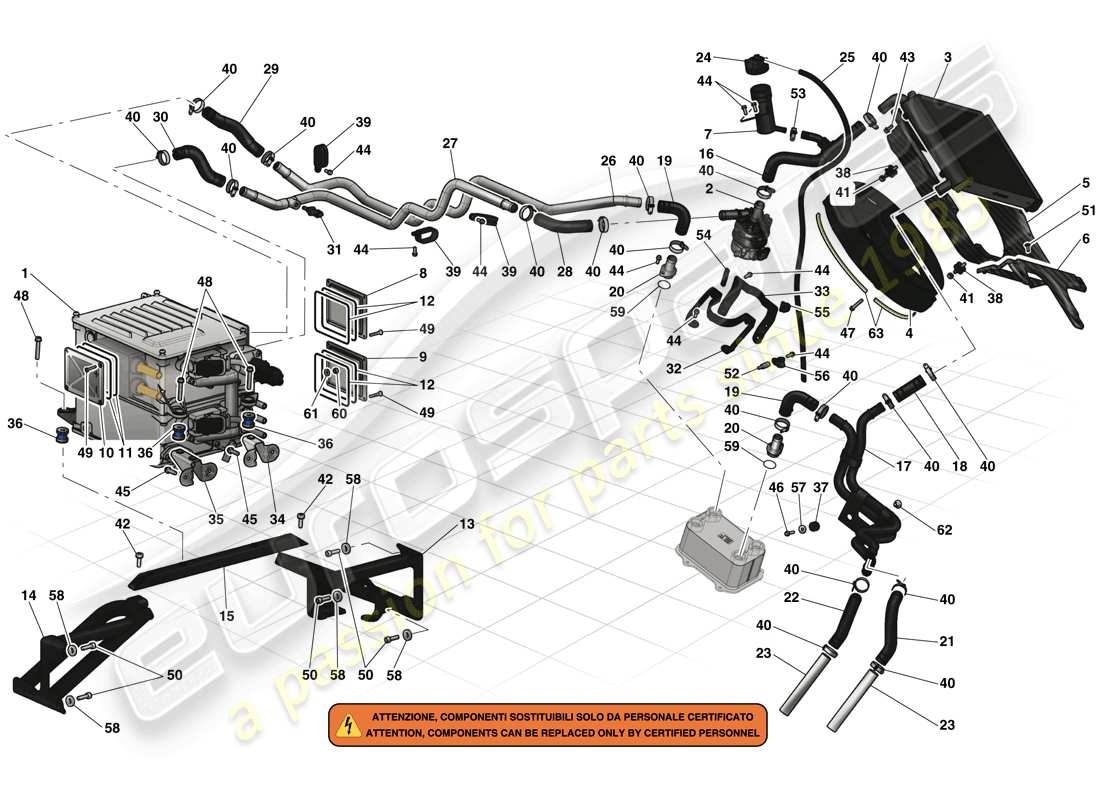

Ferrari LaFerrari (USA) INVERTER AND COOLING Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                #
                                                                                                                Part number
                                                                                                                Description
                                                                                                                Price
                                                                                                                # 001
                                                                                                                MPN: 289998
                                                                                                                COMPL. INVERTER
                                                                                                                from £18,054.17
                                                                                                                from £18,054.17
                                                                                                                # 002
                                                                                                                MPN: 280026
                                                                                                                WATER PUMP
                                                                                                                from £886.92
                                                                                                                from £886.92
                                                                                                                # 003
                                                                                                                MPN: 294655
                                                                                                                WATER RADIATOR
                                                                                                                from £1,483.11
                                                                                                                from £1,483.11
                                                                                                                # 004
                                                                                                                MPN: 267031
                                                                                                                BRUSHLESS MOTOR FAN
                                                                                                                from £507.86
                                                                                                                from £507.86
                                                                                                                # 005
                                                                                                                MPN: 294656
                                                                                                                INVERTER RADIATOR FAN COWL
                                                                                                                from £3,316.24
                                                                                                                from £3,316.24
                                                                                                                # 006
                                                                                                                MPN: 302951
                                                                                                                COWL SHIELD MOUNT
                                                                                                                from £2,649.70
                                                                                                                from £2,649.70
                                                                                                                # 007
                                                                                                                MPN: 299084
                                                                                                                INVERTER EXPANSION TANK BODY
                                                                                                                from £108.93
                                                                                                                from £108.93
                                                                                                                # 008
                                                                                                                MPN: 305435
                                                                                                                COVER FOR THREE POLE BOX, ME1 INVERTER SIDE
                                                                                                                from £404.81
                                                                                                                from £404.81
                                                                                                                # 009
                                                                                                                MPN: 305437
                                                                                                                COVER FOR THREE POLE BOX, ME2 INVERTER SIDE
                                                                                                                from £404.81
                                                                                                                from £404.81
                                                                                                                # 010
                                                                                                                MPN: 305439
                                                                                                                TWO POLE BOX COVER
                                                                                                                from £390.09
                                                                                                                from £390.09
                                                                                                                # 011
                                                                                                                MPN: 303949
                                                                                                                TWO POLE BOX SEAL
                                                                                                                from £43.68
                                                                                                                from £43.68
                                                                                                                # 012
                                                                                                                MPN: 303950
                                                                                                                THREE POLE BOX SEAL
                                                                                                                from £43.41
                                                                                                                from £43.41
                                                                                                                # 013
                                                                                                                MPN: 301724
                                                                                                                LH REAR INVERTER MOUNT
                                                                                                                from £252.46
                                                                                                                from £252.46
                                                                                                                # 014
                                                                                                                MPN: 299349
                                                                                                                RH REAR INVERTER MOUNT
                                                                                                                from £217.13
                                                                                                                from £217.13
                                                                                                                # 015
                                                                                                                MPN: 299348
                                                                                                                CENTRAL REAR INVERTER MOUNT
                                                                                                                from £25.03
                                                                                                                from £25.03
                                                                                                                # 016
                                                                                                                MPN: 299083
                                                                                                                3-WAY RUBBER PIPE FOR INVERTER COOLING SYSTEM
                                                                                                                from £313.55
                                                                                                                from £313.55
                                                                                                                # 017
                                                                                                                MPN: 304295
                                                                                                                ME2 COOLING WATER PIPE
                                                                                                                from £206.10
                                                                                                                from £206.10
                                                                                                                # 018
                                                                                                                MPN: 291465
                                                                                                                RUBBER PIPE
                                                                                                                from £89.95
                                                                                                                from £89.95
                                                                                                                # 019
                                                                                                                MPN: 291494
                                                                                                                RUBBER PIPE
                                                                                                                from £118.33
                                                                                                                from £118.33
                                                                                                                # 020
                                                                                                                MPN: 288506
                                                                                                                FLANGED HEAT EXCHANGER-INVERTER HOSE CONNECTOR
                                                                                                                from £220.80
                                                                                                                from £220.80
                                                                                                                # 021
                                                                                                                MPN: 304298
                                                                                                                CONNECTOR PIPE
                                                                                                                from £97.15
                                                                                                                from £97.15
                                                                                                                # 022
                                                                                                                MPN: 304297
                                                                                                                CONNECTOR PIPE
                                                                                                                from £91.27
                                                                                                                from £91.27
                                                                                                                # 023
                                                                                                                MPN: 295992
                                                                                                                REFLECT SLEEVE
                                                                                                                from £12.52
                                                                                                                from £12.52
                                                                                                                # 025
                                                                                                                MPN: 304107
                                                                                                                RUBBER PIPE
                                                                                                                from £11.26
                                                                                                                from £11.26
                                                                                                                # 026
                                                                                                                MPN: 299088
                                                                                                                PIPE FROM INVERTER TO HEAT EXCHANGER
                                                                                                                from £127.33
                                                                                                                from £127.33
                                                                                                                # 027
                                                                                                                MPN: 299087
                                                                                                                PIPE FROM PUMP TO INVERTER
                                                                                                                from £164.14
                                                                                                                from £164.14
                                                                                                                # 028
                                                                                                                MPN: 299097
                                                                                                                INVERTER PUMP OUTLET RUBBER PIPE
                                                                                                                from £89.06
                                                                                                                from £89.06
                                                                                                                # 029
                                                                                                                MPN: 302580
                                                                                                                INVERTER OUTLET RUBBER PIPE
                                                                                                                from £99.35
                                                                                                                from £99.35
                                                                                                                # 030
                                                                                                                MPN: 302581
                                                                                                                INVERTER INLET RUBBER PIPE
                                                                                                                from £106.72
                                                                                                                from £106.72
                                                                                                                # 032
                                                                                                                MPN: 299082
                                                                                                                COOLING PUMP MOUNTING BRACKET RETAINER
                                                                                                                from £31.64
                                                                                                                from £31.64
                                                                                                                # 033
                                                                                                                MPN: 299081
                                                                                                                COOLING PUMP MOUNTING BRACKET
                                                                                                                from £20.60
                                                                                                                from £20.60
                                                                                                                # 034
                                                                                                                MPN: 294993
                                                                                                                FRONT LH INVERTER MOUNTING BRACKET
                                                                                                                from £22.09
                                                                                                                from £22.09
                                                                                                                # 035
                                                                                                                MPN: 294994
                                                                                                                FRONT MOUNTING BRACKET FOR RH INVERTER
                                                                                                                from £22.09
                                                                                                                from £22.09
                                                                                                                # 036
                                                                                                                MPN: 267300
                                                                                                                DAMPED MOUNT
                                                                                                                from £6.08
                                                                                                                from £6.08
                                                                                                                This part replaces part number 294902 - and 1 more. Click to view details
                                                                                                                # 037
                                                                                                                MPN: 103549
                                                                                                                GROMMET
                                                                                                                from £0.70
                                                                                                                from £0.70
                                                                                                                # 038
                                                                                                                MPN: 286306
                                                                                                                PLUG
                                                                                                                from £7.83
                                                                                                                from £7.83
                                                                                                                # 039
                                                                                                                MPN: 307026
                                                                                                                BRACKET WITH SHEATH
                                                                                                                from £27.23
                                                                                                                from £27.23
                                                                                                                # 040
                                                                                                                MPN: 262111
                                                                                                                SCREW COLLAR
                                                                                                                from £0.83
                                                                                                                from £0.83
                                                                                                                This part replaces part number 13127770
                                                                                                                # 041
                                                                                                                MPN: 132877
                                                                                                                NUT
                                                                                                                from £1.54
                                                                                                                from £1.54
                                                                                                                This part replaces part number 67190100
                                                                                                                # 042
                                                                                                                MPN: 216565
                                                                                                                SCREW
                                                                                                                -M X 20-
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                # 043
                                                                                                                MPN: 248334
                                                                                                                SCREW
                                                                                                                from £0.51
                                                                                                                from £0.51
                                                                                                                # 044
                                                                                                                MPN: 302574
                                                                                                                ERGAL SCREW
                                                                                                                -M6 X 15-
                                                                                                                from £3.07
                                                                                                                from £3.07
                                                                                                                # 045
                                                                                                                MPN: 302655
                                                                                                                ERGAL SCREW
                                                                                                                -M6 X 20-
                                                                                                                from £7.74
                                                                                                                from £7.74
                                                                                                                # 046
                                                                                                                MPN: 302656
                                                                                                                ERGAL SCREW
                                                                                                                -M6 X 25-
                                                                                                                from £5.78
                                                                                                                from £5.78
                                                                                                                # 047
                                                                                                                MPN: 302657
                                                                                                                ERGAL SCREW
                                                                                                                -M6 X 30-
                                                                                                                from £5.05
                                                                                                                from £5.05
                                                                                                                # 048
                                                                                                                MPN: 302658
                                                                                                                ERGAL SCREW
                                                                                                                -M6 X 35-
                                                                                                                from £9.47
                                                                                                                from £9.47
                                                                                                                # 049
                                                                                                                MPN: 303947
                                                                                                                SCREW
                                                                                                                from £16.95
                                                                                                                from £16.95
                                                                                                                # 050
                                                                                                                MPN: 304701
                                                                                                                SCREW
                                                                                                                from £3.22
                                                                                                                from £3.22
                                                                                                                # 051
                                                                                                                MPN: 81917100
                                                                                                                SCREW
                                                                                                                -No longer supplied- -Replaced by 85494300-
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                # 051
                                                                                                                MPN: 85494300
                                                                                                                SCREW
                                                                                                                -M5 X 12-
                                                                                                                from £0.65
                                                                                                                from £0.65
                                                                                                                # 052
                                                                                                                MPN: 212519
                                                                                                                STUD BOLT
                                                                                                                from £4.13
                                                                                                                from £4.13
                                                                                                                # 053
                                                                                                                MPN: 262107
                                                                                                                SCREW COLLAR
                                                                                                                from £1.01
                                                                                                                from £1.01
                                                                                                                # 054
                                                                                                                MPN: 67681200
                                                                                                                GASKET
                                                                                                                from £1.95
                                                                                                                from £1.95
                                                                                                                # 055
                                                                                                                MPN: 67063200
                                                                                                                CLIP
                                                                                                                from £0.63
                                                                                                                from £0.63
                                                                                                                # 056
                                                                                                                MPN: 302394
                                                                                                                BRACKET WITH SHEATH
                                                                                                                from £25.03
                                                                                                                from £25.03
                                                                                                                # 057
                                                                                                                MPN: 12643724
                                                                                                                WASHER
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                # 058
                                                                                                                MPN: 12646624
                                                                                                                WASHER
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                # 059
                                                                                                                MPN: 122791
                                                                                                                GASKET
                                                                                                                from £1.26
                                                                                                                from £1.26
                                                                                                                # 060
                                                                                                                MPN: 303946
                                                                                                                NUT
                                                                                                                from £22.10
                                                                                                                from £22.10
                                                                                                                # 061
                                                                                                                MPN: 303948
                                                                                                                WASHER
                                                                                                                from £11.42
                                                                                                                from £11.42
                                                                                                                # 062
                                                                                                                MPN: 149707
                                                                                                                SHIM
                                                                                                                from £0.65
                                                                                                                from £0.65
                                                                                                                # 063
                                                                                                                MPN: 303221
                                                                                                                RUBBER SHIM
                                                                                                                -233 X 6 X 3 mm-
                                                                                                                from £0.47
                                                                                                                from £0.47
