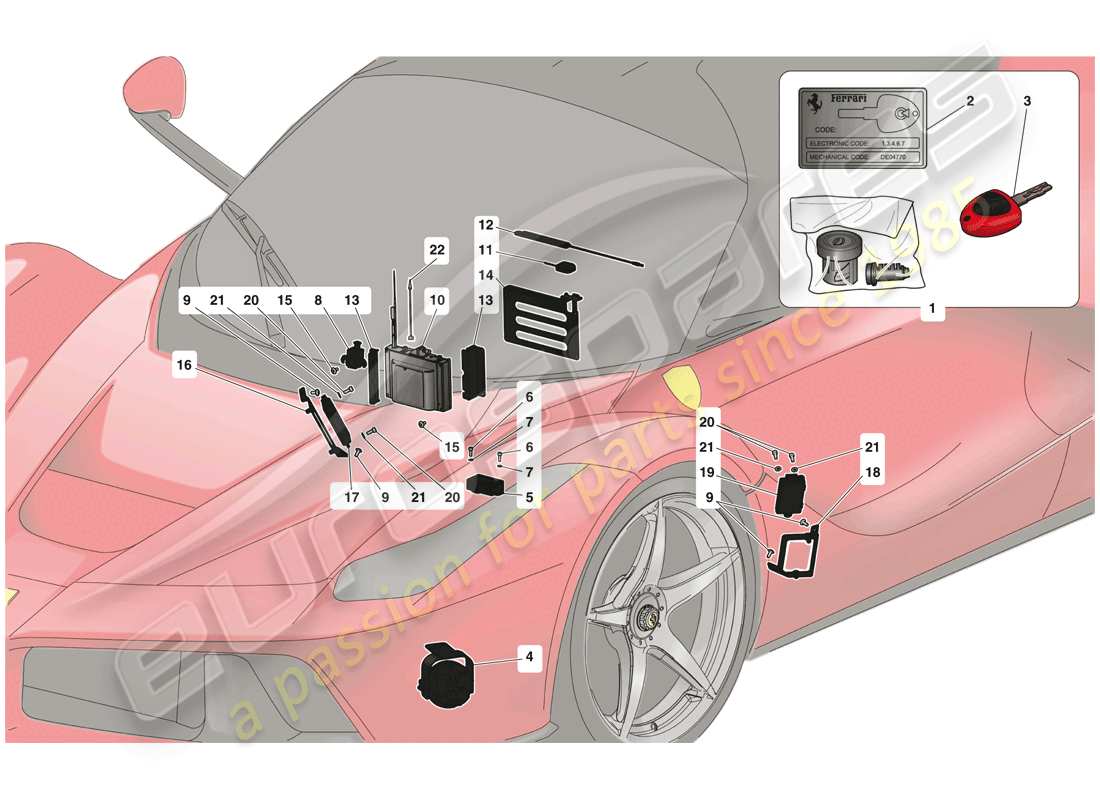

0131 - ANTITHEFT SYSTEM

Ferrari LaFerrari (USA) ANTITHEFT SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 001
                                  MPN: 305434
                                  COMPL. KEY AND BLOCK KIT
                                  -Contains 2 keys, 2 ignition switch blocks 1 code card and 1 switch- -No longer supplied- -Replaced by 315781-
                                  Supersession
                                  Supersession
                                  # 001
                                  MPN: 315781
                                  COMPL. KEY AND BLOCK KIT
                                  -Contains 2 keys, 2 ignition switch blocks 1 code card and 1 switch- -Applicable up to Ass. No. 123544-
                                  from £695.84
                                  from £695.84
                                  This part replaces part number 305434
                                  # 001
                                  MPN: 319144
                                  COMPL. KEY AND BLOCK KIT
                                  -Contains 1 key, 1 ignition switch block, 1 code card and 1 switch- -Applicable from Ass. No. 123545-
                                  from £593.22
                                  from £593.22
                                  # 002
                                  MPN: 153603
                                  Ferrari CODE CARD
                                  from £34.03
                                  from £34.03
                                  This part replaces part number 194003
                                  # 003
                                  MPN: 266649
                                  UNCODED KEY
                                  from £337.73
                                  from £337.73
                                  # 004
                                  MPN: 295120

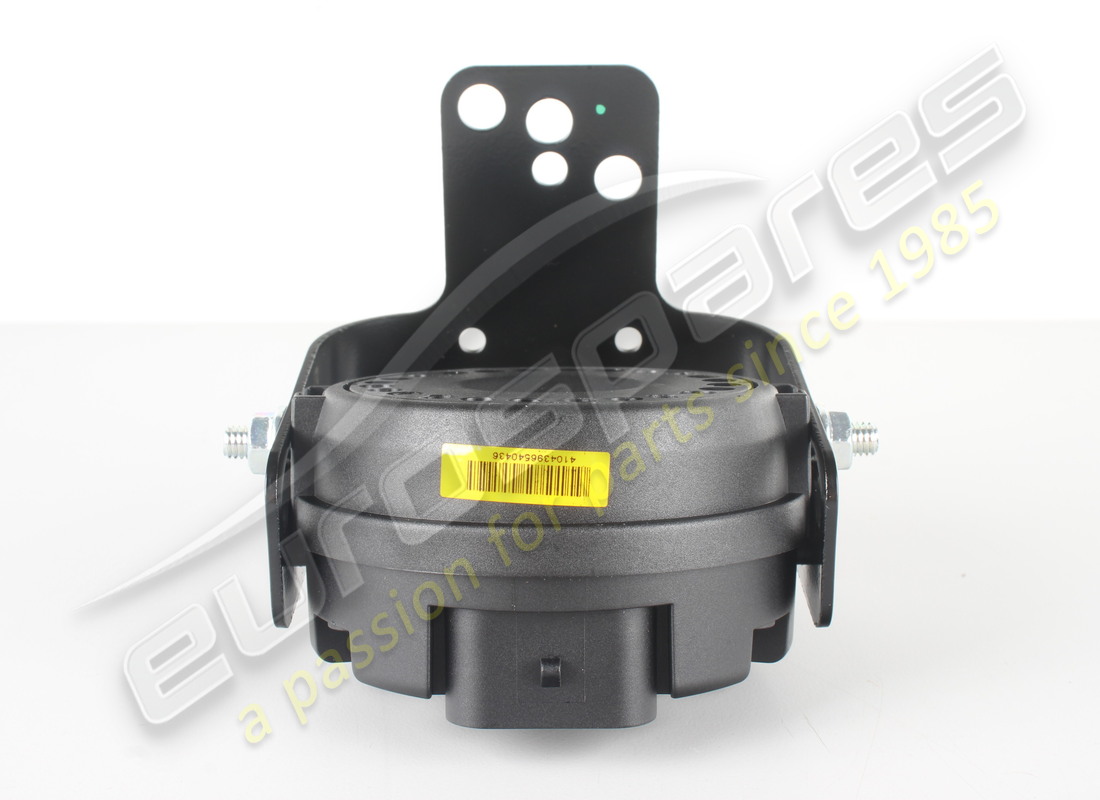

                                  COMPL. ANTITHEFT SYSTEM SIREN ECU
                                  from £72.46
                                  from £72.46
                                  This part replaces part number 201541 - and 5 more. Click to view details
                                  # 005
                                  MPN: 238935
                                  ANTI-LIFT SENSOR
                                  from £99.39
                                  from £99.39
                                  # 006
                                  MPN: 14303024
                                  SCREW
                                  from £0.53
                                  from £0.53
                                  This part replaces part number 14303021 - and 1 more. Click to view details
                                  # 007
                                  MPN: 13506624
                                  WASHER
                                  from £0.47
                                  from £0.47
                                  # 008
                                  MPN: 239744
                                  TWO-TONE INFOLED
                                  from £36.44
                                  from £36.44
                                  This part replaces part number 188253 which we have in stock - and 1 more. Click to view details
                                  # 009
                                  MPN: 65366700
                                  SCREW
                                  -M5 X 12-
                                  from £0.50
                                  from £0.50
                                  # 010
                                  MPN: 293779
                                  ADR5 SATELLITE ALARM SYSTEM ECU
                                  -No longer supplied- -Replaced by 307603-
                                  Supersession
                                  Supersession
                                  # 010
                                  MPN: 307603
                                  ADR10 SATELLITE ALARM SYSTEM ECU
                                  -Request ASM authorisation-
                                  from £1,363.92
                                  from £1,363.92
                                  This part replaces part number 235627 - and 5 more. Click to view details
                                  # 011
                                  MPN: 278513
                                  GPS ANTENNA
                                  -SM76 MINI GPS-
                                  from £109.81
                                  from £109.81
                                  # 012
                                  MPN: 278514
                                  GSM ANTENNA
                                  -PHANTOM 918-
                                  from £18.99
                                  from £18.99
                                  # 013
                                  MPN: 297783
                                  LATERAL MOUNTING BRACKET FOR ANTITHEFT SYSTEM ECU
                                  from £15.45
                                  from £15.45
                                  # 014
                                  MPN: 304669
                                  ANTI-THEFT KIT MOUNTING BRACKET
                                  from £27.23
                                  from £27.23
                                  # 015
                                  MPN: 64460500
                                  SCREW
                                  from £0.61
                                  from £0.61
                                  # 016
                                  MPN: 304877
                                  RH VOLUMETRIC SENSOR MOUNTING BRACKET
                                  from £29.45
                                  from £29.45
                                  # 017
                                  MPN: 217727
                                  SLAVE HYPERFREQUENCY VOLUMETRIC SENSORS
                                  from £73.83
                                  from £73.83
                                  # 018
                                  MPN: 304876
                                  LH VOLUMETRIC SENSOR MOUNTING BRACKET
                                  from £29.45
                                  from £29.45
                                  # 019
                                  MPN: 267744
                                  MASTER HYPERFREQUENCY VOLUMETRIC SENSORS
                                  from £65.55
                                  from £65.55
                                  # 020
                                  MPN: 14304121
                                  SCREW
                                  -M5 X 12-
                                  from £0.47
                                  from £0.47
                                  This part replaces part number 84158300
                                  # 021
                                  MPN: 12637801
                                  WASHER
                                  from £0.47
                                  from £0.47
                                  # 022
                                  MPN: 307605
                                  ADR10 ANTI-THEFT SYSTEM ANTENNA
                                  from £160.74
                                  from £160.74
                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
