Ferrari LaFerrari Aperta (Europe) INJECTION - IGNITION SYSTEM Parts Diagram

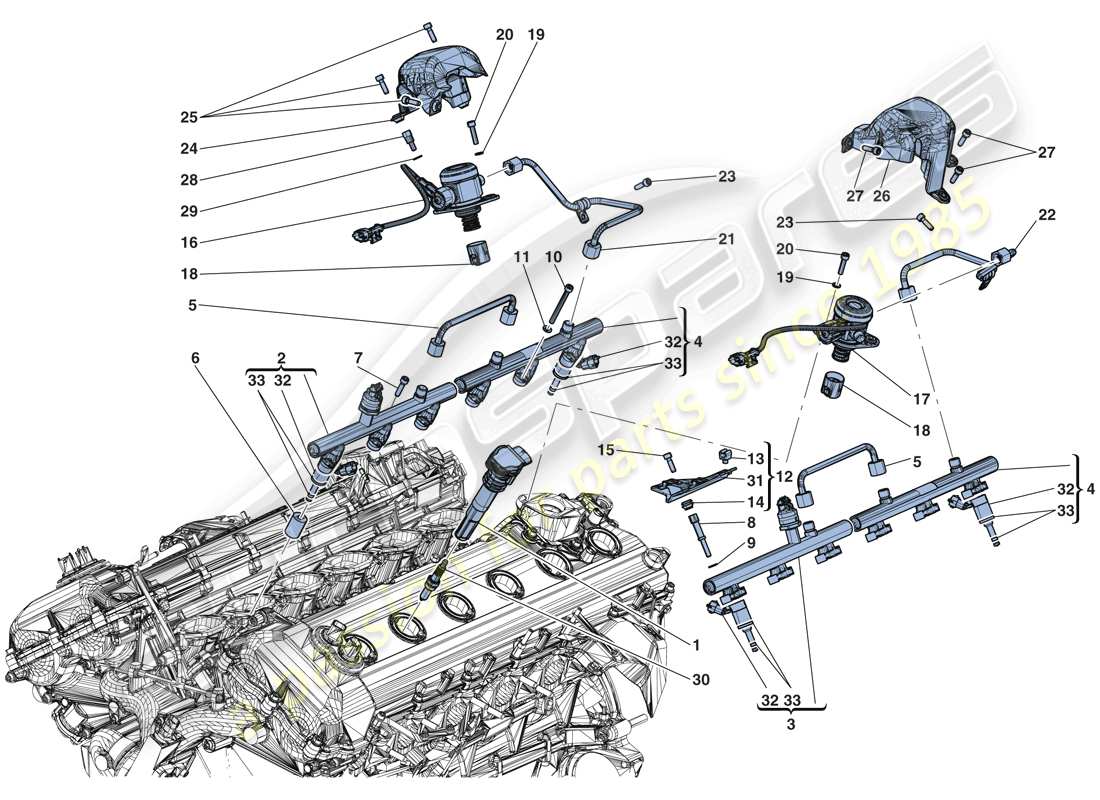

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 290850
                                              IGNITION COIL
                                              -Applicable until depletion-
                                              from £77.17
                                              from £77.17
                                              This part replaces part number 248406 which we have in stock - and 1 more. Click to view details
                                              # 001
                                              MPN: 337713
                                              IGNITION COIL
                                              -Applicable after depletion of 290850-
                                              Supersession
                                              Supersession
                                              This part replaces part number 290850 which we have in stock
                                              # 002
                                              MPN: 268691
                                              COMPL. FRONT RH FUEL PIPE
                                              -Also order pipe ref. 5-
                                              from £1,240.29
                                              from £1,240.29
                                              # 003
                                              MPN: 268692
                                              COMPL. FRONT LH FUEL PIPE
                                              -Also order pipe ref. 5-
                                              from £1,240.29
                                              from £1,240.29
                                              # 004
                                              MPN: 268693
                                              COMPL. REAR FUEL PIPE
                                              -Also order pipe ref. 5 and pipe ref. 21 for RH cylinder bank or ref. 22 for LH cylinder bank-
                                              from £960.73
                                              from £960.73
                                              # 005
                                              MPN: 247918
                                              FUEL PIPE CONNECTING FRONT AND REAR RAILS
                                              from £135.11
                                              from £135.11
                                              # 006
                                              MPN: 255724
                                              SHIM
                                              from £4.54
                                              from £4.54
                                              # 007
                                              MPN: 231620
                                              SCREW
                                              -M6 X 25-
                                              from £0.47
                                              from £0.47
                                              # 008
                                              MPN: 260965
                                              STUD BOLT
                                              -M6 X 23-
                                              from £3.05
                                              from £3.05
                                              # 009
                                              MPN: 11197774
                                              WASHER
                                              from £0.54
                                              from £0.54
                                              This part replaces part number 11197770 - and 3 more. Click to view details
                                              # 010
                                              MPN: 14303834
                                              SCREW
                                              from £0.86
                                              from £0.86
                                              # 011
                                              MPN: 11197774
                                              WASHER
                                              from £0.52
                                              from £0.52
                                              This part replaces part number 11197770 - and 3 more. Click to view details
                                              # 012
                                              MPN: 284961
                                              COMPL. BRACKET
                                              from £51.53
                                              from £51.53
                                              This part replaces part number 268933 - and 1 more. Click to view details
                                              # 013
                                              MPN: 248674
                                              CLIP
                                              from £1.03
                                              from £1.03
                                              # 014
                                              MPN: 284909
                                              BUSHING
                                              from £3.65
                                              from £3.65
                                              # 015
                                              MPN: 231618
                                              SCREW
                                              -M6 X 20-
                                              from £0.47
                                              from £0.47
                                              # 016
                                              MPN: 290031
                                              RH FUEL PUMP
                                              from £370.13
                                              from £370.13
                                              This part replaces part number 259334
                                              # 017
                                              MPN: 290032
                                              LH FUEL PUMP
                                              from £370.13
                                              from £370.13
                                              This part replaces part number 259335
                                              # 019
                                              MPN: 12639724
                                              WASHER
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 12639725 - and 1 more. Click to view details
                                              # 020
                                              MPN: 14305434
                                              SCREW
                                              from £0.47
                                              from £0.47
                                              # 021
                                              MPN: 254515
                                              RH FUEL PIPE
                                              from £153.38
                                              from £153.38
                                              # 022
                                              MPN: 254516
                                              LH FUEL PIPE
                                              from £153.38
                                              from £153.38
                                              # 023
                                              MPN: 231616
                                              SCREW
                                              -M6 X 14-
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 14305724 which we have in stock
                                              # 024
                                              MPN: 301848
                                              RH PUMP SOUNDPROOFING COVER
                                              from £110.42
                                              from £110.42
                                              This part replaces part number 283249
                                              # 025
                                              MPN: 231618
                                              SCREW
                                              -M6 X 20-
                                              from £0.47
                                              from £0.47
                                              # 026
                                              MPN: 301849
                                              LH PUMP SOUNDPROOFING COVER
                                              from £110.42
                                              from £110.42
                                              This part replaces part number 283250
                                              # 027
                                              MPN: 231618
                                              SCREW
                                              -M6 X 20-
                                              from £0.47
                                              from £0.47
                                              # 028
                                              MPN: 287940
                                              STUD BOLT
                                              from £3.67
                                              from £3.67
                                              # 029
                                              MPN: 11197774
                                              WASHER
                                              from £0.54
                                              from £0.54
                                              This part replaces part number 11197770 - and 3 more. Click to view details
                                              # 030
                                              MPN: 297423
                                              IGNITION SPARK PLUG
                                              from £18.20
                                              from £18.20
                                              # 031
                                              MPN: 284638
                                              BRACKET
                                              -After depletion, order compl.- -Applicable until depletion-
                                              Supersession
                                              Supersession
                                              # 032
                                              MPN: 339106
                                              ELECTROINJECTOR
                                              from £120.01
                                              from £120.01
                                              # 033
                                              MPN: 70004988
                                              SEAL KIT
                                              from £27.23
                                              from £27.23
