0029 - Front Suspension - Shock Absorber and Brake Disc

Ferrari LaFerrari Aperta (Europe) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC Parts Diagram

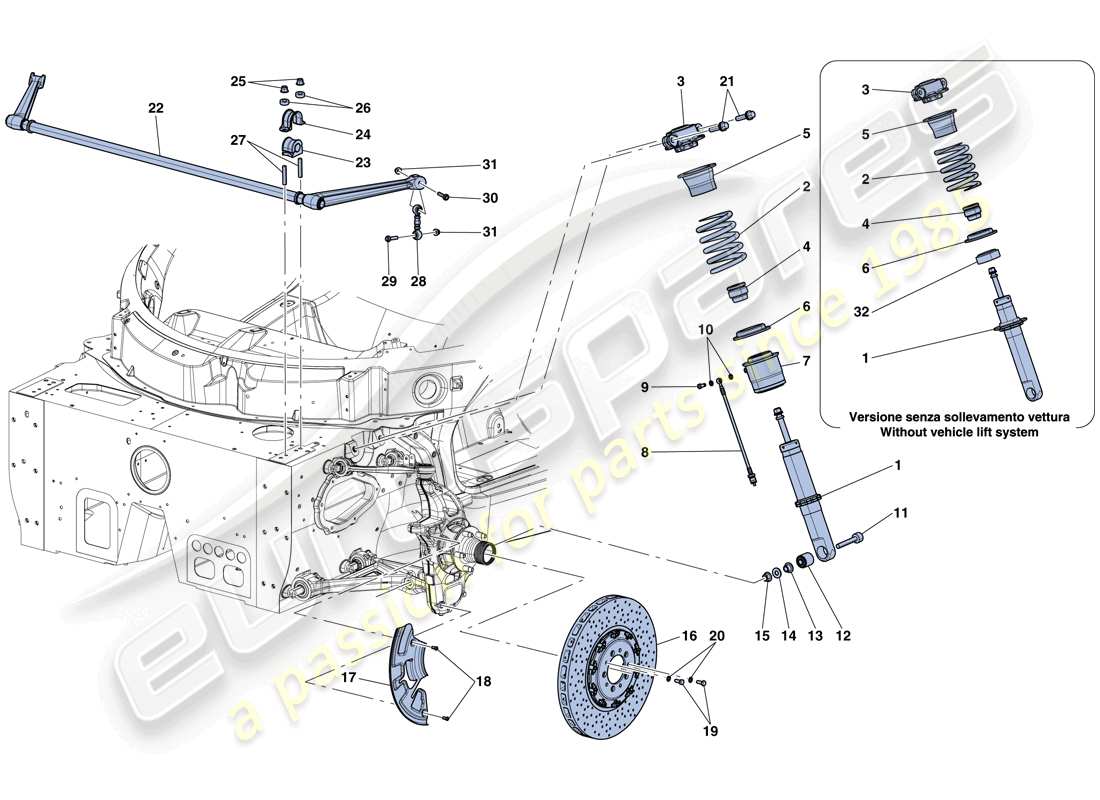

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 303547
                                                        FRONT SHOCK ABSORBER
                                                        from £5,064.09
                                                        from £5,064.09
                                                        # 001
                                                        MPN: 306954
                                                        FRONT SHOCK ABSORBER
                                                        -Version without lift-
                                                        from £3,954.66
                                                        from £3,954.66
                                                        # 002
                                                        MPN: 309043
                                                        FRONT SUSPENSION SPRING
                                                        from £1,330.74
                                                        from £1,330.74
                                                        This part replaces part number 299322
                                                        # 003
                                                        MPN: 250394
                                                        STOP CAP
                                                        from £68.25
                                                        from £68.25
                                                        # 004
                                                        MPN: 281221
                                                        ENDSTOP BUSH
                                                        from £10.98
                                                        from £10.98
                                                        # 005
                                                        MPN: 293621
                                                        UPPER SPRING SPACER
                                                        from £3.86
                                                        from £3.86
                                                        # 006
                                                        MPN: 188996
                                                        LOWER SPACER
                                                        from £4.43
                                                        from £4.43
                                                        This part replaces part number 259314 - and 8 more. Click to view details
                                                        # 007
                                                        MPN: 303056
                                                        ACTUATOR
                                                        from £1,958.85
                                                        from £1,958.85
                                                        # 008
                                                        MPN: 277168
                                                        RUBBER PIPE
                                                        from £45.50
                                                        from £45.50
                                                        # 009
                                                        MPN: 261587
                                                        PIPE UNION
                                                        from £16.86
                                                        from £16.86
                                                        # 010
                                                        MPN: 259638
                                                        GASKET
                                                        from £7.84
                                                        from £7.84
                                                        # 011
                                                        MPN: 237297
                                                        SCREW
                                                        from £16.08
                                                        from £16.08
                                                        # 012
                                                        MPN: 157630
                                                        BALL JOINT
                                                        from £48.50
                                                        from £48.50
                                                        This part replaces part number 159262
                                                        # 013
                                                        MPN: 237821
                                                        BUSHING
                                                        from £2.60
                                                        from £2.60
                                                        # 014
                                                        MPN: 12646921
                                                        WASHER
                                                        from £0.30
                                                        from £0.30
                                                        This part replaces part number 12646901 - and 1 more. Click to view details
                                                        # 015
                                                        MPN: 255271
                                                        NUT
                                                        from £0.40
                                                        from £0.40
                                                        This part replaces part number 14058721 - and 1 more. Click to view details
                                                        # 016
                                                        MPN: 303167
                                                        FRONT BRAKE DISC
                                                        -398 x 36 mm-
                                                        from £3,199.26
                                                        from £3,199.26
                                                        # 017
                                                        MPN: 280650
                                                        FRONT LH DISC SHIELD
                                                        from £206.98
                                                        from £206.98
                                                        # 017
                                                        MPN: 280651
                                                        FRONT RH DISC SHIELD
                                                        from £206.98
                                                        from £206.98
                                                        # 018
                                                        MPN: 250657
                                                        SCREW
                                                        from £4.45
                                                        from £4.45
                                                        # 019
                                                        MPN: 228131
                                                        SCREW
                                                        from £0.47
                                                        from £0.47
                                                        # 020
                                                        MPN: 228132
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        # 021
                                                        MPN: 248790
                                                        SCREW
                                                        from £2.17
                                                        from £2.17
                                                        # 022
                                                        MPN: 302652
                                                        COMPL. TITANIUM FRONT STABILISER BAR
                                                        from £2,920.28
                                                        from £2,920.28
                                                        # 023
                                                        MPN: 262890
                                                        STABILISER BAR BUSH
                                                        from £9.97
                                                        from £9.97
                                                        # 024
                                                        MPN: 305873
                                                        PLATE
                                                        from £12.94
                                                        from £12.94
                                                        # 025
                                                        MPN: 12578328
                                                        NUT
                                                        from £0.71
                                                        from £0.71
                                                        This part replaces part number 305874
                                                        # 026
                                                        MPN: 302112
                                                        SPACER
                                                        from £2.92
                                                        from £2.92
                                                        # 027
                                                        MPN: 13449934
                                                        STUD BOLT
                                                        from £0.61
                                                        from £0.61
                                                        # 028
                                                        MPN: 303173
                                                        LH BALL-JOINT TIE-ROD
                                                        from £465.69
                                                        from £465.69
                                                        This part replaces part number 306370
                                                        # 028
                                                        MPN: 303175
                                                        RH BALL-JOINT TIE-ROD
                                                        from £465.69
                                                        from £465.69
                                                        This part replaces part number 306371
                                                        # 029
                                                        MPN: 299692
                                                        TITANIUM SCREW
                                                        -M8 X 40-
                                                        from £38.14
                                                        from £38.14
                                                        # 030
                                                        MPN: 299694
                                                        TITANIUM SCREW
                                                        -M8 X 50-
                                                        from £39.33
                                                        from £39.33
                                                        # 031
                                                        MPN: 14058521
                                                        NUT
                                                        from £1.04
                                                        from £1.04
                                                        # 032
                                                        MPN: 337632
                                                        LIFT SYSTEM SPACER
                                                        -Version with lifter- -Applicable for EU GS-
                                                        from £103.43
                                                        from £103.43
                                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
