0018 - COMPLETE GEARBOX

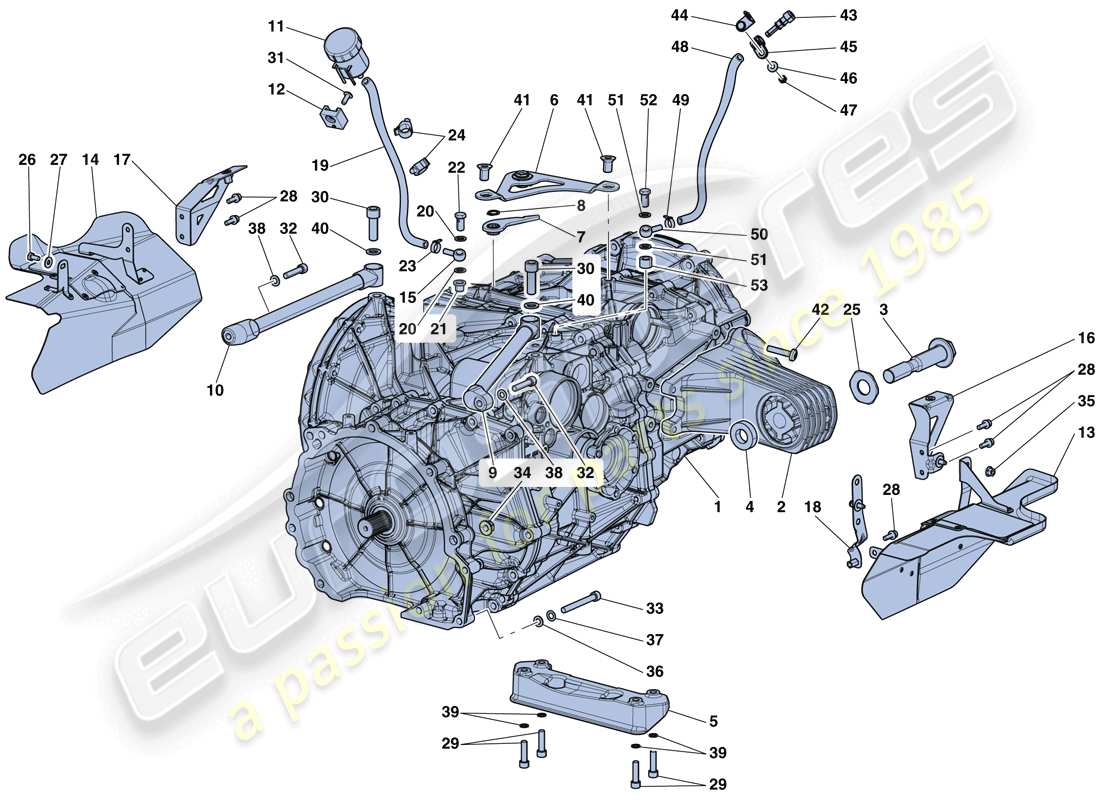

Ferrari LaFerrari Aperta (USA) COMPLETE GEARBOX Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                    #
                                                                                                    Part number
                                                                                                    Description
                                                                                                    Key
                                                                                                    Price
                                                                                                    # 001
                                                                                                    MPN: 315430
                                                                                                    COMPL. GEARBOX
                                                                                                    -Request ASM authorisation-
                                                                                                    from £94,631.35
                                                                                                    from £94,631.35
                                                                                                    This part replaces part number 298097
                                                                                                    COMPLETE GEARBOX Genuine Ferrari Part - New (to order)
                                                                                                    # 002
                                                                                                    MPN: 281697
                                                                                                    COMPL. LH REAR GEARBOX STRUT
                                                                                                    from £111.29
                                                                                                    from £111.29
                                                                                                    ZAMPA POSTERIORE SX COMPLETE CAMB Genuine Ferrari Part - New (to order)
                                                                                                    # 002
                                                                                                    MPN: 281698
                                                                                                    COMPL. RH REAR GEARBOX STRUT
                                                                                                    from £128.33
                                                                                                    from £128.33
                                                                                                    COMPLETE RH REAR GEARBOX STRUT Genuine Ferrari Part - New (to order)
                                                                                                    # 003
                                                                                                    MPN: 288633
                                                                                                    GEARBOX MOUNTING BUSH PIN
                                                                                                    from £92.80
                                                                                                    from £92.80
                                                                                                    GEARBOX MOUNTING BUSH PIN Genuine Ferrari Part - New (to order)
                                                                                                    # 004
                                                                                                    MPN: 288634
                                                                                                    DCT GEARBOX BUSHING SHIM
                                                                                                    from £10.39
                                                                                                    from £10.39
                                                                                                    DCT GEARBOX BUSHING SHIM Genuine Ferrari Part - New (to order)
                                                                                                    # 005
                                                                                                    MPN: 290545
                                                                                                    REAR IMPACT RETAINER BRACKET
                                                                                                    from £282.11
                                                                                                    from £282.11
                                                                                                    REAR BUMPER BRACKET Genuine Ferrari Part - New (to order)
                                                                                                    # 006
                                                                                                    MPN: 298102
                                                                                                    BRACKET WITH GEARBOX RELEASE ARM
                                                                                                    from £185.59
                                                                                                    from £185.59
                                                                                                    BRACKET WITH GEARBOX RELEASE Genuine Ferrari Part - New (to order)
                                                                                                    # 007
                                                                                                    MPN: 298103
                                                                                                    COMPLETE RELEASE LEVER
                                                                                                    from £20.35
                                                                                                    from £20.35
                                                                                                    COMPLETE RELEASE LEVER Genuine Ferrari Part - New (to order)
                                                                                                    # 008
                                                                                                    MPN: 11066176
                                                                                                    SEEGER RING
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    SEEGER RING Genuine Ferrari Part - New (to order)
                                                                                                    SEEGER RING FOR SHAFT D.13 (11066176) Genuine Maserati Part - New (to order)
                                                                                                    # 009
                                                                                                    MPN: 299426
                                                                                                    LH ENGINE-GEARBOX TIE-ROD
                                                                                                    from £148.48
                                                                                                    from £148.48
                                                                                                    LH ENGINE-GEARBOX TIE-ROD Genuine Ferrari Part - New (to order)
                                                                                                    # 010
                                                                                                    MPN: 299422
                                                                                                    RH ENGINE-GEARBOX TIE-ROD
                                                                                                    from £148.48
                                                                                                    from £148.48
                                                                                                    RH ENGINE-GEARBOX TIE-ROD Genuine Ferrari Part - New (to order)
                                                                                                    # 011
                                                                                                    MPN: 301881
                                                                                                    DCT EXPANSION TANK
                                                                                                    from £20.35
                                                                                                    from £20.35
                                                                                                    DCT EXPANSION TANK Genuine Ferrari Part - New (to order)
                                                                                                    # 012
                                                                                                    MPN: 301886
                                                                                                    TANK BREATHER MOUNT
                                                                                                    from £65.33
                                                                                                    from £65.33
                                                                                                    TANK BREATHER MOUNT Genuine Ferrari Part - New (to order)
                                                                                                    # 013
                                                                                                    MPN: 304886
                                                                                                    COMPL. LH REAR SHIELD
                                                                                                    from £141.05
                                                                                                    from £141.05
                                                                                                    COMPLETE LH REAR SHIELD Genuine Ferrari Part - New (to order)
                                                                                                    # 014
                                                                                                    MPN: 304888
                                                                                                    COMPL. RH REAR SHIELD
                                                                                                    from £141.05
                                                                                                    from £141.05
                                                                                                    COMPLETE RH REAR SHIELD Genuine Ferrari Part - New (to order)
                                                                                                    # 015
                                                                                                    MPN: 301884
                                                                                                    SWIVEL CONNECTOR
                                                                                                    from £109.15
                                                                                                    from £109.15
                                                                                                    SWIVEL CONNECTOR Genuine Ferrari Part - New (to order)
                                                                                                    # 016
                                                                                                    MPN: 299913
                                                                                                    COMPL. LH BRACKET
                                                                                                    from £33.40
                                                                                                    from £33.40
                                                                                                    COMPLETE LH BRACKET Genuine Ferrari Part - New (to order)
                                                                                                    # 017
                                                                                                    MPN: 297441
                                                                                                    COMPL. BRACKET
                                                                                                    from £55.67
                                                                                                    from £55.67
                                                                                                    COMPLETE BRACKET Genuine Ferrari Part - New (to order)
                                                                                                    # 018
                                                                                                    MPN: 302073
                                                                                                    FASTENER BRACKET FOR SHIELD ON LH STRUT
                                                                                                    from £33.40
                                                                                                    from £33.40
                                                                                                    FASTENER BRACKET FOR SHIELD Genuine Ferrari Part - New (to order)
                                                                                                    # 019
                                                                                                    MPN: 303584
                                                                                                    RUBBER PIPE
                                                                                                    from £89.08
                                                                                                    from £89.08
                                                                                                    RUBBER PIPE Genuine Ferrari Part - New (to order)
                                                                                                    # 020
                                                                                                    MPN: 10284460
                                                                                                    GASKET
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    GASKET Genuine Ferrari Part - New In stock
                                                                                                    GASKET (10284460) Genuine Maserati Part - New In stock
                                                                                                    # 021
                                                                                                    MPN: 272834
                                                                                                    GEARBOX OIL BREATHER BUSH
                                                                                                    from £9.64
                                                                                                    from £9.64
                                                                                                    GEARBOX OIL BREATHER BUSH Genuine Ferrari Part - New (to order)
                                                                                                    # 022
                                                                                                    MPN: 11903811
                                                                                                    CONNECTOR PIPE FOR UNION
                                                                                                    from £1.24
                                                                                                    from £1.24
                                                                                                    UNION Genuine Ferrari Part - New (to order)
                                                                                                    UNION Genuine Ferrari Part - Used In stock
                                                                                                    UNION (11903811) Genuine Maserati Part - New (to order)
                                                                                                    # 023
                                                                                                    MPN: 262108
                                                                                                    SCREW COLLAR
                                                                                                    from £0.94
                                                                                                    from £0.94
                                                                                                    SCREW COLLAR Genuine Ferrari Part - New (to order)
                                                                                                    # 024
                                                                                                    MPN: 198253
                                                                                                    CLIP
                                                                                                    from £1.95
                                                                                                    from £1.95
                                                                                                    CLIP Genuine Ferrari Part - New In stock
                                                                                                    1 SECT. CLIP D.16 WITH CORD (198253) Genuine Maserati Part - New In stock
                                                                                                    # 025
                                                                                                    MPN: 304412
                                                                                                    HEXAGONAL ANTI-ROTATION WASHER
                                                                                                    from £19.74
                                                                                                    from £19.74
                                                                                                    HEXAGONAL ANTI-ROTATION WASH Genuine Ferrari Part - New (to order)
                                                                                                    # 026
                                                                                                    MPN: 10902024
                                                                                                    SCREW
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 10902011 which we have in stock - and 2 more. Click to view details
                                                                                                    SCREW Genuine Ferrari Part - New In stock
                                                                                                    HEX HEAD SCREW M 6X 12 (10902024) Genuine Maserati Part - New In stock
                                                                                                    # 027
                                                                                                    MPN: 12646624
                                                                                                    WASHER
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    WASHER Genuine Ferrari Part - New In stock
                                                                                                    WASHER (12646624) Genuine Maserati Part - New In stock
                                                                                                    # 028
                                                                                                    MPN: 231617
                                                                                                    SCREW
                                                                                                    -M6 X 18-
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 14433124
                                                                                                    SCREW Genuine Ferrari Part - New In stock
                                                                                                    SOCKET HEAD SCREW WITH WASHER M6X (231617) Genuine Maserati Part - New (to order)
                                                                                                    # 029
                                                                                                    MPN: 14306534
                                                                                                    SCREW
                                                                                                    -No longer supplied-
                                                                                                    from £0.51
                                                                                                    from £0.51
                                                                                                    SCREW. Genuine Ferrari Part - New (to order)
                                                                                                    SCREW (14306534) Genuine Maserati Part - New (to order)
                                                                                                    # 029
                                                                                                    MPN: 339207
                                                                                                    SCREW
                                                                                                    -M8 X 30-
                                                                                                    from £168.19
                                                                                                    from £168.19
                                                                                                    SCREW Genuine Ferrari Part - New (to order)
                                                                                                    # 029
                                                                                                    MPN: 339209
                                                                                                    SCREW
                                                                                                    -M8 X 35-
                                                                                                    SCREW 8X35 Genuine Ferrari Part - New (to order)
                                                                                                    # 030
                                                                                                    MPN: 14331224
                                                                                                    SCREW
                                                                                                    from £1.81
                                                                                                    from £1.81
                                                                                                    This part replaces part number 14331221
                                                                                                    SCREW Genuine Ferrari Part - New (to order)
                                                                                                    # 031
                                                                                                    MPN: 62940900
                                                                                                    SCREW
                                                                                                    from £0.73
                                                                                                    from £0.73
                                                                                                    This part replaces part number 67352400
                                                                                                    SCREW Genuine Ferrari Part - New In stock
                                                                                                    VITE M 6X15 TBEI A ESLOK (62940900) Genuine Maserati Part - New (to order)
                                                                                                    # 032
                                                                                                    MPN: 14306624
                                                                                                    SCREW
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 14306621
                                                                                                    SCREW Genuine Ferrari Part - New (to order)
                                                                                                    SCREW FOR POWER STEERING (14306624) Genuine Maserati Part - New (to order)
                                                                                                    # 033
                                                                                                    MPN: 14309024
                                                                                                    SCREW
                                                                                                    from £0.71
                                                                                                    from £0.71
                                                                                                    This part replaces part number 14309021
                                                                                                    SCREW Genuine Ferrari Part - New In stock
                                                                                                    # 034
                                                                                                    MPN: 14059421
                                                                                                    NUT
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 156462
                                                                                                    NUT Genuine Ferrari Part - New In stock
                                                                                                    NUT (14059421) Genuine Maserati Part - New (to order)
                                                                                                    # 035
                                                                                                    MPN: 14040611
                                                                                                    NUT
                                                                                                    from £0.54
                                                                                                    from £0.54
                                                                                                    NUT Genuine Ferrari Part - New In stock
                                                                                                    NUT (14040611) Genuine Maserati Part - New In stock
                                                                                                    # 037
                                                                                                    MPN: 12601374
                                                                                                    WASHER
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                    WASHER Genuine Ferrari Part - New In stock
                                                                                                    WASHER (12601374) Genuine Maserati Part - New In stock
                                                                                                    # 038
                                                                                                    MPN: 12648424
                                                                                                    WASHER
                                                                                                    from £0.99
                                                                                                    from £0.99
                                                                                                    WASHER Genuine Ferrari Part - New (to order)
                                                                                                    WASHER (12648424) Genuine Maserati Part - New (to order)
                                                                                                    # 039
                                                                                                    MPN: 12642724
                                                                                                    WASHER
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    Genuine Ferrari Part (no longer available to order)
                                                                                                    Genuine Maserati Part (no longer available to order)
                                                                                                    # 040
                                                                                                    MPN: 13507424
                                                                                                    WASHER
                                                                                                    from £0.71
                                                                                                    from £0.71
                                                                                                    WASHER D.12 20-20X2 Genuine Ferrari Part - New (to order)
                                                                                                    # 041
                                                                                                    MPN: 243151
                                                                                                    SCREW
                                                                                                    from £3.06
                                                                                                    from £3.06
                                                                                                    SCREW Genuine Ferrari Part - New (to order)
                                                                                                    # 042
                                                                                                    MPN: 247857
                                                                                                    SCREW
                                                                                                    from £1.05
                                                                                                    from £1.05
                                                                                                    SCREW Genuine Ferrari Part - New (to order)
                                                                                                    # 043
                                                                                                    MPN: 308773
                                                                                                    DCT BLEED VALVE CAP
                                                                                                    from £1.49
                                                                                                    from £1.49
                                                                                                    DCT BLEED VALVE CAP Genuine Ferrari Part - New (to order)
                                                                                                    # 044
                                                                                                    MPN: 149694
                                                                                                    PIPE MOUNTING BRACKET
                                                                                                    from £3.15
                                                                                                    from £3.15
                                                                                                    This part replaces part number 223375
                                                                                                    BRACKET Genuine Ferrari Part - New (to order)
                                                                                                    FIXING BRACKET (149694) Genuine Maserati Part - New (to order)
                                                                                                    # 045
                                                                                                    MPN: 244219
                                                                                                    CLIP
                                                                                                    from £2.34
                                                                                                    from £2.34
                                                                                                    CLIP Genuine Ferrari Part - New In stock
                                                                                                    CLIP (244219) Genuine Maserati Part - New (to order)
                                                                                                    # 046
                                                                                                    MPN: 14498804
                                                                                                    WASHER
                                                                                                    from £0.71
                                                                                                    from £0.71
                                                                                                    Genuine Ferrari Part (no longer available to order)
                                                                                                    WASHER. (14498804) Genuine Maserati Part - New In stock
                                                                                                    # 047
                                                                                                    MPN: 15896214
                                                                                                    NUT
                                                                                                    from £0.54
                                                                                                    from £0.54
                                                                                                    This part replaces part number 15896211
                                                                                                    NUT Genuine Ferrari Part - New In stock
                                                                                                    NUT (15896214) Genuine Maserati Part - New In stock
                                                                                                    # 048
                                                                                                    MPN: 308652
                                                                                                    VENT PIPE
                                                                                                    from £215.79
                                                                                                    from £215.79
                                                                                                    VENT PIPE Genuine Ferrari Part - New (to order)
                                                                                                    # 049
                                                                                                    MPN: 13434670
                                                                                                    COLLAR
                                                                                                    -D. 16.2-
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    SCREW COLLAR Genuine Ferrari Part - New In stock
                                                                                                    Genuine Maserati Part (no longer available to order)
                                                                                                    # 050
                                                                                                    MPN: 301884
                                                                                                    SWIVEL CONNECTOR
                                                                                                    from £109.15
                                                                                                    from £109.15
                                                                                                    SWIVEL CONNECTOR Genuine Ferrari Part - New (to order)
                                                                                                    # 051
                                                                                                    MPN: 10284460
                                                                                                    GASKET
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    GASKET Genuine Ferrari Part - New In stock
                                                                                                    GASKET (10284460) Genuine Maserati Part - New In stock
                                                                                                    # 052
                                                                                                    MPN: 11903811
                                                                                                    CONNECTOR PIPE FOR UNION
                                                                                                    from £1.24
                                                                                                    from £1.24
                                                                                                    UNION Genuine Ferrari Part - New (to order)
                                                                                                    UNION Genuine Ferrari Part - Used In stock
                                                                                                    UNION (11903811) Genuine Maserati Part - New (to order)
                                                                                                    # 053
                                                                                                    MPN: 308665
                                                                                                    CONNECTOR
                                                                                                    from £29.61
                                                                                                    from £29.61
                                                                                                    CONNECTOR Genuine Ferrari Part - New (to order)
