0020 - ELECTRIC MOTOR COOLING

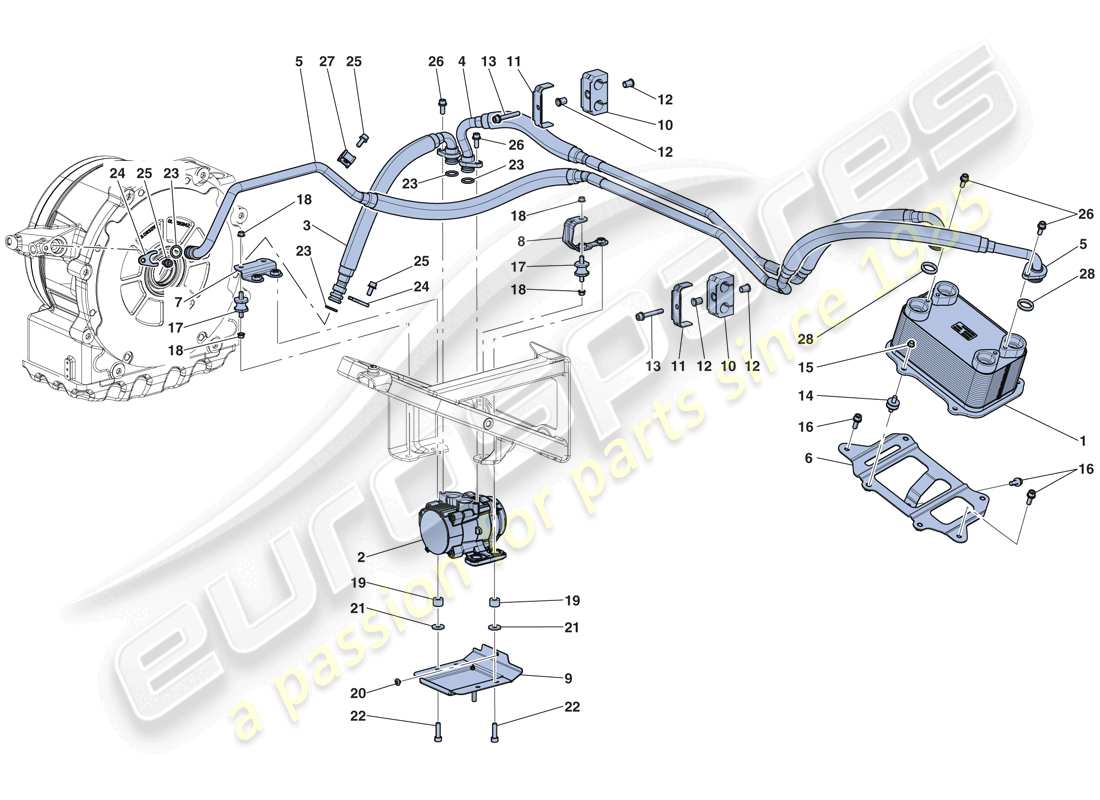

Ferrari LaFerrari Aperta (USA) ELECTRIC MOTOR COOLING Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Key
                                                    Price
                                                    # 001
                                                    MPN: 286140
                                                    OIL-WATER HEAT EXCHANGER
                                                    from £626.77
                                                    from £626.77
                                                    OIL/WATER HEAT EXCHANGER Genuine Ferrari Part - New (to order)
                                                    # 002
                                                    MPN: 283006
                                                    oil pump
                                                    from £1,439.91
                                                    from £1,439.91
                                                    oil pump Genuine Ferrari Part - New (to order)
                                                    # 003
                                                    MPN: 299894
                                                    OIL PICKUP PIPE FROM ME1 TO PUMP
                                                    from £335.56
                                                    from £335.56
                                                    OIL PICKUP PIPE FROM ME1 TO Genuine Ferrari Part - New (to order)
                                                    # 004
                                                    MPN: 299896
                                                    OIL DELIVERY PIPE FROM PUMP TO HEAT EXCHANGER
                                                    from £585.87
                                                    from £585.87
                                                    OIL DELIVERY PIPE FROM PUMP Genuine Ferrari Part - New (to order)
                                                    # 005
                                                    MPN: 304337
                                                    OIL RETURN PIPE FROM HEAT EXCHANGER TO ME1
                                                    from £584.79
                                                    from £584.79
                                                    OIL RETURN PIPE FROM HEAT EX Genuine Ferrari Part - New (to order)
                                                    # 006
                                                    MPN: 307940
                                                    BRACKET
                                                    from £40.14
                                                    from £40.14
                                                    This part replaces part number 299749
                                                    BRACKET Genuine Ferrari Part - New (to order)
                                                    # 007
                                                    MPN: 299463
                                                    REAR ME1 OIL PUMP BRACKET
                                                    from £21.90
                                                    from £21.90
                                                    REAR ME1 OIL PUMP BRACKET Genuine Ferrari Part - New (to order)
                                                    # 008
                                                    MPN: 301751
                                                    FRONT ME1 OIL PUMP BRACKET
                                                    from £25.55
                                                    from £25.55
                                                    FRONT ME1 OIL PUMP BRACKET Genuine Ferrari Part - New (to order)
                                                    # 009
                                                    MPN: 299623
                                                    ME1 PUMP OIL COLLECTOR RESERVOIR
                                                    from £87.57
                                                    from £87.57
                                                    ME1 PUMP OIL COLLECTOR RESER Genuine Ferrari Part - New (to order)
                                                    # 010
                                                    MPN: 243396
                                                    FRONT RUBBER PILLORY BLOCK
                                                    from £7.43
                                                    from £7.43
                                                    SUPPORT Genuine Ferrari Part - New (to order)
                                                    SUPPORT Genuine Ferrari Part - Used In stock
                                                    # 011
                                                    MPN: 243398
                                                    PLATE
                                                    from £4.24
                                                    from £4.24
                                                    PLATE Genuine Ferrari Part - New (to order)
                                                    PLATE Genuine Ferrari Part - Used In stock
                                                    # 012
                                                    MPN: 243399
                                                    BUSHING
                                                    from £0.54
                                                    from £0.54
                                                    BUSHING Genuine Ferrari Part - New (to order)
                                                    # 013
                                                    MPN: 231623
                                                    SCREW
                                                    -M6 X 40-
                                                    from £0.53
                                                    from £0.53
                                                    SCREW Genuine Ferrari Part - New In stock
                                                    SOCKET HEAD SCREW WITH WASHER M6X Genuine Maserati Part - New In stock
                                                    # 014
                                                    MPN: 225408
                                                    CYLINDRICAL BUSHING
                                                    from £4.32
                                                    from £4.32
                                                    PAD Genuine Ferrari Part - New (to order)
                                                    Genuine Maserati Part (no longer available to order)
                                                    # 015
                                                    MPN: 132877
                                                    NUT
                                                    from £1.66
                                                    from £1.66
                                                    This part replaces part number 67190100
                                                    NUT Genuine Ferrari Part - New In stock
                                                    SMALL-SIZED HEX. SELFLOCK. NUT M6 Genuine Maserati Part - New (to order)
                                                    # 016
                                                    MPN: 231617
                                                    SCREW
                                                    -M6 X 18-
                                                    from £0.53
                                                    from £0.53
                                                    This part replaces part number 14433124 which we have in stock
                                                    SCREW Genuine Ferrari Part - New In stock
                                                    SOCKET HEAD SCREW WITH WASHER M6X Genuine Maserati Part - New In stock
                                                    # 017
                                                    MPN: 284347
                                                    POWER STEERING PUMP FASTENER BUSH
                                                    from £10.95
                                                    from £10.95
                                                    POWER STEERING PUMP FASTENER Genuine Ferrari Part - New (to order)
                                                    # 018
                                                    MPN: 132877
                                                    NUT
                                                    from £1.71
                                                    from £1.71
                                                    This part replaces part number 67190100
                                                    NUT Genuine Ferrari Part - New In stock
                                                    SMALL-SIZED HEX. SELFLOCK. NUT M6 Genuine Maserati Part - New (to order)
                                                    # 019
                                                    MPN: 299624
                                                    BUSHING
                                                    from £2.57
                                                    from £2.57
                                                    BUSHING Genuine Ferrari Part - New (to order)
                                                    # 020
                                                    MPN: 14622387
                                                    CAP
                                                    from £1.79
                                                    from £1.79
                                                    PLUG. Genuine Ferrari Part - New In stock
                                                    # 021
                                                    MPN: 10523424
                                                    WASHER
                                                    from £0.53
                                                    from £0.53
                                                    WASHER Genuine Ferrari Part - New In stock
                                                    WASHER Genuine Maserati Part - New (to order)
                                                    # 022
                                                    MPN: 14432224
                                                    SCREW
                                                    from £0.51
                                                    from £0.51
                                                    This part replaces part number 14432221
                                                    SCREW Genuine Ferrari Part - New In stock
                                                    SCREW Genuine Maserati Part - New (to order)
                                                    # 023
                                                    MPN: 286421
                                                    GASKET
                                                    from £0.50
                                                    from £0.50
                                                    GASKET Genuine Ferrari Part - New (to order)
                                                    # 024
                                                    MPN: 293386
                                                    FORK FOR ME1 COOLING PIPE
                                                    from £18.91
                                                    from £18.91
                                                    FORK FOR ME1 COOLING PIPE Genuine Ferrari Part - New (to order)
                                                    # 025
                                                    MPN: 231616
                                                    SCREW
                                                    -M6 X 14-
                                                    from £0.53
                                                    from £0.53
                                                    This part replaces part number 14305724 which we have in stock
                                                    Genuine Ferrari Part (no longer available to order)
                                                    SCREW Genuine Maserati Part - New (to order)
                                                    # 026
                                                    MPN: 248334
                                                    SCREW
                                                    from £0.52
                                                    from £0.52
                                                    SCREW Genuine Ferrari Part - New In stock
                                                    SCREW Genuine Maserati Part - New (to order)
                                                    # 027
                                                    MPN: 10441490
                                                    BRACKET WITH SHEATH
                                                    from £0.53
                                                    from £0.53
                                                    CLAMP Genuine Ferrari Part - New In stock
                                                    BRACKET Genuine Maserati Part - New (to order)
                                                    # 028
                                                    MPN: 122791
                                                    GASKET
                                                    from £1.26
                                                    from £1.26
                                                    RING Genuine Ferrari Part - New In stock
