0129 - ELECTRONIC MANAGEMENT (SUSPENSION)

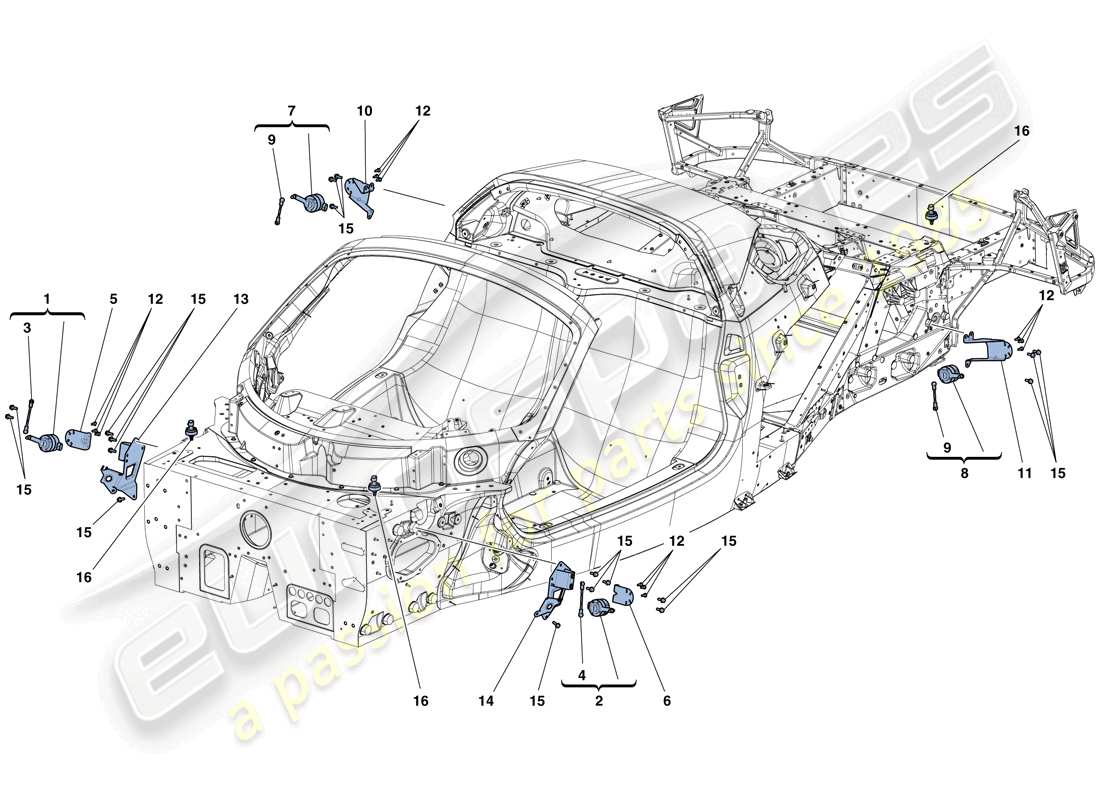

Ferrari LaFerrari Aperta (USA) ELECTRONIC MANAGEMENT (SUSPENSION) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 001
                                  MPN: 286174
                                  RH FRONT MOTION SENSOR
                                  from £501.03
                                  from £501.03
                                  # 002
                                  MPN: 286173
                                  LH FRONT MOTION SENSOR
                                  from £501.03
                                  from £501.03
                                  # 003
                                  MPN: 286176
                                  RH POTENTIOMETER TIE-ROD
                                  from £151.46
                                  from £151.46
                                  # 004
                                  MPN: 286175
                                  LH POTENTIOMETER TIE-ROD
                                  from £151.46
                                  from £151.46
                                  # 005
                                  MPN: 283422
                                  FRONT RH BRACKET FOR MOTION SENSOR
                                  from £28.10
                                  from £28.10
                                  # 006
                                  MPN: 283420
                                  FRONT LH BRACKET FOR MOTION SENSOR
                                  from £28.10
                                  from £28.10
                                  # 007
                                  MPN: 286204
                                  RH REAR MOTION SENSOR
                                  from £501.03
                                  from £501.03
                                  # 008
                                  MPN: 286203
                                  LH REAR MOTION SENSOR
                                  from £501.03
                                  from £501.03
                                  # 009
                                  MPN: 253165
                                  POTENTIOMETER TIE-ROD
                                  from £22.84
                                  from £22.84
                                  # 010
                                  MPN: 288594
                                  REAR RH BRACKET FOR MOTION SENSOR
                                  from £24.41
                                  from £24.41
                                  # 011
                                  MPN: 288593
                                  REAR LH BRACKET FOR MOTION SENSOR
                                  from £24.41
                                  from £24.41
                                  # 012
                                  MPN: 217456
                                  SCREW
                                  from £0.47
                                  from £0.47
                                  # 013
                                  MPN: 296000
                                  RH FRONT JOINT BRACKET
                                  from £55.43
                                  from £55.43
                                  # 014
                                  MPN: 295999
                                  LH FRONT JOINT BRACKET
                                  from £55.43
                                  from £55.43
                                  # 015
                                  MPN: 16286024
                                  SCREW
                                  from £0.47
                                  from £0.47
                                  # 016
                                  MPN: 263079
                                  ACCELERATOR FOR MAGNERIDE SYSTEM
                                  from £77.25
                                  from £77.25
                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
