0133 - TELEMETRY - DATA ACQUISITION

Ferrari LaFerrari Aperta (USA) TELEMETRY - DATA ACQUISITION Parts Diagram

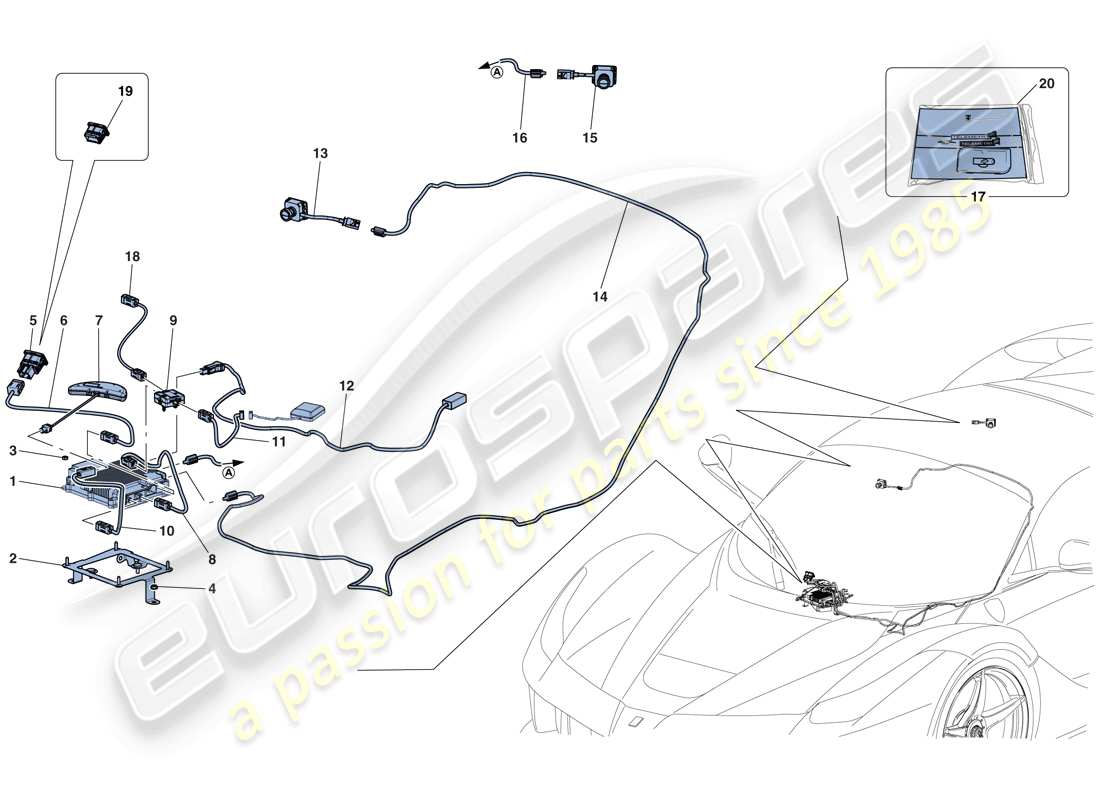

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 001
                                  MPN: 298100
                                  NTM TELEMETRY NODE
                                  from £9,754.25
                                  from £9,754.25
                                  # 002
                                  MPN: 85449700
                                  TELEMETRY SYSTEM MOUNTING BRACKET
                                  from £47.12
                                  from £47.12
                                  # 003
                                  MPN: 10794011
                                  NUT
                                  from £0.26
                                  from £0.26
                                  # 004
                                  MPN: 12578011
                                  NUT
                                  from £0.47
                                  from £0.47
                                  # 005
                                  MPN: 288974
                                  USB SOCKET
                                  from £32.64
                                  from £32.64
                                  # 006
                                  MPN: 281971
                                  USB / NIT / RHR CABLE
                                  from £29.14
                                  from £29.14
                                  This part replaces part number 275284 - and 1 more. Click to view details
                                  # 007
                                  MPN: 286161
                                  WI-FI ANTENNA
                                  from £73.17
                                  from £73.17
                                  # 008
                                  MPN: 293359
                                  SPLITTER/NIT AND SPLITTER/NTM GPS CABLE
                                  from £77.95
                                  from £77.95
                                  # 009
                                  MPN: 293328
                                  GPS ANTENNA SPLITTER
                                  from £83.19
                                  from £83.19
                                  # 010
                                  MPN: 300328
                                  WI-FI/NTM ANTENNA EXTENSION
                                  from £67.64
                                  from £67.64
                                  # 011
                                  MPN: 300327
                                  GPS ANTENNA EXTENSION CABLE
                                  -Not for telemetry- -Applicable for USA, CDN-
                                  from £82.66
                                  from £82.66
                                  # 011
                                  MPN: 306750
                                  GPS ANTENNA EXTENSION CABLE
                                  -Version with telemetry-
                                  from £75.15
                                  from £75.15
                                  # 012
                                  MPN: 293358
                                  LVDS NTM/NQS CABLE
                                  from £177.19
                                  from £177.19
                                  # 013
                                  MPN: 304455
                                  EXTERNAL TELEMETRY CAMERA
                                  from £2,878.62
                                  from £2,878.62
                                  # 014
                                  MPN: 293355
                                  EXTERNAL TELEMETRY CAMERA CABLE
                                  from £73.60
                                  from £73.60
                                  # 015
                                  MPN: 292422
                                  PASSENGER COMPARTMENT TELEMETRY CAMERA
                                  from £1,578.79
                                  from £1,578.79
                                  # 016
                                  MPN: 292424
                                  PASSENGER COMPARTMENT TELEMETRY CAMERA CABLE
                                  from £40.48
                                  from £40.48
                                  # 017
                                  MPN: 323619
                                  TELEMETRY USB KEY KIT
                                  from £220.80
                                  from £220.80
                                  This part replaces part number 308837
                                  # 018
                                  MPN: 300326
                                  GPS-NIT ANTENNA SPLITTER EXTENSION CABLE
                                  -Applicable for USA, CDN-
                                  from £75.36
                                  from £75.36
                                  # 018
                                  MPN: 301322
                                  GPS-NIT ANTENNA SPLITTER EXTENSION CABLE
                                  -Not for USA, CDN-
                                  from £21.25
                                  from £21.25
                                  # 019
                                  MPN: 86319700
                                  USB SOCKET SEAT BLANKING CAP
                                  -Not for telemetry kit-
                                  # 020
                                  MPN: 323618
                                  4-LANGUAGE MANUAL FOR TELEMETRY SYSTEM
                                  -Version with telemetry-
                                  from £26.72
                                  from £26.72
                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
