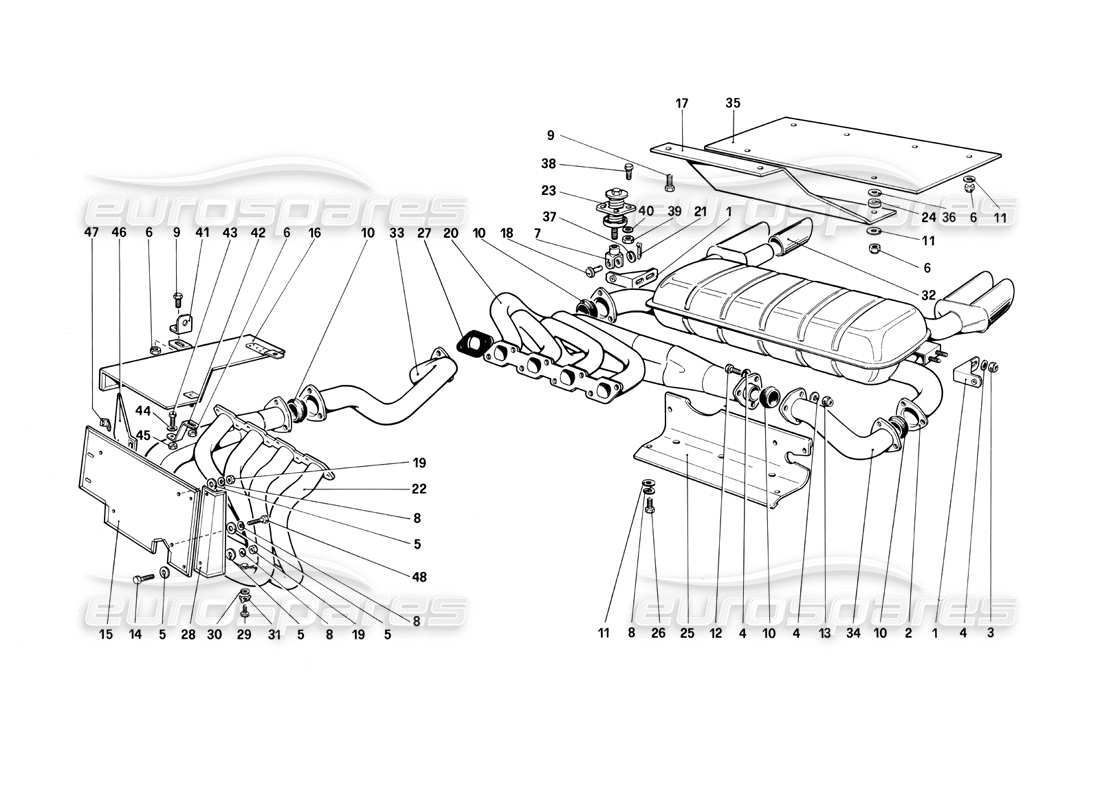

014 - Exhaust System

Ferrari Mondial 3.0 QV (1984) Exhaust System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                  #
                                                                                  Part number
                                                                                  Description
                                                                                  Key
                                                                                  Price
                                                                                  # 001
                                                                                  MPN: 108290
                                                                                  BRACKET
                                                                                  from £97.55
                                                                                  from £97.55
                                                                                  EXHAUST BRACKET Genuine Ferrari Part - New (to order)
                                                                                  # 002
                                                                                  MPN: 118353
                                                                                  EXHAUST SILENCER
                                                                                  For CH use no. 120703
                                                                                  Supersession
                                                                                  Supersession
                                                                                  Genuine Ferrari Part (no longer available to order)
                                                                                  # 002
                                                                                  MPN: 11835300
                                                                                  MAGNAFLOW EXHAUST SILENCER
                                                                                  MAGNAFLOW EXHAUST SILENCER Genuine Ferrari Part - New (to order)
                                                                                  # 003
                                                                                  MPN: 114748
                                                                                  NUT
                                                                                  from £9.07
                                                                                  from £9.07
                                                                                  NUT Genuine Ferrari Part - New In stock
                                                                                  # 004
                                                                                  MPN: 10519624
                                                                                  WASHER
                                                                                  from £0.50
                                                                                  from £0.50
                                                                                  This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                  WASHER Genuine Ferrari Part - New In stock
                                                                                  WASHER (10519624) Genuine Maserati Part - New In stock
                                                                                  # 005
                                                                                  MPN: 12643701
                                                                                  WASHER
                                                                                  Supersession
                                                                                  Supersession
                                                                                  This part replaces part number 12643704 - and 1 more. Click to view details
                                                                                  Genuine Ferrari Part (no longer available to order)
                                                                                  Genuine Maserati Part (no longer available to order)
                                                                                  # 006
                                                                                  MPN: 116416
                                                                                  NUT
                                                                                  from £9.27
                                                                                  from £9.27
                                                                                  NUT Genuine Ferrari Part - New (to order)
                                                                                  # 007
                                                                                  MPN: 108257
                                                                                  FORK ON BUFFER
                                                                                  from £100.31
                                                                                  from £100.31
                                                                                  FORK Genuine Ferrari Part - New (to order)
                                                                                  # 008
                                                                                  MPN: 106850
                                                                                  WASHER
                                                                                  Supersession
                                                                                  Supersession
                                                                                  This part replaces part number 10516473 - and 1 more. Click to view details
                                                                                  Genuine Ferrari Part (no longer available to order)
                                                                                  # 009
                                                                                  MPN: 10902121
                                                                                  SCREW
                                                                                  from £0.71
                                                                                  from £0.71
                                                                                  This part replaces part number 20146601
                                                                                  Genuine Ferrari Part (no longer available to order)
                                                                                  SCREW (10902121) Genuine Maserati Part - New (to order)
                                                                                  # 010
                                                                                  MPN: 154984
                                                                                  GASKET
                                                                                  from £9.95
                                                                                  from £9.95
                                                                                  This part replaces part number 118338 - and 2 more. Click to view details
                                                                                  GASKET (154984) Eurospares Approved Part - New In stock
                                                                                  GASKET Genuine Ferrari Part - New In stock
                                                                                  # 011
                                                                                  MPN: 106744
                                                                                  WASHER
                                                                                  from £5.19
                                                                                  from £5.19
                                                                                  WASHER Genuine Ferrari Part - New In stock
                                                                                  # 012
                                                                                  MPN: 16044021
                                                                                  SCREW
                                                                                  from £1.62
                                                                                  from £1.62
                                                                                  This part replaces part number 119631 which we have in stock
                                                                                  Genuine Ferrari Part (no longer available to order)
                                                                                  HEX HEAD SCREW M 8X40 (16044021) Genuine Maserati Part - New (to order)
                                                                                  # 013
                                                                                  MPN: 114748
                                                                                  NUT
                                                                                  from £8.88
                                                                                  from £8.88
                                                                                  NUT Genuine Ferrari Part - New In stock
                                                                                  # 014
                                                                                  MPN: 10902421
                                                                                  SCREW
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  SCREW Genuine Ferrari Part - New In stock
                                                                                  HEX HEAD SCREW M 6X20 (10902421) Genuine Maserati Part - New In stock
                                                                                  # 015
                                                                                  MPN: 120471
                                                                                  PROTECTION PLATE (4V)
                                                                                  from £310.34
                                                                                  from £310.34
                                                                                  HEAT SHIELD Genuine Ferrari Part - New In stock
                                                                                  # 015
                                                                                  MPN: 120903
                                                                                  PROTECTION PLATE (CABRIOLET)
                                                                                  For ASPERA compressor
                                                                                  from £237.54
                                                                                  from £237.54
                                                                                  HEAT SHIELD *?* Genuine Ferrari Part - New (to order)
                                                                                  # 015
                                                                                  MPN: 123830
                                                                                  PROTECTION PLATE (4V)
                                                                                  from £306.53
                                                                                  from £306.53
                                                                                  HEAT SHIELD *?* Genuine Ferrari Part - New (to order)
                                                                                  # 015
                                                                                  MPN: 124345
                                                                                  PROTECTION PLATE (CABRIOLET)
                                                                                  For Sankyo compressor
                                                                                  from £335.88
                                                                                  from £335.88
                                                                                  HEAT SHIELD Genuine Ferrari Part - New (to order)
                                                                                  # 016
                                                                                  MPN: 118612
                                                                                  PROTECTION PLATE
                                                                                  from £167.00
                                                                                  from £167.00
                                                                                  This part replaces part number 120013
                                                                                  HEAT SHIELD Genuine Ferrari Part - New (to order)
                                                                                  # 017
                                                                                  MPN: 118780
                                                                                  PROTECTION PLATE
                                                                                  from £115.34
                                                                                  from £115.34
                                                                                  COVER *?* Genuine Ferrari Part - New In stock
                                                                                  COVER *?* Genuine Ferrari Part - Used In stock
                                                                                  # 018
                                                                                  MPN: 10033411
                                                                                  PIN
                                                                                  from £42.00
                                                                                  from £42.00
                                                                                  This part replaces part number 10033441 - and 3 more. Click to view details
                                                                                  Genuine Ferrari Part (no longer available to order)
                                                                                  PIN Genuine Ferrari Part - Used In stock
                                                                                  # 019
                                                                                  MPN: 15896214
                                                                                  NUT
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  This part replaces part number 15896211
                                                                                  NUT Genuine Ferrari Part - New In stock
                                                                                  NUT (15896214) Genuine Maserati Part - New In stock
                                                                                  # 020
                                                                                  MPN: 118156
                                                                                  REAR EXHAUST MANIFOLD
                                                                                  For CH use no. 120639
                                                                                  from £2,407.35
                                                                                  from £2,407.35
                                                                                  This part replaces part number 118156/B
                                                                                  Rear Exhaust Manifold (118156) Eurospares Approved Part - New (to order)
                                                                                  REAR EXHAUST MANIFOLD Genuine Ferrari Part - New (to order)
                                                                                  # 021
                                                                                  MPN: 10796440
                                                                                  SPLIT
                                                                                  Supersession
                                                                                  Supersession
                                                                                  This part replaces part number 264555
                                                                                  Genuine Ferrari Part (no longer available to order)
                                                                                  # 022
                                                                                  MPN: 118155
                                                                                  FRONT EXHAUST MANIFOLD
                                                                                  For CH use no. 120640
                                                                                  from £577.50
                                                                                  from £577.50
                                                                                  FRONT EXHAUST MANIFOLD Genuine Ferrari Part - New (to order)
                                                                                  FRONT EXHAUST MANIFOLD Genuine Ferrari Part - Used In stock
                                                                                  # 023
                                                                                  MPN: 106052
                                                                                  EXHAUST MOUNT
                                                                                  from £57.78
                                                                                  from £57.78
                                                                                  EXHAUST MOUNT Genuine Ferrari Part - New In stock
                                                                                  EXHAUST MOUNT Genuine Ferrari Part - Used In stock
                                                                                  # 024
                                                                                  MPN: 119201
                                                                                  SPACER
                                                                                  from £4.78
                                                                                  from £4.78
                                                                                  SPACER Genuine Ferrari Part - New (to order)
                                                                                  # 025
                                                                                  MPN: 118782
                                                                                  PROTECTION PLATE
                                                                                  from £26.13
                                                                                  from £26.13
                                                                                  This part replaces part number 116581 which we have in stock
                                                                                  SHIELD Genuine Ferrari Part - New (to order)
                                                                                  # 026
                                                                                  MPN: 10902021
                                                                                  SCREW
                                                                                  from £1.14
                                                                                  from £1.14
                                                                                  This part replaces part number 10902020
                                                                                  Genuine Ferrari Part (no longer available to order)
                                                                                  SCREW (10902021) Genuine Maserati Part - New In stock
                                                                                  # 027
                                                                                  MPN: 147705
                                                                                  GASKET
                                                                                  from £10.24
                                                                                  from £10.24
                                                                                  This part replaces part number 111532
                                                                                  EXHAUST GASKET Genuine Ferrari Part - New (to order)
                                                                                  EXHAUST GASKET (147705) Original Equipment - New In stock
                                                                                  # 028
                                                                                  MPN: 120474
                                                                                  PROTECTION PLATE
                                                                                  On exhaustion use no. 120904
                                                                                  from £142.43
                                                                                  from £142.43
                                                                                  HEAT SHIELD Genuine Ferrari Part - New In stock
                                                                                  # 029
                                                                                  MPN: 110860
                                                                                  PLUG
                                                                                  from £7.88
                                                                                  from £7.88
                                                                                  This part replaces part number 11903240
                                                                                  PLUG Genuine Ferrari Part - New (to order)
                                                                                  # 030
                                                                                  MPN: 10298460
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 93353
                                                                                  GASKET Genuine Ferrari Part - New (to order)
                                                                                  GASKET 12- 18X 1.5 (10298460) Genuine Maserati Part - New In stock
                                                                                  GASKET (10298460) Original Equipment - New In stock
                                                                                  # 031
                                                                                  MPN: 14198901
                                                                                  PLATE
                                                                                  from £4.72
                                                                                  from £4.72
                                                                                  LOCKING PLATE Genuine Ferrari Part - New (to order)
                                                                                  # 032
                                                                                  MPN: 118774
                                                                                  TERMINAL
                                                                                  from £53.03
                                                                                  from £53.03
                                                                                  TAIL PIPE TRIM Genuine Ferrari Part - New (to order)
                                                                                  # 033
                                                                                  MPN: 01028712540F
                                                                                  Tubi FRONT LINK PIPE
                                                                                  (FRONT)
                                                                                  Tubi FRONT LINK PIPE Genuine Ferrari Part - New (to order)
                                                                                  # 033
                                                                                  MPN: 118157
                                                                                  INTERMEDIATE PIPE FROM FRONT MANIFOLD TO MUFFLER
                                                                                  from £204.75
                                                                                  from £204.75

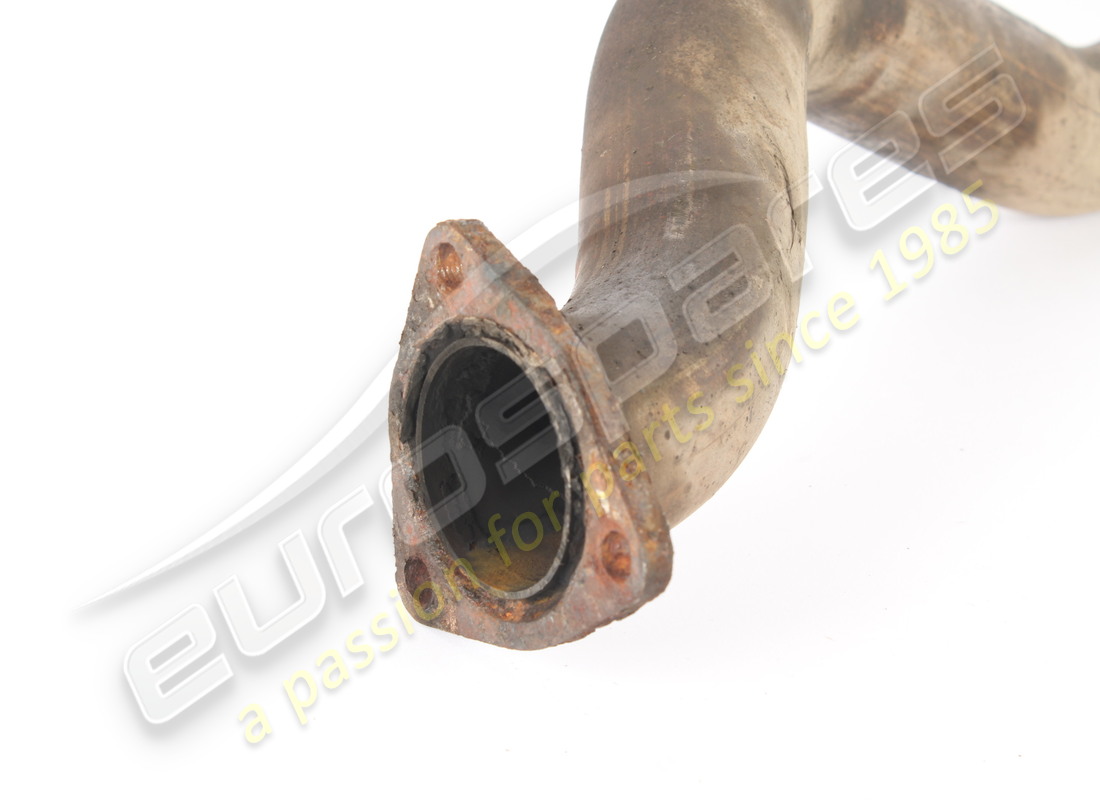

                                                                                  INTERMEDIATE PIPE Genuine Ferrari Part - New In stock
                                                                                  INTERMEDIATE PIPE Genuine Ferrari Part - Used In stock
                                                                                  # 034
                                                                                  MPN: 01028712540R
                                                                                  Tubi REAR LINK PIPE
                                                                                  (REAR)
                                                                                  from £474.51
                                                                                  from £474.51
                                                                                  Tubi REAR LINK PIPE Genuine Ferrari Part - New (to order)
                                                                                  Tubi REAR LINK PIPE Genuine Ferrari Part - New (other) In stock
                                                                                  2 LOOSE FLANGE VERSION
                                                                                  # 034
                                                                                  MPN: 118158
                                                                                  INTERMEDIATE PIPE FROM REAR MANIFOLD TO MUFFLER
                                                                                  not as spare part - use part number: 140920 - For CH use no. 129411
                                                                                  from £450.00
                                                                                  from £450.00
                                                                                  REAR PIPE (118158) Eurospares Approved Part - New In stock
                                                                                  Genuine Ferrari Part (no longer available to order)
                                                                                  # 034
                                                                                  MPN: 140920
                                                                                  INTERMEDIATE PIPE FROM REAR MANIFOLD TO MUFFLER
                                                                                  from £811.28
                                                                                  from £811.28
                                                                                  This part replaces part number 118158
                                                                                  REAR PIPE Genuine Ferrari Part - New In stock
                                                                                  # 035
                                                                                  MPN: 119203
                                                                                  PROTECTION PLATE
                                                                                  from £225.02
                                                                                  from £225.02
                                                                                  SHIELD *?* Genuine Ferrari Part - New In stock
                                                                                  # 036
                                                                                  MPN: 146712
                                                                                  WASHER SPACER
                                                                                  from £1.68
                                                                                  from £1.68
                                                                                  This part replaces part number 105924
                                                                                  GASKET Genuine Ferrari Part - New (to order)
                                                                                  GASKET (146712) Original Equipment - New In stock
                                                                                  # 037
                                                                                  MPN: 103167
                                                                                  WASHER
                                                                                  from £1.98
                                                                                  from £1.98
                                                                                  WASHER Genuine Ferrari Part - New (to order)
                                                                                  # 038
                                                                                  MPN: 10977621
                                                                                  SCREW
                                                                                  from £1.08
                                                                                  from £1.08
                                                                                  Genuine Ferrari Part (no longer available to order)
                                                                                  SCREW (10977621) Genuine Maserati Part - New (to order)
                                                                                  # 039
                                                                                  MPN: 15896411
                                                                                  NUT
                                                                                  Supersession
                                                                                  Supersession
                                                                                  This part replaces part number 15896401
                                                                                  Genuine Ferrari Part (no longer available to order)
                                                                                  Genuine Maserati Part (no longer available to order)
                                                                                  # 040
                                                                                  MPN: 106849
                                                                                  WASHER
                                                                                  Supersession
                                                                                  Supersession
                                                                                  This part replaces part number 11195473
                                                                                  Genuine Ferrari Part (no longer available to order)
                                                                                  # 041
                                                                                  MPN: 118618
                                                                                  BRACKET
                                                                                  from £5.61
                                                                                  from £5.61
                                                                                  BRACKET Genuine Ferrari Part - New (to order)
                                                                                  # 042
                                                                                  MPN: 113619
                                                                                  BRACKET
                                                                                  BRACKET Genuine Ferrari Part - New (to order)
                                                                                  # 043
                                                                                  MPN: 16043421
                                                                                  BOLT
                                                                                  from £2.77
                                                                                  from £2.77
                                                                                  This part replaces part number 95524
                                                                                  Genuine Ferrari Part (no longer available to order)
                                                                                  HEX HEAD SCREW M 8X20 (16043421) Genuine Maserati Part - New In stock
                                                                                  # 044
                                                                                  MPN: 106852
                                                                                  WASHER
                                                                                  Supersession
                                                                                  Supersession
                                                                                  This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
                                                                                  Genuine Ferrari Part (no longer available to order)
                                                                                  # 045
                                                                                  MPN: 16100824
                                                                                  NUT
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                  NUT Genuine Ferrari Part - New In stock
                                                                                  NUT (16100824) Genuine Maserati Part - New In stock
                                                                                  # 046
                                                                                  MPN: 120472
                                                                                  PROTECTION PLATE
                                                                                  For ASPERA compressor - For Cabriolet use no. 122019
                                                                                  from £175.35
                                                                                  from £175.35
                                                                                  RH SIDE HEAT SHIELD Genuine Ferrari Part - New In stock
                                                                                  # 046
                                                                                  MPN: 123829
                                                                                  PROTECTION PLATE
                                                                                  For Sankyo compressor
                                                                                  from £160.74
                                                                                  from £160.74
                                                                                  RH SIDE HEAT SHIELD Genuine Ferrari Part - New (to order)
                                                                                  # 047
                                                                                  MPN: 120473
                                                                                  BRACKET
                                                                                  from £9.06
                                                                                  from £9.06
                                                                                  BRACKET Genuine Ferrari Part - New (to order)
                                                                                  # 048
                                                                                  MPN: 10902221
                                                                                  SCREW
                                                                                  from £0.58
                                                                                  from £0.58
                                                                                  BOLT Genuine Ferrari Part - New (to order)
                                                                                  HEX HEAD SCREW M 6X 16 ZNT (10902221) Genuine Maserati Part - New (to order)
