029 - Brake System (Valid Only for LHD Up To Chassis No. 43011)

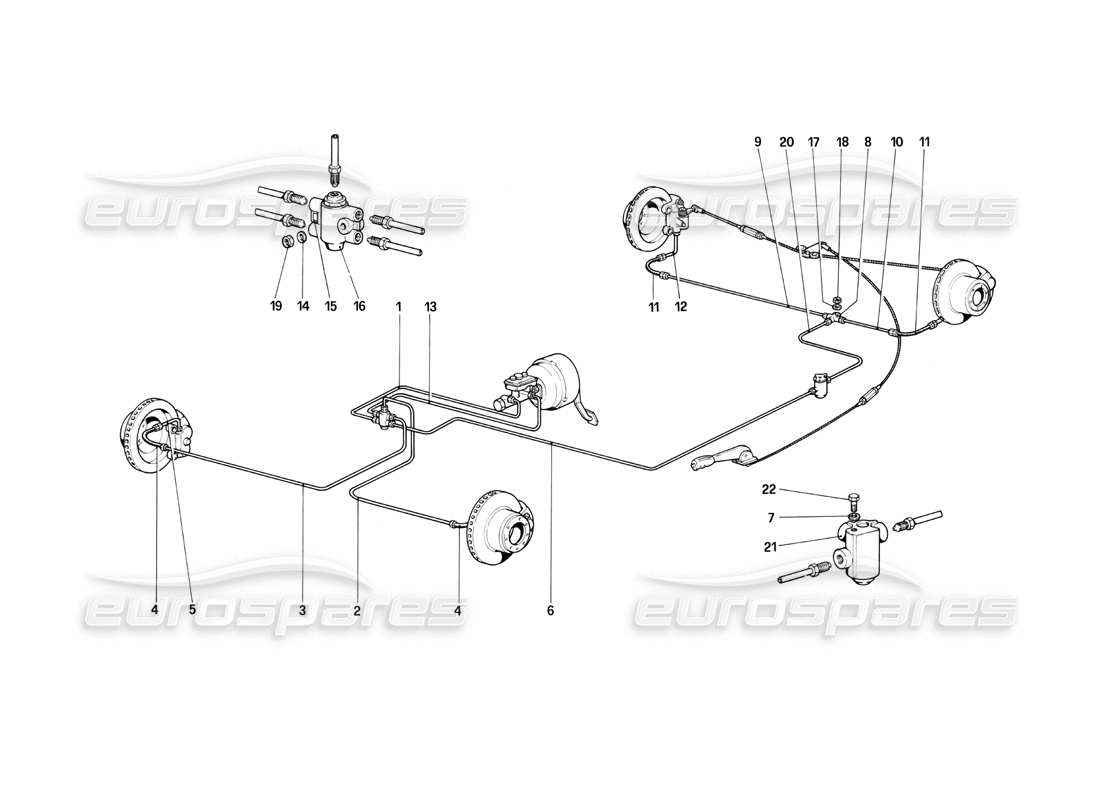

Ferrari Mondial 3.0 QV (1984) Brake System (Valid Only for LHD Up To Chassis No. 43011) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 104470
PIPE FROM BRAKE BOOSTER TO INDICATOR OF REAR
Supersession
Supersession
# 002
MPN: 106670
PIPE FROM INDICATOR TO LEFT FRONT HOSE
Supersession
Supersession
# 003
MPN: 116397
PIPE FROM INDICATOR TO RIGHT FRONT HOSE
from £9.78
from £9.78
# 004
MPN: 137313
FRONT CIRCUIT HOSE
from £45.00
from £45.00
# 005
MPN: 105856
PIPE FROM HOSE TO CALIPER
Supersession
Supersession
# 006
MPN: 117331
PIPE FROM VALVE TO VACUUM PUMP
from £26.98
from £26.98
This part replaces part number 116999
# 007
MPN: 106852
WASHER
Supersession
Supersession
This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
# 008
MPN: 101394
3-WAY UNION
from £27.42
from £27.42
This part replaces part number 680980 - and 7 more. Click to view details
# 009
MPN: 116397
PIPE FROM 3-WAY UNION TO RIGHT HOSE
from £9.78
from £9.78
# 010
MPN: 107090
PIPE FROM 3-WAY UNION TO LEFT HOSE
from £7.44
from £7.44
# 011
MPN: 137313
REAR HCSE
from £45.00
from £45.00
# 012
MPN: 101401
PIPE FROM HOSE TO REAR CALIPER
Supersession
Supersession
This part replaces part number 680675
# 013
MPN: 101407
PIPE FROM BRAKE BOOSTER TO INDICATOR
from £26.03
from £26.03
This part replaces part number 680683
# 014
MPN: 106850
WASHER
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 015
MPN: 108955
ELECTRIC INDICATOR
Not spare
# 016
MPN: 127757
BRAKE FAILURE INDICATOR
from £1,031.48
from £1,031.48
This part replaces part number 108803 - and 1 more. Click to view details
# 017
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 018
MPN: 12574211
NUT
from £0.71
from £0.71
# 019
MPN: 15896214
NUT
from £0.54
from £0.54
This part replaces part number 15896211
# 020
MPN: 101407
PIPE FROM VACUUM PUMP TO 3-WAY UNION
from £26.03
from £26.03
This part replaces part number 680683
# 021
MPN: 116316
BREAKING ACTION REGULATION FOR REAR BRAKES
from £200.00
from £200.00
# 022
MPN: 16043021
SCREW
from £0.53
from £0.53
