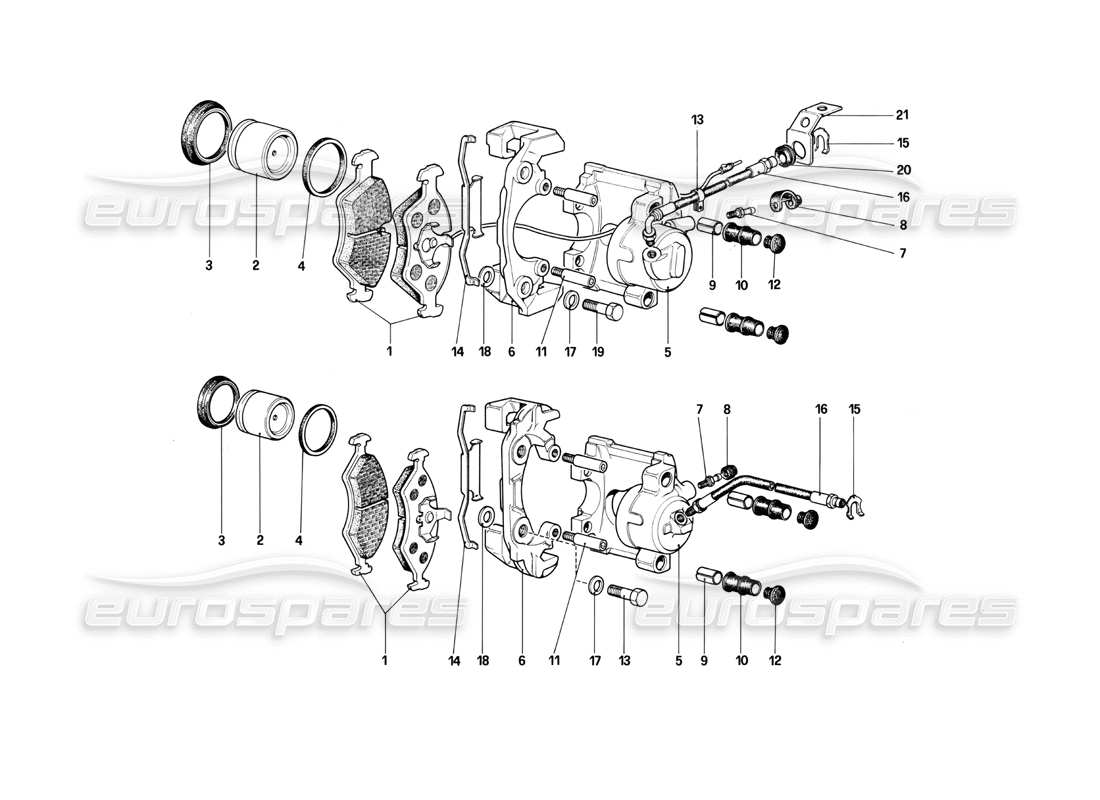

Ferrari Mondial 3.0 QV (1984) Calipers for Front and Rear Brakes (Valid for RHD-for LHD From Chassis No. 43013) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 00
MPN: 116928
OVERHAUL KIT FOR REAR CALIPERS
per caliper
from £57.08
from £57.08
# 000
MPN: 116927
OVERHAUL KIT FOR FRONT CALIPERS
per caliper
from £50.40
from £50.40
# 000
MPN: 136603
RIGHT REAR CALIPER UNIT
from £196.81
from £196.81
This part replaces part number 117184 - and 4 more. Click to view details
# 001
MPN: 117182
RIGHT FRONT CALIPER UNIT
from £162.45
from £162.45
# 001
MPN: 117184
RIGHT REAR CALIPER UNIT WITH PADS
Supersession
Supersession
# 001
MPN: 118588
FRONT BRAKE PADS
from £49.95
from £49.95
This part replaces part number 135704
# 001
MPN: 118589
REAR BRAKE PADS
from £57.75
from £57.75
# 001
MPN: 136601
LEFT FRONT CALIPER UNIT
from £170.72
from £170.72
This part replaces part number 117182 which we have in stock - and 4 more. Click to view details
# 002
MPN: ATE
BRAKE CYLINDER
Not supplied as spare parts but with units 117181 and 117182
# 002
MPN: ATE
BRAKE CYLINDER
Not supplied as spare parts but only with units 117183 and 117184
# 003
MPN: ATE
SEALING RING
With kit no. 116927
# 003
MPN: ATE
SEALING RING
With kit no. 116928
# 004
MPN: ATE
STOP RING
Not supplied as spare parts but with units 117181 and 117182
# 004
MPN: ATE
STOP RING
Not supplied as spare parts but only with units 117183 and 117184
# 005
MPN: ATE
CYLINDER BODY
Not supplied as spare parts but with units 117181 and 117182
# 005
MPN: ATE
CYLINDER BODY
Not supplied as spare parts but only with units 117183 and 117184
# 006
MPN: ATE
SUPPORT FOR CALIPER
Not supplied as spare parts but with units 117181 and 117182
# 006
MPN: ATE
SUPPORT FOR CALIPER
Not supplied as spare parts but only with units 117183 and 117184
# 007
MPN: ATE
BLEEDER
Not supplied as spare parts but with units 117181 and 117182
# 007
MPN: ATE
BLEEDER
Not supplied as spare parts but only with units 117183 and 117184
# 008
MPN: ATE
BLEEDER CAP
Not supplied as spare parts but with units 117181 and 117182
# 008
MPN: ATE
BLEEDER CAP
Not supplied as spare parts but only with units 117183 and 117184
# 009
MPN: ATE
GUIDE BUSH
With kit no. 116927
# 009
MPN: ATE
GUIDE BUSH
With kit no. 116928
# 010
MPN: ATE
DUST PROTECTION RING
With kit no. 116927
# 010
MPN: ATE
DUST PROTECTION RING
With kit no. 116928
# 011
MPN: ATE
THREADED PIN
With kit no. 116927
# 011
MPN: ATE
THREADED PIN
With kit no. 116928
# 012
MPN: ATE
CAP
With kit no. 116927
# 012
MPN: ATE
CAP
With kit no. 116928
# 013
MPN: 117194
CALIPERS FIXING SCREW
from £14.01
from £14.01
# 014
MPN: ATE
CLIP FOR CALIPER
# 014
MPN: ATE
CLIP FOR CALIPER
# 015
MPN: 116374
CLAMP FOR HOSE
from £1.17
from £1.17
# 015
MPN: 116374
CLAMP FOR HOSE
from £1.17
from £1.17
# 016
MPN: 118101
FRONT BRAKE HOSE
from £135.00
from £135.00
# 016
MPN: 271712
REAR BRAKE HOSE
from £14.94
from £14.94
This part replaces part number 118100 which we have in stock
# 017
MPN: 106854
WASHER
Supersession
Supersession
# 017
MPN: 11198371
WASHER
from £0.47
from £0.47
# 018
MPN: 107835
DITTO, THICKNESS 1 MM.
from £7.82
from £7.82
# 018
MPN: 108283
DITTO, THICKNESS 0,4 MM.
from £0.79
from £0.79
# 018
MPN: 108922
DITTO, THICKNESS 0,7 MM.
Supersession
Supersession
# 018
MPN: 117084
SHIM BETWEEN CALIPER AND HUB HOLDER 0,2 MM. THICKNESS
from £0.47
from £0.47
# 018
MPN: 117085
DITTO, THICKNESS 0,3 MM.
from £0.47
from £0.47
# 018
MPN: 117086
DITTO, THICKNESS 0,5 MM.
from £0.88
from £0.88
# 018
MPN: 156260
SHIM BETWEEN CALIPER AND STUB AXLE, 0,2 MM. THICKNESS
from £0.70
from £0.70
This part replaces part number 108918
# 018
MPN: 156261
DITTO, THICKNESS 0,3 MM.
from £2.97
from £2.97
This part replaces part number 108919
# 018
MPN: 156262
DITTO, THICKNESS 0,5 MM.
from £0.64
from £0.64
This part replaces part number 108920
# 018
MPN: 156263
DITTO, THICKNESS 0,6 MM.
from £0.65
from £0.65
This part replaces part number 108921
# 018
MPN: 156265
DITTO, THICKNESS 0,8 MM.
from £1.56
from £1.56
This part replaces part number 108923
# 018
MPN: 156266
DITTO, THICKNESS 1 MM.
from £0.64
from £0.64
This part replaces part number 108924
# 019
MPN: 117193
SCREW FIXING CALIPER TO STUB AXLE
from £28.94
from £28.94
# 020
MPN: 40134801
FAIR-LEAD
Supersession
Supersession
# 021
MPN: 118102
BRAKET FOR HOSE
from £11.76
from £11.76
