ferrari mondial 3.0 qv (1984) wheels parts diagram

041 - Wheels

Ferrari Mondial 3.0 QV (1984) Wheels Parts Diagram

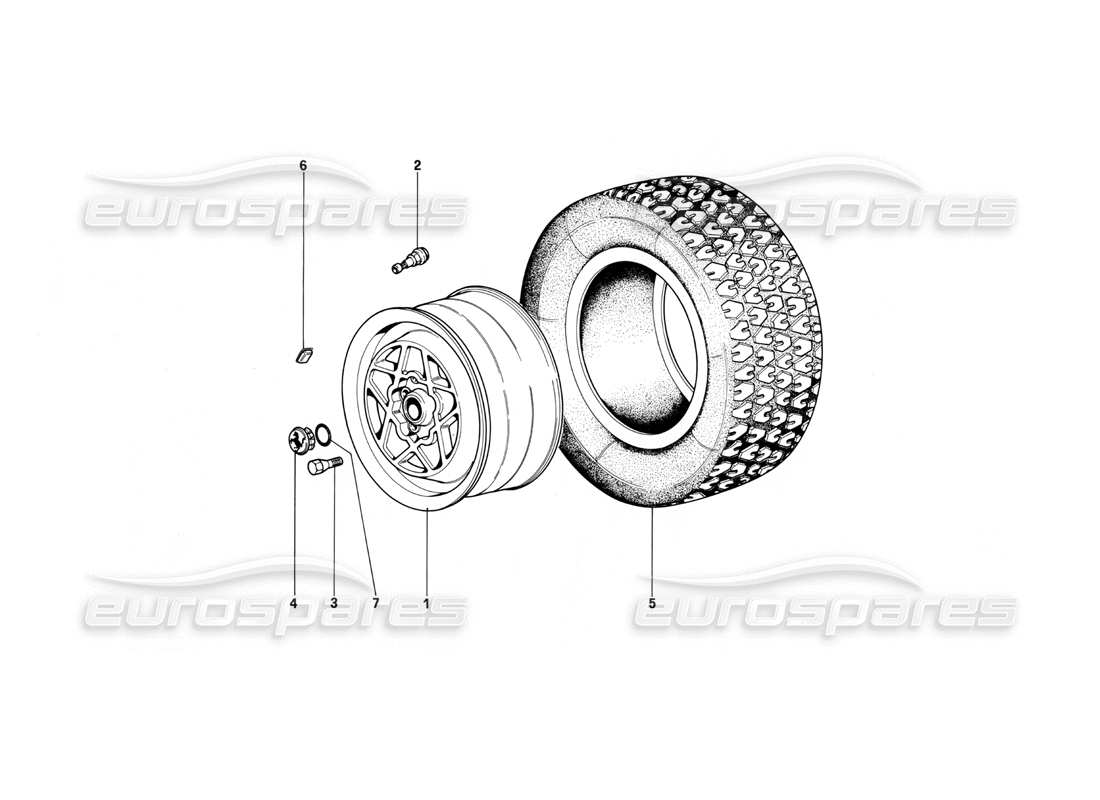

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: 117272

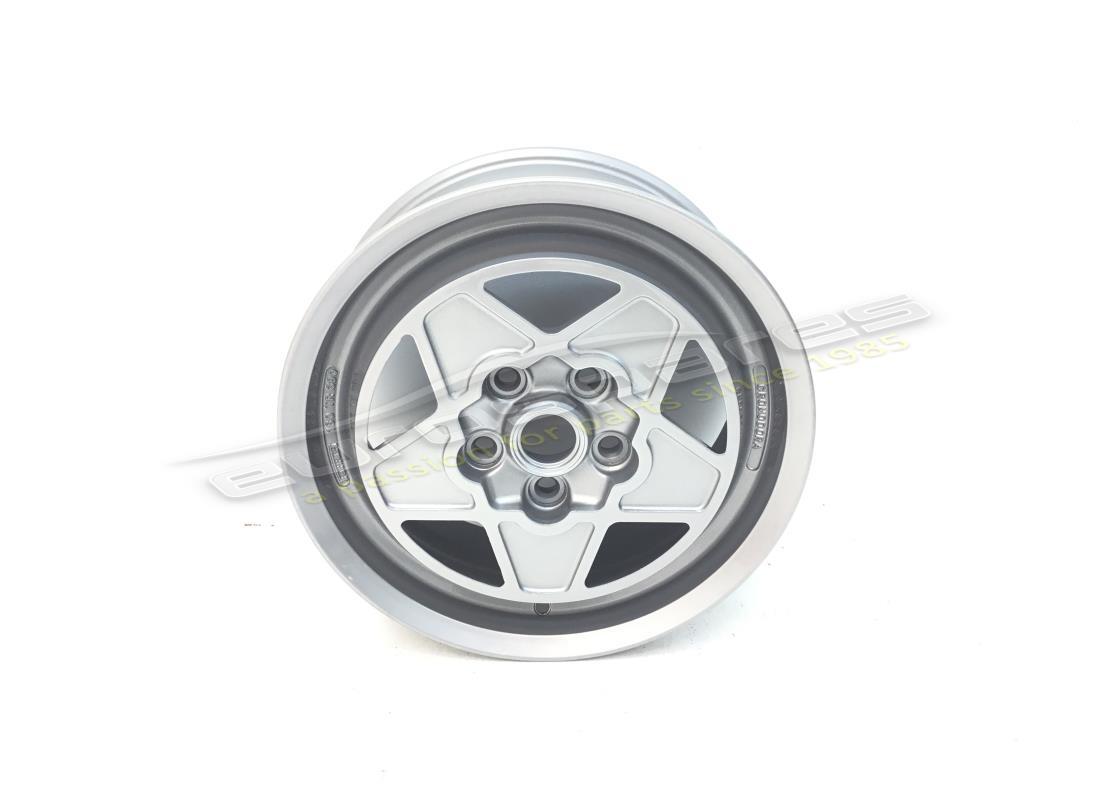

        TYRE RIM (SPEEDLINE)
        Use on Exhaustion of 118147 & 111637
        from £839.30
        from £839.30
        This part replaces part number 111637 - and 1 more. Click to view details
        # 001
        MPN: 118147
        WHEEL 180 TR 390
        from £484.56
        from £484.56
        This part replaces part number 116375 - and 2 more. Click to view details
        # 002
        MPN: 174166
        VALVE
        from £5.20
        from £5.20
        This part replaces part number 105069 - and 1 more. Click to view details
        # 002
        MPN: 70002212
        VALVE CAP KIT
        (includes 4x Ferrari logo chromium valve caps)
        from £43.44
        from £43.44
        # 003
        MPN: 120503
        WHEEL STUD
        from £19.95
        from £19.95
        # 004
        MPN: 340066
        WHEEL BADGE
        Use on exhasution of 226245 (darker yellow - suggested to replace in sets)
        from £5.33
        from £5.33
        This part replaces part number 226245 - and 3 more. Click to view details
        # 005
        MPN: 112804

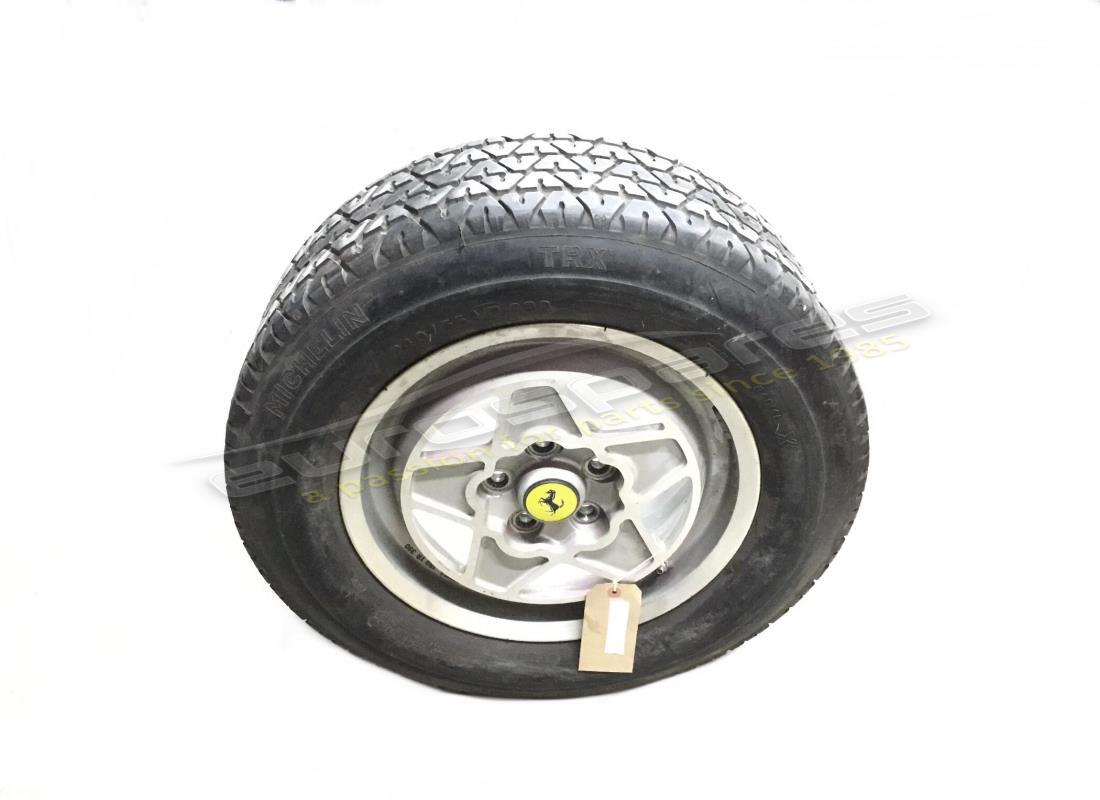

        TUBELESSTYRE
        MICHELIN TRX 240/55 VR 390
        # 006
        MPN: 118851
        COUNTERWEIGHT 10 GR.
        from £12.12
        from £12.12
        # 007
        MPN: 120065
        SEALING RING
        from £0.82
        from £0.82
