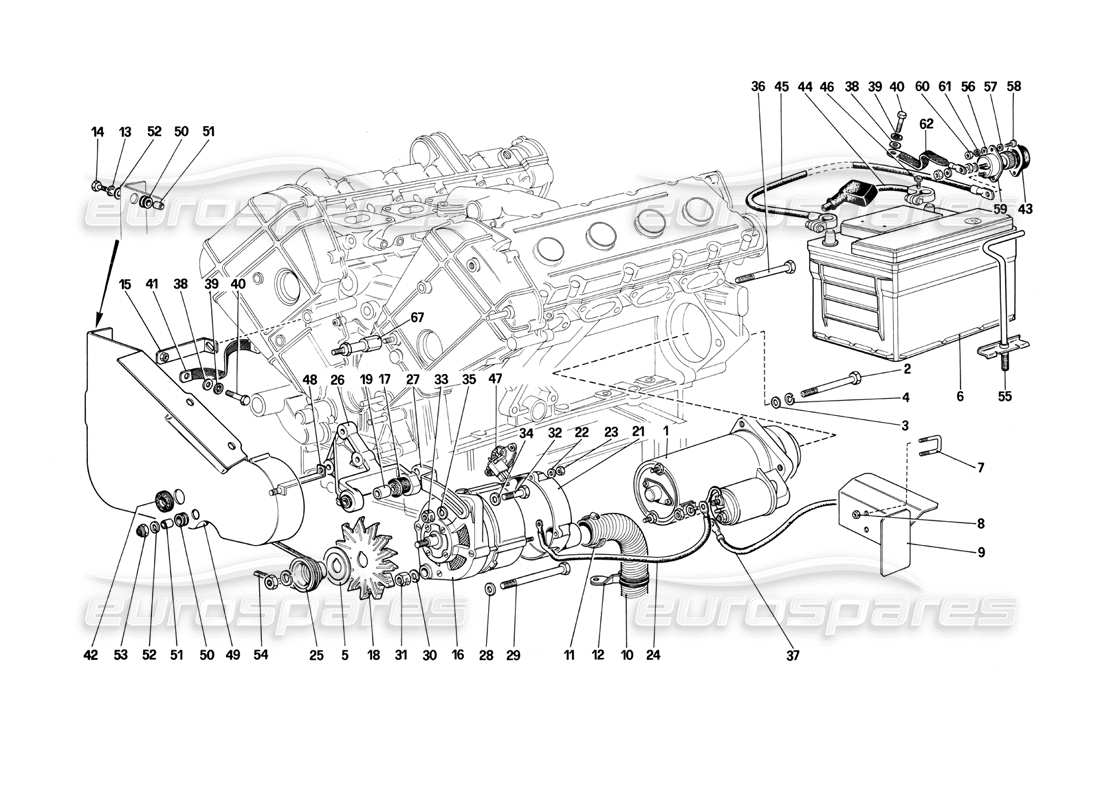

045 - Electric Generating System - (Engine With 2 Individual Belt)
Ferrari Mondial 3.0 QV (1984) Electric Generating System - (Engine With 2 Individual Belt) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 120967
STARTER MOTOR (BOSCH)
From car no. 51151
from £809.47
from £809.47
# 002
MPN: 16045121
SCREW
from £10.73
from £10.73
# 003
MPN: 11198074
WASHER
from £0.54
from £0.54
This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
# 004
MPN: 10519621
WASHER
Supersession
Supersession
# 005
MPN: 114305
WASHER
from £1.10
from £1.10
# 006
MPN: 118060
BATTERY 12V - 66 AH- 300A
Supersession
Supersession
# 007
MPN: 116591
FIXING PLATE
from £20.30
from £20.30
# 008
MPN: 12574011
NUT
from £0.53
from £0.53
# 009
MPN: 120451
METAL SHIELD FOR PROTECTION
from £74.61
from £74.61
# 010
MPN: 121190
PIPE
from £115.50
from £115.50
This part replaces part number 121838
# 011
MPN: 12180090
CLAMP
Supersession
Supersession
This part replaces part number 102958
# 012
MPN: 121839
CLAMP
from £40.67
from £40.67
# 013
MPN: 127494
WASHER
from £0.54
from £0.54
This part replaces part number 10516470 - and 4 more. Click to view details
# 014
MPN: 10902421
SCREW
from £0.54
from £0.54
# 015
MPN: 121621
BRACKET
from £9.70
from £9.70
# 016
MPN: 121761
ALTERNATOR BOSCH 85A
from £772.94
from £772.94
This part replaces part number 117967 - and 5 more. Click to view details
# 017
MPN: 117969
ELASTIC BUSH
from £60.78
from £60.78
# 018
MPN: 118802
FAN
from £32.05
from £32.05
# 019
MPN: 124678
BUSH
For support no. 124655
from £4.30
from £4.30
# 020
MPN: 11499921
STUD
from £6.43
from £6.43
# 021
MPN: 121837
AIR CONVEYOR
from £81.14
from £81.14
# 022
MPN: 12601171
WASHER
from £0.47
from £0.47
# 023
MPN: 15896421
NUT
from £0.47
from £0.47
# 024
MPN: 121188
GENERATOR CONNECTING CABLES
from £108.88
from £108.88
# 025
MPN: 121661
PULLEY
For compressor ASPERA
from £246.97
from £246.97
# 025
MPN: 123708
PULLEY
For compressor Sankyo
from £254.86
from £254.86
# 026
MPN: 117924
SUPPORT FOR ALTERNATOR
On exhaustion use no. 124655
from £79.88
from £79.88
# 027
MPN: 117937
PLATE FOR REGULATION
from £27.88
from £27.88
# 028
MPN: 13550421
WASHER
from £0.47
from £0.47
# 029
MPN: 15972221
BOLT
For support no. 117924
from £2.17
from £2.17
This part replaces part number 15972121
# 029
MPN: 15972921
BOLT
For support no. 124655
from £1.62
from £1.62
# 030
MPN: 12601471
WASHER
Supersession
Supersession
# 031
MPN: 117702
NUT
from £2.05
from £2.05
# 032
MPN: 11343821
SCREW
from £0.64
from £0.64
# 033
MPN: 117702
NUT
from £2.05
from £2.05
# 034
MPN: 13550421
WASHER
from £0.47
from £0.47
# 035
MPN: 105391
WASHER
from £2.24
from £2.24
This part replaces part number 4124022
# 036
MPN: 116751
FIXING BOLT
from £2.52
from £2.52
# 037
MPN: 116415
CABLE FROM STARTER TO ENGINE CONNECTOR
from £99.79
from £99.79
# 038
MPN: 10519601
WASHER
from £0.53
from £0.53
# 039
MPN: 10615679
WASHER
Supersession
Supersession
# 040
MPN: 16043121
BOLT
from £0.47
from £0.47
# 041
MPN: 155073
EARTH CABLE FOR ENGINE
from £7.24
from £7.24
This part replaces part number 115668
# 042
MPN: 40134108
PLUG
from £13.61
from £13.61
# 043
MPN: 119441
COVER FOR SWITCH
from £7.28
from £7.28
# 044
MPN: 116414
CABLE FROM BATTERY TO CONNECTOR
from £488.28
from £488.28
# 045
MPN: 116754
CABLE FROM BATTEY TO BATTERY SWITCH CONNECTOR OR TO GROUND
Supersession
Supersession
# 046
MPN: 12575411
NUT
Supersession
Supersession
# 047
MPN: 121840
VOLTAGE REGULATOR
from £146.95
from £146.95
# 048
MPN: 121467
BRACKET
For protection plate no. 121620
from £19.77
from £19.77
This part replaces part number 120874
# 048
MPN: 123331
BRACKET
For protection plate no. 124262
from £22.90
from £22.90
# 049
MPN: 121620
PROTECTION PLATE FOR GENERATOR
For ASPERA compressor
from £139.78
from £139.78
# 049
MPN: 124262
PROTECTION PLATE FOR GENERATOR
For Sankyo compressor
from £132.22
from £132.22
# 050
MPN: 103549
RUBBER BUSH
from £0.70
from £0.70
# 051
MPN: 103550
BUSH
from £11.27
from £11.27
This part replaces part number 4130913
# 052
MPN: 12643724
WASHER
from £0.52
from £0.52
This part replaces part number 109684 - and 4 more. Click to view details
# 053
MPN: 12575411
NUT
Supersession
Supersession
# 054
MPN: 121760
CONTROL BELT ALTERNATOR
For compressor ASPERA
from £35.42
from £35.42
# 054
MPN: 130493
CONTROL BELT ALTERNATOR
For compressor Sankyo
from £22.78
from £22.78
This part replaces part number 123709
# 055
MPN: 60641100
BOLT ASSEMBLY HOLDING BATTERY
from £180.72
from £180.72
# 056
MPN: 14498501
WASHER
from £0.53
from £0.53
This part replaces part number 14498521 which we have in stock
# 057
MPN: 12639401
WASHER
from £0.54
from £0.54
# 058
MPN: 10373411
SCREW
from £0.47
from £0.47
# 059
MPN: 139607
BATTERY SWITCH
Supersession
Supersession
# 060
MPN: 16101711
NUT
from £0.53
from £0.53
This part replaces part number 16101715
# 061
MPN: 10615171
WASHER
from £0.47
from £0.47
This part replaces part number 10615174
# 062
MPN: 116753
COPPER BRAID FROM BATTERY TERMINAL EARTH - CHASSIS
Supersession
Supersession
# 063
MPN: 119441
COVER FOR SWITCH
from £7.28
from £7.28
# 066
MPN: 12575411
NUT
Supersession
Supersession
# 067
MPN: 124263
WHEEL STUD
For protection plate no. 124262
from £67.19
from £67.19
-part-diagram-046.webp "FERRARI MONDIAL 3.0 QV (1984) AIR CONDITIONING COMPRESSOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI MONDIAL 3.0 QV (1984) TOOL KIT PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI MONDIAL 3.0 QV (1984) PEDAL BOARD - CLUTCH CONTROL (VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI MONDIAL 3.0 QV (1984) THROTTLE CONTROL AND BRAKE HYDRAULIC SYSTEM (VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI MONDIAL 3.0 QV (1984) BODY SHELL - OUTER ELEMENTS PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI MONDIAL 3.0 QV (1984) BODY SHELL - INNER ELEMENTS PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI MONDIAL 3.0 QV (1984) BODY SHELL - INNER ELEMENTS - QUATTROVALVOLE PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI MONDIAL 3.0 QV (1984) BODY SHELL - INNER ELEMENTS - CABRIOLET PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI MONDIAL 3.0 QV (1984) LUGGAGE AND PASSENGER COMPARTMENT INSULATION PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI MONDIAL 3.0 QV (1984) QUATTROVALVOLE LUGGAGE AND PASSENGER COMPARTMENTE INSULATIOR - CABRIOLET PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI MONDIAL 3.0 QV (1984) FRONT COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI MONDIAL 3.0 QV (1984) ENGINE COMPARTMENT LID AND CARPETING PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI MONDIAL 3.0 QV (1984) LUGGAGE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI MONDIAL 3.0 QV (1984) DOORS - QUATTROVALVOLE PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI MONDIAL 3.0 QV (1984) DOORS - CABRIOLET PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI MONDIAL 3.0 QV (1984) BUMPERS, LIGHTS AND FRONT GLASSES PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI MONDIAL 3.0 QV (1984) BUMPERS, LIGHTS AND REAR GLASSES PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI MONDIAL 3.0 QV (1984) SEATS - QUATTROVALVOLE PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI MONDIAL 3.0 QV (1984) SEATS - CABRIOLET PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI MONDIAL 3.0 QV (1984) ROOF, TUNNEL AND SAFETY BELTS PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI MONDIAL 3.0 QV (1984) INSTRUMENT PANEL PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI MONDIAL 3.0 QV (1984) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI MONDIAL 3.0 QV (1984) LIGHTS LIFTING DEVICE AND HEADLIGHTS PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI MONDIAL 3.0 QV (1984) ELECTRICAL BOARD PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI MONDIAL 3.0 QV (1984) WINDSHIELD WIPER - WASHER AND HORN PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI MONDIAL 3.0 QV (1984) HEATING SYSTEM PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI MONDIAL 3.0 QV (1984) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI MONDIAL 3.0 QV (1984) SUN ROOF - QUATTROVALVOLE PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI MONDIAL 3.0 QV (1984) TOP - CABRIOLET PARTS DIAGRAM")
-part-diagram-a.webp "FERRARI MONDIAL 3.0 QV (1984) SPARE ASSEMBLY UNITS - MECHANICAL PARTS DIAGRAM")
-part-diagram-b.webp "FERRARI MONDIAL 3.0 QV (1984) SPARE ASSEMBLY UNITS - COACHWORK PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI MONDIAL 3.0 QV (1984) ENGINE - GEARBOX AND SUPPORTS PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI MONDIAL 3.0 QV (1984) CRANKCASE PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI MONDIAL 3.0 QV (1984) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI MONDIAL 3.0 QV (1984) FLYWHEEL AND CLUTCH HOUSING SPACER PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI MONDIAL 3.0 QV (1984) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI MONDIAL 3.0 QV (1984) CYLINDER HEAD (LEFT) PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI MONDIAL 3.0 QV (1984) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI MONDIAL 3.0 QV (1984) TIMING SYSTEM - CONTROLS PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI MONDIAL 3.0 QV (1984) FUEL PUMP AND PIPES (QUATTROVALVOLE) PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI MONDIAL 3.0 QV (1984) FUEL PUMP AND PIPES (CABRIOLET) PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI MONDIAL 3.0 QV (1984) FUEL INJECTION SYSTEM - FUEL DISTRIBUTORS, LINES PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI MONDIAL 3.0 QV (1984) AIR INTAKE AND MANIFOLDS PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI MONDIAL 3.0 QV (1984) THROTTLE HOUSING AND LINKAGE PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI MONDIAL 3.0 QV (1984) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI MONDIAL 3.0 QV (1984) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI MONDIAL 3.0 QV (1984) LUBRICATION SYSTEM PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI MONDIAL 3.0 QV (1984) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI MONDIAL 3.0 QV (1984) WATER PUMP AND PIPINGS PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI MONDIAL 3.0 QV (1984) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI MONDIAL 3.0 QV (1984) CLUTCH RELEASE CONTROL PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI MONDIAL 3.0 QV (1984) GEARBOX TRANSMISSION PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI MONDIAL 3.0 QV (1984) GEARBOX - DIFFERENTIAL HOUSING AND OIL SUMP PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI MONDIAL 3.0 QV (1984) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI MONDIAL 3.0 QV (1984) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI MONDIAL 3.0 QV (1984) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI MONDIAL 3.0 QV (1984) OUTSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI MONDIAL 3.0 QV (1984) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI MONDIAL 3.0 QV (1984) BRAKE HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI MONDIAL 3.0 QV (1984) BRAKE SYSTEM (VALID ONLY FOR LHD UP TO CHASSIS NO. 43011) PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI MONDIAL 3.0 QV (1984) BRAKE SYSTEM (VALID FOR RHD - FOR LHD FROM CHASSIS NO. 43013) PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI MONDIAL 3.0 QV (1984) CALIPERS FOR FRONT AND REAR BRAKES (VALID ONLY FOR LHD UP TO CHASSIS NO. 43011) PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI MONDIAL 3.0 QV (1984) CALIPERS FOR FRONT AND REAR BRAKES (VALID FOR RHD-FOR LHD FROM CHASSIS NO. 43013) PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI MONDIAL 3.0 QV (1984) HAND - BRAKE CONTROL (VALID ONLY FOR LHD UP TO CHASSIS NO. 43011) PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI MONDIAL 3.0 QV (1984) HAND - BRAKE CONTROL (VALID FOR RHD - FOR LHD FROM CHASSIS NO. 43013) PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI MONDIAL 3.0 QV (1984) STEERING BOX AND LINKAGE PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI MONDIAL 3.0 QV (1984) STEERING CULUMN PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI MONDIAL 3.0 QV (1984) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI MONDIAL 3.0 QV (1984) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI MONDIAL 3.0 QV (1984) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI MONDIAL 3.0 QV (1984) REAR SUSPENSION - WISHBBNES PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI MONDIAL 3.0 QV (1984) WHEELS PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI MONDIAL 3.0 QV (1984) ENGINE IGNITION - (QUATTROVALVOLE) PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI MONDIAL 3.0 QV (1984) ENGINE IGNITION - (CABRIOLET) PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI MONDIAL 3.0 QV (1984) ELECTRIC GENERATING SYSTEM - (ENGINE WITH SINGLE BELT) PARTS DIAGRAM")
