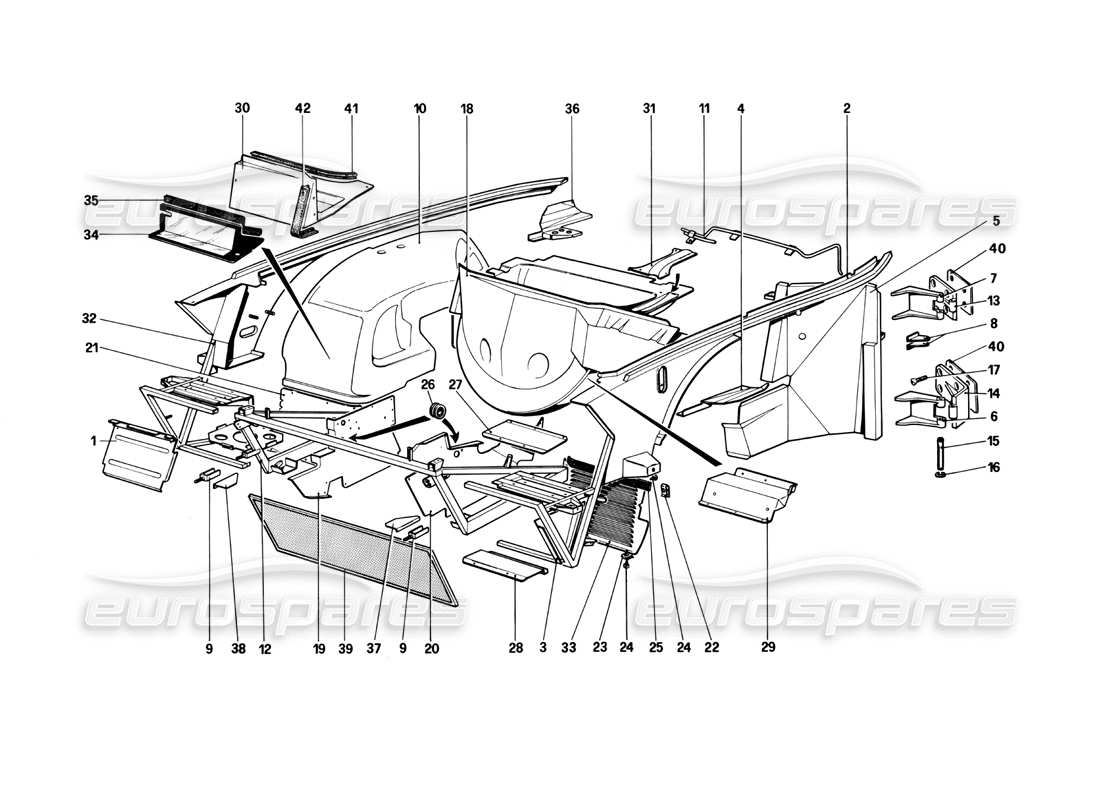

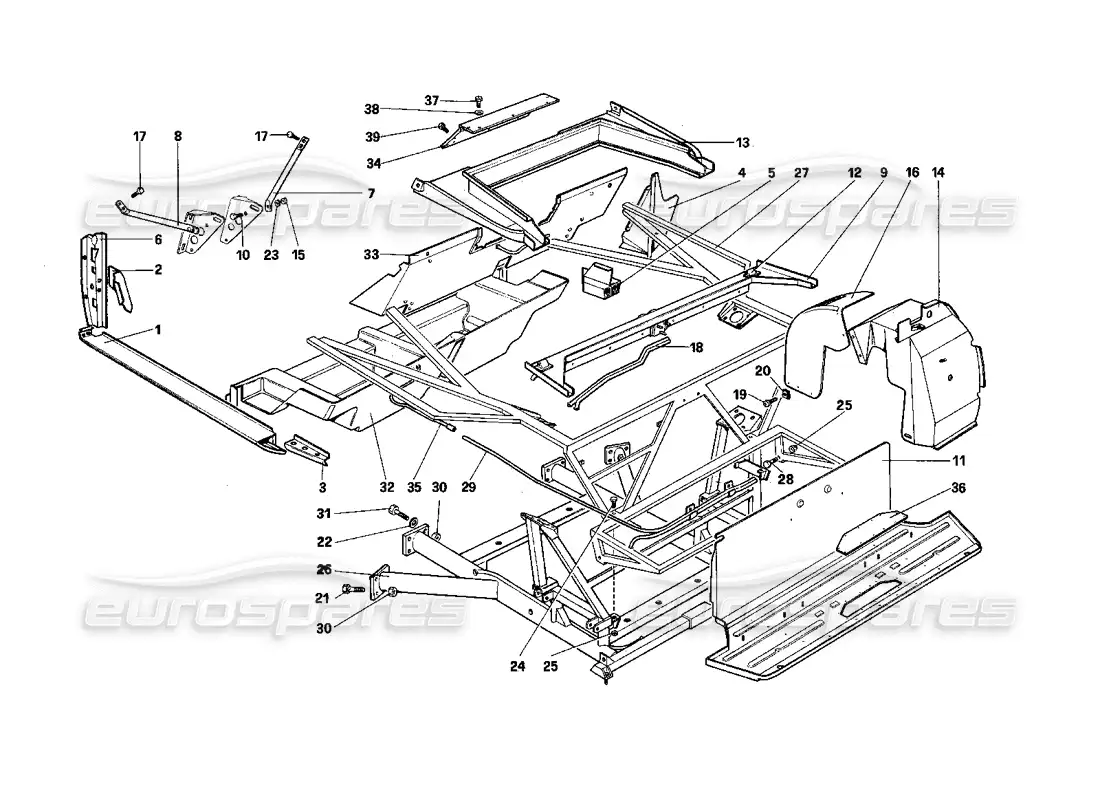

102 - Body Shell - Inner Elements

Ferrari Mondial 3.0 QV (1984) Body Shell - Inner Elements Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                    #
                                                                                    Part number
                                                                                    Description
                                                                                    Key
                                                                                    Price
                                                                                    # 000
                                                                                    MPN: 70000685
                                                                                    FRONT FRAME
                                                                                    from £2,205.66
                                                                                    from £2,205.66

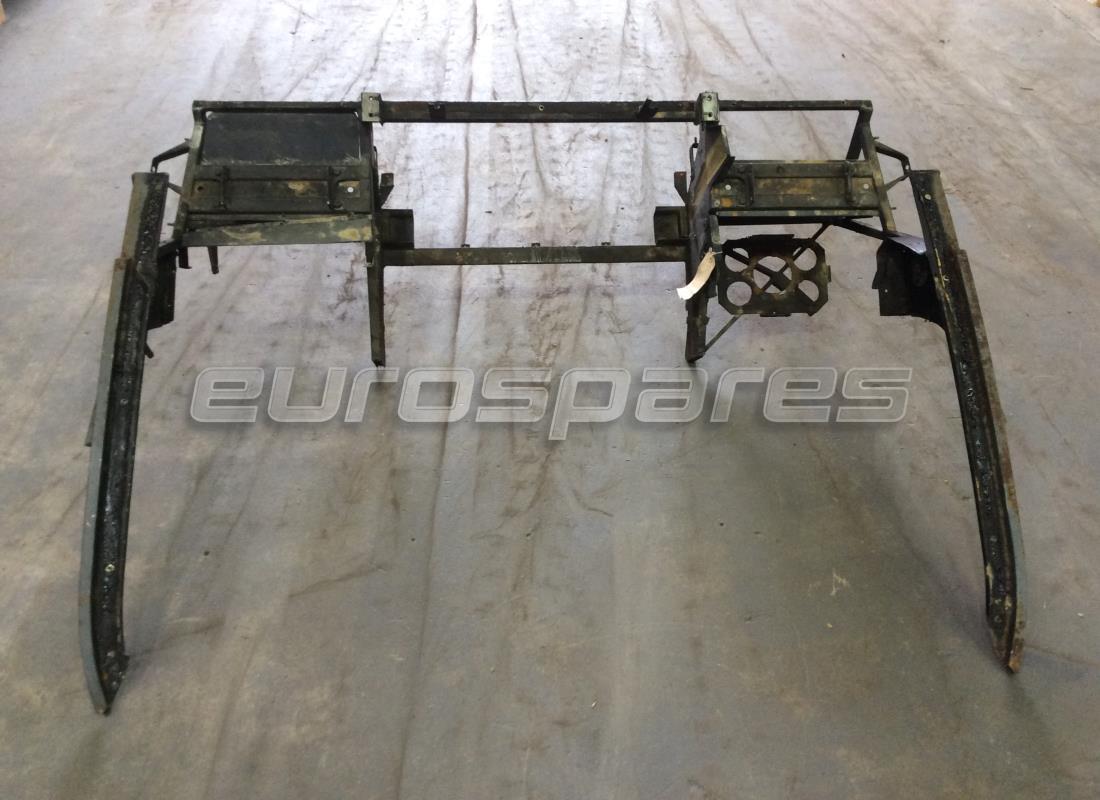

                                                                                    FRONT FRAME COMPLETE Genuine Ferrari Part - New In stock
                                                                                    # 001
                                                                                    MPN: 60640400
                                                                                    FRONT PROTECTION FOR BATTERY
                                                                                    from £17.80
                                                                                    from £17.80
                                                                                    BATTERY COVER PANEL Genuine Ferrari Part - New (to order)
                                                                                    # 002
                                                                                    MPN: 60948400
                                                                                    FRONT LH PANEL WORK
                                                                                    from £586.91
                                                                                    from £586.91
                                                                                    LH FRONT SPACE FRAME QV Genuine Ferrari Part - New (to order)
                                                                                    # 003
                                                                                    MPN: 60642800
                                                                                    LH SHIELDPANEL FOR A.C. CONDENSER
                                                                                    Supersession
                                                                                    Supersession
                                                                                    Genuine Ferrari Part (no longer available to order)
                                                                                    # 004
                                                                                    MPN: 60902500
                                                                                    PLATE FOR LH WHEELHOUSE (LHD)
                                                                                    from £15.17
                                                                                    from £15.17
                                                                                    LH PLATE LHD Genuine Ferrari Part - New In stock
                                                                                    # 004
                                                                                    MPN: 60903400
                                                                                    PLATE FOR LH WHEELHOUSE (RHD)
                                                                                    from £37.71
                                                                                    from £37.71
                                                                                    LH SUPPORT RHD Genuine Ferrari Part - New (to order)
                                                                                    # 005
                                                                                    MPN: 116646
                                                                                    FRONT LH SHIELD
                                                                                    from £61.42
                                                                                    from £61.42
                                                                                    LH FRONT SHIELD LHD Genuine Ferrari Part - New (to order)
                                                                                    # 005
                                                                                    MPN: 119432
                                                                                    FRONT RH SHIELD (4V.)
                                                                                    To 30-9-82
                                                                                    RH FRONT SHIELD Genuine Ferrari Part - New (to order)
                                                                                    # 005
                                                                                    MPN: 120459
                                                                                    FRONT RH SHIELD
                                                                                    Front 1-10-82
                                                                                    from £168.78
                                                                                    from £168.78
                                                                                    RH FRONT SHIELD LHD Genuine Ferrari Part - New (to order)
                                                                                    # 006
                                                                                    MPN: 60547300
                                                                                    LOWER FIXED HINGE
                                                                                    from £20.95
                                                                                    from £20.95
                                                                                    LOWER HINGE Genuine Ferrari Part - New In stock
                                                                                    # 006
                                                                                    MPN: 60547300/A
                                                                                    LOWER FIXED HINGE KIT
                                                                                    from £167.90
                                                                                    from £167.90
                                                                                    LOWER FIXED HINGE KIT Genuine Ferrari Part - New In stock
                                                                                    # 006
                                                                                    MPN: 61212800
                                                                                    LOWER HINGE FOR LH DOOR (CAB.)
                                                                                    from £25.57
                                                                                    from £25.57
                                                                                    LH LOWER HINGE Genuine Ferrari Part - New (to order)
                                                                                    # 006
                                                                                    MPN: 61340800
                                                                                    LOWER HINGE FOR RH DOOR (CAB.)
                                                                                    from £24.35
                                                                                    from £24.35
                                                                                    RH LOWER HINGE Genuine Ferrari Part - New In stock
                                                                                    # 007
                                                                                    MPN: 60547000
                                                                                    UPPER HINGE FOR DOOR
                                                                                    from £8.93
                                                                                    from £8.93
                                                                                    UPPER HINGE Genuine Ferrari Part - New In stock
                                                                                    # 007
                                                                                    MPN: 60547000/A
                                                                                    UPPER HINGE KIT
                                                                                    from £52.45
                                                                                    from £52.45
                                                                                    UPPER HINGE KIT Genuine Ferrari Part - New In stock
                                                                                    # 008
                                                                                    MPN: 60549100
                                                                                    BRACKET
                                                                                    from £1.61
                                                                                    from £1.61
                                                                                    This part replaces part number 60549200
                                                                                    DOOR ARRESTOR BRACKET Genuine Ferrari Part - New In stock
                                                                                    # 009
                                                                                    MPN: 115873
                                                                                    BRACKET FIXING RADIATOR GRILL
                                                                                    from £12.03
                                                                                    from £12.03
                                                                                    GRILLE BRACKET Genuine Ferrari Part - New In stock
                                                                                    # 010
                                                                                    MPN: 60615700
                                                                                    WHEEL HOUSE, FRONT RH
                                                                                    from £270.30
                                                                                    from £270.30
                                                                                    RH FRONT WHEEL ARCH Genuine Ferrari Part - New (to order)
                                                                                    RH FRONT WHEEL ARCH Genuine Ferrari Part - Used In stock
                                                                                    # 010
                                                                                    MPN: 60615800
                                                                                    WHEEL HOUSE, FRONT LH
                                                                                    from £258.98
                                                                                    from £258.98
                                                                                    LH FRONT WHEEL ARCH Genuine Ferrari Part - New In stock
                                                                                    LH FRONT WHEEL ARCH Genuine Ferrari Part - Used In stock
                                                                                    # 011
                                                                                    MPN: 60787400
                                                                                    CABLE DUCT FOR FRONT BONNET (LHD)
                                                                                    from £16.07
                                                                                    from £16.07
                                                                                    CABLE DUCT LHD Genuine Ferrari Part - New In stock
                                                                                    # 011
                                                                                    MPN: 60896500
                                                                                    CABLE DUCT FOR FRONT BONNET (RHD)
                                                                                    from £29.79
                                                                                    from £29.79
                                                                                    CABLE DUCT RHD Genuine Ferrari Part - New (to order)
                                                                                    # 012
                                                                                    MPN: 117683
                                                                                    FRONT FRAME (4V. - LHD)
                                                                                    from £871.50
                                                                                    from £871.50
                                                                                    This part replaces part number 120296 which we have in stock - and 1 more. Click to view details
                                                                                    FRONT FRAME 4V LHD Genuine Ferrari Part - New In stock
                                                                                    # 012
                                                                                    MPN: 123241
                                                                                    FRONT FRAME (4V. - RHD)
                                                                                    from £1,732.50
                                                                                    from £1,732.50
                                                                                    Genuine Ferrari Part (no longer available to order)
                                                                                    FRONT FRAME 4V LHD Genuine Ferrari Part - Used In stock
                                                                                    Complete with wing rails
                                                                                    # 012
                                                                                    MPN: 124349
                                                                                    FRONT FRAME (CAB. - LHD)
                                                                                    from £824.83
                                                                                    from £824.83
                                                                                    FRONT FRAME CAB LHD Genuine Ferrari Part - New In stock
                                                                                    # 012
                                                                                    MPN: 124352
                                                                                    FRONT FRAME (CAB. - RHD)
                                                                                    from £662.67
                                                                                    from £662.67
                                                                                    FRONT FRAME CAB RHD Genuine Ferrari Part - New (to order)
                                                                                    # 013
                                                                                    MPN: 60547200
                                                                                    UPPER MOBILE HINGE FOR DOOR
                                                                                    from £11.38
                                                                                    from £11.38
                                                                                    UPPER HINGE Genuine Ferrari Part - New In stock
                                                                                    # 014
                                                                                    MPN: 60547500
                                                                                    LOWER MOBILE HINGE FOR DOOR
                                                                                    from £108.27
                                                                                    from £108.27
                                                                                    LOWER HINGE Genuine Ferrari Part - New In stock
                                                                                    # 015
                                                                                    MPN: 60547600
                                                                                    PIN FOR DOOR HINGE
                                                                                    from £75.63
                                                                                    from £75.63
                                                                                    DOOR PIN Genuine Ferrari Part - New In stock
                                                                                    # 016
                                                                                    MPN: 16160976
                                                                                    SEEGER RING
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    ANELLO ELAST.3 PUNTI D.8 Genuine Ferrari Part - New In stock
                                                                                    # 017
                                                                                    MPN: 60127206
                                                                                    SCREW
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    COUNTERSUNK SOCKET SCREW Genuine Ferrari Part - New (to order)
                                                                                    # 018
                                                                                    MPN: 60950100
                                                                                    SPARE WHEEL CARRIER (RHD)
                                                                                    from £288.75
                                                                                    from £288.75
                                                                                    Genuine Ferrari Part (no longer available to order)
                                                                                    SPARE WHEEL HOLDER RHD Genuine Ferrari Part - Used In stock

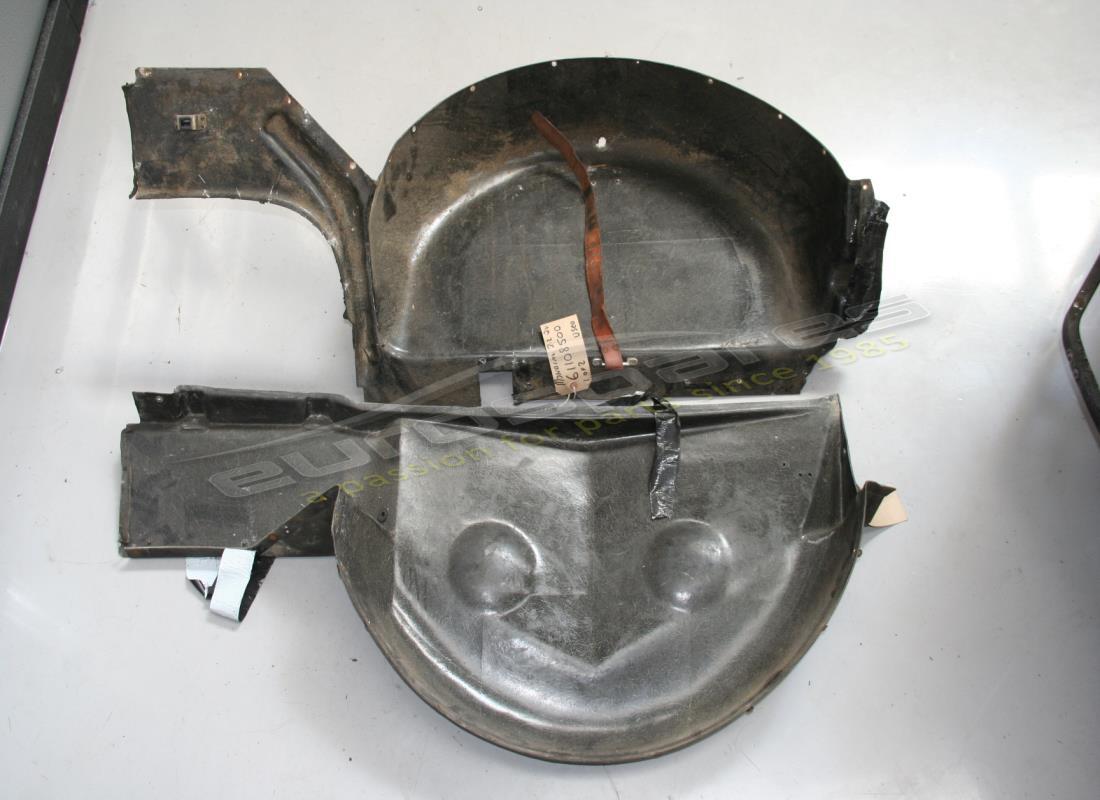

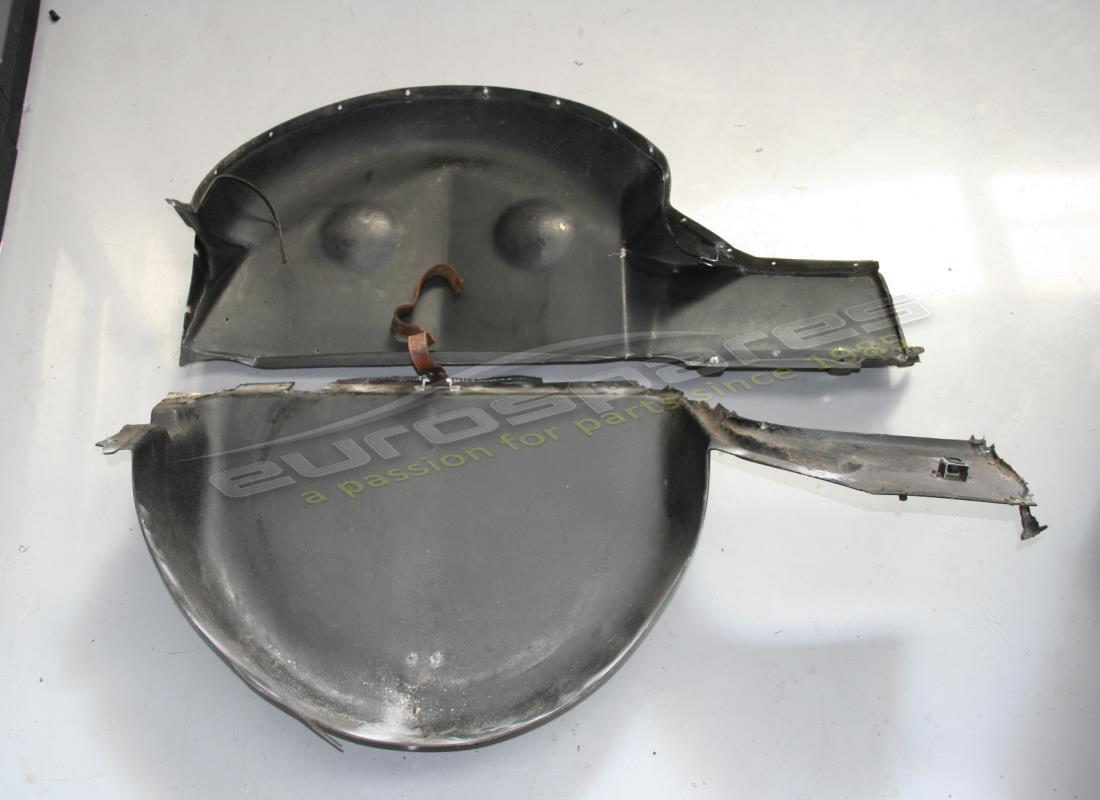

                                                                                    # 018
                                                                                    MPN: 61108500
                                                                                    SPARE WHEEL CARRIER (LHD)
                                                                                    from £338.66
                                                                                    from £338.66
                                                                                    SPARE WHEEL CARRIER LHD Genuine Ferrari Part - New (to order)
                                                                                    SPARE WHEEL CARRIER LHD Genuine Ferrari Part - Used In stock
                                                                                    MADE IN TWO HALFS.
                                                                                    # 019
                                                                                    MPN: 61290400
                                                                                    RH SHIELDPANEL FOR RADIATOR
                                                                                    from £193.10
                                                                                    from £193.10
                                                                                    RH RAD SHIELD PANEL Genuine Ferrari Part - New In stock
                                                                                    # 020
                                                                                    MPN: 60665800
                                                                                    LH SHIELDPANEL FOR RADIATOR
                                                                                    from £107.02
                                                                                    from £107.02
                                                                                    LH RAD SHIELD PANEL Genuine Ferrari Part - New In stock
                                                                                    # 021
                                                                                    MPN: 60680100
                                                                                    GRAVEL GUARD FRONT RH
                                                                                    from £205.81
                                                                                    from £205.81
                                                                                    STONE GUARD Genuine Ferrari Part - New (to order)
                                                                                    # 022
                                                                                    MPN: 60696300
                                                                                    UPPER CLIP
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    SCREW CLIP Genuine Ferrari Part - New In stock
                                                                                    # 023
                                                                                    MPN: 60646900
                                                                                    LOWER CLIP
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    CLIP Genuine Ferrari Part - New In stock
                                                                                    # 024
                                                                                    MPN: 15644101
                                                                                    SCREW
                                                                                    from £0.74
                                                                                    from £0.74
                                                                                    SELF TAPPING SCREW Genuine Ferrari Part - New In stock
                                                                                    # 025
                                                                                    MPN: 60696500
                                                                                    GASKET
                                                                                    from £8.29
                                                                                    from £8.29
                                                                                    GASKET Genuine Ferrari Part - New (to order)
                                                                                    # 026
                                                                                    MPN: 10396480
                                                                                    FAIR -LEAD
                                                                                    from £2.34
                                                                                    from £2.34
                                                                                    This part replaces part number 103516
                                                                                    RING Genuine Ferrari Part - New In stock
                                                                                    CABLE GROMMET. (10396480) Genuine Maserati Part - New (to order)
                                                                                    # 027
                                                                                    MPN: 60643300
                                                                                    UPPER SHIELDPANAL FOR A.C. CONDENSER
                                                                                    from £33.44
                                                                                    from £33.44
                                                                                    PANEL Genuine Ferrari Part - New (to order)
                                                                                    # 028
                                                                                    MPN: 60659600
                                                                                    LOWER SHIELDPANEL FOR A.C. CONDENSER
                                                                                    from £29.32
                                                                                    from £29.32
                                                                                    GUARD Genuine Ferrari Part - New (to order)
                                                                                    # 029
                                                                                    MPN: 60643500
                                                                                    UPPER REAR PANEL FOR A.C. CONDENSER
                                                                                    from £29.02
                                                                                    from £29.02
                                                                                    COVER Genuine Ferrari Part - New (to order)
                                                                                    # 030
                                                                                    MPN: 60948500
                                                                                    FRONT SHIELDPANEL FOR WATER BAG
                                                                                    from £41.35
                                                                                    from £41.35
                                                                                    This part replaces part number 60629900 - and 3 more. Click to view details
                                                                                    FRONT COVER Genuine Ferrari Part - New (to order)
                                                                                    FRONT COVER Genuine Ferrari Part - Used In stock
                                                                                    # 031
                                                                                    MPN: 60741500
                                                                                    CABLE SHIELDPANEL ON WHEEL CARRIER
                                                                                    from £34.87
                                                                                    from £34.87
                                                                                    CABLE SHIELD PANEL Genuine Ferrari Part - New In stock
                                                                                    CABLE SHIELD PANEL Genuine Ferrari Part - Used In stock
                                                                                    # 032
                                                                                    MPN: 60948300
                                                                                    FRONT RH PANEL WORK
                                                                                    from £454.40
                                                                                    from £454.40
                                                                                    RH FRONT SPACE FRAME QV Genuine Ferrari Part - New (to order)
                                                                                    # 033
                                                                                    MPN: 60680200
                                                                                    GRAVEL, GUARD FRONT LH
                                                                                    STONE GUARD Genuine Ferrari Part - New (to order)
                                                                                    # 034
                                                                                    MPN: 60641500
                                                                                    LID FOR BATTERY INSPECTION
                                                                                    from £840.27
                                                                                    from £840.27
                                                                                    BATTERY INSPECTION PLATE Genuine Ferrari Part - New (to order)
                                                                                    # 035
                                                                                    MPN: 60641600
                                                                                    GASKET
                                                                                    Supersession
                                                                                    Supersession
                                                                                    Genuine Ferrari Part (no longer available to order)
                                                                                    # 036
                                                                                    MPN: 61088800
                                                                                    PLATE FOR FRONT RH WHEELHOUSE
                                                                                    from £44.15
                                                                                    from £44.15
                                                                                    RH WHEEL ARCH SUPPORT LHD Genuine Ferrari Part - New In stock
                                                                                    # 037
                                                                                    MPN: 60695200
                                                                                    LH FRONT BRACKET
                                                                                    from £4.46
                                                                                    from £4.46
                                                                                    BRACKET Genuine Ferrari Part - New (to order)
                                                                                    # 038
                                                                                    MPN: 60695300
                                                                                    RH FRONT BRACKET
                                                                                    from £4.46
                                                                                    from £4.46
                                                                                    BRACKET Genuine Ferrari Part - New (to order)
                                                                                    # 039
                                                                                    MPN: 61097500
                                                                                    FILTER
                                                                                    Tropic version only
                                                                                    from £121.20
                                                                                    from £121.20
                                                                                    FILTER Genuine Ferrari Part - New (to order)
                                                                                    # 040
                                                                                    MPN: 60732000
                                                                                    ZINCOFIL
                                                                                    from £1.61
                                                                                    from £1.61
                                                                                    ZINC FOIL Genuine Ferrari Part - New (to order)
                                                                                    # 041
                                                                                    MPN: 60920200
                                                                                    GASKET
                                                                                    from £12.69
                                                                                    from £12.69
                                                                                    GASKET Genuine Ferrari Part - New (to order)
                                                                                    # 042
                                                                                    MPN: 60920500
                                                                                    GASKET
                                                                                    Supersession
                                                                                    Supersession
                                                                                    Genuine Ferrari Part (no longer available to order)
