106 - Quattrovalvole Luggage and Passenger Compartmente Insulatior - Cabriolet

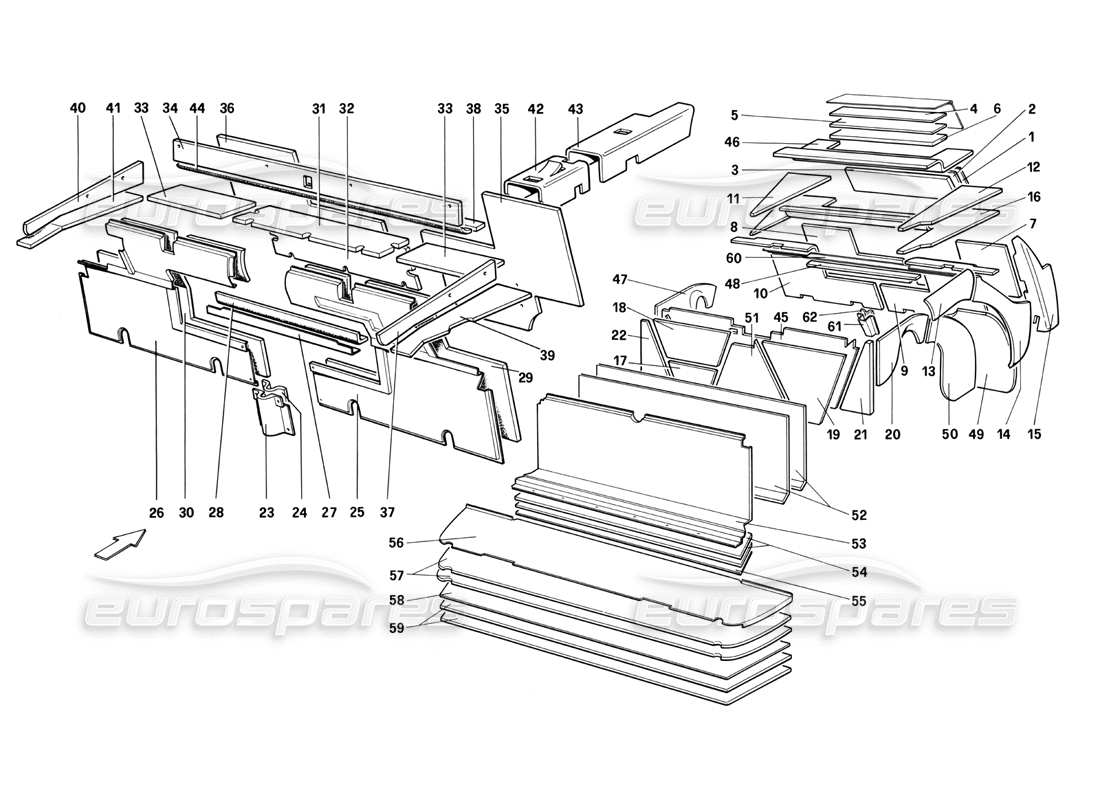

Ferrari Mondial 3.0 QV (1984) Quattrovalvole Luggage and Passenger Compartmente Insulatior - Cabriolet Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 61662200
Insulation
CH only
from £39.21
from £39.21
# 002
MPN: 61662300
Insulation
CH only
from £14.59
from £14.59
# 003
MPN: 61662400
Insulation
CH only
# 004
MPN: 61661900
Insulation
CH only
from £85.96
from £85.96
# 005
MPN: 61662000
Insulation
CH only
from £10.05
from £10.05
# 006
MPN: 61662100
Insulation
CH only
from £10.68
from £10.68
# 007
MPN: 61661500
Insulation
CH only
from £21.49
from £21.49
# 008
MPN: 61661400
Insulation
CH only
from £20.56
from £20.56
# 009
MPN: 61661600
Insulation
CH only
from £27.75
from £27.75
# 010
MPN: 61661700
Insulation
CH only
from £29.80
from £29.80
# 011
MPN: 61661000
LH INSULATION
CH only
from £8.97
from £8.97
# 012
MPN: 61661100
RH INSULATION
CH only
from £5.65
from £5.65
# 013
MPN: 61660700
RH INSULATION
CH only
from £28.39
from £28.39
# 014
MPN: 61660800
Insulation
CH only
from £25.90
from £25.90
# 015
MPN: 61660900
Insulation
CH only
from £21.49
from £21.49
# 016
MPN: 61661300
Insulation
CH only
from £124.36
from £124.36
# 017
MPN: 61660000
Insulation
CH only
This part replaces part number 6166000
# 018
MPN: 61660100
Insulation
CH only
# 019
MPN: 61660200
Insulation
CH only
# 020
MPN: 61660600
Insulation
CH only
from £41.58
from £41.58
# 021
MPN: 61660400
LH INSULATION
CH only
# 022
MPN: 61660500
RH INSULATION
CH only
# 023
MPN: 61319600
CONTAINER FOR INSULATION
CH excluded
from £66.36
from £66.36
# 024
MPN: 61346000
Insulation
CH excluded
from £3.30
from £3.30
# 025
MPN: 61319400
CONTAINER FOR RH INSULATION
from £288.13
from £288.13
# 026
MPN: 61319500
CONTAINER FOR LH INSULATION
from £288.13
from £288.13
# 027
MPN: 61319700
CONTAINER
CH excluded
from £85.92
from £85.92
# 028
MPN: 61345300
Insulation
from £52.23
from £52.23
# 029
MPN: 61345600
Insulation
CH excluded
from £29.19
from £29.19
# 030
MPN: 61345700
Insulation
CH excluded
from £39.70
from £39.70
# 031
MPN: 61345400
Insulation
from £194.29
from £194.29
# 032
MPN: 61345500
Insulation
from £199.92
from £199.92
# 033
MPN: 61346800
Insulation
from £23.55
from £23.55
# 034
MPN: 61347200
Insulation
from £21.59
from £21.59
# 035
MPN: 61346600
Insulation
from £60.60
from £60.60
# 036
MPN: 61346700
Insulation
from £60.60
from £60.60
# 037
MPN: 61347000
Insulation
from £16.65
from £16.65
# 038
MPN: 61346900
Insulation
# 039
MPN: 61347400
Insulation
from £43.15
from £43.15
# 040
MPN: 61347100
Insulation
from £16.96
from £16.96
# 041
MPN: 61347500
Insulation
from £43.15
from £43.15
# 042
MPN: 61077000
REAR INSULATION FOR CENTRAL TUNNEL
# 043
MPN: 61077600
FRONT INSULATION FOR CENTRAL TUNNEL
from £101.92
from £101.92
# 044
MPN: 61347400
Insulation
from £43.15
from £43.15
# 045
MPN: 61660300
Insulation
CH only
# 046
MPN: 61661200
Insulation
CH only
from £31.69
from £31.69
# 047
MPN: 61677000
Insulation
CH only
from £50.96
from £50.96
# 048
MPN: 61661800
Insulation
CH only
# 049
MPN: 61264200
LH INSULATION
CH only
# 049
MPN: 61264300
RH INSULATION
CH only
# 050
MPN: 61264400
LH INSULATION
CH only
# 050
MPN: 61264500
RH INSULATION
CH only
# 051
MPN: 61264800
Insulation
CH only
from £31.69
from £31.69
# 052
MPN: 60705700
Insulation
from £77.48
from £77.48
# 053
MPN: 61653500
SHIELDPANEL VERTICAL
from £712.89
from £712.89
# 054
MPN: 61055700
Insulation
from £18.67
from £18.67
# 055
MPN: 61055800
SHIELPANEL
from £124.67
from £124.67
# 056
MPN: 60985000
FLAT BED FOR TRUNK BOTTON
from £463.45
from £463.45
# 057
MPN: 60985100
Insulation
from £95.81
from £95.81
# 058
MPN: 61055600
SHIELDPANEL
from £272.05
from £272.05
# 059
MPN: 61045100
Insulation
Supersession
Supersession
# 060
MPN: 61665500
SUPPORT FOR INSULATION
CH only
from £23.41
from £23.41
# 061
MPN: 61701200
CONTAINER FOR INSULATION
CH only
from £39.04
from £39.04
# 062
MPN: 61346000
Insulation
CH only
from £3.30
from £3.30
