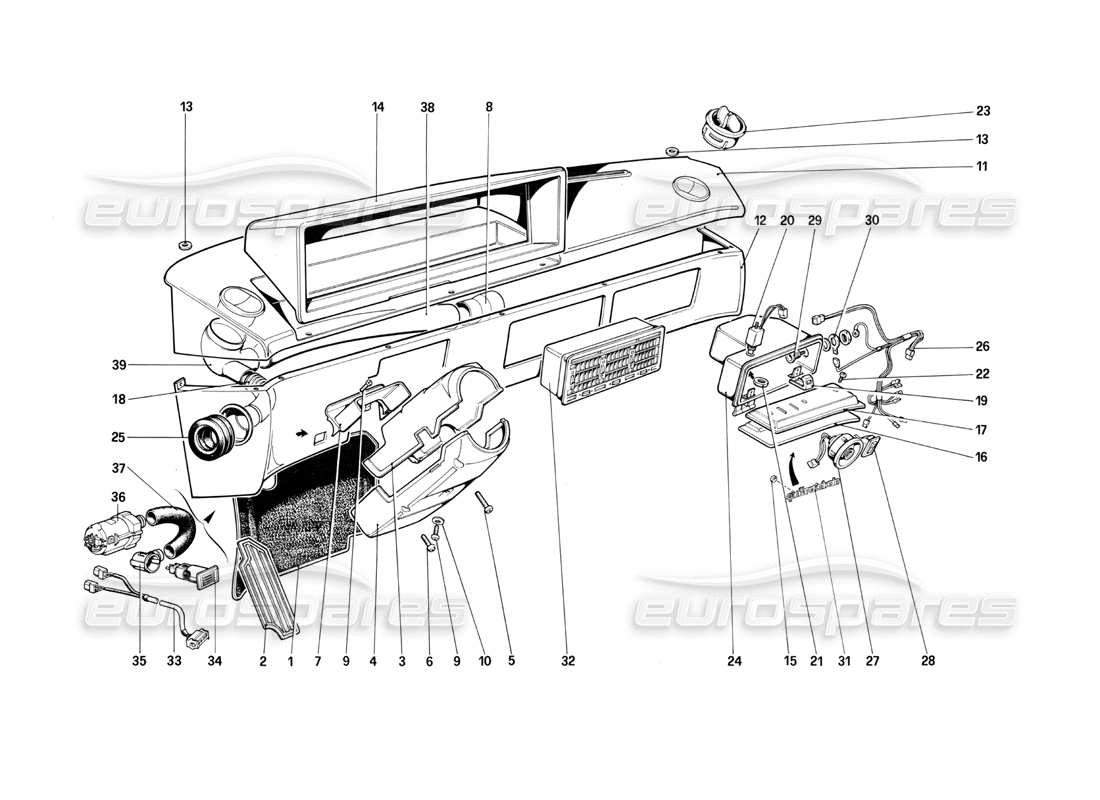

117 - INSTRUMENT PANEL

Ferrari Mondial 3.0 QV (1984) Instrument Panel Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                          #
                                                                          Part number
                                                                          Description
                                                                          Key
                                                                          Price
                                                                          # 000
                                                                          MPN: 60654300
                                                                          COVER FOR STEERING COLUMN COMPLETE (CAB.)
                                                                          To exhaustion for 4V.
                                                                          Supersession
                                                                          Supersession
                                                                          This part replaces part number 60654400 which we have in stock
                                                                          Genuine Ferrari Part (no longer available to order)
                                                                          # 000
                                                                          MPN: 61177400
                                                                          COVER FOR STEERING COLUMN COMPLETE (4V.)
                                                                          On exhaustion 60654300 - To 14.3.83
                                                                          Supersession
                                                                          Supersession
                                                                          Genuine Ferrari Part (no longer available to order)
                                                                          # 000
                                                                          MPN: 61272900
                                                                          COVER FOR STEERING COLUMN COMPLETE (4V.)
                                                                          From 15.3.83
                                                                          from £153.59
                                                                          from £153.59
                                                                          This part replaces part number 60654300 which we have in stock - and 4 more. Click to view details
                                                                          COLUMN COVER COMPLETE Genuine Ferrari Part - New (to order)
                                                                          # 001
                                                                          MPN: 60781600
                                                                          CARPET, UNDER PEDALS (LHD)
                                                                          from £20.87
                                                                          from £20.87
                                                                          DRIVERS FOOTWELL CARPET LHD Genuine Ferrari Part - New (to order)
                                                                          # 001
                                                                          MPN: 60784700
                                                                          CARPET, UNDER PEDALS (RHD)
                                                                          from £33.87
                                                                          from £33.87
                                                                          DRIVERS FOOTWELL CARPET RHD Genuine Ferrari Part - New (to order)
                                                                          # 002
                                                                          MPN: 60723400
                                                                          PROTECTION (LHD)
                                                                          from £11.42
                                                                          from £11.42
                                                                          RUBBER PROTECTION PAD LHD Genuine Ferrari Part - New (to order)
                                                                          # 002
                                                                          MPN: 61158500
                                                                          PROTECTION (RHD)
                                                                          from £10.70
                                                                          from £10.70
                                                                          RUBBER PROTECTION PAD RHD Genuine Ferrari Part - New (to order)
                                                                          # 003
                                                                          MPN: 60654400
                                                                          UPPER SECTION
                                                                          On exhaustion use no. 61177500
                                                                          from £40.95
                                                                          from £40.95
                                                                          Genuine Ferrari Part (no longer available to order)
                                                                          UPPER COLUMN COVER Genuine Ferrari Part - Used In stock
                                                                          # 004
                                                                          MPN: 60654500
                                                                          LOWER SECTION
                                                                          For cover complete no. 60654300
                                                                          Genuine Ferrari Part (no longer available to order)
                                                                          LOWER COLUMN COVER Genuine Ferrari Part - Used In stock
                                                                          # 004
                                                                          MPN: 61177600
                                                                          LOWER SECTION
                                                                          For cover complete no. 61177400
                                                                          LOWER COLUMN COVER Genuine Ferrari Part - New (to order)
                                                                          # 004
                                                                          MPN: 61272800
                                                                          LOWER SECTION
                                                                          For cover complete no. 61272900
                                                                          Genuine Ferrari Part (no longer available to order)
                                                                          LOWER COLUMN COVER Genuine Ferrari Part - Used In stock
                                                                          # 005
                                                                          MPN: 15687708
                                                                          SCREW
                                                                          Supersession
                                                                          Supersession
                                                                          Genuine Ferrari Part (no longer available to order)
                                                                          # 006
                                                                          MPN: 15688208
                                                                          SCREW
                                                                          from £0.75
                                                                          from £0.75
                                                                          SCREW Genuine Ferrari Part - New In stock
                                                                          # 007
                                                                          MPN: 60668000
                                                                          SMALL UPPER COVER
                                                                          SMALL UPPER COVER Genuine Ferrari Part - New (to order)
                                                                          # 008
                                                                          MPN: 61274400
                                                                          FANNEL FOR A.C. TUBES
                                                                          From 16.12.82
                                                                          from £15.66
                                                                          from £15.66
                                                                          TUBE Genuine Ferrari Part - New (to order)
                                                                          # 009
                                                                          MPN: 60702800
                                                                          SCREW
                                                                          from £0.53
                                                                          from £0.53
                                                                          SCREW Genuine Ferrari Part - New (to order)
                                                                          # 010
                                                                          MPN: 60702900
                                                                          WASHER
                                                                          from £0.91
                                                                          from £0.91
                                                                          WASHER Genuine Ferrari Part - New (to order)
                                                                          # 011
                                                                          MPN: 61116900
                                                                          UPPER DASHBOARD (LHD - 4V.)
                                                                          from £665.62
                                                                          from £665.62
                                                                          This part replaces part number 61116600 - and 1 more. Click to view details
                                                                          UPPER DASHBOARD LHD 4V Genuine Ferrari Part - New (to order)
                                                                          UPPER DASHBOARD LHD 4V Genuine Ferrari Part - Used In stock
                                                                          # 011
                                                                          MPN: 61130400
                                                                          UPPER DASHBOARD (RHD - 4V.)
                                                                          from £834.75
                                                                          from £834.75
                                                                          This part replaces part number 61130100 - and 2 more. Click to view details
                                                                          UPPER DASHBOARD RHD 4V Genuine Ferrari Part - New (to order)
                                                                          UPPER DASHBOARD RHD 4V Genuine Ferrari Part - Used In stock
                                                                          # 011
                                                                          MPN: 61216200
                                                                          UPPER DASHBOARD (LHD - CAB.)
                                                                          from £812.47
                                                                          from £812.47
                                                                          This part replaces part number 61216100
                                                                          UPPER DASHBOARD LHD CAB Genuine Ferrari Part - New (to order)
                                                                          # 011
                                                                          MPN: 61440600
                                                                          UPPER DASHBOARD (RHD - CAB.)
                                                                          from £842.78
                                                                          from £842.78
                                                                          This part replaces part number 61440200
                                                                          UPPER DASHBOARD RHD CAB Genuine Ferrari Part - New (to order)
                                                                          # 012
                                                                          MPN: 61116700
                                                                          LOWER DASHBOARD (LHD)
                                                                          from £645.37
                                                                          from £645.37
                                                                          LOWER DASHBOARD LHD Genuine Ferrari Part - New (to order)
                                                                          # 012
                                                                          MPN: 61130200
                                                                          LOWER DASHBOARD (RHD)
                                                                          from £642.87
                                                                          from £642.87
                                                                          LOWER DASHBOARD RHD Genuine Ferrari Part - New (to order)
                                                                          # 013
                                                                          MPN: 60657600
                                                                          RUBBER WASHER
                                                                          from £1.64
                                                                          from £1.64
                                                                          WASHER Genuine Ferrari Part - New In stock
                                                                          # 014
                                                                          MPN: 61683400
                                                                          HOUSING INSTRUMENTS WITH COVERING (LHD)
                                                                          from £409.62
                                                                          from £409.62
                                                                          This part replaces part number 60861400 which we have in stock - and 2 more. Click to view details

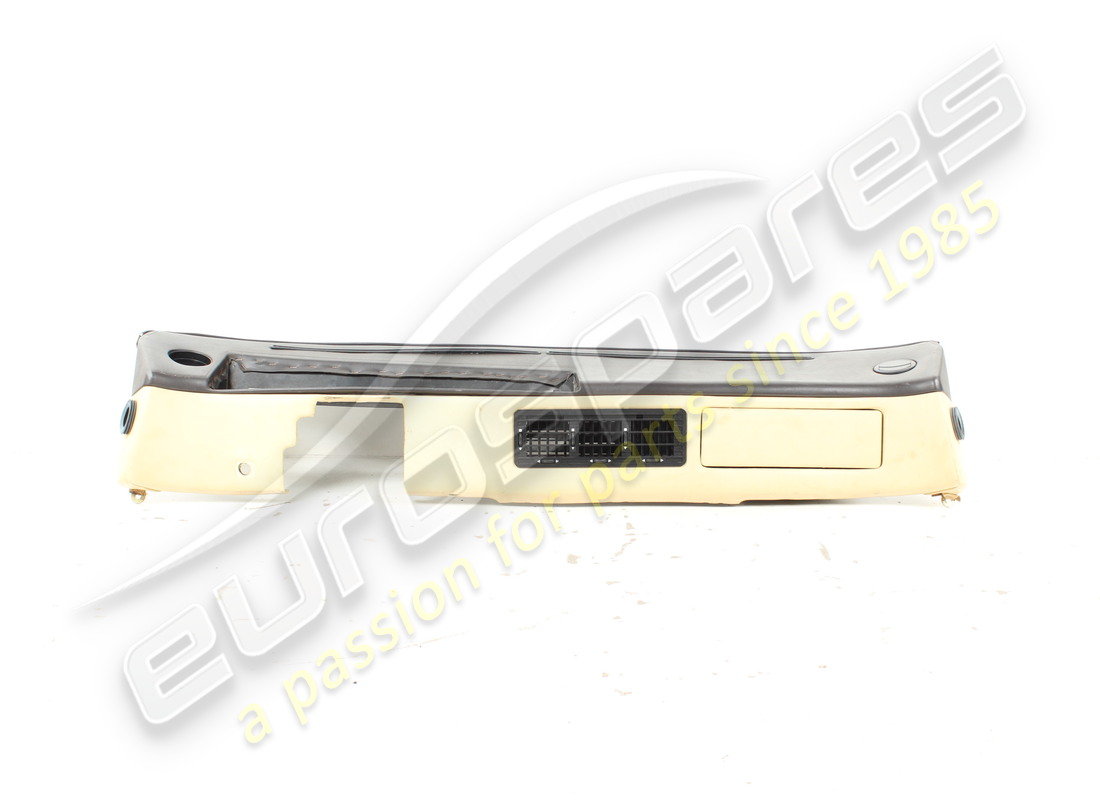

                                                                          DASHBOARD INSTRUMENT HOUSING LHD Genuine Ferrari Part - New (to order)
                                                                          DASHBOARD INSTRUMENT HOUSING LHD Genuine Ferrari Part - Used In stock
                                                                          # 014
                                                                          MPN: 61683500
                                                                          HOUSING INSTRUMENTS WITH COVERING (RHD)
                                                                          from £577.50
                                                                          from £577.50
                                                                          This part replaces part number 60861600 - and 1 more. Click to view details
                                                                          DASHBOARD INSTRUMENT HOUSING RHD Genuine Ferrari Part - New (to order)
                                                                          DASHBOARD INSTRUMENT HOUSING RHD Genuine Ferrari Part - Used In stock
                                                                          # 015
                                                                          MPN: 14183376
                                                                          CLIP
                                                                          from £0.47
                                                                          from £0.47
                                                                          CLIP Genuine Ferrari Part - New (to order)
                                                                          # 016
                                                                          MPN: 60656000
                                                                          COVERING
                                                                          from £44.30
                                                                          from £44.30
                                                                          LINING Genuine Ferrari Part - New (to order)
                                                                          # 016
                                                                          MPN: 61130700
                                                                          LID WITH COVERING (RHD)
                                                                          from £154.77
                                                                          from £154.77
                                                                          COVER RHD Genuine Ferrari Part - New (to order)
                                                                          # 016
                                                                          MPN: 61131700
                                                                          LID WITH COVERING (LHD)
                                                                          from £89.25
                                                                          from £89.25
                                                                          COVER LHD Genuine Ferrari Part - New (to order)
                                                                          # 017
                                                                          MPN: 60655400
                                                                          LID INNER COVERING (LHD)
                                                                          from £22.57
                                                                          from £22.57
                                                                          COVER LHD Genuine Ferrari Part - New (to order)
                                                                          COVER LHD Genuine Ferrari Part - Used In stock
                                                                          CREAM LEATHER
                                                                          # 017
                                                                          MPN: 60734800
                                                                          LID INNER COVERING (RHD)
                                                                          from £26.52
                                                                          from £26.52
                                                                          COVER RHD Genuine Ferrari Part - New (to order)
                                                                          # 018
                                                                          MPN: 60657300
                                                                          AIR PIPE ON DOOR
                                                                          from £15.83
                                                                          from £15.83
                                                                          AIR DUCT Genuine Ferrari Part - New (to order)
                                                                          # 019
                                                                          MPN: 60675600
                                                                          LOCK STRIKER
                                                                          from £1.39
                                                                          from £1.39
                                                                          LOCK STRIKER Genuine Ferrari Part - New (to order)
                                                                          # 020
                                                                          MPN: 60868600
                                                                          MAGNET
                                                                          Supersession
                                                                          Supersession
                                                                          This part replaces part number 60662100 - and 1 more. Click to view details
                                                                          Genuine Ferrari Part (no longer available to order)
                                                                          # 021
                                                                          MPN: 60538800
                                                                          RING NUT
                                                                          from £4.07
                                                                          from £4.07
                                                                          IRON RING Genuine Ferrari Part - New (to order)
                                                                          # 022
                                                                          MPN: 60675900
                                                                          SCREW
                                                                          from £0.73
                                                                          from £0.73
                                                                          SCREW Genuine Ferrari Part - New (to order)
                                                                          # 023
                                                                          MPN: 60656500
                                                                          SIDE AIR OUTLET
                                                                          from £23.94
                                                                          from £23.94
                                                                          BOCCHETTA DIFFUSORE ARIA Genuine Ferrari Part - New (to order)
                                                                          # 024
                                                                          MPN: 60655700
                                                                          DASHBOARD BOX (4V. - LHD)
                                                                          from £23.36
                                                                          from £23.36

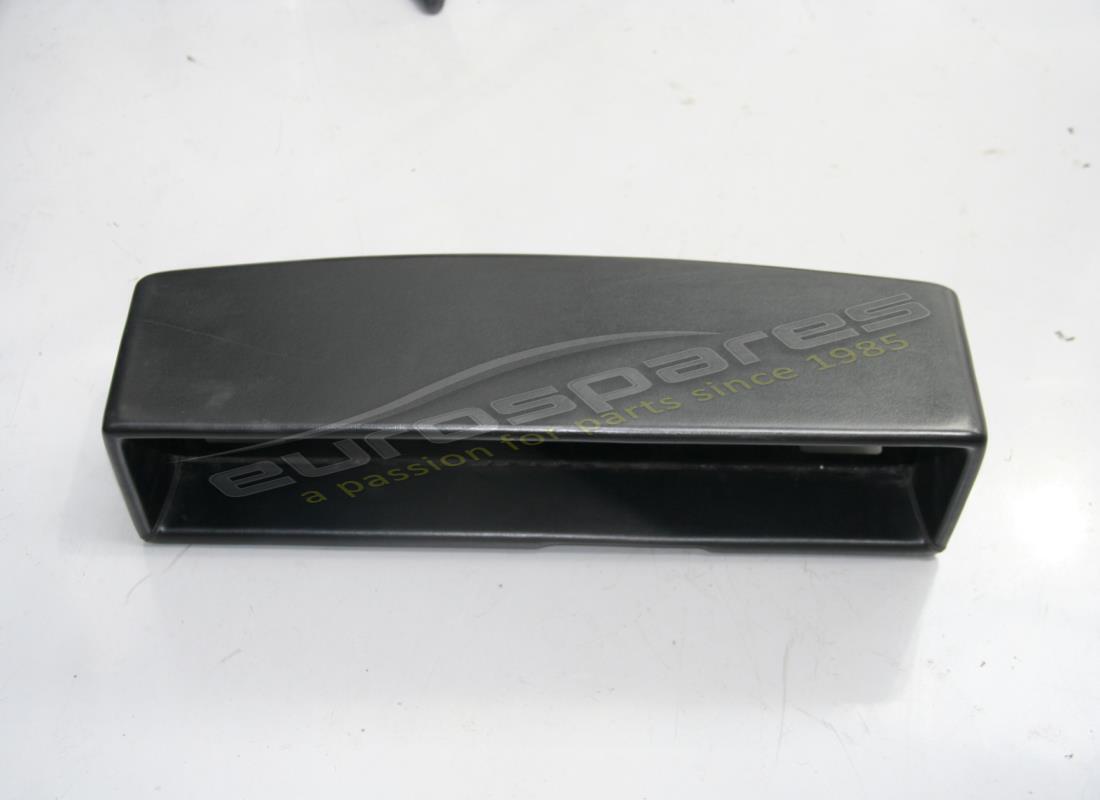

                                                                          DASHBOARD BOX LHD 4V Genuine Ferrari Part - New (to order)
                                                                          DASHBOARD BOX LHD 4V Genuine Ferrari Part - Used In stock
                                                                          # 024
                                                                          MPN: 60734900
                                                                          DASHBOARD BOX (4V. - RHD)
                                                                          from £92.05
                                                                          from £92.05
                                                                          DASHBOARD BOX RHD 4V Genuine Ferrari Part - New (to order)
                                                                          # 024
                                                                          MPN: 61344000
                                                                          DASHBOARD BOX (CAB. - LHD)
                                                                          from £121.69
                                                                          from £121.69
                                                                          DASHBOARD BOX LHD CAB Genuine Ferrari Part - New (to order)
                                                                          # 024
                                                                          MPN: 61440700
                                                                          DASHBOARD BOX (CAB. - RHD)
                                                                          from £190.99
                                                                          from £190.99
                                                                          DASHBOARD BOX RHD CAB Genuine Ferrari Part - New (to order)
                                                                          # 025
                                                                          MPN: 60657400
                                                                          GASKET
                                                                          from £10.77
                                                                          from £10.77
                                                                          GASKET Genuine Ferrari Part - New (to order)
                                                                          # 026
                                                                          MPN: 119429
                                                                          CONNECTING CABLES
                                                                          from £26.84
                                                                          from £26.84
                                                                          CABLE Genuine Ferrari Part - New (to order)
                                                                          # 027
                                                                          MPN: 60743100
                                                                          GLOVE BOX LIGHT
                                                                          from £42.67
                                                                          from £42.67
                                                                          GLOVE BOX LAMP Genuine Ferrari Part - New In stock
                                                                          # 028
                                                                          MPN: 60743000
                                                                          SWITCH
                                                                          from £32.66
                                                                          from £32.66
                                                                          GLOVE BOX LIGHT SWITCH Genuine Ferrari Part - New (to order)
                                                                          # 029
                                                                          MPN: 60701500
                                                                          SOCKET
                                                                          from £15.31
                                                                          from £15.31
                                                                          This part replaces part number 60710500 - and 2 more. Click to view details
                                                                          LAMP PLUG Genuine Ferrari Part - New In stock
                                                                          LAMP PLUG Genuine Ferrari Part - Used In stock
                                                                          # 030
                                                                          MPN: 60701400
                                                                          NEGATIVE TERMINAL
                                                                          from £4.85
                                                                          from £4.85
                                                                          NEGATIVE TERMINAL Genuine Ferrari Part - New (to order)
                                                                          # 031
                                                                          MPN: 61132700
                                                                          QUA TTROVAL VOLE NAME
                                                                          from £28.71
                                                                          from £28.71
                                                                          DASH MOTIF QUATTROVALVOLE Genuine Ferrari Part - New (to order)
                                                                          # 033
                                                                          MPN: 119430
                                                                          CABLES FOR SENSOR
                                                                          from £5.19
                                                                          from £5.19
                                                                          AIR CON SENSOR CABLE Genuine Ferrari Part - New In stock
                                                                          AIR CON SENSOR CABLE Genuine Ferrari Part - Used In stock
                                                                          # 034
                                                                          MPN: 61079100
                                                                          SENSOR
                                                                          from £467.50
                                                                          from £467.50
                                                                          SENSOR FOR INTERNAL TEMPERATURE Genuine Ferrari Part - New (to order)
                                                                          SENSOR FOR INTERNAL TEMPERATURE Genuine Ferrari Part - Used In stock
                                                                          # 035
                                                                          MPN: 61079200
                                                                          HOUSING SENSOR
                                                                          from £4.23
                                                                          from £4.23
                                                                          CASE Genuine Ferrari Part - New In stock
                                                                          # 036
                                                                          MPN: 61079300
                                                                          SUCTION FAN FOR SENSOR
                                                                          Supersession
                                                                          Supersession
                                                                          Genuine Ferrari Part (no longer available to order)
                                                                          # 037
                                                                          MPN: 61089300
                                                                          PIPE SUCTION FAN - SENSOR
                                                                          from £4.98
                                                                          from £4.98
                                                                          TUBE Genuine Ferrari Part - New In stock
                                                                          TUBE Genuine Ferrari Part - Used In stock
                                                                          # 038
                                                                          MPN: 61290600
                                                                          PIPE A.C. - LH AIR OUTLET
                                                                          Supersession
                                                                          Supersession
                                                                          This part replaces part number 61355800
                                                                          Genuine Ferrari Part (no longer available to order)
                                                                          # 038
                                                                          MPN: 61290700
                                                                          PIPE A.C. - RH AIR OUTLET
                                                                          from £28.70
                                                                          from £28.70
                                                                          TUBE AC TO RH AIR OUTLET Genuine Ferrari Part - New (to order)
                                                                          TUBE AC TO RH AIR OUTLET Genuine Ferrari Part - Used In stock
                                                                          # 039
                                                                          MPN: 60656700
                                                                          UNION FOR RH AIR OUTLET (LHD)
                                                                          from £22.50
                                                                          from £22.50
                                                                          RH UNION LHD Genuine Ferrari Part - New (to order)
                                                                          # 039
                                                                          MPN: 60656800
                                                                          UNION FOR LH AIR OUTLET (LHD)
                                                                          from £21.42
                                                                          from £21.42
                                                                          LH UNION LHD Genuine Ferrari Part - New (to order)
                                                                          # 039
                                                                          MPN: 60753900
                                                                          UNION FOR RH AIR OUTLET (RHD)
                                                                          from £10.00
                                                                          from £10.00
                                                                          RH UNION RHD Genuine Ferrari Part - New (to order)
                                                                          RH UNION RHD Genuine Ferrari Part - Used In stock
                                                                          # 039
                                                                          MPN: 60754000
                                                                          UNION FOR LH AIR OUTLET (RHD)
                                                                          from £18.19
                                                                          from £18.19
                                                                          LH UNION RHD Genuine Ferrari Part - New (to order)
