121 - Windshield Wiper - Washer and Horn

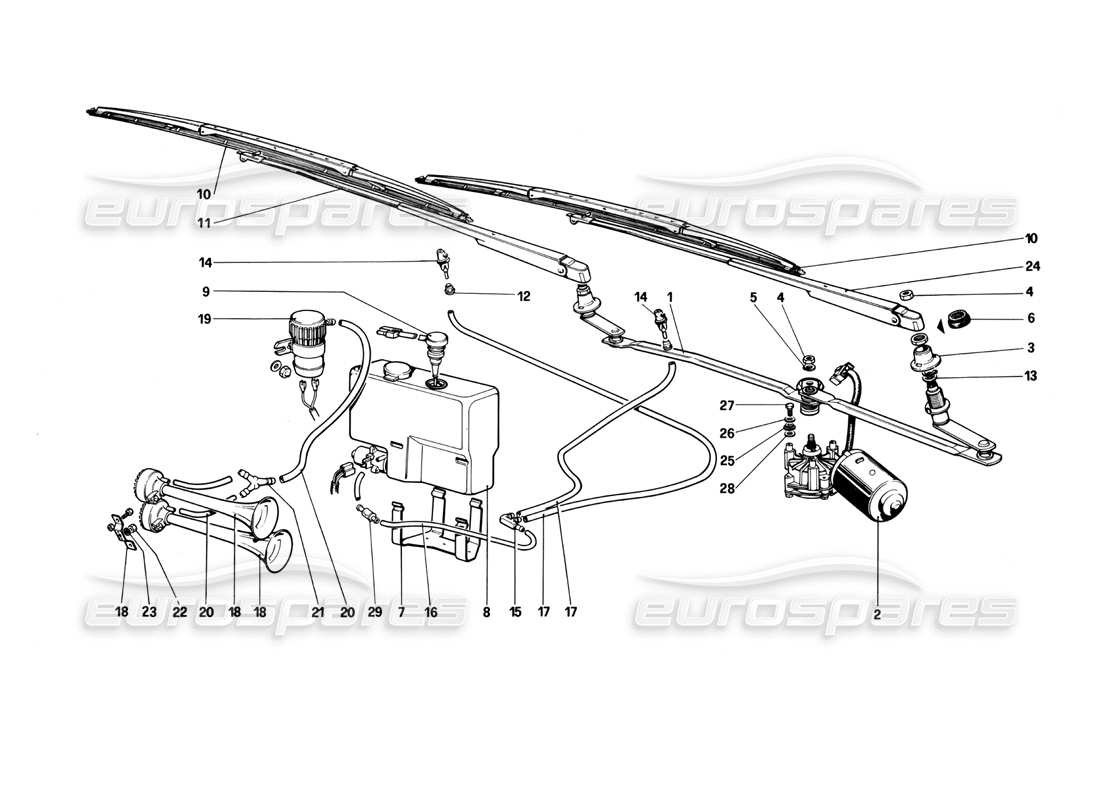

Ferrari Mondial 3.0 QV (1984) Windshield Wiper - Washer and Horn Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 61310700
WASHER PIPES COMPLETE
from £17.51
from £17.51
# 001
MPN: 60659200
LEVERS
Supersession
Supersession
# 002
MPN: 61725400
wiper motor
from £299.79
from £299.79
This part replaces part number 50215607 - and 1 more. Click to view details
# 003
MPN: 60671400
SPACER
from £3.79
from £3.79
# 004
MPN: 16102311
NUT
from £0.42
from £0.42
This part replaces part number 16102315
# 005
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 006
MPN: 60701200
GASKET
from £14.97
from £14.97
# 007
MPN: 60630000
RETAINER
from £19.18
from £19.18
# 008
MPN: 60710200
WATER RESERVOIR
from £53.90
from £53.90
# 009
MPN: 60814800
LIQUID LEVEL SENSOR
from £88.10
from £88.10
# 010
MPN: 60703800
WIPER BLADE
from £35.24
from £35.24
This part replaces part number 61647800 - and 5 more. Click to view details
# 010
MPN: 67546400
WIPER BLADE
Use on Exhaustion of 60703800
Supersession
Supersession
This part replaces part number 60703800 which we have in stock
# 011
MPN: 60703900
RH WIPER ARM (LHD)
from £22.26
from £22.26
# 011
MPN: 60768600
RH WIPER ARM (RHD)
from £57.32
from £57.32
# 012
MPN: 61444900
BUSHING
from £1.07
from £1.07
# 013
MPN: 10571771
WASHER
from £0.47
from £0.47
This part replaces part number 10571770
# 014
MPN: 61395100
NOZZLE
from £54.97
from £54.97
This part replaces part number 60777800 - and 1 more. Click to view details
# 015
MPN: 50103100
3-WAY UNION
from £8.93
from £8.93
This part replaces part number 40103100 which we have in stock
# 016
MPN: 60736800
PIPE
from £2.49
from £2.49
# 017
MPN: 60736900
PIPE
from £1.51
from £1.51
# 018
MPN: 60665500
HORNS
use : 189428
Supersession
Supersession
# 018
MPN: 60842900
HORNS - SOLD AS A PAIR
CH only
from £94.61
from £94.61
# 019
MPN: 225757
COMPRESSOR
To exhaustion
from £134.90
from £134.90
This part replaces part number 139920
# 019
MPN: 61447800
COMPRESSOR
On exhaustion 60342003
Supersession
Supersession
This part replaces part number 60741000
# 020
MPN: 60884300
AIR DUCT
from £2.66
from £2.66
# 021
MPN: 60741100
3 - WAY UNION
from £0.47
from £0.47
This part replaces part number 61741100
# 022
MPN: 16100824
NUT
from £0.53
from £0.53
This part replaces part number 16100814 - and 1 more. Click to view details
# 023
MPN: 10615679
WASHER
Supersession
Supersession
# 024
MPN: 60767800
LH WIPER ARM (LHD)
from £22.07
from £22.07
# 024
MPN: 60768700
LH WIPER ARM (RHD)
from £40.12
from £40.12
# 025
MPN: 40222408
RUBBER SHIM
from £1.49
from £1.49
# 026
MPN: 50208800
WASHER
from £0.69
from £0.69
# 027
MPN: 10902311
SCREW
Supersession
Supersession
# 028
MPN: 40222705
WASHER
from £11.44
from £11.44
# 029
MPN: 50332402
NON RETURN VALVE
from £36.52
from £36.52
