ferrari mondial 3.2 qv (1987) crankcase parts diagram

002 - crankcase

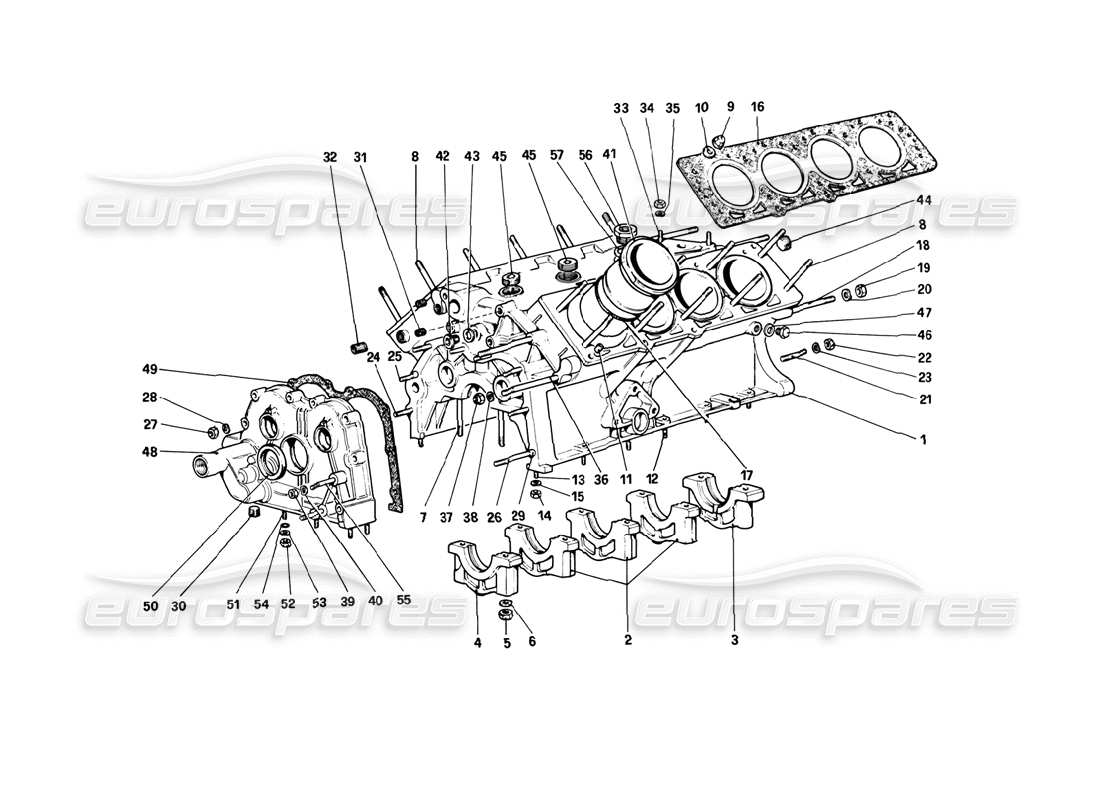

Ferrari Mondial 3.2 QV (1987) Crankcase Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                          #
                                                                                                          Part number
                                                                                                          Description
                                                                                                          Price
                                                                                                          # 000
                                                                                                          MPN: 120567
                                                                                                          OEM GASKET SET
                                                                                                          from £2,002.53
                                                                                                          from £2,002.53
                                                                                                          # 001
                                                                                                          MPN: 126191
                                                                                                          crankcase
                                                                                                          (With assembly no. 126193)
                                                                                                          from £4,000.00
                                                                                                          from £4,000.00
                                                                                                          # 001
                                                                                                          MPN: 126193
                                                                                                          CRANKCASE, COMPLETE
                                                                                                          from £3,809.37
                                                                                                          from £3,809.37
                                                                                                          This part replaces part number 126191 which we have in stock - and 7 more. Click to view details
                                                                                                          # 001
                                                                                                          MPN: 131186
                                                                                                          crankcase
                                                                                                          Only for US M.Y.87
                                                                                                          from £6,538.42
                                                                                                          from £6,538.42
                                                                                                          # 002
                                                                                                          MPN: 103764
                                                                                                          MAIN BEARING CAP
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 003
                                                                                                          MPN: 103765
                                                                                                          MAIN BEARING CAP
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 004
                                                                                                          MPN: 103766
                                                                                                          MAIN BEARING CAP
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 005
                                                                                                          MPN: 103841
                                                                                                          NUT
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          This part replaces part number 4146542
                                                                                                          # 006
                                                                                                          MPN: 103842
                                                                                                          WASHER
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 007
                                                                                                          MPN: 104075
                                                                                                          STUD
                                                                                                          from £5.92
                                                                                                          from £5.92
                                                                                                          # 008
                                                                                                          MPN: 126647
                                                                                                          STUD
                                                                                                          from £56.88
                                                                                                          from £56.88
                                                                                                          # 009
                                                                                                          MPN: 126646
                                                                                                          CAP NUT
                                                                                                          from £13.79
                                                                                                          from £13.79
                                                                                                          # 010
                                                                                                          MPN: 126648
                                                                                                          WASHER
                                                                                                          from £0.54
                                                                                                          from £0.54
                                                                                                          # 011
                                                                                                          MPN: 123864
                                                                                                          DOWEL
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 012
                                                                                                          MPN: 13543621
                                                                                                          STUD
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 013
                                                                                                          MPN: 113543324
                                                                                                          RIGHT REAR STUD SECURING GEARBOX
                                                                                                          # 013
                                                                                                          MPN: 12354524
                                                                                                          STUD
                                                                                                          from £15.48
                                                                                                          from £15.48
                                                                                                          This part replaces part number 12354521
                                                                                                          # 014
                                                                                                          MPN: 16100824
                                                                                                          NUT
                                                                                                          from £0.48
                                                                                                          from £0.48
                                                                                                          This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                                          # 015
                                                                                                          MPN: 11198074
                                                                                                          WASHER
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                                          # 016
                                                                                                          MPN: 126789
                                                                                                          GASKET
                                                                                                          from £202.22
                                                                                                          from £202.22
                                                                                                          This part replaces part number 117515
                                                                                                          # 017
                                                                                                          MPN: 126183
                                                                                                          SEALING RING
                                                                                                          from £11.24
                                                                                                          from £11.24
                                                                                                          # 018
                                                                                                          MPN: 13953521
                                                                                                          STUD
                                                                                                          from £6.90
                                                                                                          from £6.90
                                                                                                          This part replaces part number 13451221
                                                                                                          # 019
                                                                                                          MPN: 12164711
                                                                                                          NUT
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          This part replaces part number 12164712
                                                                                                          # 020
                                                                                                          MPN: 12601471
                                                                                                          WASHER
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 021
                                                                                                          MPN: 11500621
                                                                                                          STUD
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 11500620
                                                                                                          # 022
                                                                                                          MPN: 15896211
                                                                                                          NUT
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          This part replaces part number 15896210
                                                                                                          # 023
                                                                                                          MPN: 11197774
                                                                                                          WASHER
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                          # 024
                                                                                                          MPN: 13517321
                                                                                                          STUD
                                                                                                          For US q = 6
                                                                                                          from £16.90
                                                                                                          from £16.90
                                                                                                          This part replaces part number 13517320
                                                                                                          # 025
                                                                                                          MPN: 13517421
                                                                                                          STUD
                                                                                                          For US q = 1
                                                                                                          from £53.42
                                                                                                          from £53.42
                                                                                                          This part replaces part number 13517420
                                                                                                          # 025
                                                                                                          MPN: 13517521
                                                                                                          STUD
                                                                                                          Not for U.S. Version
                                                                                                          from £6.77
                                                                                                          from £6.77
                                                                                                          # 026
                                                                                                          MPN: 13952521
                                                                                                          STUD
                                                                                                          from £0.61
                                                                                                          from £0.61
                                                                                                          # 027
                                                                                                          MPN: 16104411
                                                                                                          NUT
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          # 028
                                                                                                          MPN: 12601371
                                                                                                          WASHER
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 029
                                                                                                          MPN: 102704
                                                                                                          DOWEL
                                                                                                          from £1.59
                                                                                                          from £1.59
                                                                                                          This part replaces part number 500805
                                                                                                          # 030
                                                                                                          MPN: 14326150
                                                                                                          PLUG
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          This part replaces part number 12326150
                                                                                                          # 031
                                                                                                          MPN: 13525770
                                                                                                          HELI - COIL SECURING WATER PUMP
                                                                                                          from £1.54
                                                                                                          from £1.54
                                                                                                          This part replaces part number 103830
                                                                                                          # 032
                                                                                                          MPN: 13526070
                                                                                                          HELI - COIL SECURING COVER
                                                                                                          from £1.93
                                                                                                          from £1.93
                                                                                                          This part replaces part number 104657
                                                                                                          # 033
                                                                                                          MPN: 13517221
                                                                                                          STUD
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 034
                                                                                                          MPN: 16104411
                                                                                                          SELF LOCKING NUT
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          # 035
                                                                                                          MPN: 12601371
                                                                                                          WASHER
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 036
                                                                                                          MPN: 115237
                                                                                                          STUD SECURING LEFT COVER AND COMPRESSOR SUPPORT
                                                                                                          from £9.20
                                                                                                          from £9.20
                                                                                                          This part replaces part number 107923
                                                                                                          # 037
                                                                                                          MPN: 12575621
                                                                                                          SELF LOCKING NUT
                                                                                                          from £1.41
                                                                                                          from £1.41
                                                                                                          # 038
                                                                                                          MPN: 107993
                                                                                                          WASHER
                                                                                                          from £10.90
                                                                                                          from £10.90
                                                                                                          # 040
                                                                                                          MPN: 12601371
                                                                                                          WASHER
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 041
                                                                                                          MPN: 126190
                                                                                                          CYLINDER BARREL
                                                                                                          from £175.00
                                                                                                          from £175.00
                                                                                                          # 042
                                                                                                          MPN: 10275011
                                                                                                          PLUG
                                                                                                          from £1.05
                                                                                                          from £1.05
                                                                                                          This part replaces part number 10275001 - and 3 more. Click to view details
                                                                                                          # 043
                                                                                                          MPN: 10263460
                                                                                                          GASKET
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 95119
                                                                                                          # 044
                                                                                                          MPN: 10269850
                                                                                                          THREADED PLUG
                                                                                                          from £0.94
                                                                                                          from £0.94
                                                                                                          # 045
                                                                                                          MPN: 14325540
                                                                                                          UPPER PLUG
                                                                                                          from £4.15
                                                                                                          from £4.15
                                                                                                          # 046
                                                                                                          MPN: 10300640
                                                                                                          PLUG
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 047
                                                                                                          MPN: 10280060
                                                                                                          GASKET
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 100501 - and 3 more. Click to view details
                                                                                                          # 048
                                                                                                          MPN: 123862
                                                                                                          FRONT COVER
                                                                                                          (For complete cover no. 125276)
                                                                                                          from £603.75
                                                                                                          from £603.75
                                                                                                          # 048
                                                                                                          MPN: 125276
                                                                                                          FRONT COVER COMPLETE
                                                                                                          (With complete crankcase no. 126193)
                                                                                                          # 049
                                                                                                          MPN: 135089
                                                                                                          GASKET
                                                                                                          Not for C8
                                                                                                          from £14.83
                                                                                                          from £14.83
                                                                                                          This part replaces part number 103791 - and 1 more. Click to view details
                                                                                                          # 049
                                                                                                          MPN: 135089
                                                                                                          GASKET
                                                                                                          for C8
                                                                                                          from £14.83
                                                                                                          from £14.83
                                                                                                          This part replaces part number 103791 - and 1 more. Click to view details
                                                                                                          # 050
                                                                                                          MPN: 108224
                                                                                                          SEALING RING
                                                                                                          from £18.64
                                                                                                          from £18.64
                                                                                                          This part replaces part number 105231
                                                                                                          # 051
                                                                                                          MPN: 12354524
                                                                                                          STUD
                                                                                                          from £15.48
                                                                                                          from £15.48
                                                                                                          This part replaces part number 12354521
                                                                                                          # 051
                                                                                                          MPN: 13543821
                                                                                                          STUD
                                                                                                          from £1.21
                                                                                                          from £1.21
                                                                                                          This part replaces part number 210x1,25
                                                                                                          # 052
                                                                                                          MPN: 16100824
                                                                                                          NUT
                                                                                                          from £0.50
                                                                                                          from £0.50
                                                                                                          This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                                          # 053
                                                                                                          MPN: 11198074
                                                                                                          WASHER
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                                          # 054
                                                                                                          MPN: 103039
                                                                                                          SEALING RING
                                                                                                          (minimum order quantity = 10)
                                                                                                          from £1.62
                                                                                                          from £1.62
                                                                                                          This part replaces part number 95860041
                                                                                                          # 055
                                                                                                          MPN: 13543621
                                                                                                          STUD
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 056
                                                                                                          MPN: 115245
                                                                                                          UNION FOR THERMO-TIME SWITCH
                                                                                                          from £65.69
                                                                                                          from £65.69
                                                                                                          # 057
                                                                                                          MPN: 10296260
                                                                                                          GASKET
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 94701
