ferrari mondial 3.2 qv (1987) cylinder head (left) parts diagram

006 - cylinder head (left)

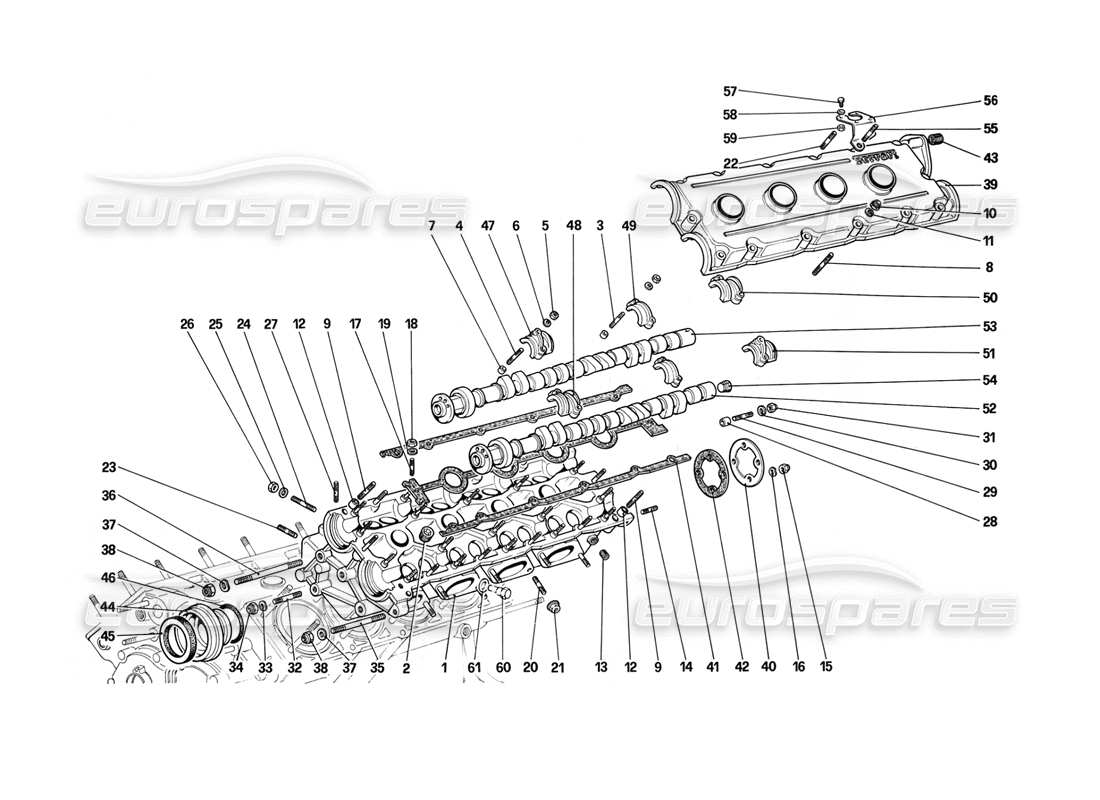

Ferrari Mondial 3.2 QV (1987) Cylinder Head (Left) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                      #
                                                                                                      Part number
                                                                                                      Description
                                                                                                      Price
                                                                                                      # 001
                                                                                                      MPN: 127490
                                                                                                      LEFT CYLINDER HEAD, COMPLETE
                                                                                                      (Not for US - AUS and CH)
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 001
                                                                                                      MPN: 127491
                                                                                                      left cylinder head
                                                                                                      (With complete cylinder head no. 131888)
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 001
                                                                                                      MPN: 127491
                                                                                                      left cylinder head
                                                                                                      (With complete cylinder head no. 127490)
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 001
                                                                                                      MPN: 131888
                                                                                                      LEFT CYLINDER HEAD, COMPLETE
                                                                                                      (Not for US - AUS and CH)
                                                                                                      from £7,740.25
                                                                                                      from £7,740.25
                                                                                                      This part replaces part number 126196
                                                                                                      # 002
                                                                                                      MPN: 127635
                                                                                                      PLUG
                                                                                                      from £1.47
                                                                                                      from £1.47
                                                                                                      This part replaces part number 183447
                                                                                                      # 003
                                                                                                      MPN: 102735
                                                                                                      STUD FOR INTERMEDIATE CAPS
                                                                                                      from £11.07
                                                                                                      from £11.07
                                                                                                      This part replaces part number 4146561
                                                                                                      # 004
                                                                                                      MPN: 102754
                                                                                                      STUD FOR OUTER CAPS
                                                                                                      from £5.00
                                                                                                      from £5.00
                                                                                                      # 005
                                                                                                      MPN: 15896211
                                                                                                      NUT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 15896210
                                                                                                      # 006
                                                                                                      MPN: 11197773
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 007
                                                                                                      MPN: 102725
                                                                                                      DOWEL
                                                                                                      from £0.57
                                                                                                      from £0.57
                                                                                                      # 008
                                                                                                      MPN: 13541621
                                                                                                      STUD
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 009
                                                                                                      MPN: 13541721
                                                                                                      STUD
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 010
                                                                                                      MPN: 100044
                                                                                                      SELF LOCKING NUT
                                                                                                      from £0.26
                                                                                                      from £0.26
                                                                                                      This part replaces part number 151230 - and 1 more. Click to view details
                                                                                                      # 011
                                                                                                      MPN: 11197774
                                                                                                      WASHER
                                                                                                      from £0.52
                                                                                                      from £0.52
                                                                                                      This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                      # 012
                                                                                                      MPN: 102725
                                                                                                      DOWEL
                                                                                                      from £0.65
                                                                                                      from £0.65
                                                                                                      # 013
                                                                                                      MPN: 14326150
                                                                                                      PLUG
                                                                                                      from £0.50
                                                                                                      from £0.50
                                                                                                      This part replaces part number 12326150
                                                                                                      # 014
                                                                                                      MPN: 11500321
                                                                                                      STUD
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 016
                                                                                                      MPN: 12601271
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 103372 - and 1 more. Click to view details
                                                                                                      # 017
                                                                                                      MPN: 13543324
                                                                                                      STUD
                                                                                                      from £0.83
                                                                                                      from £0.83
                                                                                                      This part replaces part number 13543321
                                                                                                      # 018
                                                                                                      MPN: 16100824
                                                                                                      NUT
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                                      # 019
                                                                                                      MPN: 11198074
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                                      # 020
                                                                                                      MPN: 12354524
                                                                                                      STUD SECURING EXHAUST MANIFOLD
                                                                                                      from £15.48
                                                                                                      from £15.48
                                                                                                      This part replaces part number 12354521
                                                                                                      # 021
                                                                                                      MPN: 114748
                                                                                                      NUT
                                                                                                      from £8.81
                                                                                                      from £8.81
                                                                                                      # 022
                                                                                                      MPN: 13541721
                                                                                                      STUD
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 023
                                                                                                      MPN: 13541621
                                                                                                      SHORT STUD
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 024
                                                                                                      MPN: 13541721
                                                                                                      LONG STUD
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 025
                                                                                                      MPN: 11197773
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 026
                                                                                                      MPN: 15896211
                                                                                                      NUT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 15896210
                                                                                                      # 027
                                                                                                      MPN: 13543521
                                                                                                      STUD FOR FIXING SUCTION MANIFOLD (FRONT PART)
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 028
                                                                                                      MPN: 102725
                                                                                                      DOWEL
                                                                                                      from £0.65
                                                                                                      from £0.65
                                                                                                      # 029
                                                                                                      MPN: 11500521
                                                                                                      STUD FOR FIXING DISTRIBUTOR CAP SUPPORT
                                                                                                      from £1.85
                                                                                                      from £1.85
                                                                                                      # 030
                                                                                                      MPN: 11197773
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 031
                                                                                                      MPN: 15896211
                                                                                                      NUT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 15896210
                                                                                                      # 032
                                                                                                      MPN: 13543721
                                                                                                      STUD
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 033
                                                                                                      MPN: 12601371
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 034
                                                                                                      MPN: 16104411
                                                                                                      NUT
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 035
                                                                                                      MPN: 13953821
                                                                                                      STUD SECURING COVER
                                                                                                      from £1.41
                                                                                                      from £1.41
                                                                                                      # 036
                                                                                                      MPN: 13451821
                                                                                                      STUD TO FIX. CRANKCASE AND COMPRESSOR SUPPORT
                                                                                                      from £2.81
                                                                                                      from £2.81
                                                                                                      # 037
                                                                                                      MPN: 107993
                                                                                                      WASHER
                                                                                                      from £10.90
                                                                                                      from £10.90
                                                                                                      # 037
                                                                                                      MPN: 14496621
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 038
                                                                                                      MPN: 12574511
                                                                                                      NUT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 039
                                                                                                      MPN: 111565

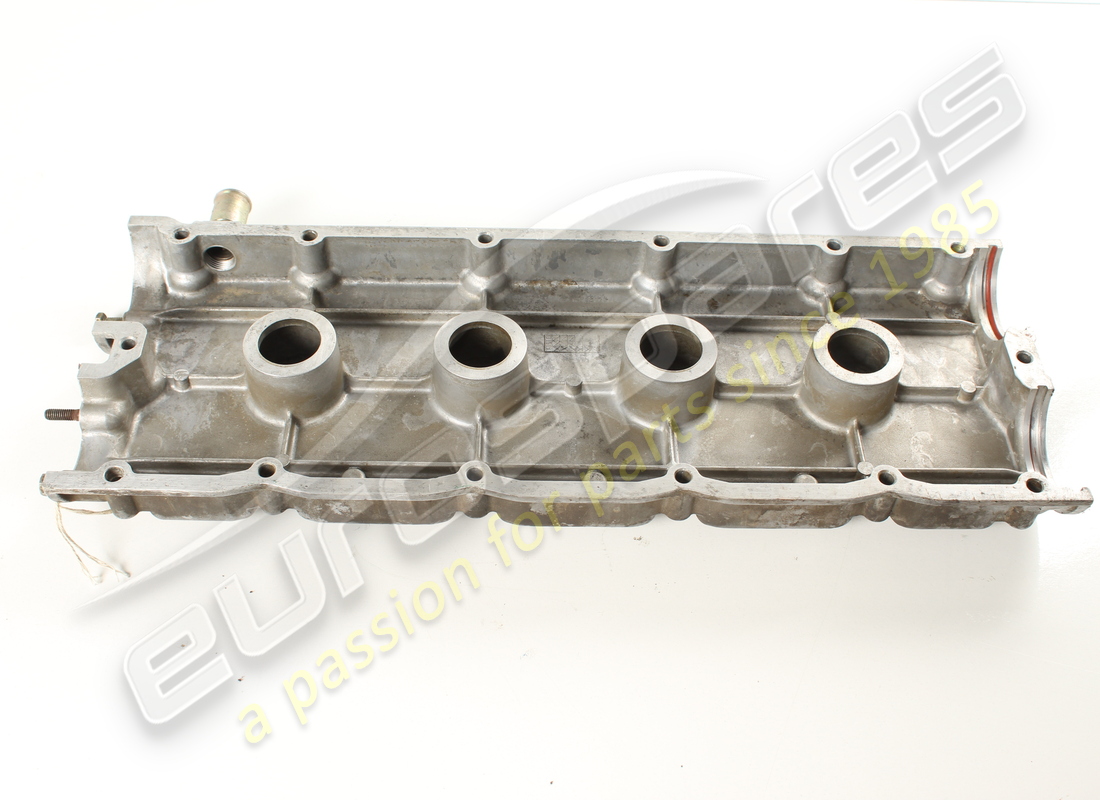

                                                                                                      LEFT HEAD COVER, COMPLETE
                                                                                                      With complete cylinder head
                                                                                                      This part replaces part number 144972
                                                                                                      # 039
                                                                                                      MPN: 117221
                                                                                                      LEFT HEAD COVER
                                                                                                      With complete head cover
                                                                                                      from £395.00
                                                                                                      from £395.00
                                                                                                      # 040
                                                                                                      MPN: 103796
                                                                                                      REAR COVER
                                                                                                      from £167.71
                                                                                                      from £167.71
                                                                                                      # 041
                                                                                                      MPN: 132917
                                                                                                      GASKET
                                                                                                      for C8
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 041
                                                                                                      MPN: 150084

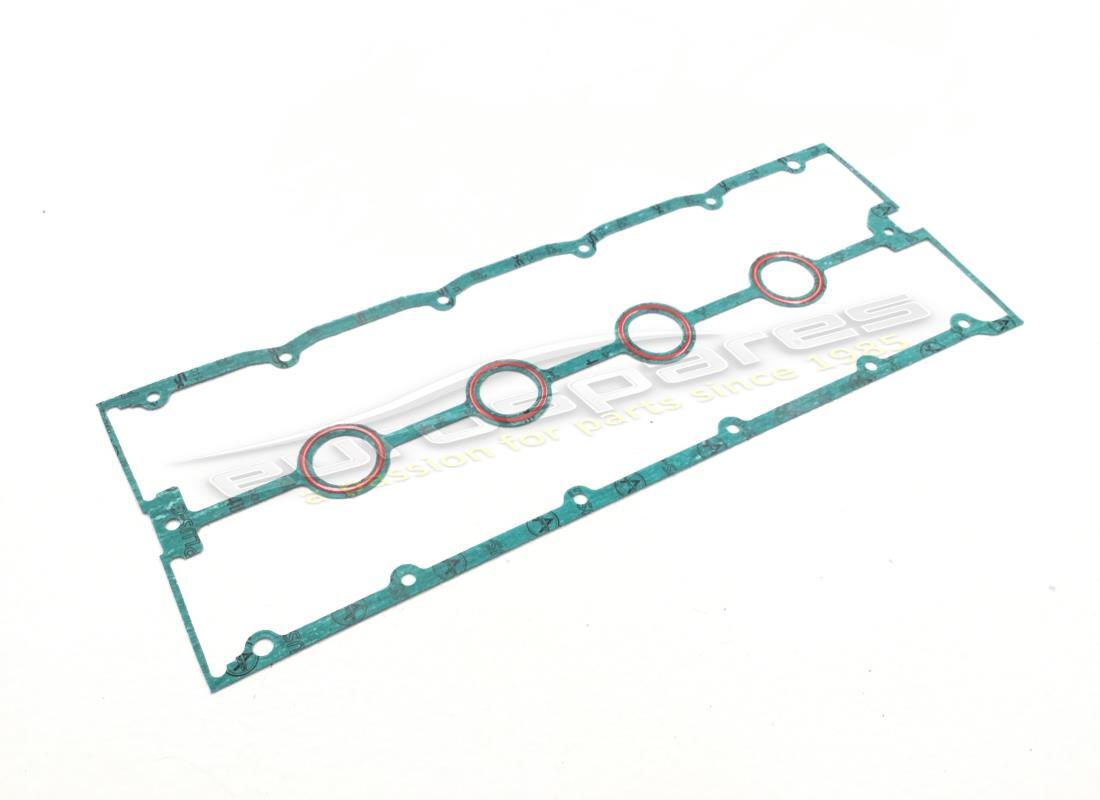

                                                                                                      LH GASKET
                                                                                                      Alternative use - FCCG001 Cam cover set
                                                                                                      from £27.89
                                                                                                      from £27.89
                                                                                                      This part replaces part number 117264 - and 1 more. Click to view details
                                                                                                      # 042
                                                                                                      MPN: 150075
                                                                                                      GASKET
                                                                                                      Not for C8
                                                                                                      from £16.19
                                                                                                      from £16.19
                                                                                                      This part replaces part number 104694 - and 3 more. Click to view details
                                                                                                      # 043
                                                                                                      MPN: 13525470
                                                                                                      HELI-COIL
                                                                                                      from £0.50
                                                                                                      from £0.50
                                                                                                      This part replaces part number 107333
                                                                                                      # 044
                                                                                                      MPN: 144973
                                                                                                      FRONT COVER
                                                                                                      from £370.72
                                                                                                      from £370.72
                                                                                                      This part replaces part number 117257 - and 2 more. Click to view details
                                                                                                      # 045
                                                                                                      MPN: 163987

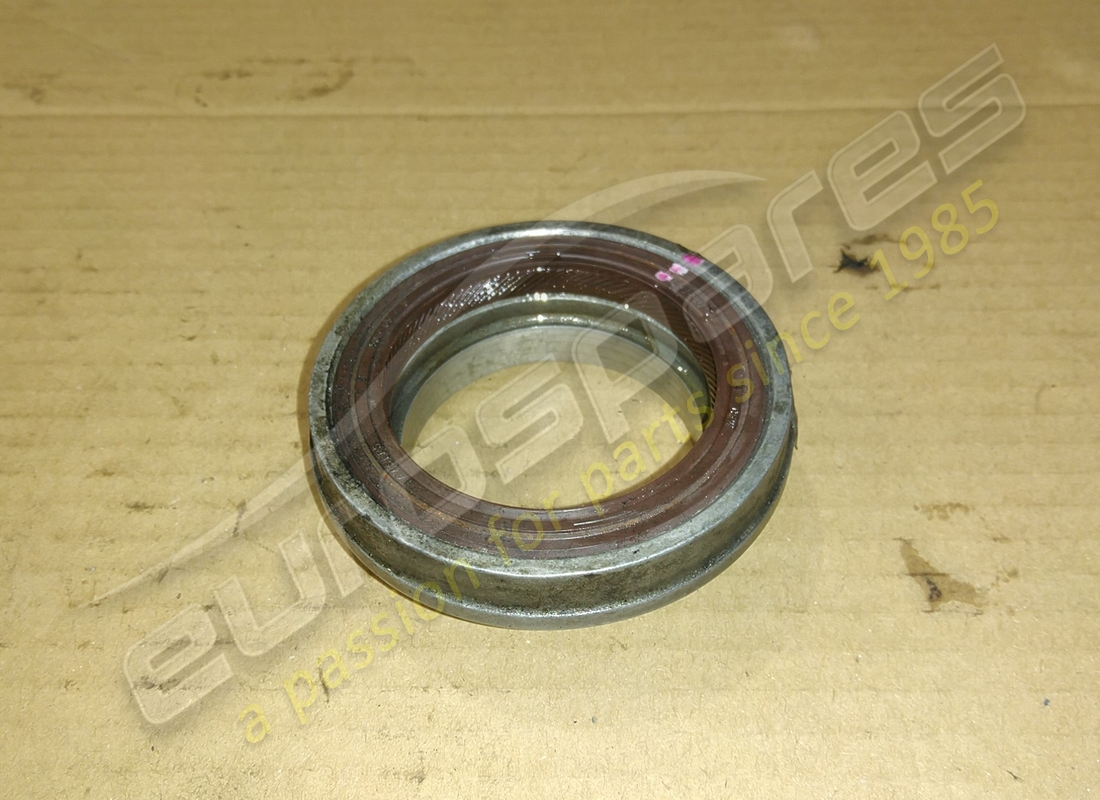

                                                                                                      SEALING RING
                                                                                                      from £9.95
                                                                                                      from £9.95
                                                                                                      This part replaces part number 136526
                                                                                                      # 046
                                                                                                      MPN: 117275

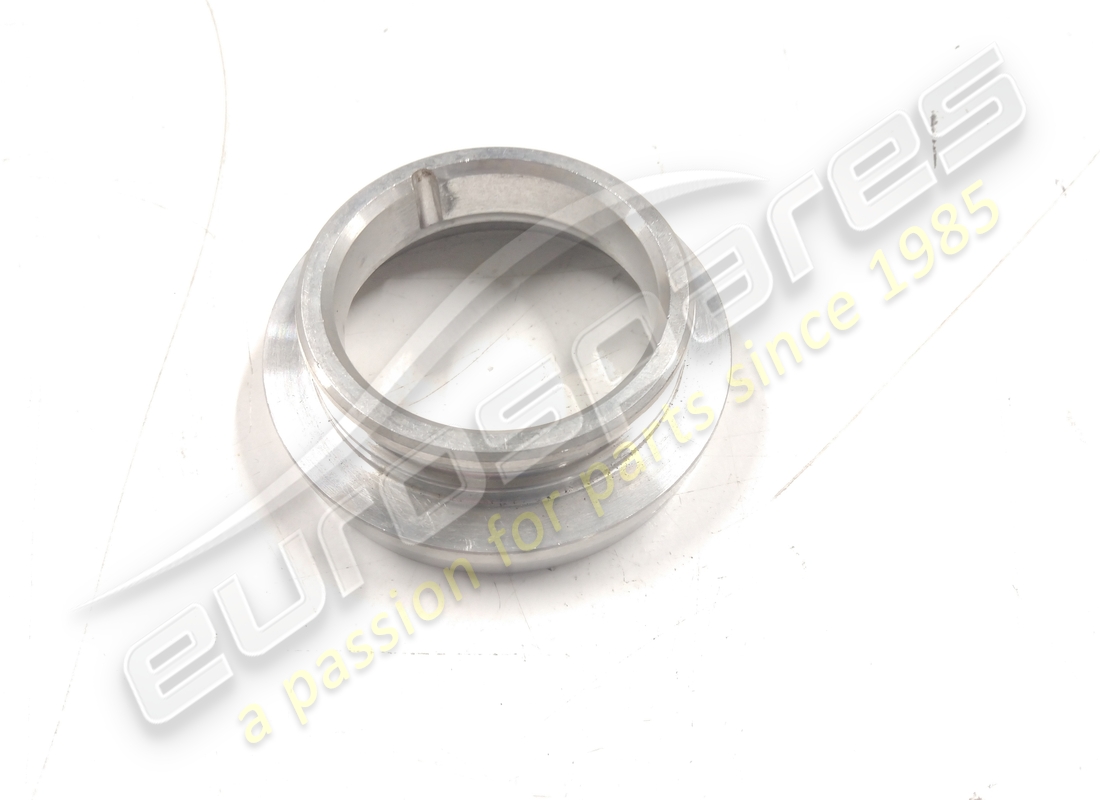

                                                                                                      SEALING RING
                                                                                                      from £2.93
                                                                                                      from £2.93
                                                                                                      # 047
                                                                                                      MPN: 117042
                                                                                                      FRONT CAP INLET SIDE
                                                                                                      With complete cylinder head
                                                                                                      from £93.67
                                                                                                      from £93.67
                                                                                                      # 048
                                                                                                      MPN: 117041
                                                                                                      FRONT CAP EXHAUST SIDE
                                                                                                      With complete cylinder head
                                                                                                      from £96.17
                                                                                                      from £96.17
                                                                                                      # 049
                                                                                                      MPN: 126811
                                                                                                      INTERMEDIATE CAP
                                                                                                      With complete cylinder head
                                                                                                      # 050
                                                                                                      MPN: 126202
                                                                                                      REAR CAP INLET SIDE
                                                                                                      With complete cylinder head
                                                                                                      # 051
                                                                                                      MPN: 126203
                                                                                                      REAR CAP EXHAUST SIDE
                                                                                                      With complete cylinder head
                                                                                                      # 052
                                                                                                      MPN: 126558

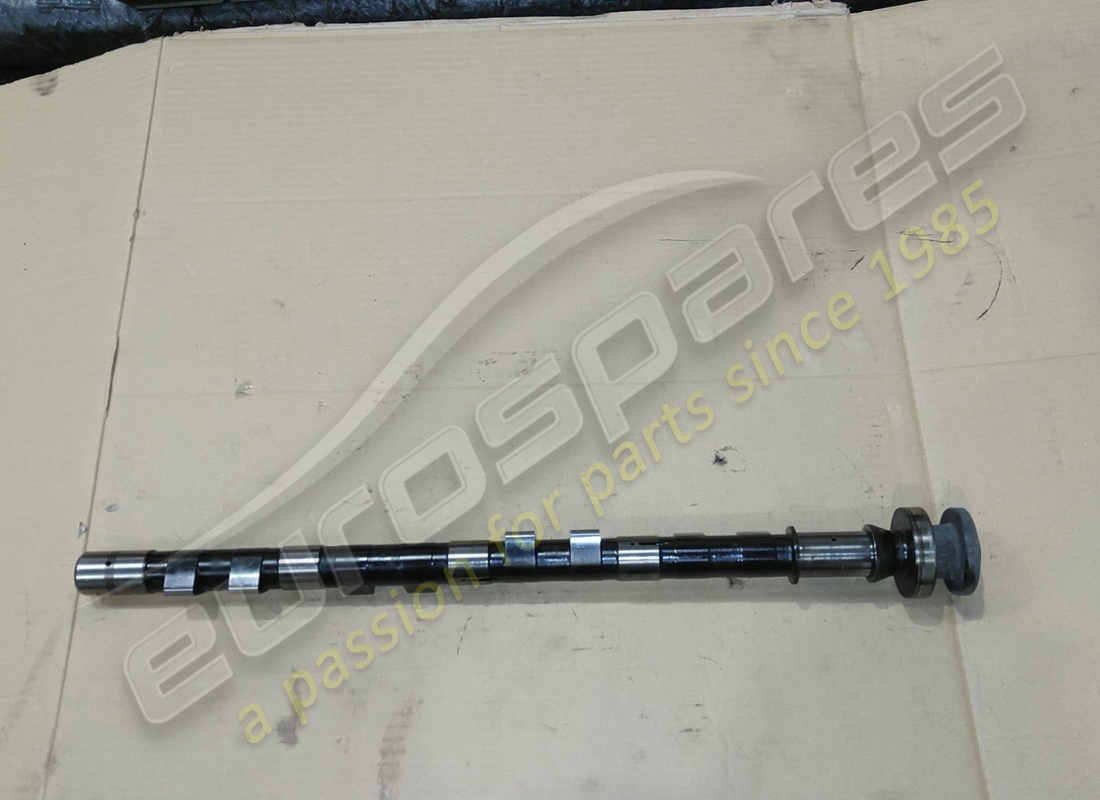

                                                                                                      LEFT EXHAUST CAMSHAFT COMPLETE
                                                                                                      from £670.07
                                                                                                      from £670.07
                                                                                                      This part replaces part number 126557 which we have in stock - and 1 more. Click to view details
                                                                                                      # 053
                                                                                                      MPN: 126188

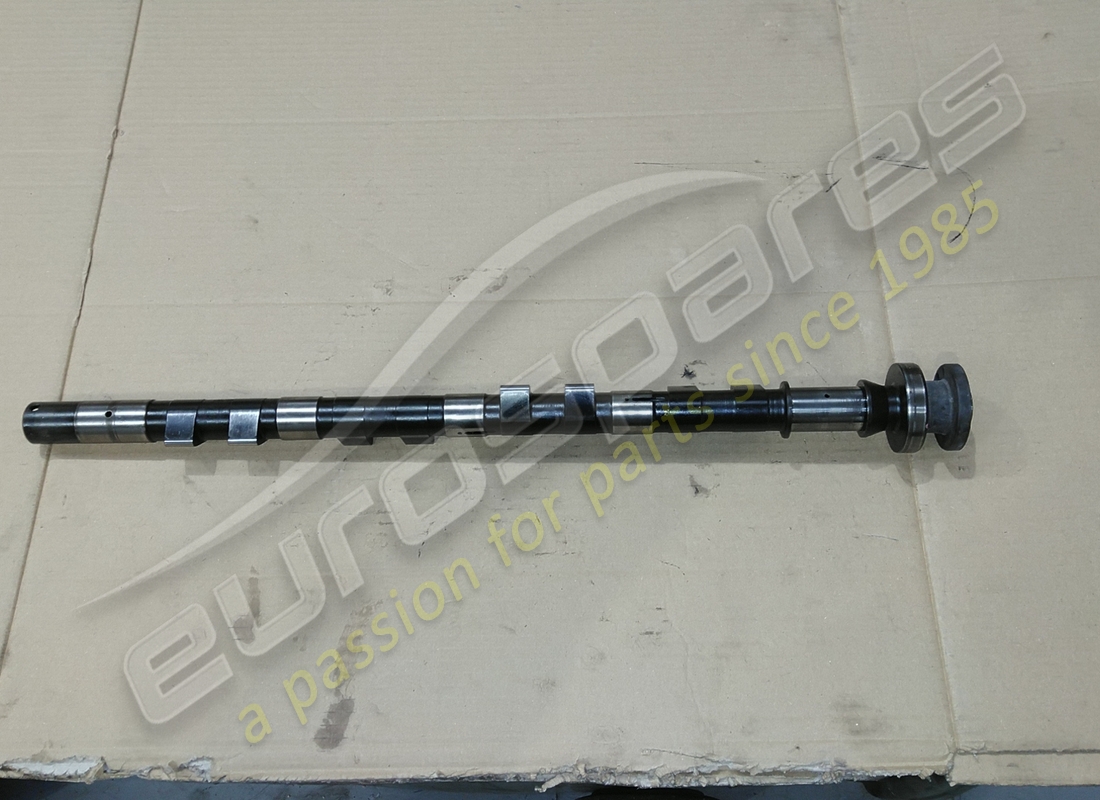

                                                                                                      LEFT INTAKE CAMSHAFT COMPLETE
                                                                                                      from £670.07
                                                                                                      from £670.07
                                                                                                      This part replaces part number 126187 - and 2 more. Click to view details
                                                                                                      # 054
                                                                                                      MPN: 10269750
                                                                                                      PLUG
                                                                                                      from £0.91
                                                                                                      from £0.91
                                                                                                      This part replaces part number 95184
                                                                                                      # 055
                                                                                                      MPN: 13541721
                                                                                                      STUD
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 056
                                                                                                      MPN: 116875
                                                                                                      (1B) BRACKET
                                                                                                      from £8.75
                                                                                                      from £8.75
                                                                                                      # 056
                                                                                                      MPN: 121150
                                                                                                      (2B) BRACKET
                                                                                                      from £10.56
                                                                                                      from £10.56
                                                                                                      # 056
                                                                                                      MPN: 134259
                                                                                                      (1A) BRACKET
                                                                                                      from £8.08
                                                                                                      from £8.08
                                                                                                      # 056
                                                                                                      MPN: 134260
                                                                                                      (2A) BRACKET
                                                                                                      from £8.08
                                                                                                      from £8.08
                                                                                                      # 057
                                                                                                      MPN: 10373411
                                                                                                      SCREW
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 058
                                                                                                      MPN: 10615171
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 10615174
                                                                                                      # 059
                                                                                                      MPN: 16107111
                                                                                                      NUT
                                                                                                      # 060
                                                                                                      MPN: 127545
                                                                                                      PLUG
                                                                                                      Not for US and CH
                                                                                                      from £23.07
                                                                                                      from £23.07
                                                                                                      # 061
                                                                                                      MPN: 10257060
                                                                                                      GASKET
                                                                                                      Not for US and CH
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 10253060 - and 2 more. Click to view details
