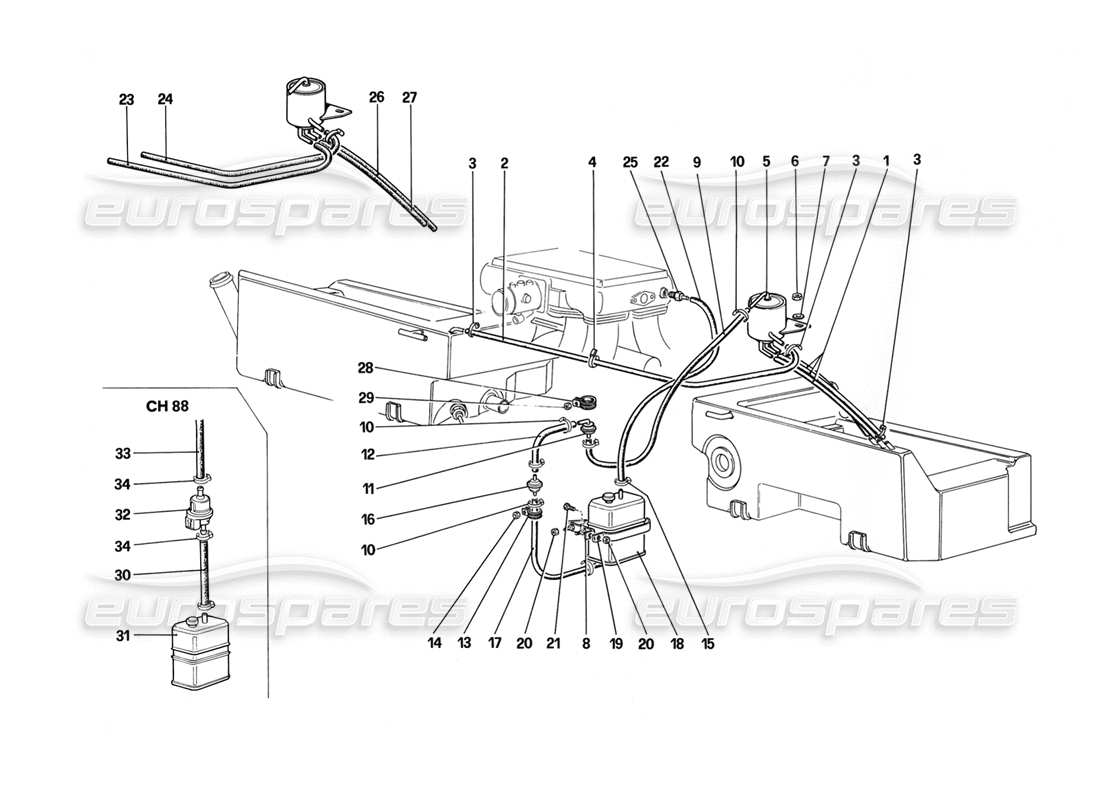

011 - Antievaporative Emission Control System (For US and SA Version)
Ferrari Mondial 3.2 QV (1987) Antievaporative Emission Control System (For US and SA Version) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 115371
PIPE FROM TANKTO SEPARATOR
For CabriolelQ = 2
Supersession
Supersession
# 002
MPN: 117154
PIPE
from £29.67
from £29.67
# 003
MPN: 10175090
CLIP
from £0.66
from £0.66
# 004
MPN: 105550
CLIP HOLDING PIPE
from £1.28
from £1.28
# 005
MPN: 114846

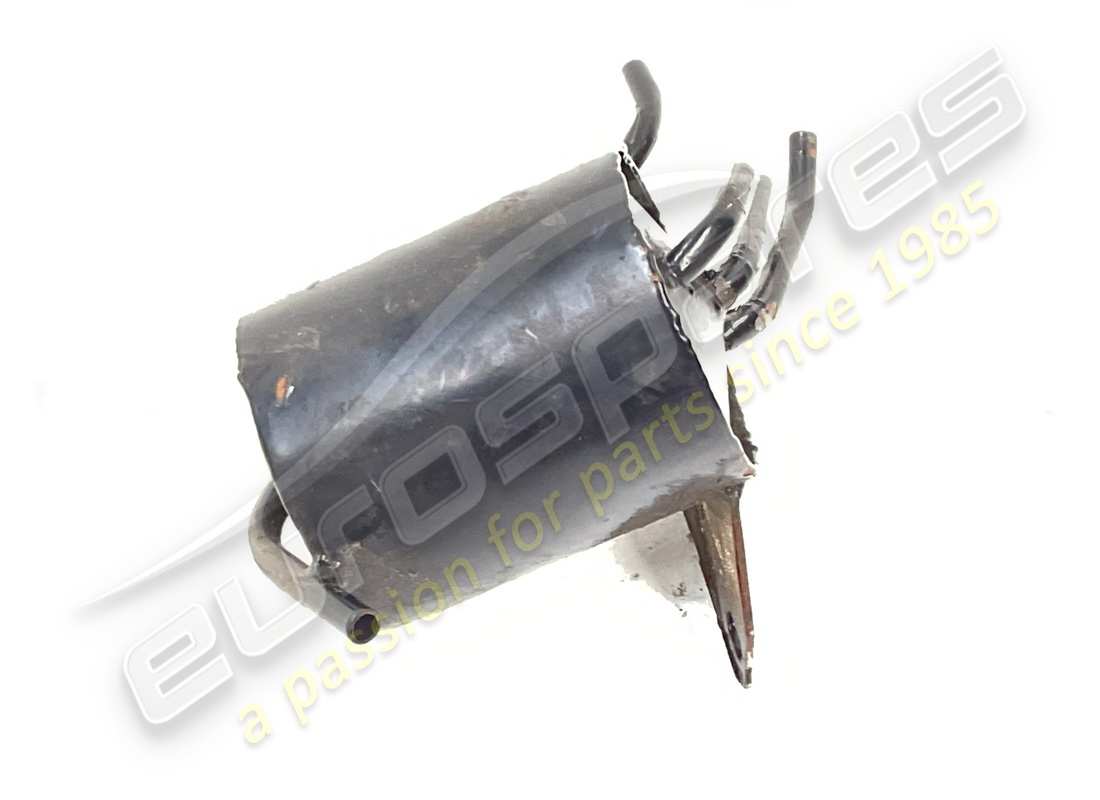

VAPOR SEPARATOR
from £99.75
from £99.75
# 006
MPN: 12574211
NUT
from £0.71
from £0.71
# 007
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 008
MPN: 121619
BRACKET FOR FILTER
from £23.41
from £23.41
# 009
MPN: 117153
PIPE
from £9.01
from £9.01
# 010
MPN: 10175090
CLIP
from £0.66
from £0.66
# 011
MPN: 124193
ANTI-DOWNFLOW VALVE
from £81.63
from £81.63
This part replaces part number 114843
# 012
MPN: 114877
PIPE TO LOWER SUCTION COVER
Supersession
Supersession
This part replaces part number 106201 - and 2 more. Click to view details
# 013
MPN: 10441490
CLIP
from £0.47
from £0.47
# 014
MPN: 12574211
NUT
from £0.71
from £0.71
# 015
MPN: 12179090
CLIP
Supersession
Supersession
This part replaces part number 102721
# 016
MPN: 114910
VALVE FOR TANK VENTILATION
from £66.15
from £66.15
# 017
MPN: 117152
PIPE
from £3.98
from £3.98
# 018
MPN: 114675
CHARCOAL CARBON CANISTER
from £361.73
from £361.73
# 019
MPN: 121618
BRACKET FOR FILTER
from £8.43
from £8.43
# 020
MPN: 12574211
NUT SECURING BRACKETS
from £0.71
from £0.71
# 021
MPN: 10902421
SCREW
from £0.47
from £0.47
# 022
MPN: 118318
PIPE
from £15.45
from £15.45
This part replaces part number 113437
# 023
MPN: 120378
(2) PIPE
from £39.79
from £39.79
# 024
MPN: 114887
(2) PIPE
from £68.30
from £68.30
This part replaces part number 110255
# 025
MPN: 117286
UNION
For US
from £10.88
from £10.88
# 025
MPN: 129839
UNION
For SA
from £18.95
from £18.95
# 026
MPN: 123343
(2) PIPE
from £14.36
from £14.36
# 027
MPN: 114884
(2) PIPE
from £15.04
from £15.04
# 028
MPN: 124226
CLIP
from £3.34
from £3.34
# 029
MPN: 12574211
NUT
from £0.71
from £0.71
# 030
MPN: 136246
PIPE
from £3.81
from £3.81
# 031
MPN: 135698
CHARCOAL CARBON CANISTER
from £59.65
from £59.65
# 032
MPN: 130978
ANTIEVAPORATIVE VALVE
from £268.99
from £268.99
# 033
MPN: 135144
PIPE
from £9.06
from £9.06
# 034
MPN: 13000190
CLAMP
from £0.54
from £0.54
This part replaces part number 12178990 - and 1 more. Click to view details
