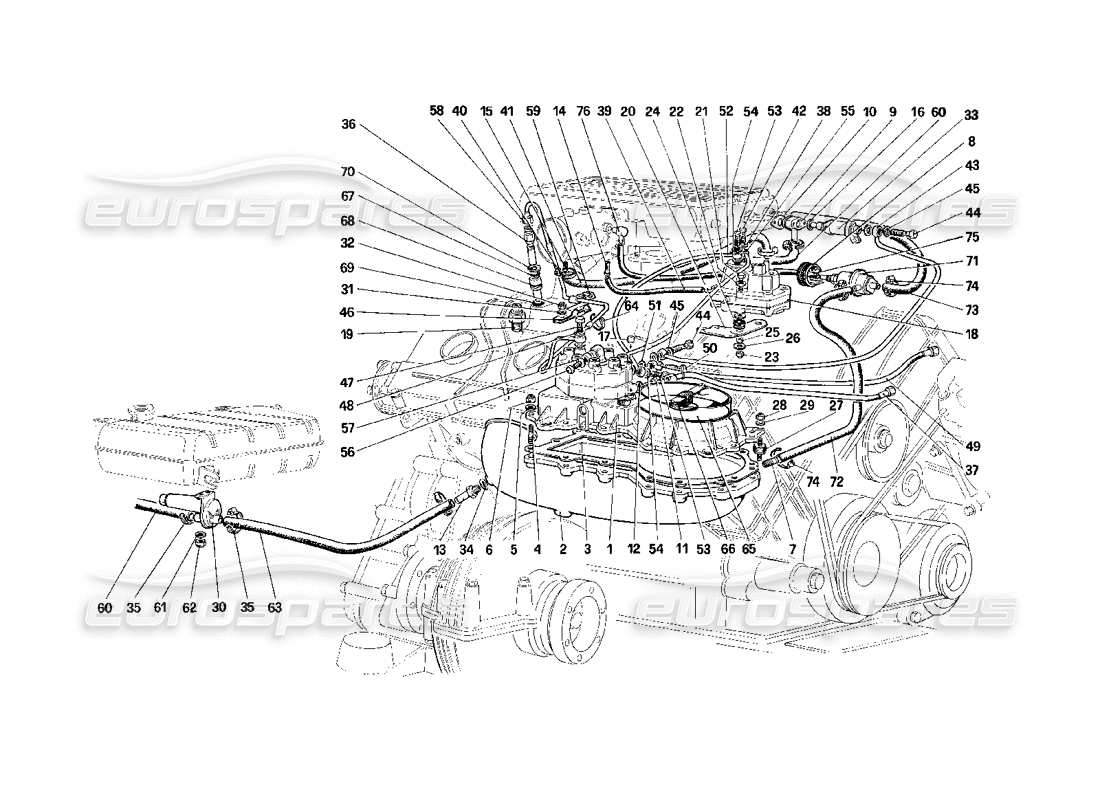

014 - Fuel Distributors Lines (Not For US and CH87 Version)
Ferrari Mondial 3.2 QV (1987) Fuel Distributors Lines (Not For US and CH87 Version) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 95970011
VACUUM PUMP FOPR METERING DEVICE CHECK
from £350.12
from £350.12
# 001
MPN: 121745
METERING DEVICE
from £1,575.00
from £1,575.00
# 002
MPN: 127157
SUPPORT FOR METERING DEVICE
With unit no. 127159
# 002
MPN: 127159
SUPPORT FOR METERING DEVICE, COMPLETE
from £135.20
from £135.20
# 002
MPN: 129644
SUPPORT FOR METERING DEVICE
With unit no. 129645
# 002
MPN: 129645
SUPPORT FOR METERING DEVICE, COMPLETE
For CH
from £353.98
from £353.98
# 003
MPN: 135096
GASKET
from £22.42
from £22.42
This part replaces part number 115011 - and 1 more. Click to view details
# 004
MPN: 13541124
STUD
from £11.39
from £11.39
This part replaces part number 13541121
# 005
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
# 006
MPN: 12574211
NUT
from £0.71
from £0.71
# 007
MPN: 112030
UNION
from £6.55
from £6.55
# 008
MPN: 117437
CLAMP
from £13.07
from £13.07
# 009
MPN: 121056
UNION
For CH use no. 115004
from £18.29
from £18.29
# 009
MPN: 147720
GASKET
from £2.04
from £2.04
This part replaces part number 115005 which we have in stock - and 2 more. Click to view details
# 011
MPN: 115498
UNION WITH FILTER
from £189.93
from £189.93
# 012
MPN: 11270160
GASKET
from £0.91
from £0.91
# 013
MPN: 116860
THREADED UNION
For CH use no. 130860
from £19.56
from £19.56
# 014
MPN: 113637
THREADED UNION
from £5.79
from £5.79
# 015
MPN: 113652
THREADED UNION
from £2.90
from £2.90
# 016
MPN: 103039
SEALING RING
(minimum order quantity = 10)
from £1.62
from £1.62
This part replaces part number 95860041
# 017
MPN: 115650
INVIOLABILITY CAP
from £4.75
from £4.75
# 018
MPN: 119825
WARM UP REGULATOR
from £1,254.75
from £1,254.75
This part replaces part number 118585 - and 1 more. Click to view details
# 019
MPN: 113980
TIME TERMAL SWITCH
For CH use no. 118790
Supersession
Supersession
# 020
MPN: 118291
SUPPORT
from £4.81
from £4.81
# 021
MPN: 10903821
SCREW
from £0.71
from £0.71
# 022
MPN: 12604274
WASHER
from £0.54
from £0.54
This part replaces part number 12604271 - and 1 more. Click to view details
# 023
MPN: 12574211
NUT
from £0.71
from £0.71
# 024
MPN: 103549
RUBBER BUSH
from £0.71
from £0.71
# 025
MPN: 103550
SPACER
from £11.42
from £11.42
This part replaces part number 4130913
# 026
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 027
MPN: 102947
VIBRATION DAMPING SUPPORT
from £6.65
from £6.65
This part replaces part number 102007 - and 14 more. Click to view details
# 028
MPN: 12575411
NUT
Supersession
Supersession
# 029
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
# 029
MPN: 12640624
WASHER
from £0.54
from £0.54
This part replaces part number 12640601 - and 1 more. Click to view details
# 030
MPN: 120222
ADDITIONAL AIR VALVE
For CH use no. 121744
# 031
MPN: 11197774
WASHER
from £0.54
from £0.54
This part replaces part number 11197770 - and 3 more. Click to view details
# 032
MPN: 12575490
NUT
# 033
MPN: 115739
COLD STARTER
from £446.03
from £446.03
# 034
MPN: 10280060
GASKET
For CH use no. 10259960
from £0.53
from £0.53
This part replaces part number 100501 - and 3 more. Click to view details
# 035
MPN: 13000390
CLAMP
For CH use no. 12180290
from £0.51
from £0.51
This part replaces part number 12179590 - and 1 more. Click to view details
# 036
MPN: 113975
INJECTOR
from £62.13
from £62.13
This part replaces part number 113975/OE - and 3 more. Click to view details
# 037
MPN: 118401
PIPE FROM FUEL TANK
from £30.94
from £30.94
# 038
MPN: 10260160
GASKET
from £0.53
from £0.53
This part replaces part number 10260170
# 039
MPN: 115002
PIPE
from £6.16
from £6.16
# 040
MPN: 12179190
CLAMP
Supersession
Supersession
This part replaces part number 102604
# 041
MPN: 118293
PIPE
from £21.42
from £21.42
# 042
MPN: 113670
UNION
from £17.25
from £17.25
This part replaces part number 113664 which we have in stock - and 7 more. Click to view details
# 043
MPN: 118410
PIPE
from £18.52
from £18.52
# 044
MPN: 113664
UNION
Supersession
Supersession
# 045
MPN: 14330260
WASHER
from £0.47
from £0.47
# 046
MPN: 115417
BRACKET FOR CLAMP
from £2.66
from £2.66
# 047
MPN: 113670
UNION
from £17.25
from £17.25
This part replaces part number 113664 which we have in stock - and 7 more. Click to view details
# 048
MPN: 10260160
GASKET
from £0.48
from £0.48
This part replaces part number 10260170
# 049
MPN: 118393
RETURN PIPE
from £49.41
from £49.41
# 050
MPN: 111644
BANJO BOLT
from £6.38
from £6.38
# 051
MPN: 11270160
GASKET
from £0.90
from £0.90
# 052
MPN: 118398
RETURN PIPE FROM REGULATOR
from £9.75
from £9.75
# 053
MPN: 113664
UNION
Supersession
Supersession
# 054
MPN: 14330260
GASKET
from £0.47
from £0.47
# 055
MPN: 118397
DELIVERY PIPE TO REGULATOR
from £86.63
from £86.63
# 056
MPN: 113664
UNION
Supersession
Supersession
# 057
MPN: 14330260
GASKET
from £0.47
from £0.47
# 058
MPN: 118567
PIPE FROM METERING DEVICE TO CYLINDER 1
from £238.18
from £238.18
# 058
MPN: 118568
PIPE FROM METERING DEVICE TO CYLINDER 2
from £246.11
from £246.11
# 058
MPN: 118569
PIPE FROM METERING DEVICE TO CYLINDER 3
from £217.25
from £217.25
# 058
MPN: 118570
PIPE FROM METERING DEVICE TO CYLINDER 4
from £192.29
from £192.29
# 058
MPN: 118571
PIPE FROM METERING DEVICE TO CYLINDER 5
from £310.35
from £310.35
# 058
MPN: 118572
PIPE FROM METERING DEVICE TO CYLINDER 6
from £217.25
from £217.25
# 058
MPN: 118573
PIPE FROM METERING DEVICE TO CYLINDER 7
from £201.81
from £201.81
# 058
MPN: 118574
PIPE FROM METERING DEVICE TO CYLINDER 8
from £134.54
from £134.54
# 059
MPN: 113896
SUPPORT CLAMP (3 PIPES)
from £3.83
from £3.83
This part replaces part number 117279
# 059
MPN: 115595
SUPPORT CLAMP (4 PIPES)
from £4.65
from £4.65
# 059
MPN: 115595
SUPPORT CLAMP (4 PIPES)
from £4.65
from £4.65
# 059
MPN: 117279
SUPPORT CLAMP
Supersession
Supersession
# 060
MPN: 128204
PIPE
For CH use no. 135117
from £67.94
from £67.94
This part replaces part number 120211
# 061
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
# 062
MPN: 12574211
NUT
from £0.71
from £0.71
# 063
MPN: 124442
PIPE
For CH use no. 135118
from £31.64
from £31.64
# 064
MPN: 110381
CLAMP
from £0.54
from £0.54
This part replaces part number MC4325/4
# 064
MPN: 40135402
CLAMP
from £2.45
from £2.45
This part replaces part number 111193
# 065
MPN: 120812
AIR SENSOR PLATE
from £72.61
from £72.61
# 066
MPN: 120809
WASHER
from £24.48
from £24.48
# 067
MPN: 113570
SEALING RING
from £3.36
from £3.36
# 068
MPN: 113309
BUSHING
from £199.02
from £199.02
This part replaces part number 123936
# 069
MPN: 101031
SEALING RING
from £1.41
from £1.41
# 070
MPN: 103326
SEEGER RING
from £0.28
from £0.28
# 071
MPN: 115741
VALVE FOR BY - PASS
from £425.35
from £425.35
# 072
MPN: 121823
HOSE FROM VALVE TO SUPPORT
from £17.24
from £17.24
# 073
MPN: 128309
PIPE TO VALVE FROM AIR DELIVERY
from £3.63
from £3.63
This part replaces part number 107102 - and 1 more. Click to view details
# 074
MPN: 13000190
CLAMP
from £0.53
from £0.53
This part replaces part number 12178990 - and 1 more. Click to view details
# 075
MPN: 124790
PIPE
Replaced by 159542
from £3.21
from £3.21
# 076
MPN: 127164
UNION
from £17.14
from £17.14
# 077
MPN: 123478
CLAMP
from £2.45
from £2.45
-part-diagram-015.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL DISTRIBUTORS LINES (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL DISTRIBUTORS LINES (FOR CH87 VERSION) PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI MONDIAL 3.2 QV (1987) AIR INTAKE AND MANIFOLDS PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI MONDIAL 3.2 QV (1987) THROTTLE HOUSING AND LINKAGE PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI MONDIAL 3.2 QV (1987) EXHAUST SYSTEM (NOT FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI MONDIAL 3.2 QV (1987) EXHAUST SYSTEM (FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI MONDIAL 3.2 QV (1987) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI MONDIAL 3.2 QV (1987) LUBRICATION SYSTEM PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI MONDIAL 3.2 QV (1987) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI MONDIAL 3.2 QV (1987) WATER PUMP AND PIPINGS PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI MONDIAL 3.2 QV (1987) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI MONDIAL 3.2 QV (1987) CLUTCH RELEASE CONTROL (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI MONDIAL 3.2 QV (1987) CLUTCH RELEASE CONTROL (FOR CAR WITH ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI MONDIAL 3.2 QV (1987) GEARBOX TRANSMISSION PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI MONDIAL 3.2 QV (1987) GEARBOX - DIFFERENTIAL HOUSING AND OIL SUMP PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI MONDIAL 3.2 QV (1987) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI MONDIAL 3.2 QV (1987) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI MONDIAL 3.2 QV (1987) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI MONDIAL 3.2 QV (1987) OUTSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI MONDIAL 3.2 QV (1987) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI MONDIAL 3.2 QV (1987) BRAKE HYDRAULIC SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI MONDIAL 3.2 QV (1987) BRAKE HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI MONDIAL 3.2 QV (1987) HYDRAULIC SYSTEM FOR ANTISKID PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI MONDIAL 3.2 QV (1987) BRAKE SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI MONDIAL 3.2 QV (1987) ANTI SKID SYSTEM PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI MONDIAL 3.2 QV (1987) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI MONDIAL 3.2 QV (1987) HAND - BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI MONDIAL 3.2 QV (1987) STEERING BOX AND LINKAGE PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI MONDIAL 3.2 QV (1987) STEERING COLUMM PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI MONDIAL 3.2 QV (1987) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI MONDIAL 3.2 QV (1987) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI MONDIAL 3.2 QV (1987) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI MONDIAL 3.2 QV (1987) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI MONDIAL 3.2 QV (1987) WHEELS PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI MONDIAL 3.2 QV (1987) ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-050.webp "FERRARI MONDIAL 3.2 QV (1987) ELECTRIC GENERATION SYSTEM PARTS DIAGRAM")
-part-diagram-051.webp "FERRARI MONDIAL 3.2 QV (1987) AIR CONDITIONING COMPRESSOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-052.webp "FERRARI MONDIAL 3.2 QV (1987) TOOL - KIT PARTS DIAGRAM")
-part-diagram-053.webp "FERRARI MONDIAL 3.2 QV (1987) PEDAL BOARD - CLUTCH CONTROL (FOR CAR WITHOUT ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-054.webp "FERRARI MONDIAL 3.2 QV (1987) PEDAL BOARD - CLUTCH CONTROL (FOR CAR WITH ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-055.webp "FERRARI MONDIAL 3.2 QV (1987) THROTTLE CONTROL AND BRAKE HYDRAULIC SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-056.webp "FERRARI MONDIAL 3.2 QV (1987) THROTTLE CONTROL AND BRAKE HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - OUTER ELEMENTS PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS WITHOUT ANTISKID PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS WITH ANTISKID PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS - CABRIOLET PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - 3.2 MONDIAL COUPE - USA - SA - AUS - CH87 - CH88 EXCLUDED PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - 3.2 MONDIAL COUPE USA - SA - AUS - CH87 - CH88 PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - CABRIOLET-USA - SA EXCLUDED PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - CABRIOLET PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI MONDIAL 3.2 QV (1987) FRONT COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI MONDIAL 3.2 QV (1987) ENGINE COMPARTMENT AND CARPETING PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI MONDIAL 3.2 QV (1987) DOORS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI MONDIAL 3.2 QV (1987) DOORS - CABRIOLET PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI MONDIAL 3.2 QV (1987) BUMPERS, MOULDINGS & LIGHTS PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI MONDIAL 3.2 QV (1987) GLASSES PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI MONDIAL 3.2 QV (1987) SEATS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI MONDIAL 3.2 QV (1987) SEATS - CABRIOLET PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI MONDIAL 3.2 QV (1987) ROOF, TUNNEL AND SAFETY BELTS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI MONDIAL 3.2 QV (1987) ROOF, TUNNEL AND SAFETY BELTS - CABRIOLET PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI MONDIAL 3.2 QV (1987) INSTRUMENTS PANEL PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI MONDIAL 3.2 QV (1987) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI MONDIAL 3.2 QV (1987) HEADLIGHTS LIFTING DEVICE AND HEADLIGHTS PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI MONDIAL 3.2 QV (1987) WINDSHIELD WIPER AND HORNS PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI MONDIAL 3.2 QV (1987) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-126.webp "FERRARI MONDIAL 3.2 QV (1987) ELECTRICAL BOARDS PARTS DIAGRAM")
-part-diagram-127.webp "FERRARI MONDIAL 3.2 QV (1987) SECONDARY ELECTRICAL BOARDS - CH88 EXCLUDED PARTS DIAGRAM")
-part-diagram-128.webp "FERRARI MONDIAL 3.2 QV (1987) SECONDARY ELECTRICAL BOARDS - FOR CH88 PARTS DIAGRAM")
-part-diagram-129.webp "FERRARI MONDIAL 3.2 QV (1987) HEATING SYSTEM PARTS DIAGRAM")
-part-diagram-130.webp "FERRARI MONDIAL 3.2 QV (1987) SUN ROOF - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-131.webp "FERRARI MONDIAL 3.2 QV (1987) TOP - CABRIOLET PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI MONDIAL 3.2 QV (1987) ENGINE - GEARBOX AND SUPPORTS PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI MONDIAL 3.2 QV (1987) CRANKCASE PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI MONDIAL 3.2 QV (1987) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI MONDIAL 3.2 QV (1987) FLYWHEEL AND CLUTCH HOUSING SPACER PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI MONDIAL 3.2 QV (1987) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI MONDIAL 3.2 QV (1987) CYLINDER HEAD (LEFT) PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI MONDIAL 3.2 QV (1987) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI MONDIAL 3.2 QV (1987) TIMING SYSTEM - CONTROLS PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI MONDIAL 3.2 QV (1987) AIR INJECTION (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI MONDIAL 3.2 QV (1987) AIR INJECTION (FOR CH VERSION) PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI MONDIAL 3.2 QV (1987) ANTIEVAPORATIVE EMISSION CONTROL SYSTEM (FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL PUMP AND PIPES (NOT FOR US VERSION) PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL PUMP AND PIPES (FOR US VERSION) PARTS DIAGRAM")
