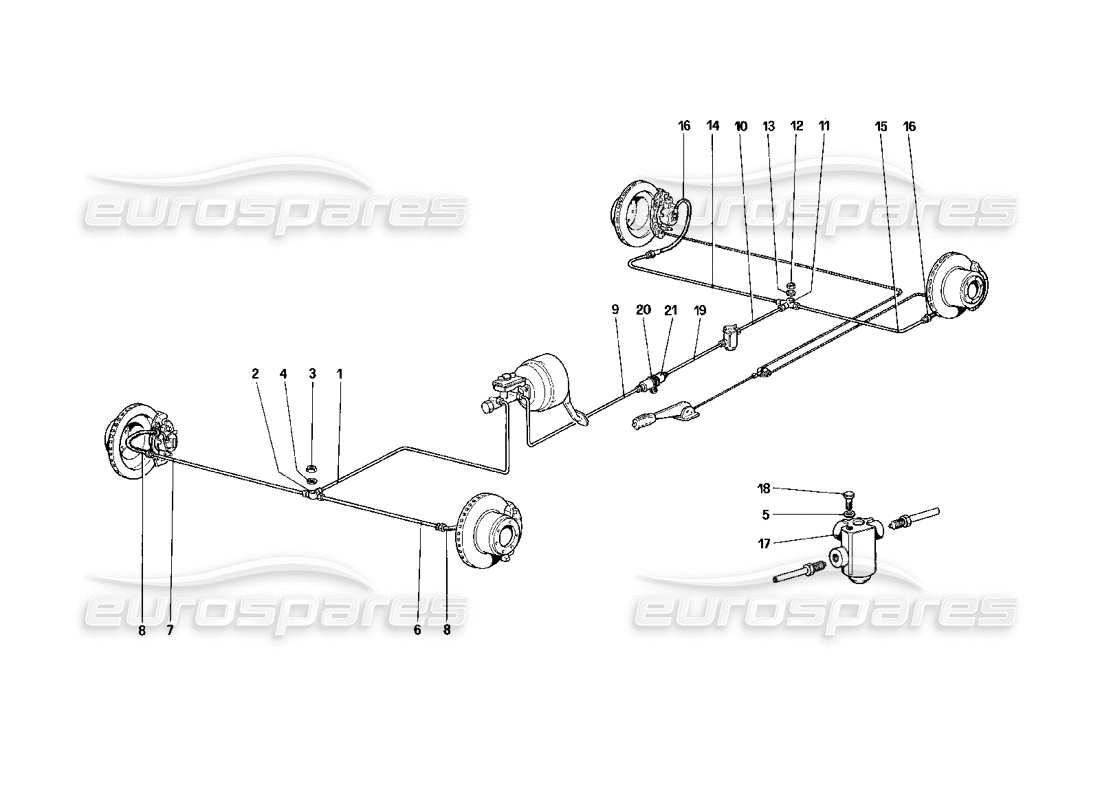

038 - Brake System (for Car Without Antiskid System)
Ferrari Mondial 3.2 QV (1987) Brake System (For Car Without Antiskid System) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 105855
PIPE FROM PUMP TO FRONT 3 WAY UNION
from £15.15
from £15.15
# 002
MPN: 101394
3 WAY UNION
from £27.42
from £27.42
This part replaces part number 680980 - and 7 more. Click to view details
# 003
MPN: 12574211
NUT
from £0.71
from £0.71
# 004
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 005
MPN: 106852
WASHER
Supersession
Supersession
This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
# 006
MPN: 106670
PIPE FROM 3 WAY TO LEFT FRONT HOSE
For RHD use no. 101407
Supersession
Supersession
# 007
MPN: 116397
PIPE FROM 3 WAY TO RIGHT FRONT HOSE
For RHD use no. 101407
from £9.78
from £9.78
# 008
MPN: 118101
FRONT BRAKE HOSE
from £135.00
from £135.00
# 009
MPN: 116397
PIPE FROM PUMP TO 2 WAY UNION
from £9.78
from £9.78
# 010
MPN: 101407
PIPE FROM PRESSURE REGULATOR TO 3 WAY FITTING
from £26.03
from £26.03
This part replaces part number 680683
# 011
MPN: 101394
3 WAY FITTING
from £27.42
from £27.42
This part replaces part number 680980 - and 7 more. Click to view details
# 012
MPN: 12574211
NUT
from £0.71
from £0.71
# 013
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 014
MPN: 104470
PIPE FROM 3 WAY UNION TO RIGHT HOSE
For US use no. 106969
Supersession
Supersession
# 015
MPN: 105851
PIPE FROM 3 WAY UNION TO LEFT HOSE
from £9.63
from £9.63
# 016
MPN: 271712
REAR BRAKE HOSE
from £14.82
from £14.82
This part replaces part number 118100 which we have in stock
# 017
MPN: 118103
PRESSURE REGULATOR - FOR US
from £51.73
from £51.73
# 017

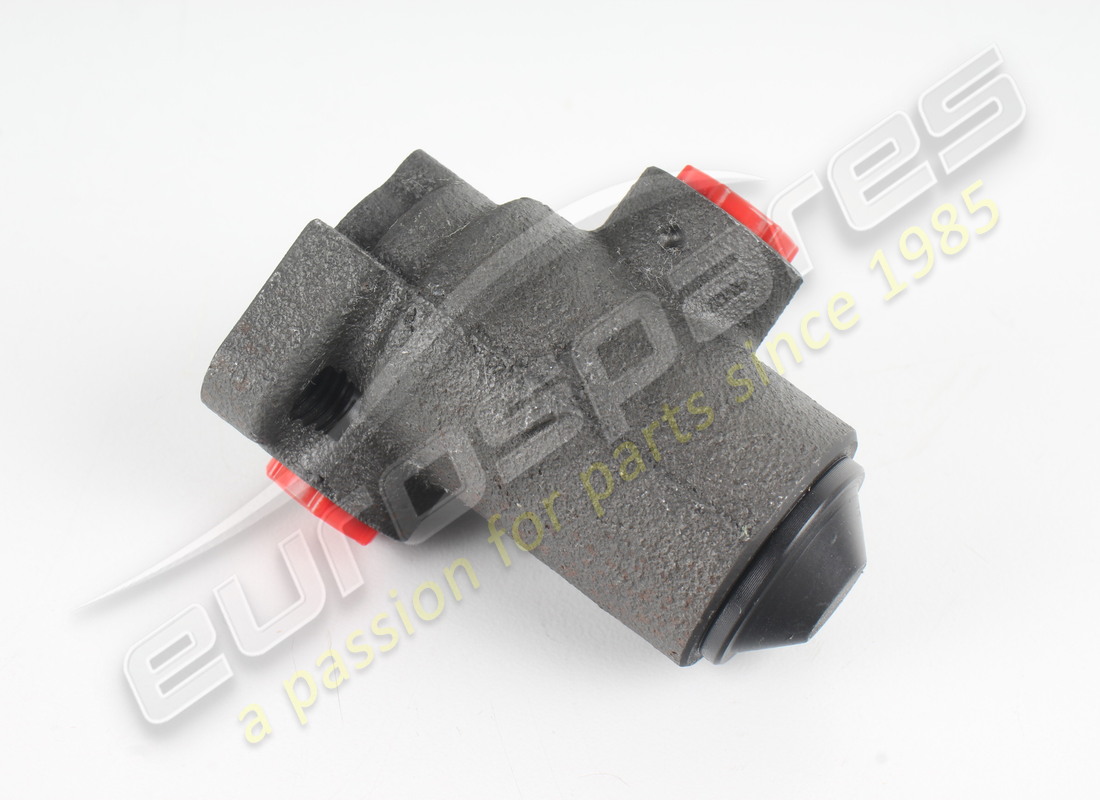

MPN: 119366
PRESSURE REGULATOR
Not for US - Also valid for AUS
from £64.20
from £64.20
# 018
MPN: 16043021
SCREW
from £0.53
from £0.53
# 019
MPN: 117331
PIPE FROM 2 WAY TO PRESSURE REGULATOR
For RHD use no. 101408
from £26.98
from £26.98
This part replaces part number 116999
# 020
MPN: 10441490
CLAMP
from £0.47
from £0.47
# 021
MPN: 127505
2 WAY UNION
from £8.38
from £8.38
