039 - Anti skid System

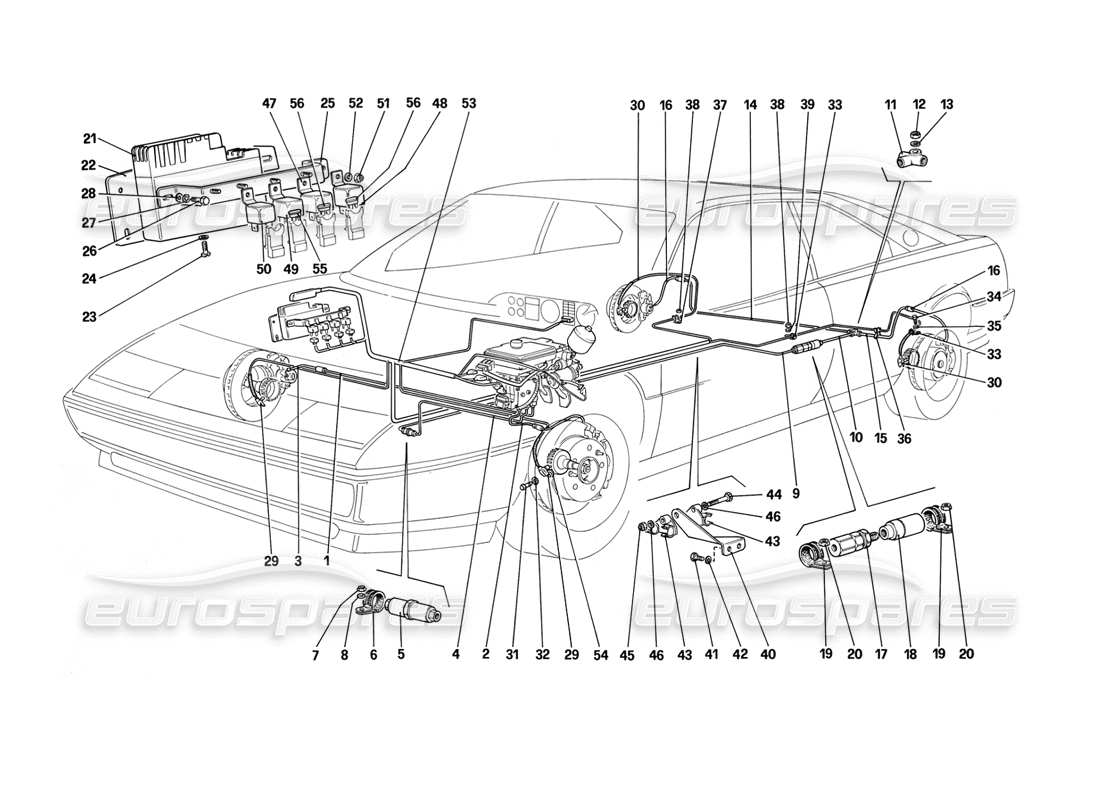

Ferrari Mondial 3.2 QV (1987) Anti skid System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 106969
PIPE FROM CONTROL UNIT TO HOSE RH FRONT
For RHD use no. 106672
from £14.49
from £14.49
# 002
MPN: 105856
PIPE FROM CONTROL UNIT TO HOSE LH FRONT
For RHD use no. 101397
Supersession
Supersession
# 003
MPN: 118101
FRONT BRAKE HOSE
from £135.00
from £135.00
# 004
MPN: 129917
PIPE FROM CONTROL UNIT TO 2 WAY UNION
from £5.80
from £5.80
# 005
MPN: 127505
2 WAY UNION
from £8.38
from £8.38
# 006
MPN: 10441490
STRAP
from £0.53
from £0.53
# 007
MPN: 12574211
SELF LOCKING NUT
from £0.71
from £0.71
# 008
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 009
MPN: 117331
PIPE FROM 2 WAY TO PRESSURE REGULATOR
from £26.98
from £26.98
This part replaces part number 116999
# 010
MPN: 105855
PIPE FROM PRESSURE REGULATOR TO 3 WAY UNION
For RHD use no. 105855
from £15.15
from £15.15
# 011
MPN: 101394
3 WAY UNION
from £26.78
from £26.78
This part replaces part number 680980 - and 7 more. Click to view details
# 012
MPN: 12574211
SELF LOCKING NUT
from £0.71
from £0.71
# 013
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 014
MPN: 104470
PIPE FROM 3 WAY TO HOSE RH REAR
For US use no. 106969
Supersession
Supersession
# 015
MPN: 105851
PIPE FROM 3 WAY TO HOSE LH REAR
from £9.63
from £9.63
# 016
MPN: 271712
REAR BRAKE HOSE
from £14.70
from £14.70
This part replaces part number 118100 which we have in stock
# 017
MPN: 134597
DELAY VALVE
from £662.59
from £662.59
# 018
MPN: 131322
PRESSURE REGULATOR
from £76.44
from £76.44
# 019
MPN: 10441990
STRAP
from £0.53
from £0.53
# 020
MPN: 12575411
NUT
Supersession
Supersession
# 021
MPN: 131325
ELECTRONIC CONTROL UNIT
from £1,149.75
from £1,149.75
# 022
MPN: 131744
BRACKET
from £15.71
from £15.71
# 023
MPN: 131745
SCREW
from £1.43
from £1.43
# 024
MPN: 10615271
WASHER
Supersession
Supersession
# 025
MPN: 131945
BRACKET
from £18.43
from £18.43
# 026
MPN: 10977621
SCREW
from £1.07
from £1.07
# 027
MPN: 10615371
WASHER
Supersession
Supersession
# 028
MPN: 12637801
WASHER
from £0.53
from £0.53

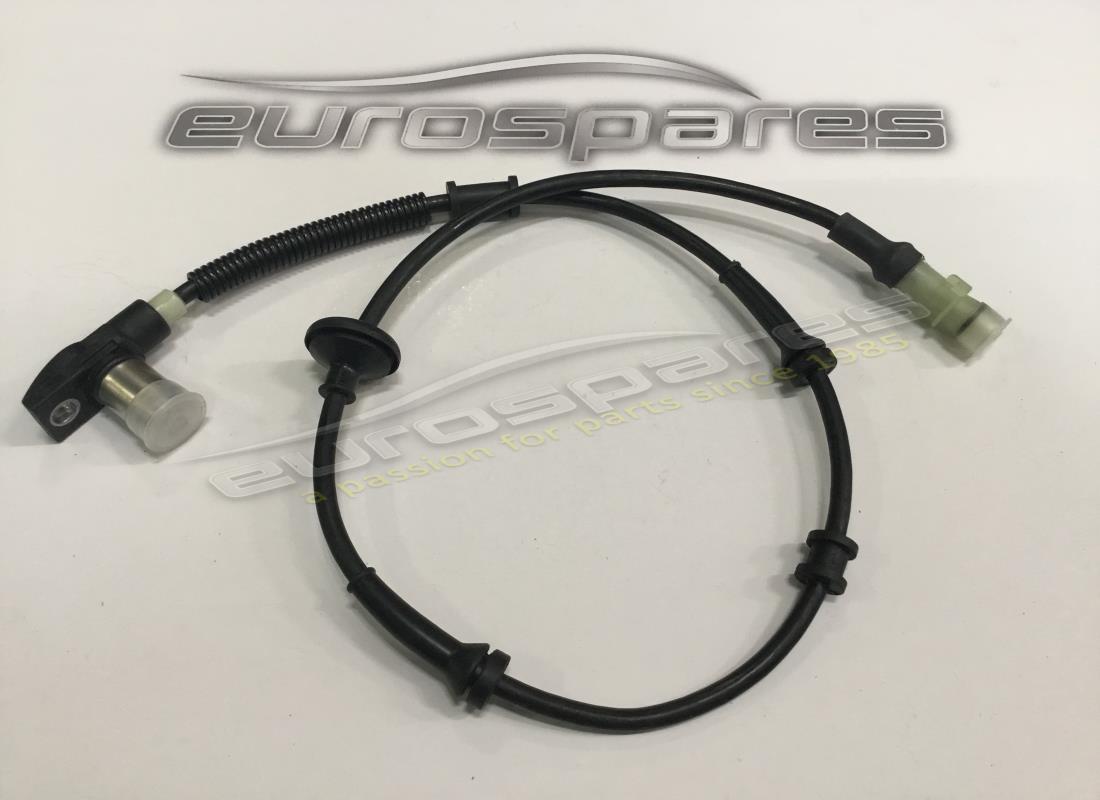

# 029
MPN: 131875
FRON SENSOR
from £107.13
from £107.13
# 030
MPN: 131876
REAR SENSOR
from £237.89
from £237.89
# 031
MPN: 10902121
SCREW
from £0.71
from £0.71
This part replaces part number 20146601
# 032
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
# 033
MPN: 131783
. CLIP
Supersession
Supersession
This part replaces part number 131783 N/L/A
# 034
MPN: 10902121
SCREW
from £0.71
from £0.71
This part replaces part number 20146601
# 035
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
# 036
MPN: 124551
CLIP
from £0.96
from £0.96
# 037
MPN: 10418501
STRAP
from £1.07
from £1.07
# 038
MPN: 12575411
SELF LOCKING NUT
Supersession
Supersession
# 039
MPN: 12648201
WASHER
from £1.38
from £1.38
# 040
MPN: 131871
BRACKET
from £9.42
from £9.42
# 041
MPN: 10902021
SCREW
from £1.17
from £1.17
This part replaces part number 10902020
# 042
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 043
MPN: 128292
CLIP
from £1.34
from £1.34
# 044
MPN: 13272811
SCREW
from £0.47
from £0.47
# 045
MPN: 12574011
SELF LOCKING NUT
from £0.54
from £0.54
# 046
MPN: 10519201
WASHER
from £0.84
from £0.84
This part replaces part number 10519281
# 047
MPN: 131938
ELECTRONIC CONTROL UNIT
from £60.15
from £60.15
# 048
MPN: 131939
RELAY FOR MOTOR PUMP
from £273.53
from £273.53
# 049
MPN: 131940
RELAY FOR SYSTEM OVERRIDING
from £65.74
from £65.74
# 050
MPN: 131785
PROTECTION RELAY
from £23.76
from £23.76
# 051
MPN: 169180
SELF LOCKING NUT
from £0.53
from £0.53
This part replaces part number 12574121
# 052
MPN: 10519301
WASHER
from £12.57
from £12.57
This part replaces part number 10517377 - and 2 more. Click to view details
# 053
MPN: 131947
CABLES FOR ANTISKID
from £493.11
from £493.11
# 054
MPN: 136401
WASHER
Possible fitting
from £0.59
from £0.59
# 055
MPN: 131942
3AMP FUSE
from £0.47
from £0.47
This part replaces part number MC3742/10
# 056
MPN: 131941
30AMP FUSE
from £0.53
from £0.53
This part replaces part number MC3742/6
-part-diagram-040.webp "FERRARI MONDIAL 3.2 QV (1987) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI MONDIAL 3.2 QV (1987) HAND - BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI MONDIAL 3.2 QV (1987) STEERING BOX AND LINKAGE PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI MONDIAL 3.2 QV (1987) STEERING COLUMM PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI MONDIAL 3.2 QV (1987) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI MONDIAL 3.2 QV (1987) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI MONDIAL 3.2 QV (1987) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI MONDIAL 3.2 QV (1987) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI MONDIAL 3.2 QV (1987) WHEELS PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI MONDIAL 3.2 QV (1987) ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-050.webp "FERRARI MONDIAL 3.2 QV (1987) ELECTRIC GENERATION SYSTEM PARTS DIAGRAM")
-part-diagram-051.webp "FERRARI MONDIAL 3.2 QV (1987) AIR CONDITIONING COMPRESSOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-052.webp "FERRARI MONDIAL 3.2 QV (1987) TOOL - KIT PARTS DIAGRAM")
-part-diagram-053.webp "FERRARI MONDIAL 3.2 QV (1987) PEDAL BOARD - CLUTCH CONTROL (FOR CAR WITHOUT ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-054.webp "FERRARI MONDIAL 3.2 QV (1987) PEDAL BOARD - CLUTCH CONTROL (FOR CAR WITH ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-055.webp "FERRARI MONDIAL 3.2 QV (1987) THROTTLE CONTROL AND BRAKE HYDRAULIC SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-056.webp "FERRARI MONDIAL 3.2 QV (1987) THROTTLE CONTROL AND BRAKE HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - OUTER ELEMENTS PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS WITHOUT ANTISKID PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS WITH ANTISKID PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS - CABRIOLET PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - 3.2 MONDIAL COUPE - USA - SA - AUS - CH87 - CH88 EXCLUDED PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - 3.2 MONDIAL COUPE USA - SA - AUS - CH87 - CH88 PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - CABRIOLET-USA - SA EXCLUDED PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - CABRIOLET PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI MONDIAL 3.2 QV (1987) FRONT COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI MONDIAL 3.2 QV (1987) ENGINE COMPARTMENT AND CARPETING PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI MONDIAL 3.2 QV (1987) DOORS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI MONDIAL 3.2 QV (1987) DOORS - CABRIOLET PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI MONDIAL 3.2 QV (1987) BUMPERS, MOULDINGS & LIGHTS PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI MONDIAL 3.2 QV (1987) GLASSES PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI MONDIAL 3.2 QV (1987) SEATS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI MONDIAL 3.2 QV (1987) SEATS - CABRIOLET PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI MONDIAL 3.2 QV (1987) ROOF, TUNNEL AND SAFETY BELTS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI MONDIAL 3.2 QV (1987) ROOF, TUNNEL AND SAFETY BELTS - CABRIOLET PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI MONDIAL 3.2 QV (1987) INSTRUMENTS PANEL PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI MONDIAL 3.2 QV (1987) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI MONDIAL 3.2 QV (1987) HEADLIGHTS LIFTING DEVICE AND HEADLIGHTS PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI MONDIAL 3.2 QV (1987) WINDSHIELD WIPER AND HORNS PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI MONDIAL 3.2 QV (1987) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-126.webp "FERRARI MONDIAL 3.2 QV (1987) ELECTRICAL BOARDS PARTS DIAGRAM")
-part-diagram-127.webp "FERRARI MONDIAL 3.2 QV (1987) SECONDARY ELECTRICAL BOARDS - CH88 EXCLUDED PARTS DIAGRAM")
-part-diagram-128.webp "FERRARI MONDIAL 3.2 QV (1987) SECONDARY ELECTRICAL BOARDS - FOR CH88 PARTS DIAGRAM")
-part-diagram-129.webp "FERRARI MONDIAL 3.2 QV (1987) HEATING SYSTEM PARTS DIAGRAM")
-part-diagram-130.webp "FERRARI MONDIAL 3.2 QV (1987) SUN ROOF - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-131.webp "FERRARI MONDIAL 3.2 QV (1987) TOP - CABRIOLET PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI MONDIAL 3.2 QV (1987) ENGINE - GEARBOX AND SUPPORTS PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI MONDIAL 3.2 QV (1987) CRANKCASE PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI MONDIAL 3.2 QV (1987) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI MONDIAL 3.2 QV (1987) FLYWHEEL AND CLUTCH HOUSING SPACER PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI MONDIAL 3.2 QV (1987) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI MONDIAL 3.2 QV (1987) CYLINDER HEAD (LEFT) PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI MONDIAL 3.2 QV (1987) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI MONDIAL 3.2 QV (1987) TIMING SYSTEM - CONTROLS PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI MONDIAL 3.2 QV (1987) AIR INJECTION (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI MONDIAL 3.2 QV (1987) AIR INJECTION (FOR CH VERSION) PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI MONDIAL 3.2 QV (1987) ANTIEVAPORATIVE EMISSION CONTROL SYSTEM (FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL PUMP AND PIPES (NOT FOR US VERSION) PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL PUMP AND PIPES (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL DISTRIBUTORS LINES (NOT FOR US AND CH87 VERSION) PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL DISTRIBUTORS LINES (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL DISTRIBUTORS LINES (FOR CH87 VERSION) PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI MONDIAL 3.2 QV (1987) AIR INTAKE AND MANIFOLDS PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI MONDIAL 3.2 QV (1987) THROTTLE HOUSING AND LINKAGE PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI MONDIAL 3.2 QV (1987) EXHAUST SYSTEM (NOT FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI MONDIAL 3.2 QV (1987) EXHAUST SYSTEM (FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI MONDIAL 3.2 QV (1987) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI MONDIAL 3.2 QV (1987) LUBRICATION SYSTEM PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI MONDIAL 3.2 QV (1987) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI MONDIAL 3.2 QV (1987) WATER PUMP AND PIPINGS PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI MONDIAL 3.2 QV (1987) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI MONDIAL 3.2 QV (1987) CLUTCH RELEASE CONTROL (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI MONDIAL 3.2 QV (1987) CLUTCH RELEASE CONTROL (FOR CAR WITH ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI MONDIAL 3.2 QV (1987) GEARBOX TRANSMISSION PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI MONDIAL 3.2 QV (1987) GEARBOX - DIFFERENTIAL HOUSING AND OIL SUMP PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI MONDIAL 3.2 QV (1987) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI MONDIAL 3.2 QV (1987) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI MONDIAL 3.2 QV (1987) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI MONDIAL 3.2 QV (1987) OUTSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI MONDIAL 3.2 QV (1987) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI MONDIAL 3.2 QV (1987) BRAKE HYDRAULIC SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI MONDIAL 3.2 QV (1987) BRAKE HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI MONDIAL 3.2 QV (1987) HYDRAULIC SYSTEM FOR ANTISKID PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI MONDIAL 3.2 QV (1987) BRAKE SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
