043 - Steering Columm

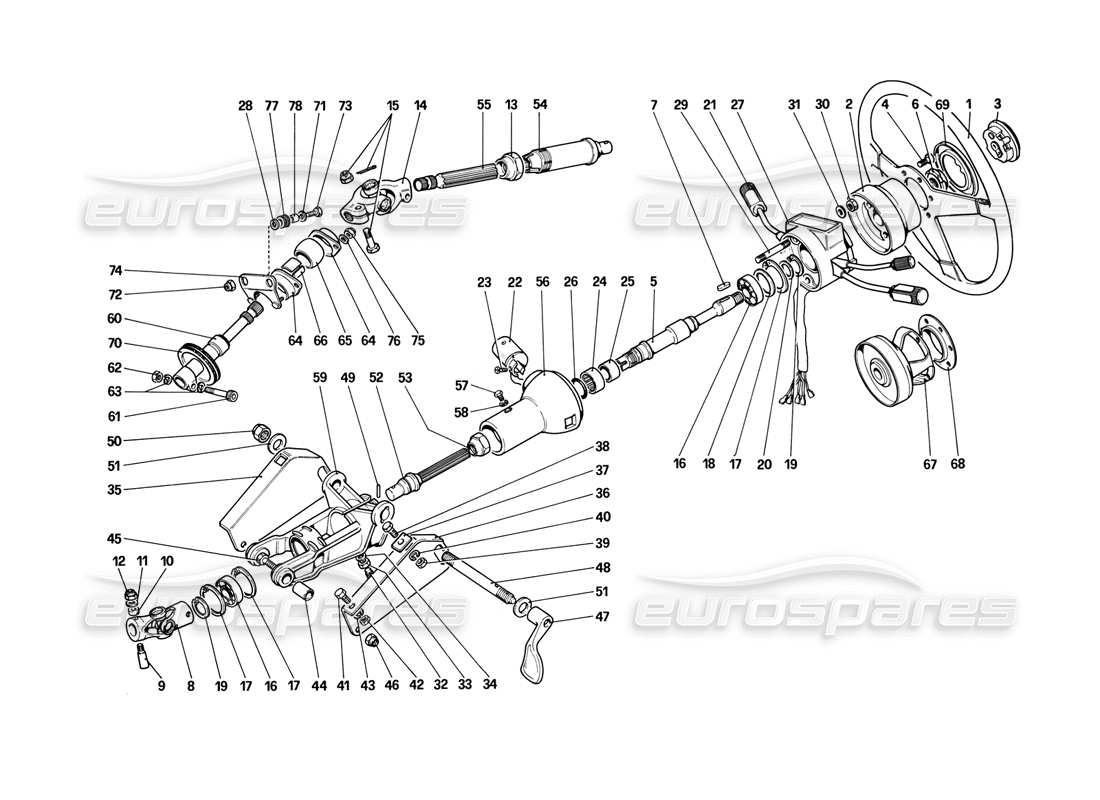

Ferrari Mondial 3.2 QV (1987) Steering Columm Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 119038
STEERING WHEEL
By request no. 119036
# 002
MPN: 106545

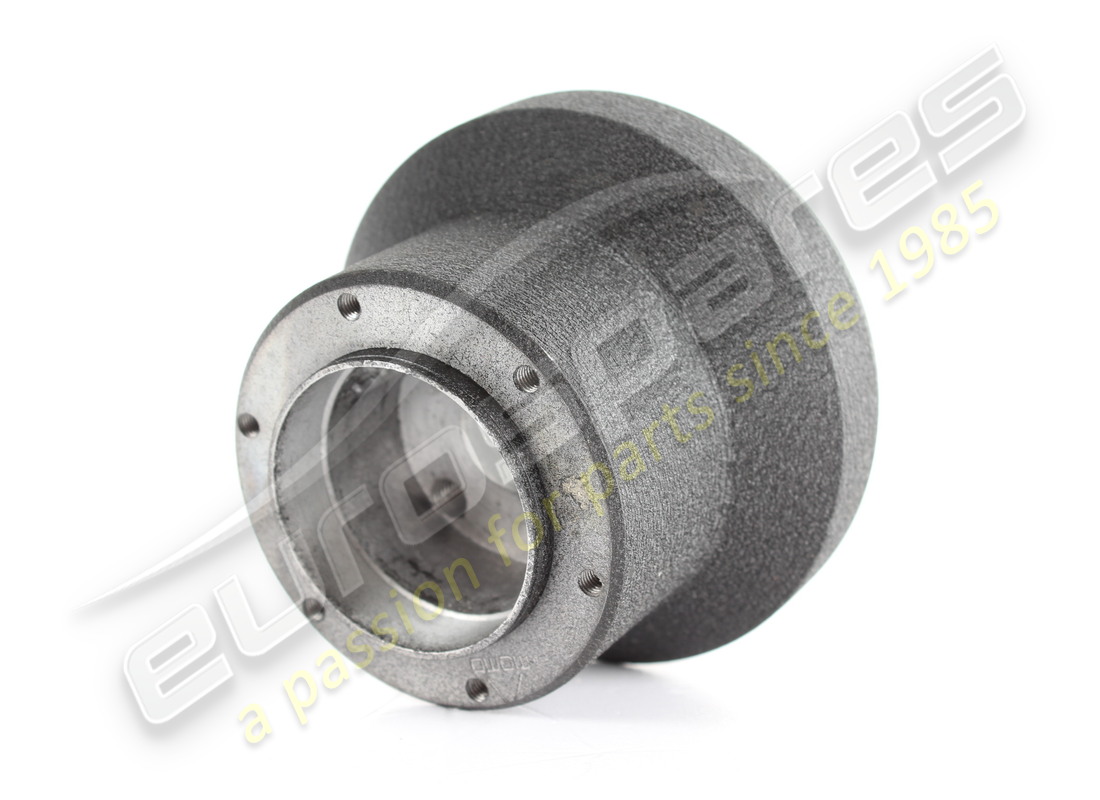

STEERING WHEEL HUB
from £295.00
from £295.00
# 003
MPN: 130899
HORN BUTTON AND RETAINER
from £52.03
from £52.03
This part replaces part number 101071
# 003
MPN: 130899/A
HORN PUSH BUTTON
from £49.19
from £49.19
# 004
MPN: 111189
SCREW
from £2.60
from £2.60
# 005
MPN: 116533
UPPER STEERING SHAFT
from £520.26
from £520.26
# 006
MPN: 106610

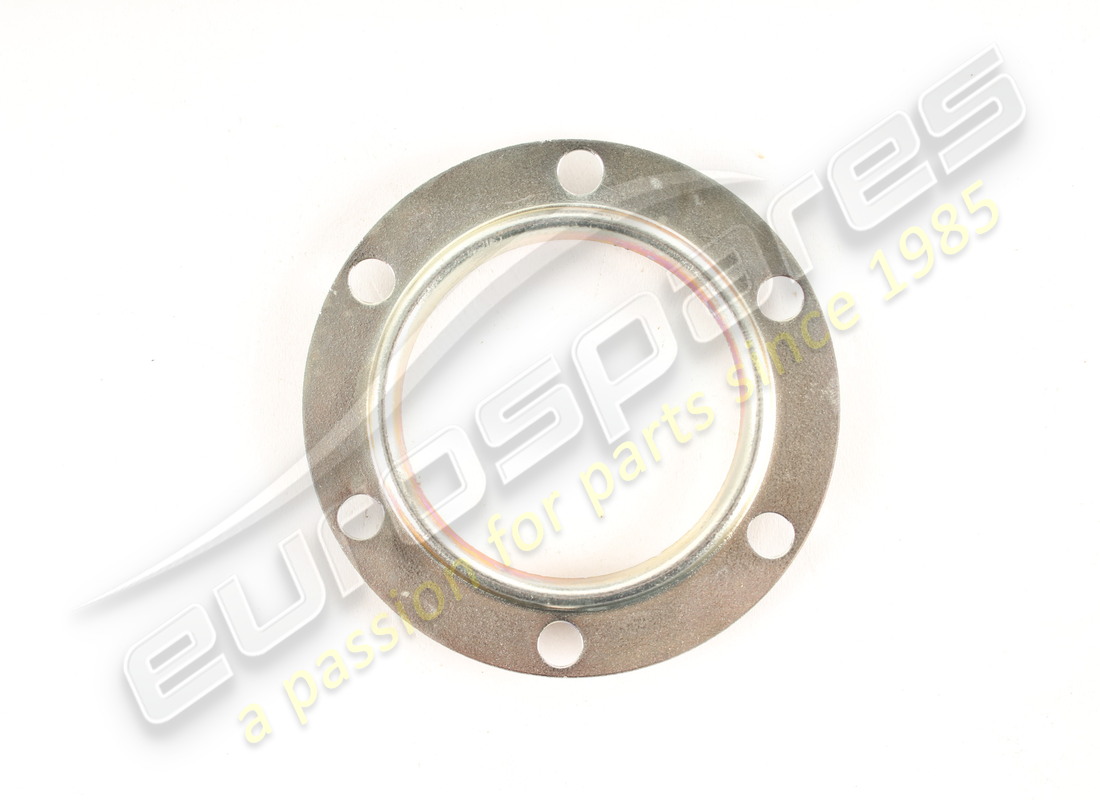

RING NUT
from £19.32
from £19.32
# 007
MPN: 101106
Key
from £4.55
from £4.55
This part replaces part number 94628
# 008
MPN: 112572
UPPER UNIVERSAL JOINT
from £210.00
from £210.00
This part replaces part number 108415 - and 1 more. Click to view details
# 009
MPN: 112573
PIN
from £31.90
from £31.90
This part replaces part number 108416
# 010
MPN: 112571
SPACER
from £5.57
from £5.57
# 011
MPN: 10519401
WASHER
from £0.71
from £0.71
# 012
MPN: 12574221
SELF LOCKING NUT
Supersession
Supersession
This part replaces part number 125519 which we have in stock - and 1 more. Click to view details
# 013
MPN: 106870
ADJUST NUT
from £9.52
from £9.52
# 014
MPN: 103343
LOWER UNIVERSAL JOINT
Option no. 108362
from £498.77
from £498.77
This part replaces part number 108362 - and 11 more. Click to view details
# 015
MPN: 105032
FIXING ITEMS
For joint no. 103343 (no spare)
from £30.71
from £30.71
This part replaces part number 740584 - and 2 more. Click to view details
# 016
MPN: 112091
BEARING
from £30.65
from £30.65
# 017
MPN: 11060276
SEEGER RING
from £0.50
from £0.50
# 018
MPN: 112092
SHIM, THICKNESS 0,2 MM.
Possible fitting
from £0.47
from £0.47
# 018
MPN: 112093
DITTO, THICKNESS 0,3 MM.
Possible fitting
from £0.56
from £0.56
# 018
MPN: 112094
DITTO, THICKNESS 0,4 MM.
Possible fitting
from £0.58
from £0.58
# 018
MPN: 112095
DITTO, THICKNESS 0,5 MM.
Possible fitting
from £0.59
from £0.59
# 019
MPN: 11067376
SEEGER RING
from £1.11
from £1.11
This part replaces part number 11067375
# 020
MPN: 112098
SHIM, THICKNESS 0,2 MM.
Possible fitting
from £0.47
from £0.47
# 020
MPN: 112099
DITTO, THICKNESS 0,3 MM.
Possible fitting
from £0.47
from £0.47
# 020
MPN: 112100
DITTO, THICKNESS 0,4 MM.
Possible fitting
from £0.47
from £0.47
# 020
MPN: 112101
DITTO, THICKNESS 0,5 MM.
Possible fitting
from £0.47
from £0.47
# 021
MPN: 119317

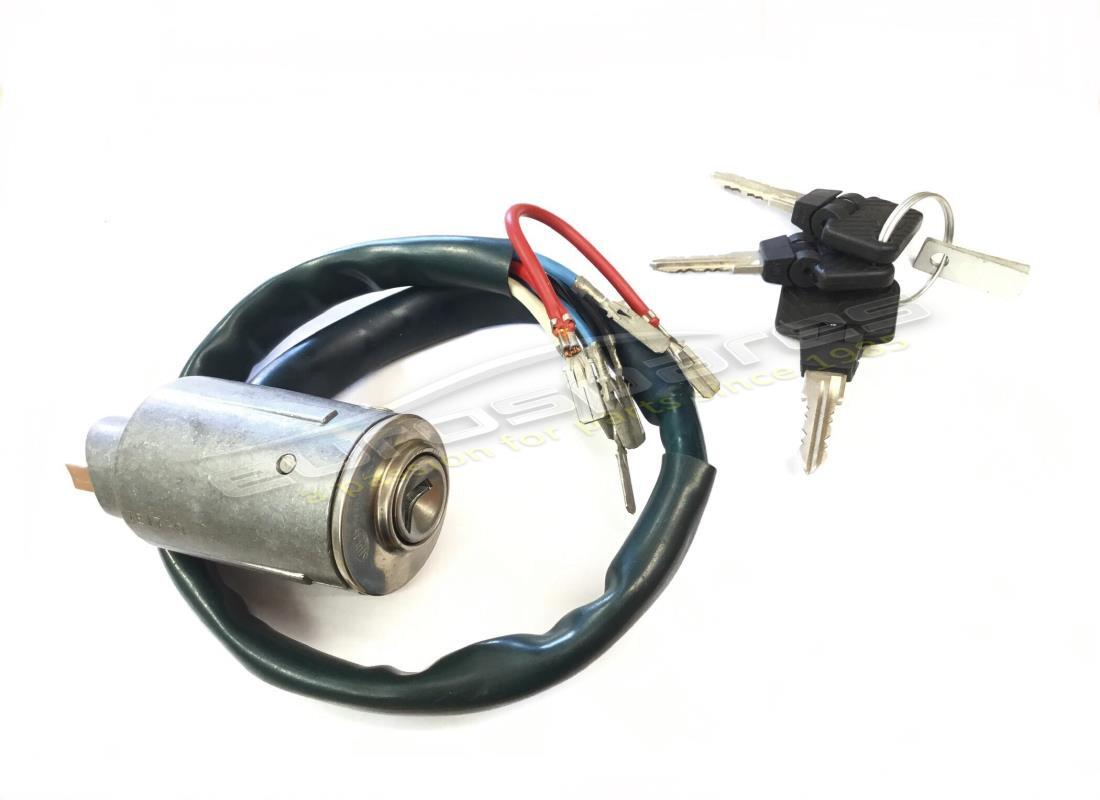

MAINSWITCH
from £1,486.96
from £1,486.96
# 022
MPN: 115975
ANTI THEFT DEVICE (LATE TYPE)
Supersession
Supersession
# 022
MPN: 131905
ANTITHEFT DEVICE
Valid for US and SA
This part replaces part number 130610 - and 1 more. Click to view details
# 023
MPN: 168045
SCREW
from £40.16
from £40.16
This part replaces part number 106615
# 024
MPN: 116096
ROLLER CAGE
from £4.61
from £4.61
# 025
MPN: 116097
RACE FOR ROLLER CAGE
from £15.50
from £15.50
# 026
MPN: 13398276
SPRING RING
from £0.47
from £0.47
# 027
MPN: 114057
COMMUTATOR HOUSING
from £51.75
from £51.75
# 028
MPN: 12640624
WASHER
from £0.53
from £0.53
This part replaces part number 12640601 - and 1 more. Click to view details
# 029
MPN: 13539921
STUD
from £1.08
from £1.08
# 030
MPN: 15896411
NUT
Supersession
Supersession
This part replaces part number 15896401
# 031
MPN: 12601171
WASHER
from £0.47
from £0.47
# 032
MPN: 13748910
HEADLESS CREW
from £0.68
from £0.68
# 033
MPN: 16102311
NUT
from £0.45
from £0.45
This part replaces part number 16102315
# 034
MPN: 12601371
WASHER
Supersession
Supersession
# 035
MPN: 112104
RIGHT BRACKET
from £13.60
from £13.60
# 036
MPN: 112105
LEFT BRACKET
from £13.60
from £13.60
# 037
MPN: 106425
PLATE
from £12.98
from £12.98
# 038
MPN: 10902121
BOLT
from £0.71
from £0.71
This part replaces part number 20146601
# 039
MPN: 15896214
NUT
from £0.54
from £0.54
This part replaces part number 15896211
# 040
MPN: 106850
WASHER
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 041
MPN: 16043221
BOLT
from £0.54
from £0.54
This part replaces part number 13842414 - and 1 more. Click to view details
# 042
MPN: 16100824
NUT
from £0.53
from £0.53
This part replaces part number 16100814 - and 1 more. Click to view details
# 043
MPN: 106852
WASHER
Supersession
Supersession
This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
# 044
MPN: 112106
BUSH
from £11.38
from £11.38
# 045
MPN: 16043821
SCREW
from £0.71
from £0.71
# 046
MPN: 16104411
NUT
from £0.53
from £0.53
# 047
MPN: 112107
LEVER
from £33.24
from £33.24
# 048
MPN: 112108
SPINDLE
from £6.99
from £6.99
# 049
MPN: 14163870
PIN
from £1.18
from £1.18
# 050
MPN: 16105111
NUT
from £0.47
from £0.47
# 051
MPN: 114865
SHIM
from £0.92
from £0.92
This part replaces part number 112109
# 052
MPN: 116480
LOWER STEERING SHAFT
from £210.82
from £210.82
# 053
MPN: 116481
ADJUSTER NUT
from £19.45
from £19.45
# 054
MPN: 116484
GUIDE TUBE
from £176.92
from £176.92
# 055
MPN: 116487
LOWER SHAFT, STEERING BOX
from £68.19
from £68.19
# 056
MPN: 116488
HUB FOR UPPER SHAFT
from £157.50
from £157.50
# 057
MPN: 10977521
SCREW
from £0.53
from £0.53
This part replaces part number 10977501 which we have in stock - and 1 more. Click to view details
# 058
MPN: 10615379
WASHER
from £0.47
from £0.47
# 059
MPN: 112102
SUPPORT
from £228.04
from £228.04
# 060
MPN: 123522
PINION EXTENSION
from £65.10
from £65.10
# 061
MPN: 125518
BOLT
from £0.99
from £0.99
This part replaces part number 103371
# 062
MPN: 125519
NUT
from £0.75
from £0.75
This part replaces part number 103373
# 063
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
# 064
MPN: 103292
FLANGE
from £6.75
from £6.75
This part replaces part number 660976 - and 6 more. Click to view details
# 065
MPN: 103297
BALL
from £19.56
from £19.56
This part replaces part number 740454 - and 3 more. Click to view details
# 066
MPN: 103370
BUSH
from £11.51
from £11.51
# 067
MPN: 119189
STEERING WHEEL HUB -FOR CABRIOLET
from £61.27
from £61.27
# 068
MPN: 123099
RING - FOR CABRIOLET
from £3.88
from £3.88
# 069
MPN: 119040
RING NUT, COVERING SCREWS
from £49.66
from £49.66
# 070
MPN: 112466
GUILDING BUSH
from £10.15
from £10.15
This part replaces part number 101325 - and 3 more. Click to view details
# 071
MPN: 106850
WASHER
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 072
MPN: 60659100
NUT
from £0.53
from £0.53
This part replaces part number 0-166-1-039-50 - and 1 more. Click to view details
# 073
MPN: 10902721
SCREW
from £0.47
from £0.47
# 074
MPN: 123516
SUPPORT
from £3.81
from £3.81
# 075
MPN: 12574211
NUT
from £0.71
from £0.71
# 076
MPN: 10519401
WASHER
from £0.71
from £0.71
# 077
MPN: 103549
RUBBER BUSH
from £0.71
from £0.71
# 078
MPN: 103550
BUSH
from £11.42
from £11.42
This part replaces part number 4130913
-part-diagram-044.webp "FERRARI MONDIAL 3.2 QV (1987) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI MONDIAL 3.2 QV (1987) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI MONDIAL 3.2 QV (1987) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI MONDIAL 3.2 QV (1987) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI MONDIAL 3.2 QV (1987) WHEELS PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI MONDIAL 3.2 QV (1987) ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-050.webp "FERRARI MONDIAL 3.2 QV (1987) ELECTRIC GENERATION SYSTEM PARTS DIAGRAM")
-part-diagram-051.webp "FERRARI MONDIAL 3.2 QV (1987) AIR CONDITIONING COMPRESSOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-052.webp "FERRARI MONDIAL 3.2 QV (1987) TOOL - KIT PARTS DIAGRAM")
-part-diagram-053.webp "FERRARI MONDIAL 3.2 QV (1987) PEDAL BOARD - CLUTCH CONTROL (FOR CAR WITHOUT ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-054.webp "FERRARI MONDIAL 3.2 QV (1987) PEDAL BOARD - CLUTCH CONTROL (FOR CAR WITH ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-055.webp "FERRARI MONDIAL 3.2 QV (1987) THROTTLE CONTROL AND BRAKE HYDRAULIC SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-056.webp "FERRARI MONDIAL 3.2 QV (1987) THROTTLE CONTROL AND BRAKE HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - OUTER ELEMENTS PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS WITHOUT ANTISKID PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS WITH ANTISKID PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS - CABRIOLET PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - 3.2 MONDIAL COUPE - USA - SA - AUS - CH87 - CH88 EXCLUDED PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - 3.2 MONDIAL COUPE USA - SA - AUS - CH87 - CH88 PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - CABRIOLET-USA - SA EXCLUDED PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - CABRIOLET PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI MONDIAL 3.2 QV (1987) FRONT COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI MONDIAL 3.2 QV (1987) ENGINE COMPARTMENT AND CARPETING PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI MONDIAL 3.2 QV (1987) DOORS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI MONDIAL 3.2 QV (1987) DOORS - CABRIOLET PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI MONDIAL 3.2 QV (1987) BUMPERS, MOULDINGS & LIGHTS PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI MONDIAL 3.2 QV (1987) GLASSES PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI MONDIAL 3.2 QV (1987) SEATS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI MONDIAL 3.2 QV (1987) SEATS - CABRIOLET PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI MONDIAL 3.2 QV (1987) ROOF, TUNNEL AND SAFETY BELTS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI MONDIAL 3.2 QV (1987) ROOF, TUNNEL AND SAFETY BELTS - CABRIOLET PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI MONDIAL 3.2 QV (1987) INSTRUMENTS PANEL PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI MONDIAL 3.2 QV (1987) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI MONDIAL 3.2 QV (1987) HEADLIGHTS LIFTING DEVICE AND HEADLIGHTS PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI MONDIAL 3.2 QV (1987) WINDSHIELD WIPER AND HORNS PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI MONDIAL 3.2 QV (1987) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-126.webp "FERRARI MONDIAL 3.2 QV (1987) ELECTRICAL BOARDS PARTS DIAGRAM")
-part-diagram-127.webp "FERRARI MONDIAL 3.2 QV (1987) SECONDARY ELECTRICAL BOARDS - CH88 EXCLUDED PARTS DIAGRAM")
-part-diagram-128.webp "FERRARI MONDIAL 3.2 QV (1987) SECONDARY ELECTRICAL BOARDS - FOR CH88 PARTS DIAGRAM")
-part-diagram-129.webp "FERRARI MONDIAL 3.2 QV (1987) HEATING SYSTEM PARTS DIAGRAM")
-part-diagram-130.webp "FERRARI MONDIAL 3.2 QV (1987) SUN ROOF - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-131.webp "FERRARI MONDIAL 3.2 QV (1987) TOP - CABRIOLET PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI MONDIAL 3.2 QV (1987) ENGINE - GEARBOX AND SUPPORTS PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI MONDIAL 3.2 QV (1987) CRANKCASE PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI MONDIAL 3.2 QV (1987) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI MONDIAL 3.2 QV (1987) FLYWHEEL AND CLUTCH HOUSING SPACER PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI MONDIAL 3.2 QV (1987) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI MONDIAL 3.2 QV (1987) CYLINDER HEAD (LEFT) PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI MONDIAL 3.2 QV (1987) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI MONDIAL 3.2 QV (1987) TIMING SYSTEM - CONTROLS PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI MONDIAL 3.2 QV (1987) AIR INJECTION (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI MONDIAL 3.2 QV (1987) AIR INJECTION (FOR CH VERSION) PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI MONDIAL 3.2 QV (1987) ANTIEVAPORATIVE EMISSION CONTROL SYSTEM (FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL PUMP AND PIPES (NOT FOR US VERSION) PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL PUMP AND PIPES (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL DISTRIBUTORS LINES (NOT FOR US AND CH87 VERSION) PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL DISTRIBUTORS LINES (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL DISTRIBUTORS LINES (FOR CH87 VERSION) PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI MONDIAL 3.2 QV (1987) AIR INTAKE AND MANIFOLDS PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI MONDIAL 3.2 QV (1987) THROTTLE HOUSING AND LINKAGE PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI MONDIAL 3.2 QV (1987) EXHAUST SYSTEM (NOT FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI MONDIAL 3.2 QV (1987) EXHAUST SYSTEM (FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI MONDIAL 3.2 QV (1987) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI MONDIAL 3.2 QV (1987) LUBRICATION SYSTEM PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI MONDIAL 3.2 QV (1987) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI MONDIAL 3.2 QV (1987) WATER PUMP AND PIPINGS PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI MONDIAL 3.2 QV (1987) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI MONDIAL 3.2 QV (1987) CLUTCH RELEASE CONTROL (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI MONDIAL 3.2 QV (1987) CLUTCH RELEASE CONTROL (FOR CAR WITH ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI MONDIAL 3.2 QV (1987) GEARBOX TRANSMISSION PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI MONDIAL 3.2 QV (1987) GEARBOX - DIFFERENTIAL HOUSING AND OIL SUMP PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI MONDIAL 3.2 QV (1987) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI MONDIAL 3.2 QV (1987) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI MONDIAL 3.2 QV (1987) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI MONDIAL 3.2 QV (1987) OUTSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI MONDIAL 3.2 QV (1987) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI MONDIAL 3.2 QV (1987) BRAKE HYDRAULIC SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI MONDIAL 3.2 QV (1987) BRAKE HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI MONDIAL 3.2 QV (1987) HYDRAULIC SYSTEM FOR ANTISKID PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI MONDIAL 3.2 QV (1987) BRAKE SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")

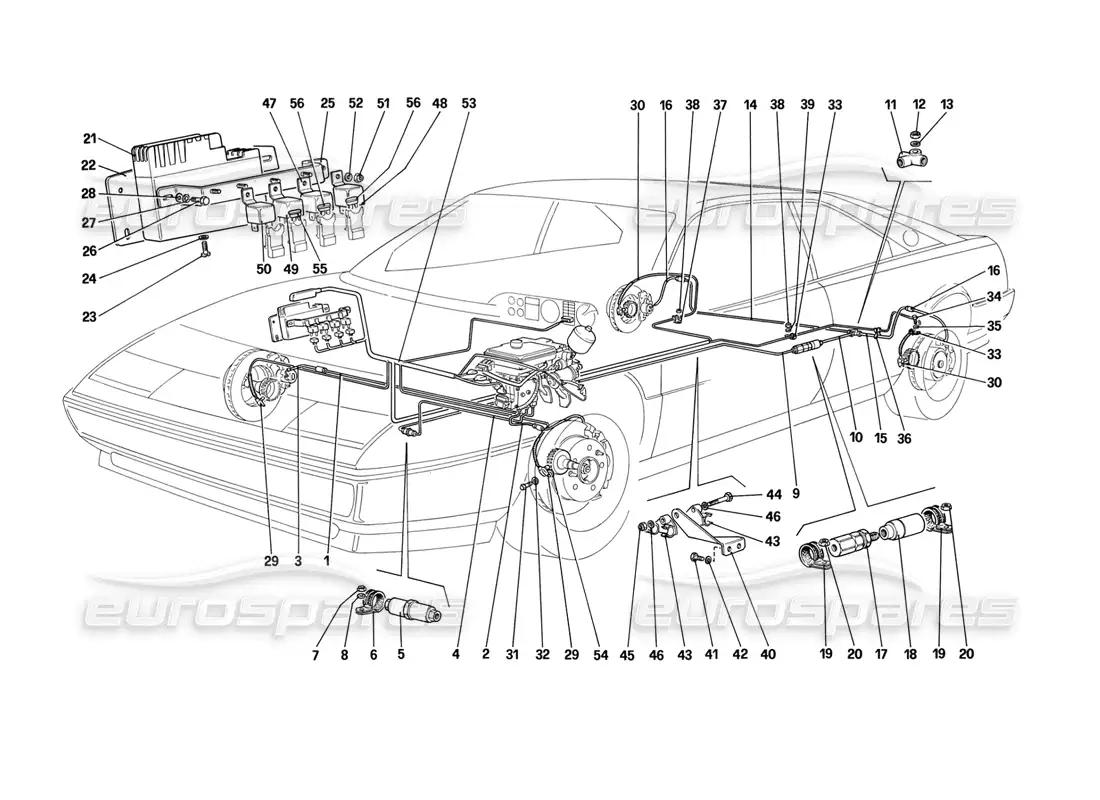

-part-diagram-039.webp "FERRARI MONDIAL 3.2 QV (1987) ANTI SKID SYSTEM PARTS DIAGRAM")

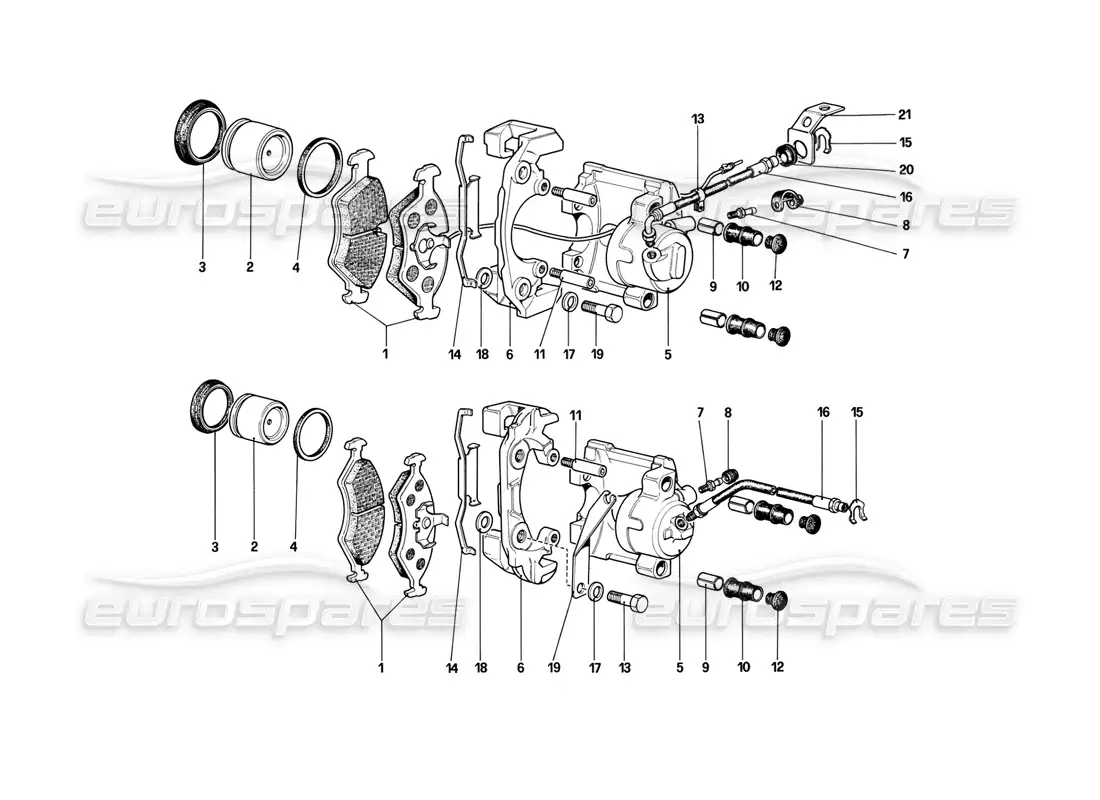

-part-diagram-040.webp "FERRARI MONDIAL 3.2 QV (1987) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")

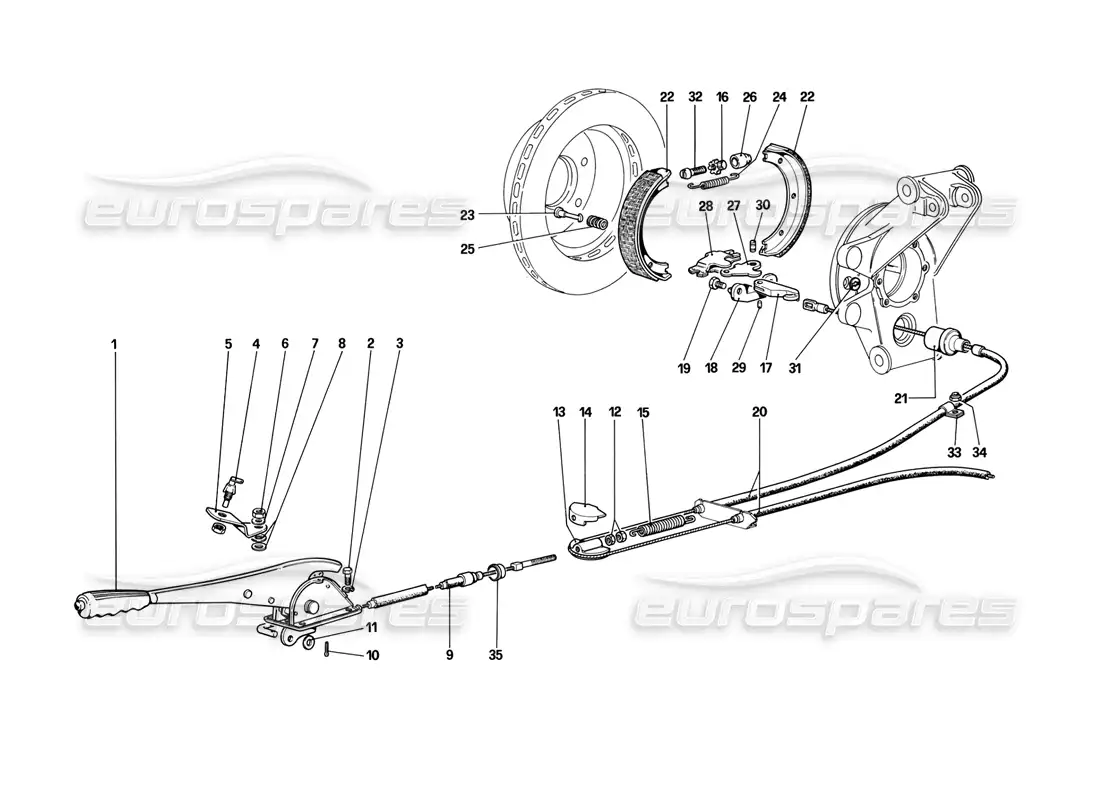

-part-diagram-041.webp "FERRARI MONDIAL 3.2 QV (1987) HAND - BRAKE CONTROL PARTS DIAGRAM")

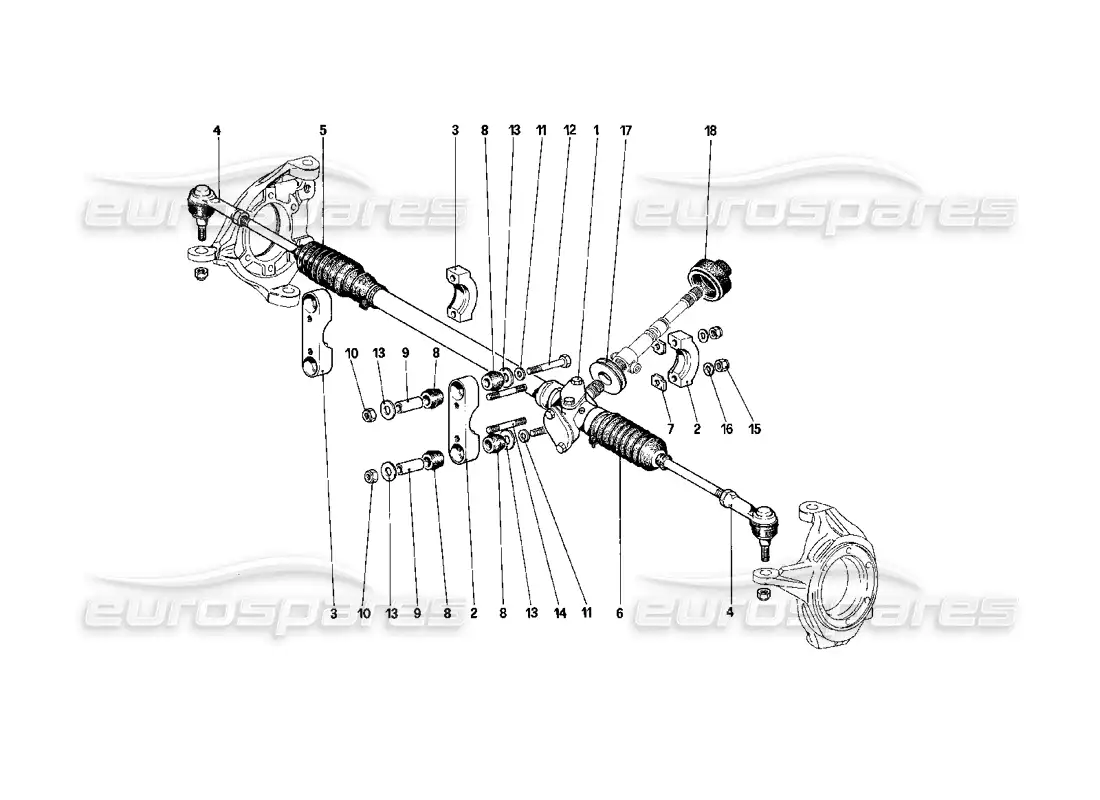

-part-diagram-042.webp "FERRARI MONDIAL 3.2 QV (1987) STEERING BOX AND LINKAGE PARTS DIAGRAM")
