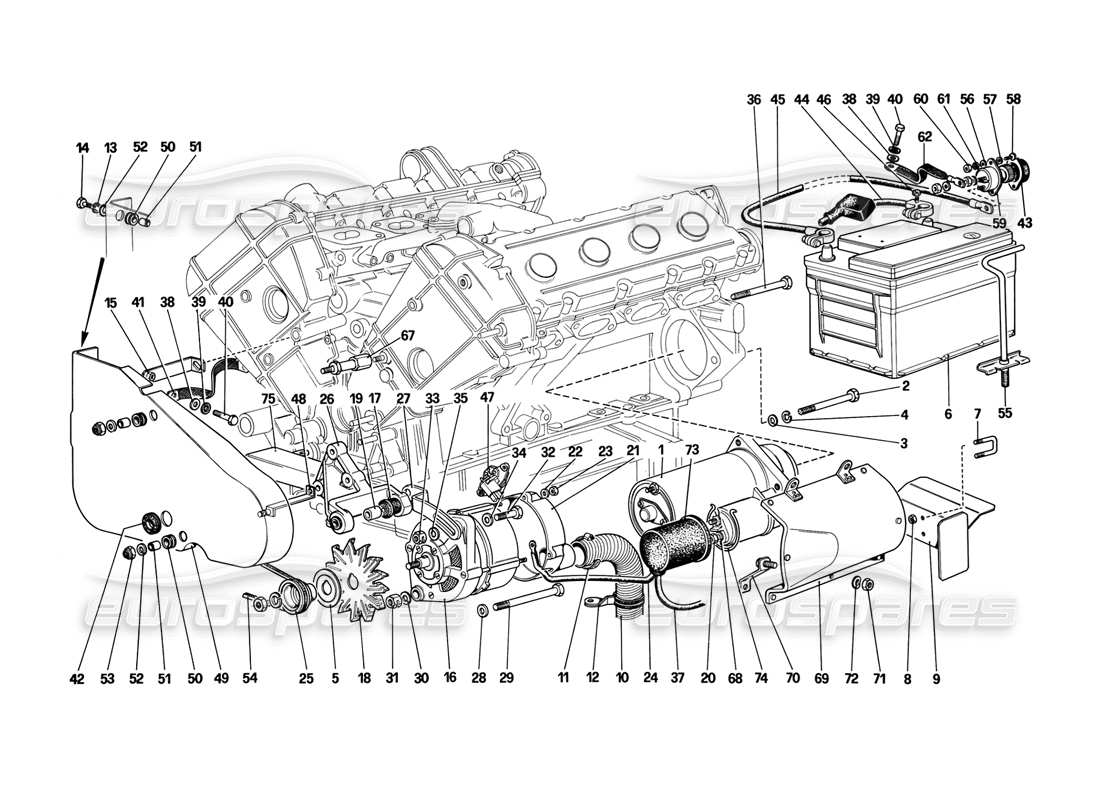

Ferrari Mondial 3.2 QV (1987) Electric Generation System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 120967
STARTER MOTOR (BOSCH)
from £809.47
from £809.47
# 002
MPN: 16045121
SCREW
from £10.73
from £10.73
# 003
MPN: 11198074
WASHER
from £0.54
from £0.54
This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
# 004
MPN: 10519621
WASHER
Supersession
Supersession
# 005
MPN: 114305
WASHER
from £1.10
from £1.10
# 006
MPN: 118060
BATTERY 12V - 66AH - 300A
Supersession
Supersession
# 006
MPN: 61933900
BATTERY 12V - 70AH - 380A
In alternative (Not for US)
Supersession
Supersession
This part replaces part number 118060 - and 1 more. Click to view details
# 007
MPN: 116591
FIXING PLATE
from £20.30
from £20.30
# 008
MPN: 12574011
NUT
from £0.53
from £0.53
# 009
MPN: 120451
METAL SHILED FOR PROTECTION
from £74.61
from £74.61
# 010
MPN: 121190
PIPE
from £115.50
from £115.50
This part replaces part number 121838
# 011
MPN: 12180090
CLAMP
Supersession
Supersession
This part replaces part number 102958
# 012
MPN: 121839
CLAMP
from £40.67
from £40.67
# 013
MPN: 106850
WASHER
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 014
MPN: 10902421
SCREW
from £0.54
from £0.54
# 015
MPN: 121621
BRACKET
from £9.70
from £9.70
# 016
MPN: 121761

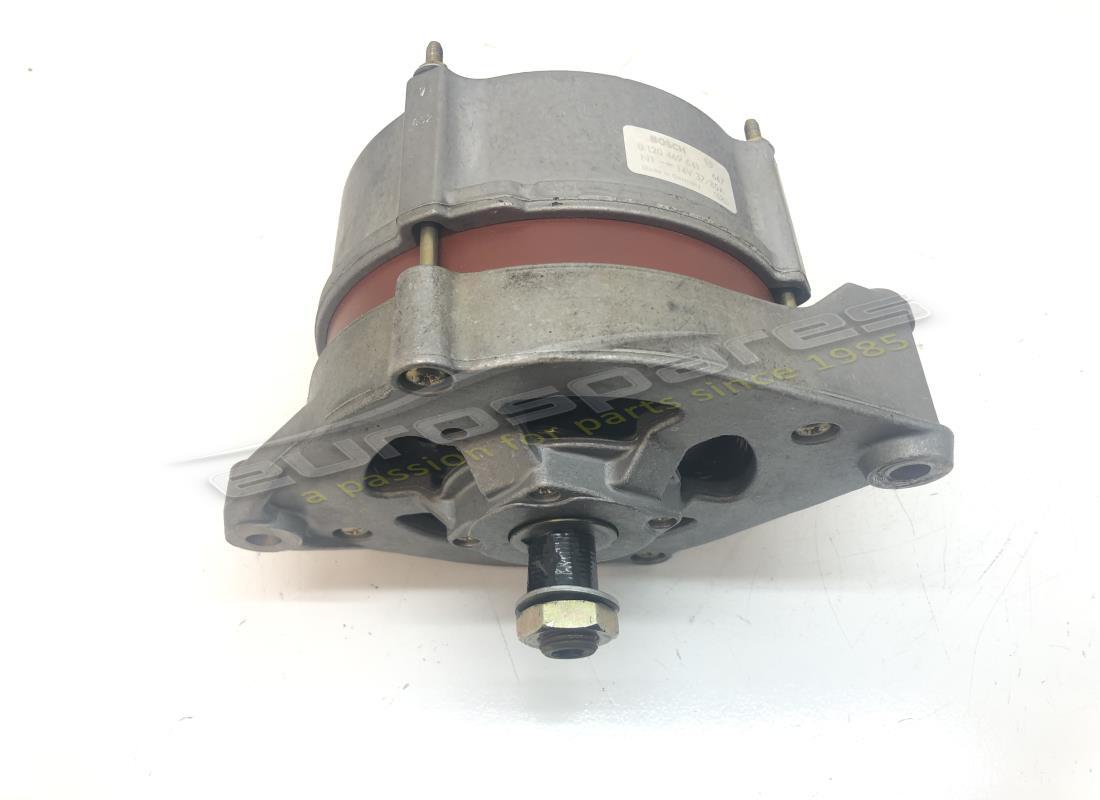

ALTERNATOR BOSCH 85A
from £772.94
from £772.94
This part replaces part number 117967 - and 3 more. Click to view details
# 017
MPN: 117969
ELASTIC BUSH
from £41.95
from £41.95
# 018
MPN: 118802

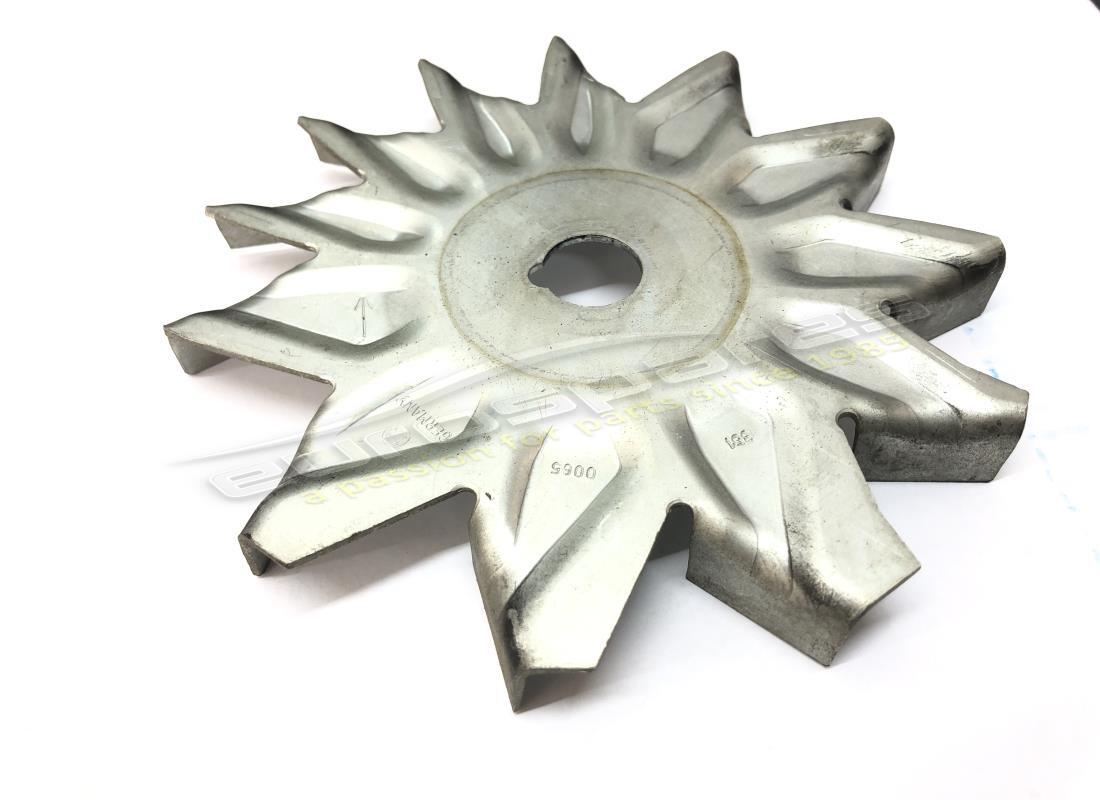

FAN
from £32.05
from £32.05
# 019
MPN: 124678
BUSH
from £4.30
from £4.30
# 020
MPN: 16100824
NUT
from £0.53
from £0.53
This part replaces part number 16100814 - and 1 more. Click to view details
# 021
MPN: 121837

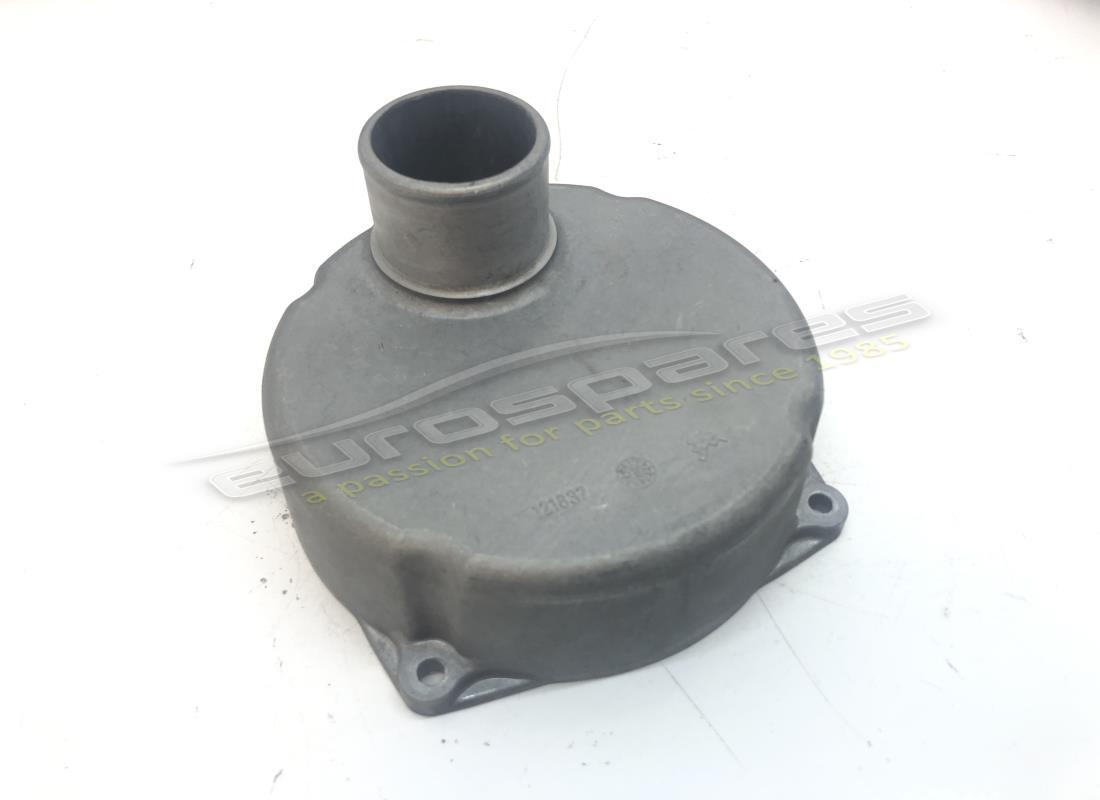

AIR CONVEYOR
from £81.14
from £81.14
# 022
MPN: 12601171
WASHER
from £0.47
from £0.47
# 023
MPN: 15896421
NUT
from £0.47
from £0.47
# 024
MPN: 121188
GENERATOR CONNECTING CABLES
from £108.88
from £108.88
# 025
MPN: 123708

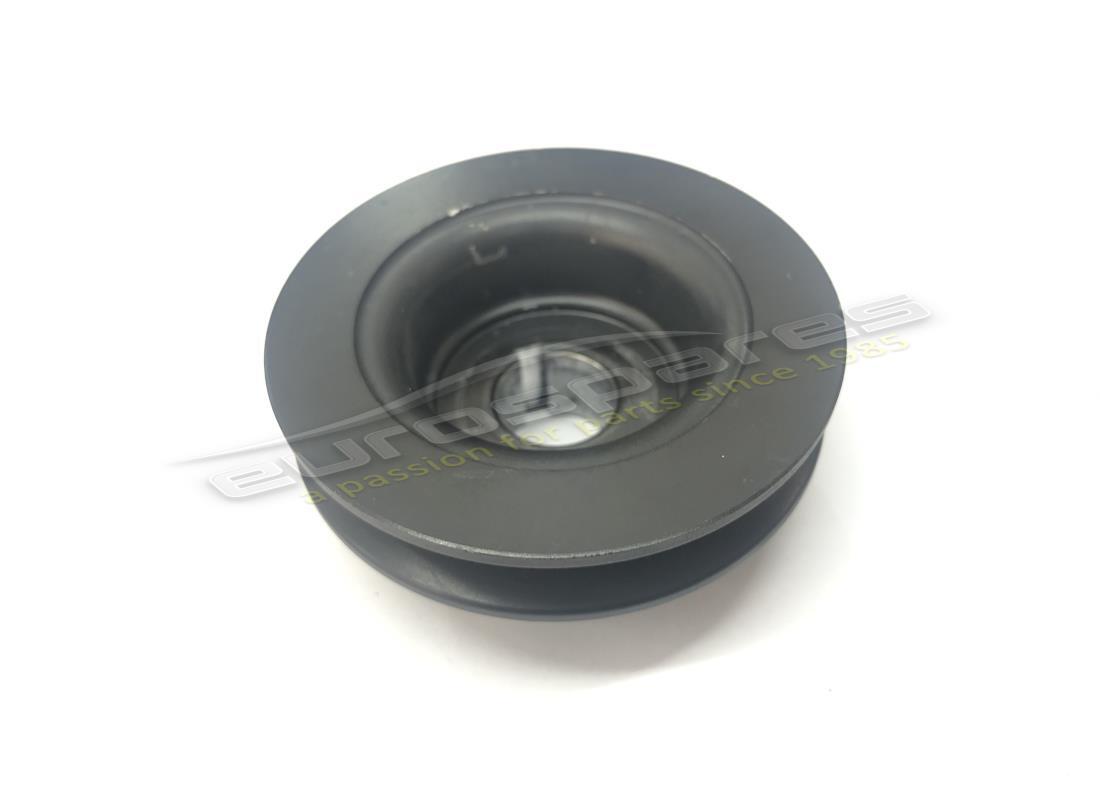

PULLEY
from £254.86
from £254.86
# 026
MPN: 124655
SUPPORT FOR ALTERNATOR
from £161.16
from £161.16
# 027
MPN: 117937
PLATE FOR REGULATION
from £27.88
from £27.88
# 028
MPN: 13550421
WASHER
from £0.47
from £0.47
# 029
MPN: 15972921
BOLT
from £1.62
from £1.62
# 030
MPN: 12601471
WASHER
Supersession
Supersession
# 031
MPN: 117702
NUT
from £2.05
from £2.05
# 032
MPN: 11343821
SCREW
from £0.64
from £0.64
# 033
MPN: 117702
NUT
from £2.05
from £2.05
# 034
MPN: 13550421
WASHER
from £0.47
from £0.47
# 035
MPN: 105391
WASHER
from £2.24
from £2.24
This part replaces part number 4124022
# 036
MPN: 116751
FIXING BOLT
from £2.52
from £2.52
# 037
MPN: 116415
CABLE STARTER TO ENGINE CONNECTOR
from £99.79
from £99.79
# 038
MPN: 10519601
WASHER
from £0.53
from £0.53
# 039
MPN: 10615679
WASHER
Supersession
Supersession
# 040
MPN: 16043121
BOLT
from £0.47
from £0.47
# 041
MPN: 155073
EARTH CABLE FOR ENGINE
from £7.67
from £7.67
This part replaces part number 115668
# 042
MPN: 40134108
PLUG
from £13.61
from £13.61
# 043
MPN: 119441
COVER FOR SWITCH
from £7.28
from £7.28
# 044
MPN: 116414
(B) CABLE FROM BATTERY TO CONNECTOR ENGINE SIDE
from £488.28
from £488.28
# 044
MPN: 123674
(A) CABLE FROM BATTERY TO CONNECTOR ENGINE SIDE
from £61.96
from £61.96
# 045
MPN: 116754
CABLE FROM BATTERY TO BATTERY SWITCH CONNECTOR OR TO GROUND
Supersession
Supersession
# 046
MPN: 12575411
NUT
For cable no. 116414
Supersession
Supersession
# 046
MPN: 16104411
NUT
For cable no. 123674
from £0.54
from £0.54
# 047
MPN: 121840
VOLTAGE REGULATOR
from £146.95
from £146.95
# 048
MPN: 123331
BRACKET
from £22.90
from £22.90
# 049
MPN: 124262
PROTECTION PLATE FOR ALTERNATOR BELT
from £132.22
from £132.22
# 050
MPN: 103549
RUBBER BUSH
from £0.68
from £0.68
# 051
MPN: 103550
BUSH
from £1.89
from £1.89
This part replaces part number 4130913
# 052
MPN: 12643724
WASHER
from £0.52
from £0.52
This part replaces part number 109684 - and 3 more. Click to view details
# 053
MPN: 12575411
NUT
Supersession
Supersession
# 054
MPN: 130493
CONTROL BELT ALTERNATOR
from £15.19
from £15.19
This part replaces part number 123709
# 055
MPN: 60641100
BOLT ASSEMBLY HOLDING BATTERY
from £180.72
from £180.72
# 056
MPN: 14498501
WASHER
from £0.53
from £0.53
This part replaces part number 14498521 which we have in stock
# 057
MPN: 12639401
WASHER
from £0.54
from £0.54
# 058
MPN: 10373411
SCREW
from £0.47
from £0.47
# 059
MPN: 139607
BATTERY SWITCH
Supersession
Supersession
# 060
MPN: 16101711
NUT
from £0.53
from £0.53
This part replaces part number 16101715
# 061
MPN: 10615171
WASHER
from £0.47
from £0.47
This part replaces part number 10615174
# 062
MPN: 116753
COPPER BRAID FROM BATTERY TERMINAL HEARTH CHASSIS
Supersession
Supersession
# 063
MPN: 119441
COVER FOR SWITCH
from £7.28
from £7.28
# 066
MPN: 12575411
NUT
Supersession
Supersession
# 067
MPN: 124263

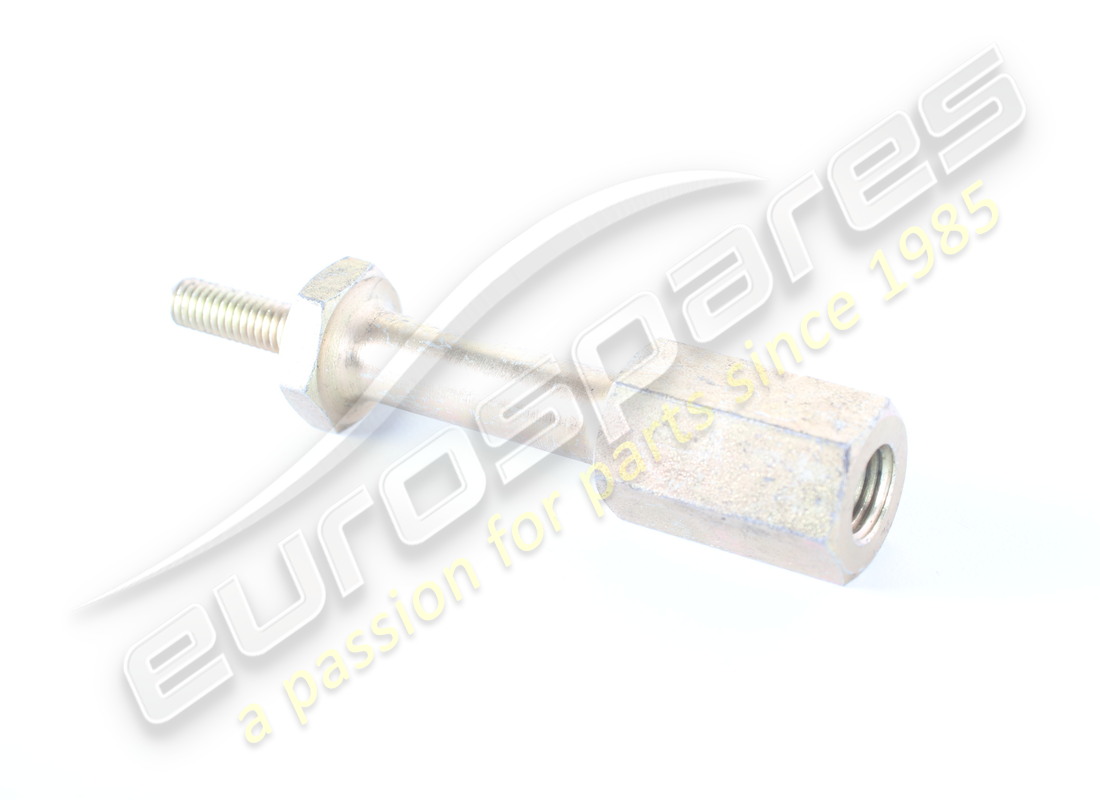

STUD BOLT
from £67.19
from £67.19
# 068
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 069
MPN: 107038
SHIELD PANEL
Not for US - CH - Cabriolet - SA
from £87.06
from £87.06
# 070
MPN: 107039
BRACKET
Not for US - CH - Cabriolet - SA
from £11.38
from £11.38
This part replaces part number 40361404
# 071
MPN: 15896214
NUT
Not for US - CH - Cabriolet - SA
from £0.54
from £0.54
This part replaces part number 15896211
# 072
MPN: 12643724
WASHER
Not for US - CH - Cabriolet - SA
from £0.53
from £0.53
This part replaces part number 109684 - and 3 more. Click to view details
# 073
MPN: 113990
COVER
from £91.56
from £91.56
This part replaces part number 106287
# 074
MPN: 105550
STOP RING
from £1.28
from £1.28
# 075
MPN: 108304
SHIELD PANEL
For US - SA
Supersession
Supersession
