102 - Body Shell - Inner Elements Without Antiskid

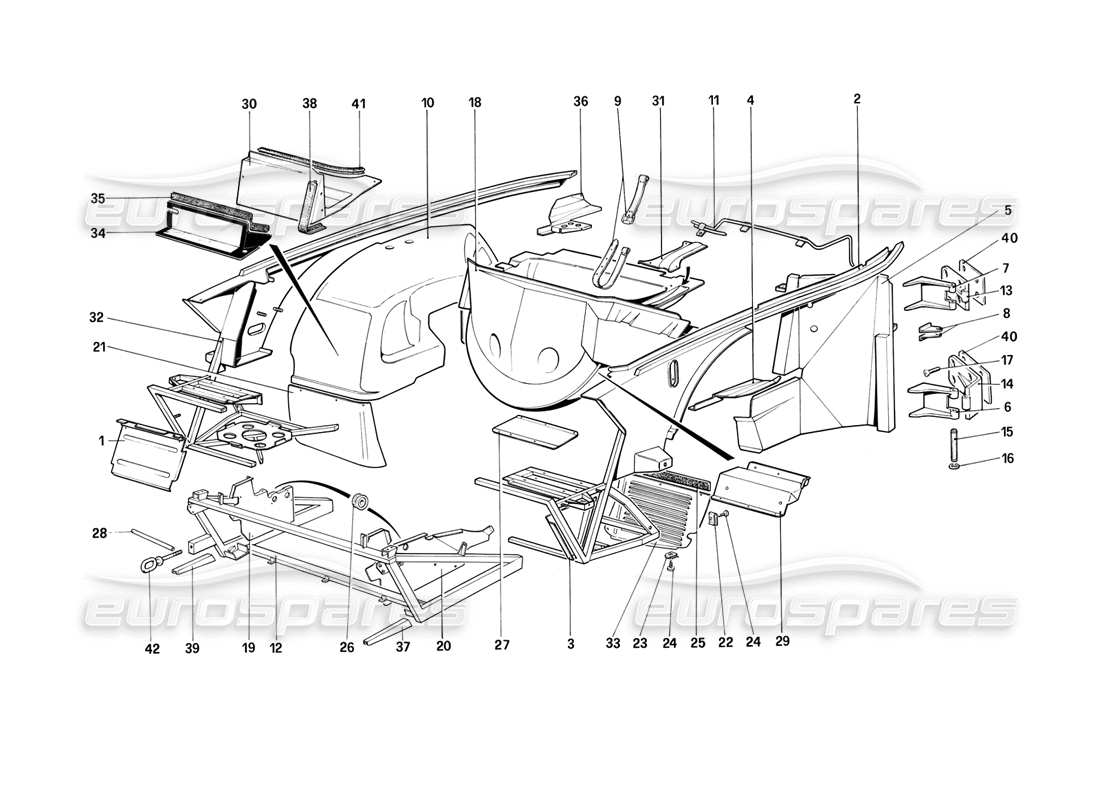

Ferrari Mondial 3.2 QV (1987) Body Shell - Inner Elements Without Antiskid Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 60640400
PROTECTION FOR BATTERY - NOT FOR US - SA
from £26.70
from £26.70
# 001
MPN: 60837300
PROTECTION FOR BATTERY - US - SA
from £11.86
from £11.86
# 002
MPN: 61698700
FRONT LH PANEL WORK
from £556.47
from £556.47
# 003
MPN: 61698300
LH SCHIELDPANEL FOR A.C. CONDENSER
from £17.97
from £17.97
This part replaces part number 60642800
# 004
MPN: 60902500
PLATE FOR LH WHEELHOUSE -LHD
from £15.17
from £15.17
# 004
MPN: 60903400
PLATE FOR L.H . WHEELHOUSE - RHD
from £37.71
from £37.71
# 005
MPN: 116646
FRONT LH SHIELD - LHD
from £61.42
from £61.42
# 005
MPN: 120459
FRONT RH SHIELD - LHD
from £168.78
from £168.78
# 005
MPN: 120465
FRONT RH SHIELD - RHD
from £277.41
from £277.41
# 005
MPN: 120468
FRONT LH SHIELD - RHD
from £180.29
from £180.29
# 006
MPN: 60547300
LOWER FIXED HINGE
from £20.95
from £20.95
# 006
MPN: 60547300/A
LOWER FIXED HINGE KIT
from £167.90
from £167.90
# 006
MPN: 61212800
(2) LOWER HINGE FOR LH DOOR
from £25.57
from £25.57
# 006
MPN: 61340800
(2) LOWER FOR RH DOOR
from £24.35
from £24.35
# 007
MPN: 60547000
UPPER HINGE FOR DOOR
from £8.93
from £8.93
# 007
MPN: 60547000/A
UPPER HINGE KIT
from £52.45
from £52.45
# 008
MPN: 60549100
BRACKET
from £1.61
from £1.61
This part replaces part number 60549200
# 009
MPN: 60717300
BELT - NOT FOR US - SA
from £150.00
from £150.00
This part replaces part number 61538300 - and 2 more. Click to view details
# 010
MPN: 60615700
WHELLHOUSE, FRONT RH
from £270.30
from £270.30
# 010
MPN: 60615800
WHELLHOUSE, FRONT LH
from £258.98
from £258.98
# 011
MPN: 60787400
CABLE DUCT FOR FRONT BONNET - LHD
from £16.07
from £16.07
# 011
MPN: 60896500
CABLE DUCT FOR FRONT BONNET- RHD
from £29.79
from £29.79
# 012
MPN: 126459
FRONT FRAME - NOT FOR US - SA - AUS
from £1,014.17
from £1,014.17
This part replaces part number 128012 - and 1 more. Click to view details
# 012
MPN: 126630
FRONT FRAME - US - SA
from £1,819.21
from £1,819.21
This part replaces part number 127453
# 012
MPN: 128012
FRONT FRAME - AUS
Supersession
Supersession
# 013
MPN: 60547200
UPPER MOBILE HINGE FOR DOOR
from £11.38
from £11.38
# 014
MPN: 60547500
LOWER MOBILE HINGE FOR DOOR
from £108.27
from £108.27
# 015
MPN: 60547600
PIN FOR DOOR HINGE
from £75.63
from £75.63
# 016
MPN: 16160976
SEEGER RING
from £0.48
from £0.48
# 017
MPN: 60127206
SCREW
from £0.47
from £0.47
# 018
MPN: 61030200
SPARE WHEEL CARRIER - US - SA
from £579.51
from £579.51
# 018
MPN: 61108500
SPARE WHEEL CARRIER - NOT FOR RHD - US - SA
from £338.66
from £338.66
# 018
MPN: 61834800
SPARE WHEEL CARRIER - RHD
from £711.22
from £711.22
This part replaces part number 60950100 which we have in stock
# 019
MPN: 61290400
RH SHIELDPANEL FOR RADIATOR
from £193.10
from £193.10
# 019
MPN: 61963900
RH SHIELDPANEL FOR RADIATOR
SA - US only - From 10-3-86
from £226.38
from £226.38
# 020
MPN: 60665800
LH SHIELDPANEL FOR RADIATOR
from £107.02
from £107.02
# 020
MPN: 61936800
LH SHIELDPANEL FOR RADIATOR
US - SA only - From 10-3-86
from £91.40
from £91.40
# 021
MPN: 61732200
RH FRONT GRAVEL GUARD
from £375.80
from £375.80
# 022
MPN: 60696300
UPPER CLIP
from £0.47
from £0.47
# 023
MPN: 60646900
LOWER CLIP
from £0.50
from £0.50
# 024
MPN: 15644101
SCREW
from £0.74
from £0.74
# 025
MPN: 60696500
GASKET
from £8.29
from £8.29
# 026
MPN: 10396480
FAIR-LAID
from £2.39
from £2.39
This part replaces part number 103516
# 027
MPN: 60643300
UPPER SHIELDPANEL FOR A.C. CONDENSER
from £33.44
from £33.44
# 028
MPN: 61894500
REINFORCEMENT
from £5.94
from £5.94
# 029
MPN: 60643500
UPPER REAR PANEL FOR A.C. CONDENSER
from £29.02
from £29.02
# 030
MPN: 60948500
FRONT SHIELDPANEL FOR WATER BAG
from £75.18
from £75.18
This part replaces part number 60629900 - and 1 more. Click to view details
# 031
MPN: 60741500
CABLE SHILDPANEL ON WHEEL CARRIER
from £34.87
from £34.87
# 032
MPN: 61698600
FRONT RH PANEL WORK
from £385.63
from £385.63
# 033
MPN: 61732300
GRAVEL, GUARD FRONT LH
from £121.78
from £121.78
# 034
MPN: 60641500
LID FOR BATTERY INSPECTION
from £840.27
from £840.27
# 035
MPN: 60641600
GASKET
Supersession
Supersession
# 036
MPN: 61088800
PLATE FOR FRONT RH WHEELHOUSE
from £44.15
from £44.15
# 037
MPN: 124975
LH BRACKET
Not for US- SA
Supersession
Supersession
# 037
MPN: 126614
LH BRACKET- US -SA
from £30.15
from £30.15
# 038
MPN: 60920500
GASKET
Supersession
Supersession
# 039
MPN: 124974
RH BRACKET
Not for US - SA
from £41.75
from £41.75
This part replaces part number 124975
# 039
MPN: 126614
RH BRACKET - US - SA
from £30.15
from £30.15
# 040
MPN: 60732000
ZINCOFIL
from £1.61
from £1.61
# 041
MPN: 60920200
GASKET
from £12.69
from £12.69
# 042
MPN: 60871100
EYEBOLT - US - SA
from £31.64
from £31.64
