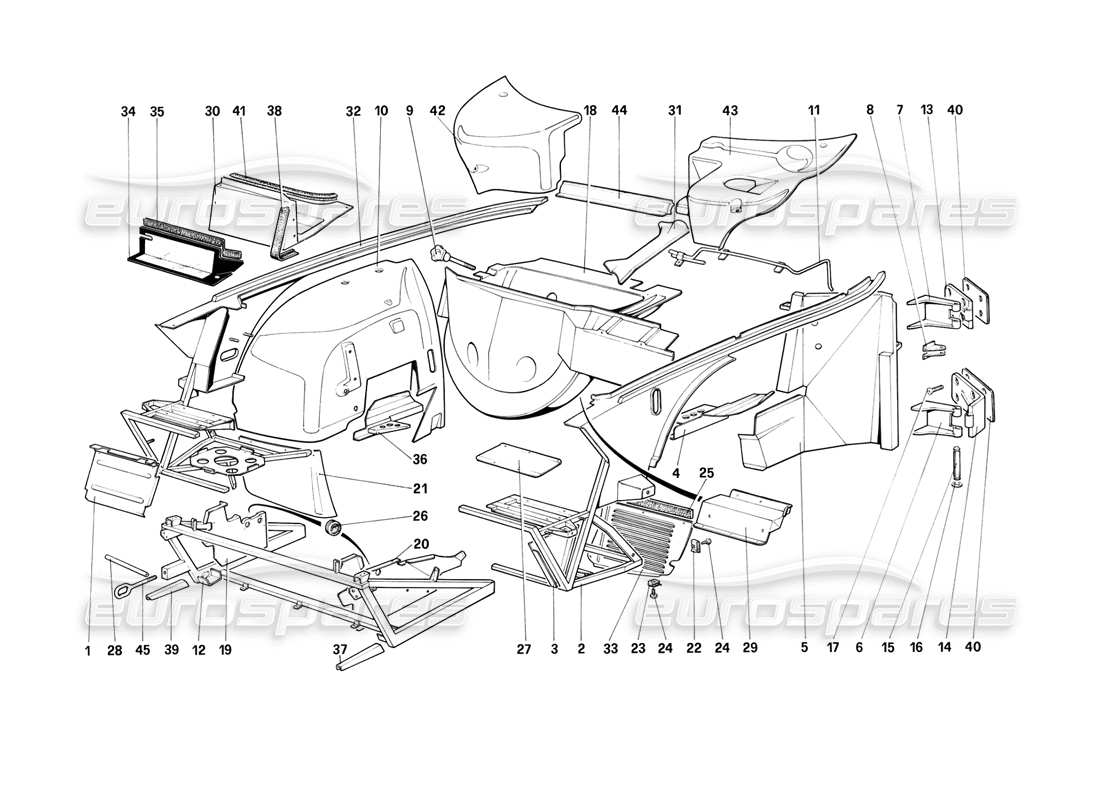

103 - Body Shell - Inner Elements With Antiskid
Ferrari Mondial 3.2 QV (1987) Body Shell - Inner Elements With Antiskid Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 60640400
PROTECTION FOR BATTERY
Not for US -SA
from £26.70
from £26.70
# 001
MPN: 60837300
PROTECTION FOR BATTERY - US - SA
from £11.86
from £11.86
# 002
MPN: 61698700
FRONT LH PANEL WORK
from £556.47
from £556.47
# 003
MPN: 61698300
LH SHIELDPANEL FOR A.C. CONDENSER
from £17.97
from £17.97
This part replaces part number 60642800
# 004
MPN: 60903400
SUPPORT LH WHEELHOUSE - RHD
from £37.71
from £37.71
# 004
MPN: 62401800
SUPPORT LH WHEELHOUSE - LHD
from £42.83
from £42.83
# 005
MPN: 116646
FRONT LH SHIELD - LHD
from £61.42
from £61.42
# 005
MPN: 120459
FRONT RH SHIELD - LHD
from £168.78
from £168.78
# 005
MPN: 120465
FRONT RH SHIELD - RHD
from £277.41
from £277.41
# 005
MPN: 120468
FRONT LH SHIELD - RHD
from £180.29
from £180.29
# 006
MPN: 60547300
LOWER FIXED HINGE
from £20.95
from £20.95
# 006
MPN: 60547300/A
LOWER FIXED HINGE KIT
from £167.90
from £167.90
# 006
MPN: 61212800
(2) LOWER HINGE FOR LH DOOR
from £25.57
from £25.57
# 006
MPN: 61340800
(2) LOWER HINGE FOR RH DOOR
from £24.35
from £24.35
# 007
MPN: 60547000
UPPER HINGE FOR DOOR
from £8.93
from £8.93
# 007
MPN: 60547000/A
UPPER HINGE KIT
from £52.45
from £52.45
# 008
MPN: 60549100
BRACKET
from £1.61
from £1.61
This part replaces part number 60549200
# 009
MPN: 61609400
PIN
from £128.55
from £128.55
This part replaces part number 60276300
# 010
MPN: 61994100
FRONT RH WHEELHOUSE
from £457.70
from £457.70
# 010
MPN: 61994200
FRONT LH WHEELHOUSE
from £419.85
from £419.85
# 011
MPN: 60787400
CABLE DUCT FOR FRONT BONNET - LHD
from £16.07
from £16.07
# 011
MPN: 60896500
CABLE DUCT FOR FRONT BONNET - RHD
from £29.79
from £29.79
# 012

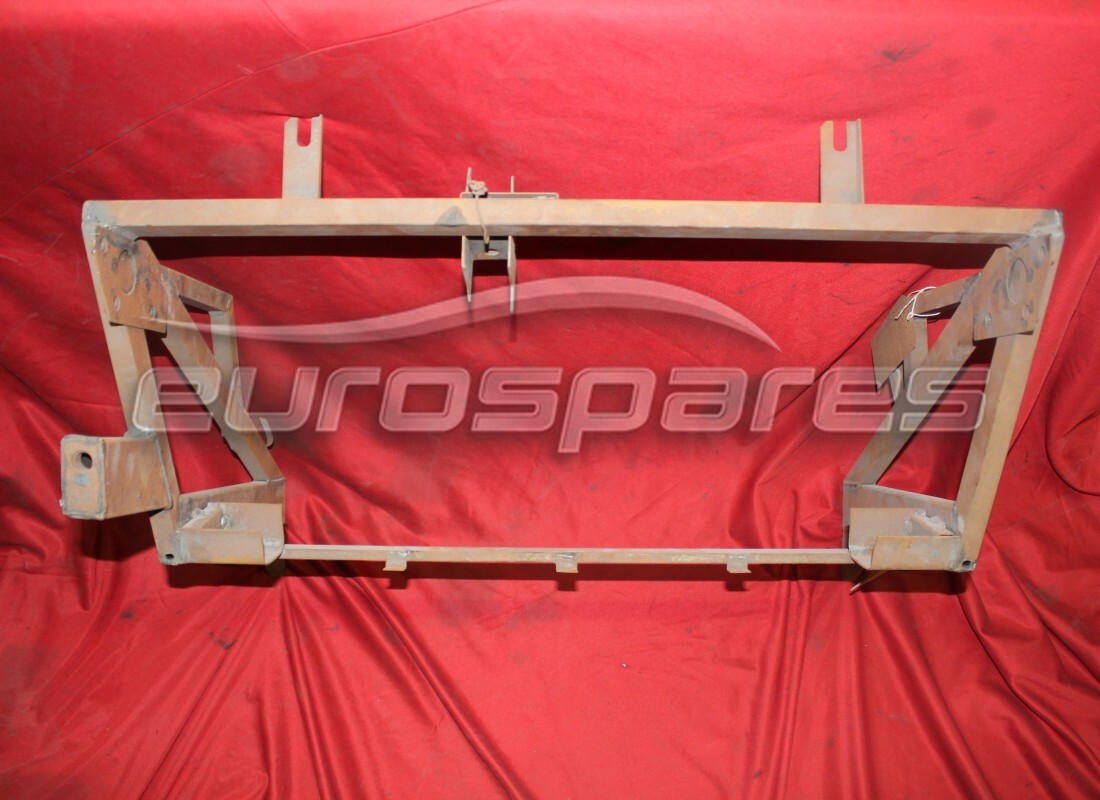

MPN: 126459
FRONT FRAME
Not for US - SA - RHD
from £1,014.17
from £1,014.17
This part replaces part number 128012 - and 1 more. Click to view details
# 012
MPN: 126630
FRONT FRAME - US - SA
from £1,819.21
from £1,819.21
This part replaces part number 127453
# 012
MPN: 128012
FRONT FRAME - RHD
Supersession
Supersession
# 013
MPN: 60547200
UPPER MOBILE HINGE FOR DOOR
from £11.38
from £11.38
# 014
MPN: 60547500
LOWER MOBILE HINGE FOR DOOR
from £108.27
from £108.27
# 015
MPN: 60547600
PIN FOR DOOR HINGE
from £75.63
from £75.63
# 016
MPN: 16160976
SEEGER RING
from £0.48
from £0.48
# 017
MPN: 60127206
SCREW
from £0.47
from £0.47
# 018
MPN: 62331900
SPARE WHEEL CARRIER - LHD
from £611.63
from £611.63
# 018
MPN: 62381100
SPARE WHEEL CARRIER - RHD
from £567.16
from £567.16

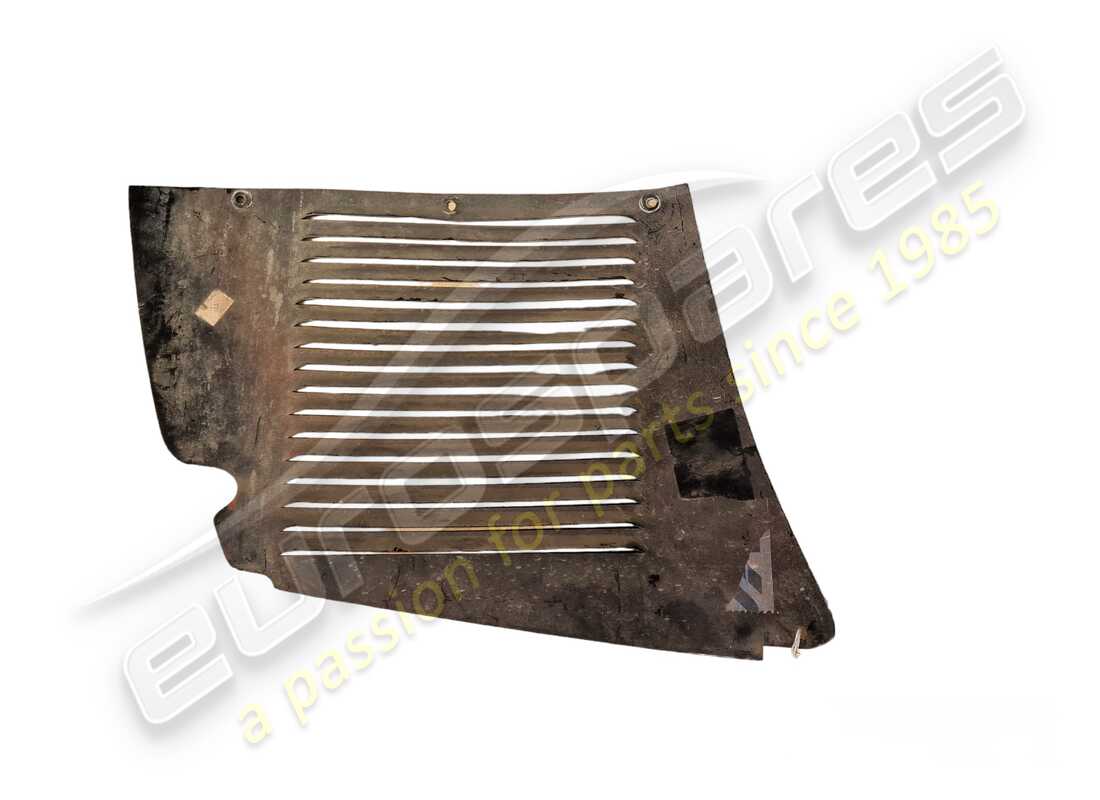

# 019
MPN: 61290400
RH SHIELDPANEL FOR RADIATOR
Not for US - SA
from £193.10
from £193.10
# 019
MPN: 61963900
RH SHIELPANEL FOR RADIATORE - US - SA
from £226.38
from £226.38
# 020
MPN: 60665800
LH SHIELDPANEL FOR RADIATOR
Not for US - SA
from £107.02
from £107.02
# 020
MPN: 61936800
LH SHIELDPANEL FOR RADIATOR - US - SA
from £91.40
from £91.40
# 021
MPN: 61732200
RH FRONT GRAVEL GUARD
from £375.80
from £375.80
# 022
MPN: 60696300
UPPER CLIP
from £0.47
from £0.47
# 023
MPN: 60646900
LOWER CLIP
from £0.52
from £0.52
# 024
MPN: 15644101
SCREW
from £0.74
from £0.74
# 025
MPN: 60696500
GASKET
from £8.29
from £8.29
# 026
MPN: 10396480
FAIR-LAID
from £2.42
from £2.42
This part replaces part number 103516
# 027
MPN: 60643300
UPPER SHIELDPANEL FOR A.C. CONDENSER
from £33.44
from £33.44

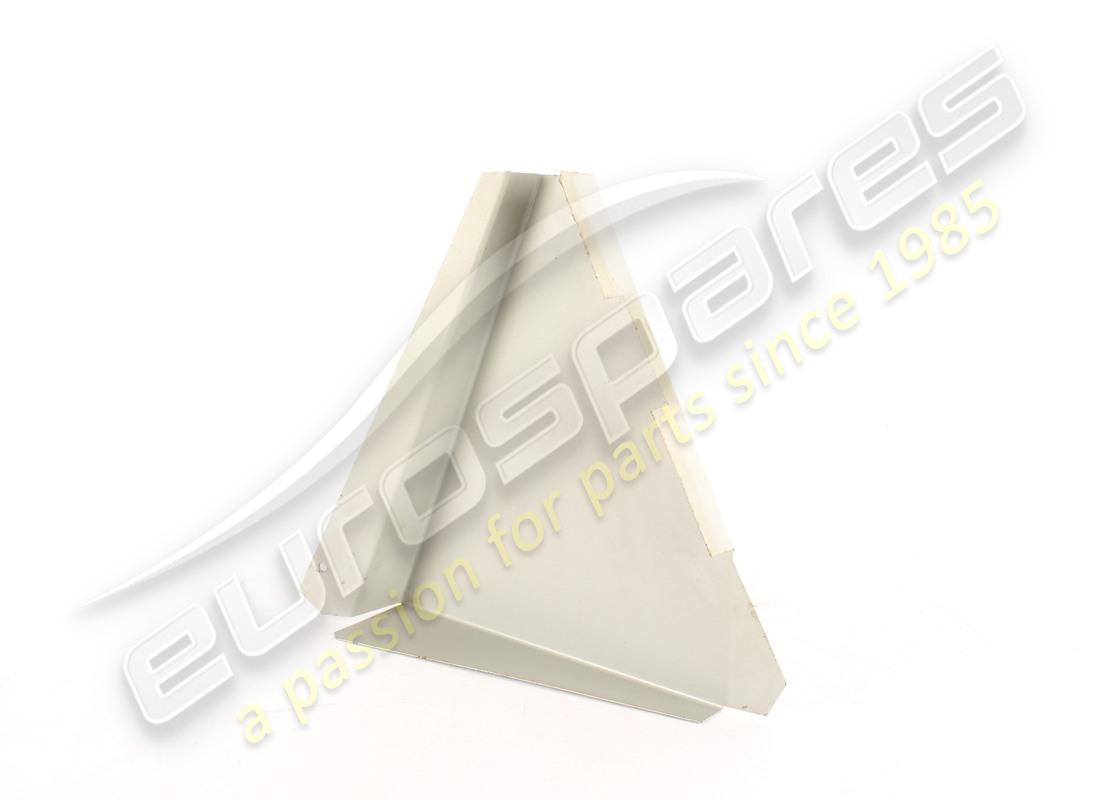

# 028
MPN: 61894500
REINFORCEMENT
from £5.94
from £5.94
# 029
MPN: 60643500
UPPER REAR PANEL FOR A.C. CONDENSER
from £29.02
from £29.02
# 030
MPN: 60948500
FRONT SHIELDPANEL FOR WATER BAG
from £41.35
from £41.35
This part replaces part number 60629900 - and 3 more. Click to view details
# 031
MPN: 61994400
PROTECTION FOR CABLES - LHD
from £44.71
from £44.71
# 031
MPN: 62378400
PROTECTION FOR CABLES - RHD
from £53.51
from £53.51
# 032
MPN: 61698600
FRONT RH PANEL WORK
from £385.63
from £385.63
# 033
MPN: 61732300
GRAVEL, GUARD FRONT LH
from £121.78
from £121.78
# 034
MPN: 60641500
LID FOR BATTERY INSPECTION
from £840.27
from £840.27
# 035
MPN: 60641600
GASKET
Supersession
Supersession
# 036
MPN: 61088800
SUPPORT RH WHEELHOUSE - LHD
from £44.15
from £44.15
# 036
MPN: 62401700
SUPPORT RH WHEELHOUSE - RHD
from £36.91
from £36.91
# 037
MPN: 124975
LH BRACKET
Not for US - SA
Supersession
Supersession
# 037
MPN: 126614
LH BRACKET - US - SA
from £30.15
from £30.15
# 038
MPN: 60920500
GASKET
Supersession
Supersession
# 039
MPN: 124974
RH BRACKET
Not for US - SA
from £41.75
from £41.75
This part replaces part number 124975
# 039
MPN: 126614
RH BRACKET - US - SA
from £30.15
from £30.15
# 040
MPN: 60732000
ZINCOFIL
from £1.61
from £1.61
# 041
MPN: 60920200
GASKET
from £12.69
from £12.69
# 042
MPN: 61994000
COVER - LHD
from £125.35
from £125.35
# 042
MPN: 62334400
COVER - RHD
from £172.06
from £172.06
# 043
MPN: 62344600
COVER - LHD
from £180.60
from £180.60
# 043
MPN: 62344700
COVER - RHD
from £197.58
from £197.58
# 044
MPN: 62377500
COVER - LHD
from £30.28
from £30.28
# 044
MPN: 62380400
COVER - RHD
from £25.47
from £25.47
# 045
MPN: 128705
ANCHORAGE
from £42.83
from £42.83
-part-diagram-104.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS - CABRIOLET PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - 3.2 MONDIAL COUPE - USA - SA - AUS - CH87 - CH88 EXCLUDED PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - 3.2 MONDIAL COUPE USA - SA - AUS - CH87 - CH88 PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - CABRIOLET-USA - SA EXCLUDED PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - CABRIOLET PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI MONDIAL 3.2 QV (1987) FRONT COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI MONDIAL 3.2 QV (1987) ENGINE COMPARTMENT AND CARPETING PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI MONDIAL 3.2 QV (1987) DOORS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI MONDIAL 3.2 QV (1987) DOORS - CABRIOLET PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI MONDIAL 3.2 QV (1987) BUMPERS, MOULDINGS & LIGHTS PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI MONDIAL 3.2 QV (1987) GLASSES PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI MONDIAL 3.2 QV (1987) SEATS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI MONDIAL 3.2 QV (1987) SEATS - CABRIOLET PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI MONDIAL 3.2 QV (1987) ROOF, TUNNEL AND SAFETY BELTS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI MONDIAL 3.2 QV (1987) ROOF, TUNNEL AND SAFETY BELTS - CABRIOLET PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI MONDIAL 3.2 QV (1987) INSTRUMENTS PANEL PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI MONDIAL 3.2 QV (1987) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI MONDIAL 3.2 QV (1987) HEADLIGHTS LIFTING DEVICE AND HEADLIGHTS PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI MONDIAL 3.2 QV (1987) WINDSHIELD WIPER AND HORNS PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI MONDIAL 3.2 QV (1987) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-126.webp "FERRARI MONDIAL 3.2 QV (1987) ELECTRICAL BOARDS PARTS DIAGRAM")
-part-diagram-127.webp "FERRARI MONDIAL 3.2 QV (1987) SECONDARY ELECTRICAL BOARDS - CH88 EXCLUDED PARTS DIAGRAM")
-part-diagram-128.webp "FERRARI MONDIAL 3.2 QV (1987) SECONDARY ELECTRICAL BOARDS - FOR CH88 PARTS DIAGRAM")
-part-diagram-129.webp "FERRARI MONDIAL 3.2 QV (1987) HEATING SYSTEM PARTS DIAGRAM")
-part-diagram-130.webp "FERRARI MONDIAL 3.2 QV (1987) SUN ROOF - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-131.webp "FERRARI MONDIAL 3.2 QV (1987) TOP - CABRIOLET PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI MONDIAL 3.2 QV (1987) ENGINE - GEARBOX AND SUPPORTS PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI MONDIAL 3.2 QV (1987) CRANKCASE PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI MONDIAL 3.2 QV (1987) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI MONDIAL 3.2 QV (1987) FLYWHEEL AND CLUTCH HOUSING SPACER PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI MONDIAL 3.2 QV (1987) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI MONDIAL 3.2 QV (1987) CYLINDER HEAD (LEFT) PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI MONDIAL 3.2 QV (1987) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI MONDIAL 3.2 QV (1987) TIMING SYSTEM - CONTROLS PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI MONDIAL 3.2 QV (1987) AIR INJECTION (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI MONDIAL 3.2 QV (1987) AIR INJECTION (FOR CH VERSION) PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI MONDIAL 3.2 QV (1987) ANTIEVAPORATIVE EMISSION CONTROL SYSTEM (FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL PUMP AND PIPES (NOT FOR US VERSION) PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL PUMP AND PIPES (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL DISTRIBUTORS LINES (NOT FOR US AND CH87 VERSION) PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL DISTRIBUTORS LINES (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL DISTRIBUTORS LINES (FOR CH87 VERSION) PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI MONDIAL 3.2 QV (1987) AIR INTAKE AND MANIFOLDS PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI MONDIAL 3.2 QV (1987) THROTTLE HOUSING AND LINKAGE PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI MONDIAL 3.2 QV (1987) EXHAUST SYSTEM (NOT FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI MONDIAL 3.2 QV (1987) EXHAUST SYSTEM (FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI MONDIAL 3.2 QV (1987) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI MONDIAL 3.2 QV (1987) LUBRICATION SYSTEM PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI MONDIAL 3.2 QV (1987) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI MONDIAL 3.2 QV (1987) WATER PUMP AND PIPINGS PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI MONDIAL 3.2 QV (1987) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI MONDIAL 3.2 QV (1987) CLUTCH RELEASE CONTROL (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI MONDIAL 3.2 QV (1987) CLUTCH RELEASE CONTROL (FOR CAR WITH ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI MONDIAL 3.2 QV (1987) GEARBOX TRANSMISSION PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI MONDIAL 3.2 QV (1987) GEARBOX - DIFFERENTIAL HOUSING AND OIL SUMP PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI MONDIAL 3.2 QV (1987) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI MONDIAL 3.2 QV (1987) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI MONDIAL 3.2 QV (1987) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI MONDIAL 3.2 QV (1987) OUTSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI MONDIAL 3.2 QV (1987) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI MONDIAL 3.2 QV (1987) BRAKE HYDRAULIC SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI MONDIAL 3.2 QV (1987) BRAKE HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI MONDIAL 3.2 QV (1987) HYDRAULIC SYSTEM FOR ANTISKID PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI MONDIAL 3.2 QV (1987) BRAKE SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI MONDIAL 3.2 QV (1987) ANTI SKID SYSTEM PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI MONDIAL 3.2 QV (1987) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI MONDIAL 3.2 QV (1987) HAND - BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI MONDIAL 3.2 QV (1987) STEERING BOX AND LINKAGE PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI MONDIAL 3.2 QV (1987) STEERING COLUMM PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI MONDIAL 3.2 QV (1987) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI MONDIAL 3.2 QV (1987) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI MONDIAL 3.2 QV (1987) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI MONDIAL 3.2 QV (1987) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI MONDIAL 3.2 QV (1987) WHEELS PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI MONDIAL 3.2 QV (1987) ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-050.webp "FERRARI MONDIAL 3.2 QV (1987) ELECTRIC GENERATION SYSTEM PARTS DIAGRAM")
-part-diagram-051.webp "FERRARI MONDIAL 3.2 QV (1987) AIR CONDITIONING COMPRESSOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-052.webp "FERRARI MONDIAL 3.2 QV (1987) TOOL - KIT PARTS DIAGRAM")
-part-diagram-053.webp "FERRARI MONDIAL 3.2 QV (1987) PEDAL BOARD - CLUTCH CONTROL (FOR CAR WITHOUT ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-054.webp "FERRARI MONDIAL 3.2 QV (1987) PEDAL BOARD - CLUTCH CONTROL (FOR CAR WITH ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-055.webp "FERRARI MONDIAL 3.2 QV (1987) THROTTLE CONTROL AND BRAKE HYDRAULIC SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-056.webp "FERRARI MONDIAL 3.2 QV (1987) THROTTLE CONTROL AND BRAKE HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - OUTER ELEMENTS PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS WITHOUT ANTISKID PARTS DIAGRAM")
